| Info | |
|---|---|
| order code |
41930100
|
| product link | |
| EAN |
4026397620832
|
| Product Name |

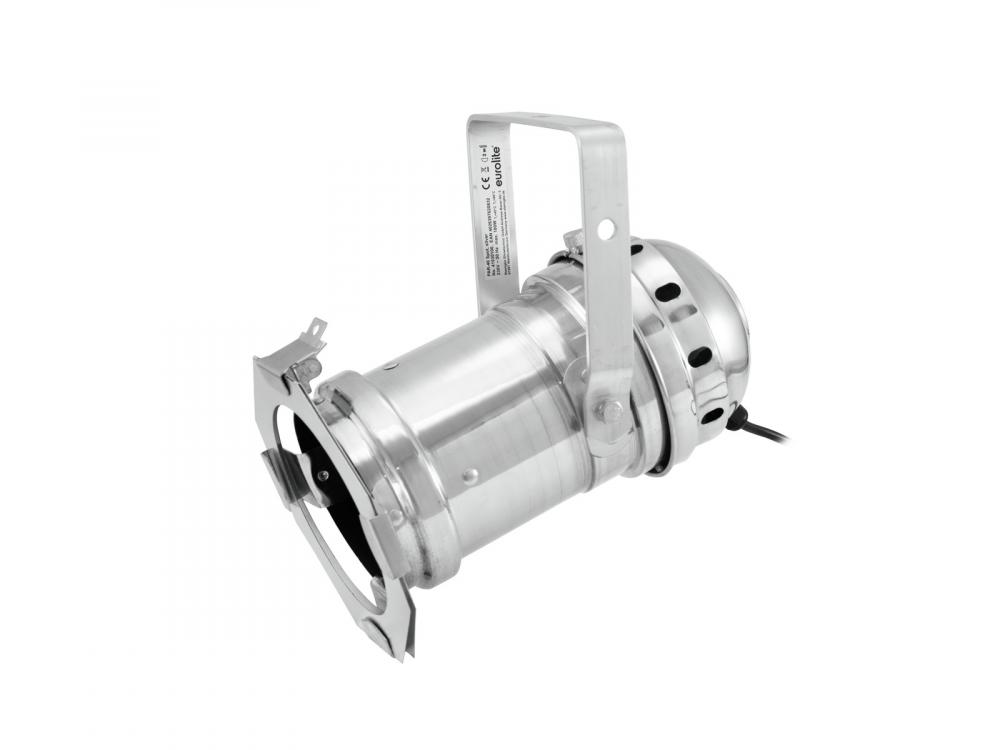

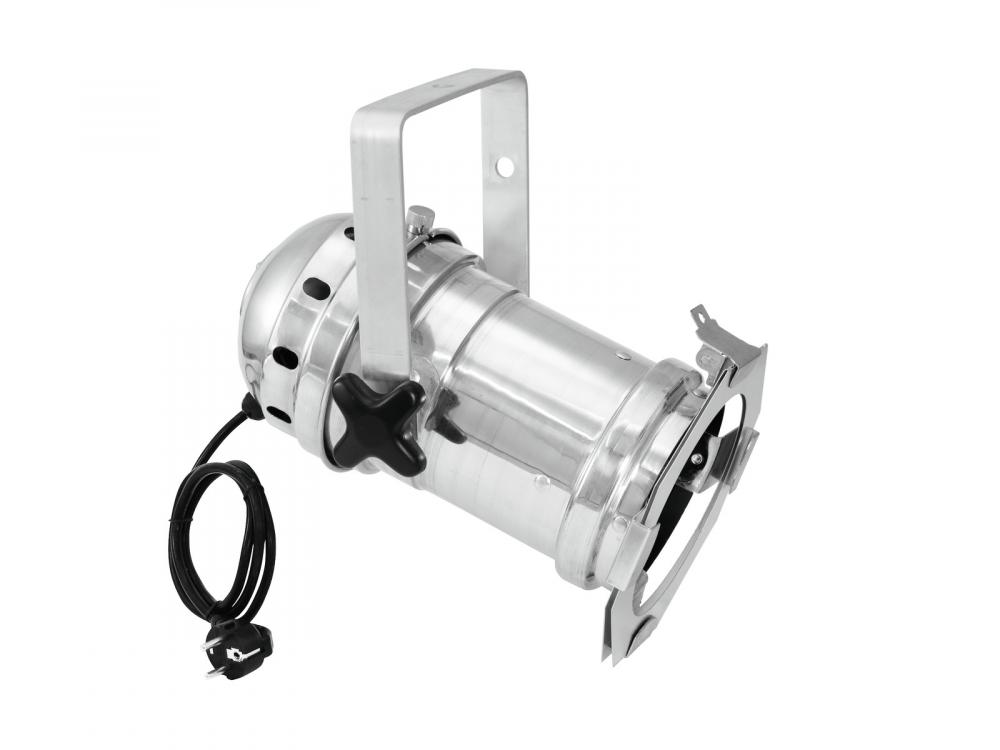

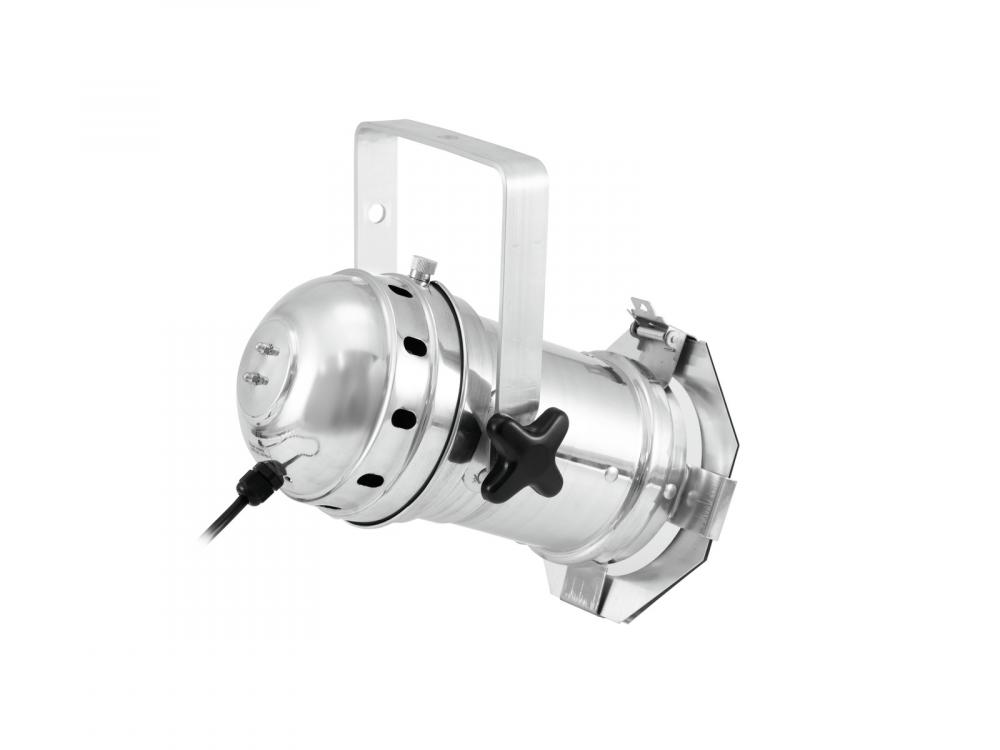

EUROLITE PAR-46 Spot E-27 sil
|
| technical overview |
Power supply: max. 230 V AC, 50 Hz Dimensions (L x W x H): 310 x 205 x 255 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Weight: 1,00 kg Power consumption: 80 W Lamp type: Selectable Height: 25,5 cm Depth: 31 cm Width: 20,5 cm Color generation: Via color filterframe (opt) Power connection: Fix Power supply cord with safety plug (M) Base: E27 Power supply: 230 V AC, 50 Hz |
| main features |

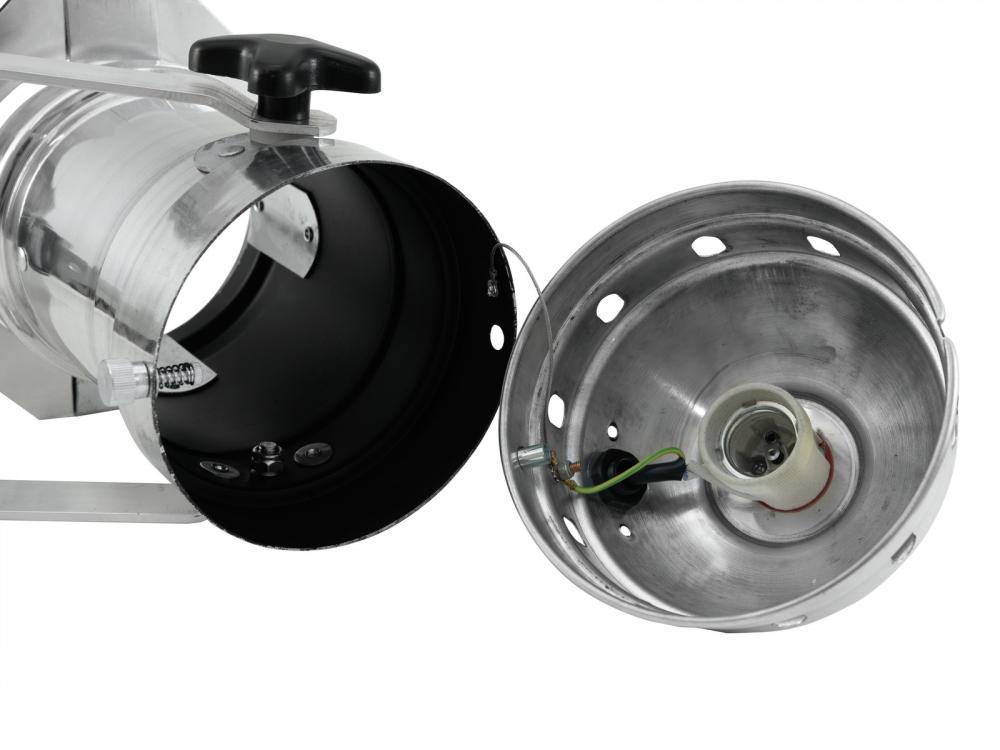

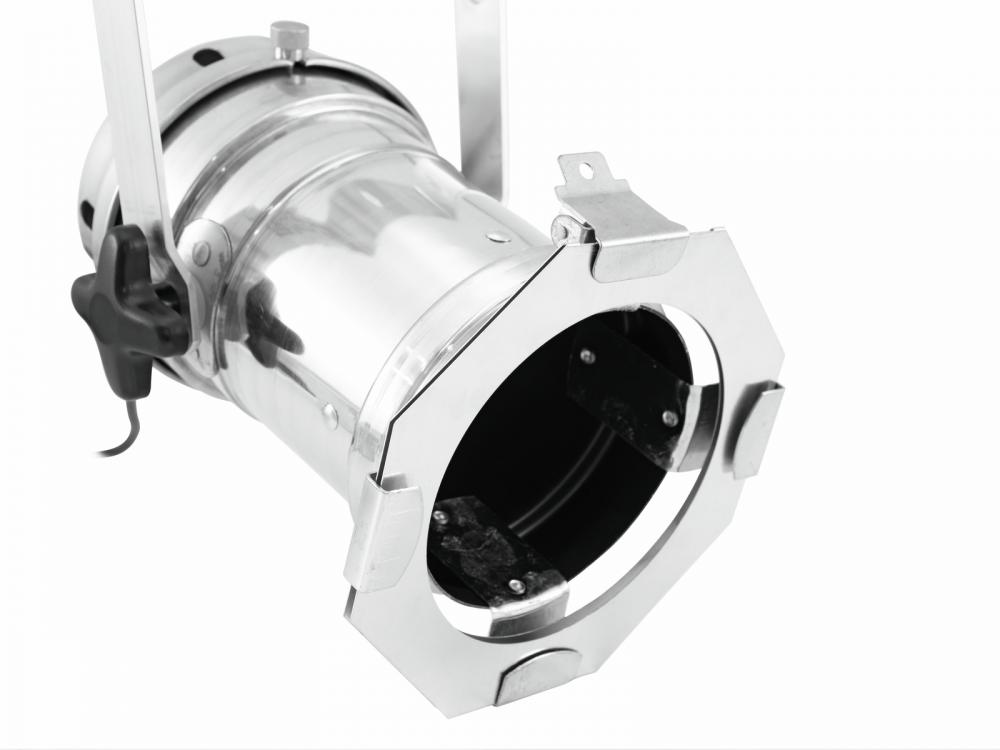

PAR-46 housing with E-27 socket (with plug + cable) -Rugged aluminum housing -Strong aluminum mounting bracket -Heat-resistant fixing screw for "bombproof" fixing -4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame -Internally blackened tube for precise light output -Strong extension spring for safe hold and for quick opening of the rear housing cover -Accidental-contact protection on the rear housing cover - complies with CE-regulations -Power cord and safety-plug included in the delivery -Delivered with color filter frame -With strong cable tension relief -Case color: Silver -Color generation: Via color filterframe (opt) -Power connection: Fix Power supply cord with safety plug (M) -Control: without |
| Electrical | |
| power consumption watt, max |
80.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| IP rating |
20
|
| lamp socket |
E27
|
| power input connector |
fixed
|
| Mechanical | |
| weight |
1.00 kg
|
| width |
205.00 mm
|
| height |
255.00 mm
|
| length |
310.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00111527.pdf |
