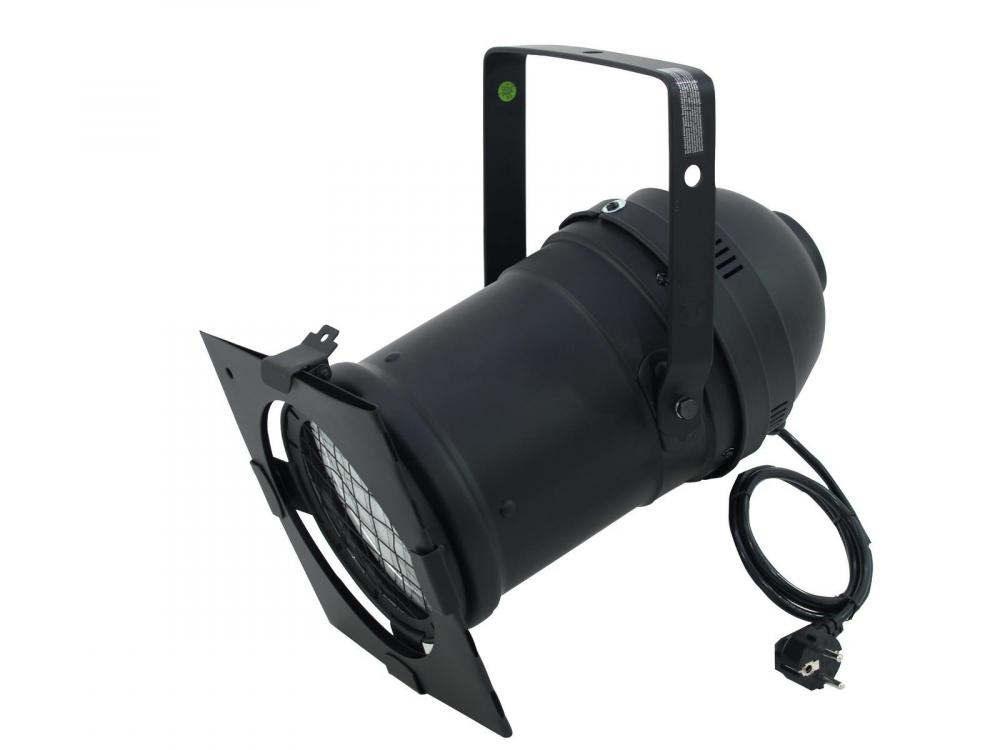

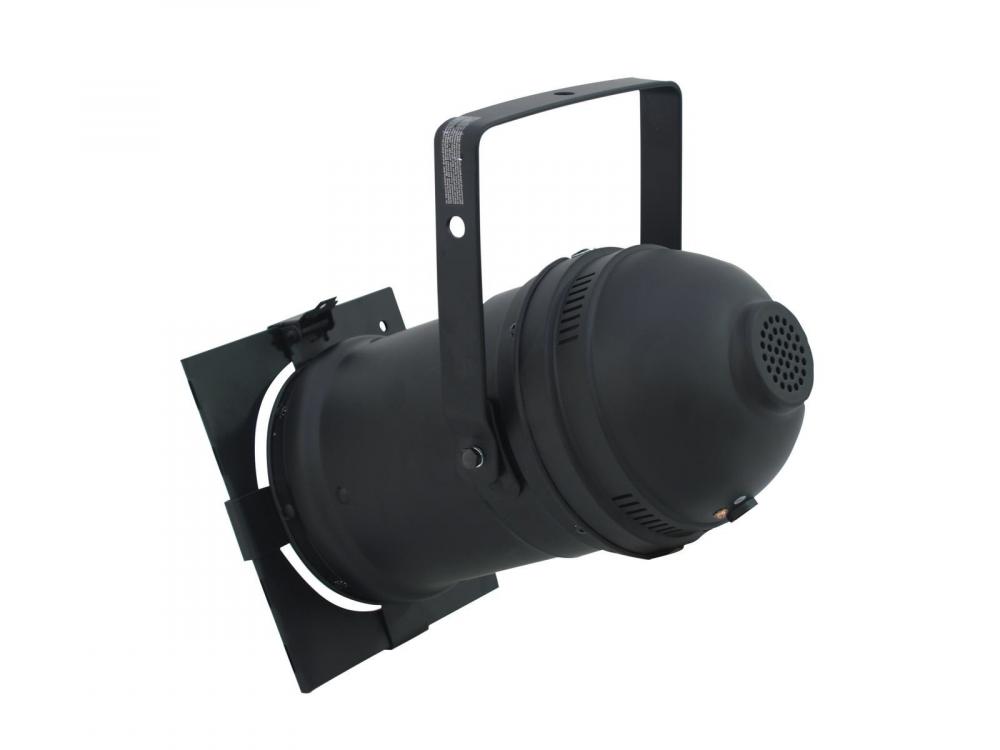

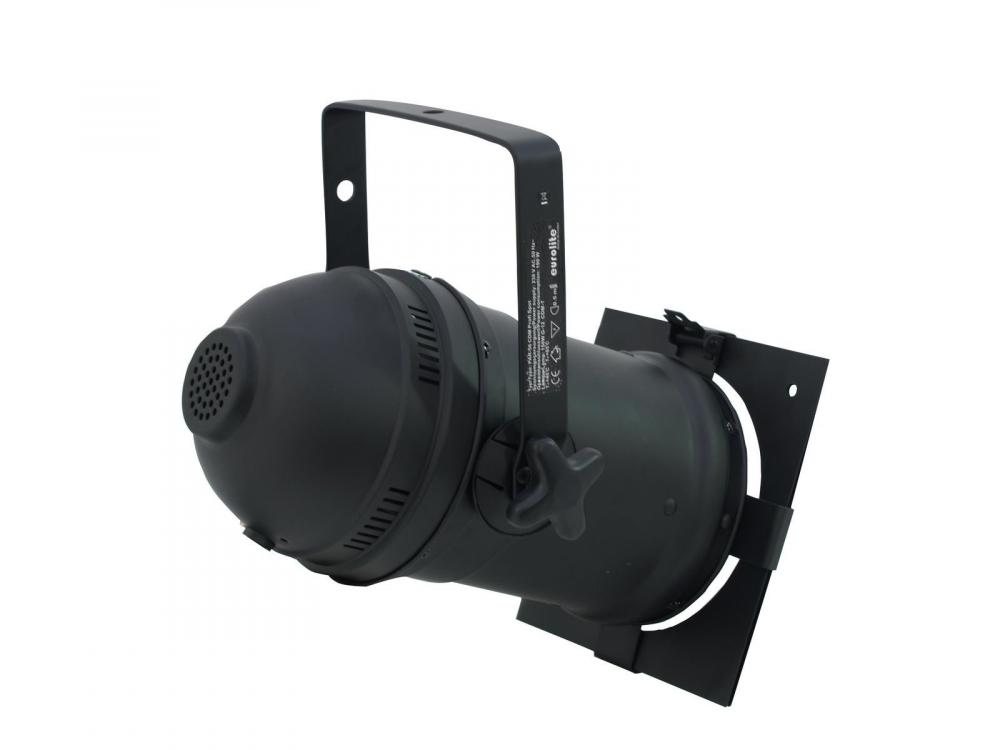

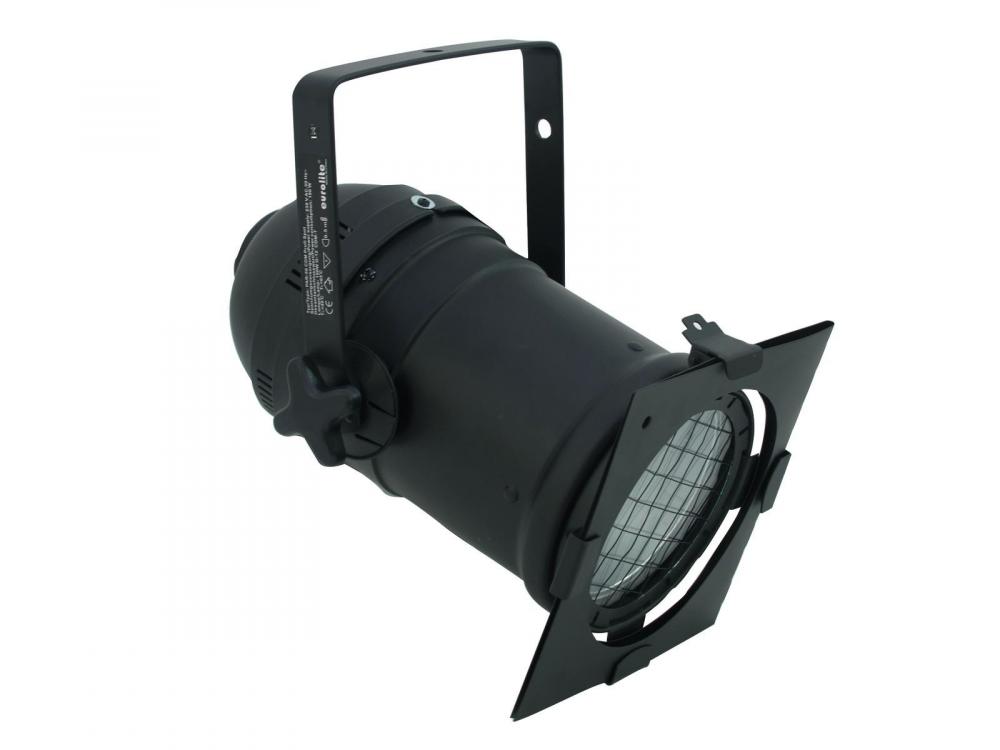

EUROLITE PAR-56 Spot CDM150 bk

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE PAR-56 Spot CDM150 bk

Info
order code
42000920
product link
EAN
4026397491722
Product Name
EUROLITE PAR-56 Spot CDM150 bk
technical overview
Power supply: 230 V AC, 50/60 Hz
Dimensions: 360 x 240 x 320 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 4,6 kg
IP classification: IP20
Power consumption: 210 W
Lamp type: Discharge lamp
Beam angle: 55°
Height: 32 cm
Depth: 36 cm
Width: 24 cm
Color generation: Via color filterframe (opt)
Power connection: Fix Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
Long PAR-56 housing for CDM-T 150 discharge lamps
-Rugged aluminum housing
-Strong aluminum mounting bracket with hole for fixing the obligatory safety rope
-4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame

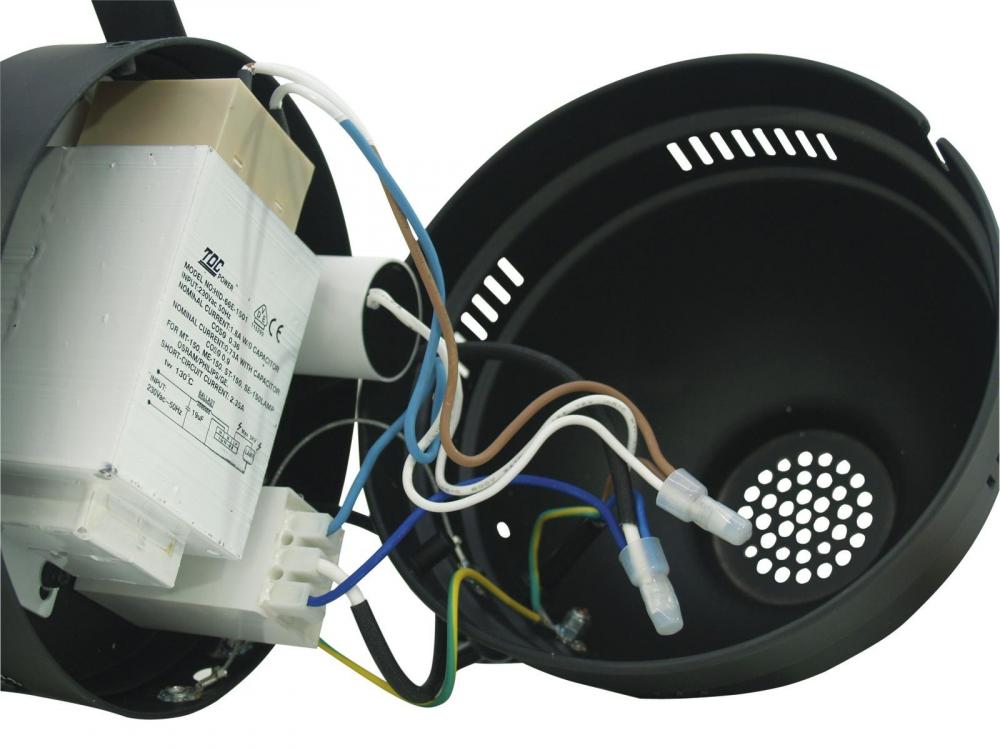

-Protective shield is integrated in the tube
-For extremely powerful CDM-T lamp
-Ideal for theaters, exhibitions and mobile use
-Case color: Black
-Color generation: Via color filterframe (opt)
-Power connection: Fix Power supply cord with safety plug (M)
-Control: without
Electrical
power consumption watt, max
210.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
4.60 kg
width
240.00 mm
height
320.00 mm
length
360.00 mm
Optical
beam angle/zoom, min
55.00 °
beam angle/zoom, max
55.00 °
light source
Discharge

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00119479.pdf
