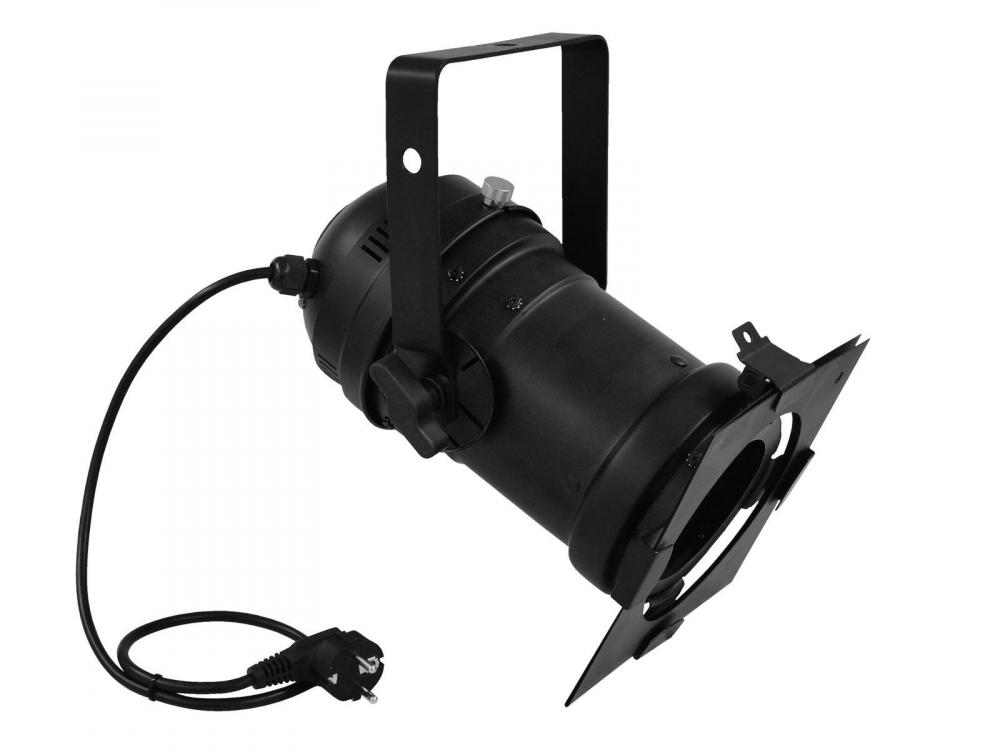

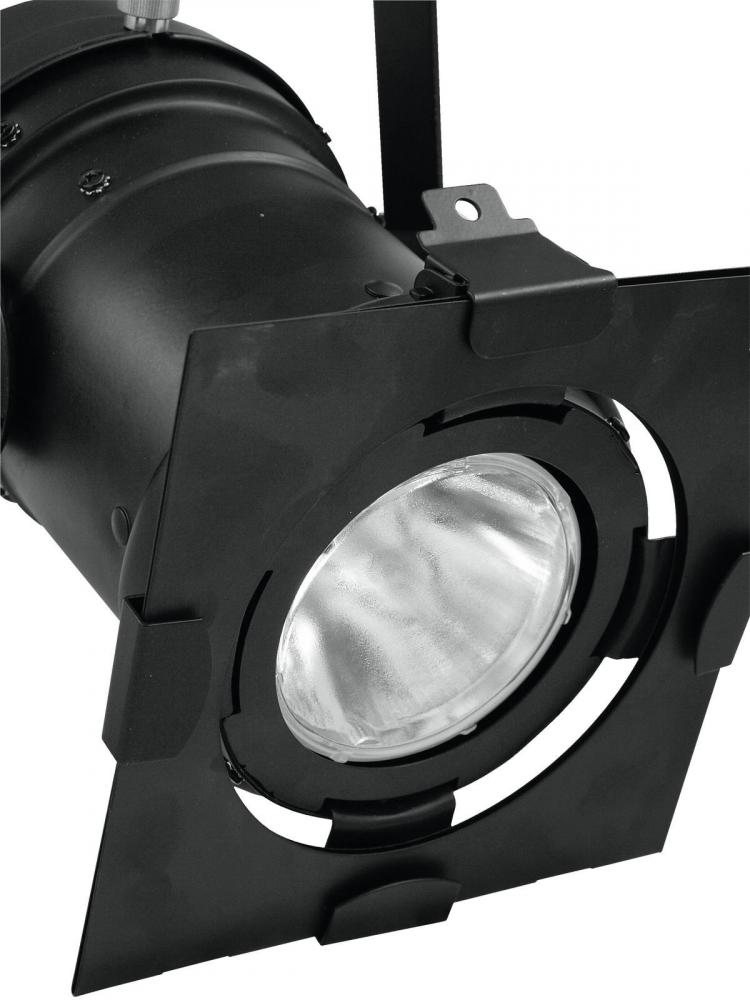

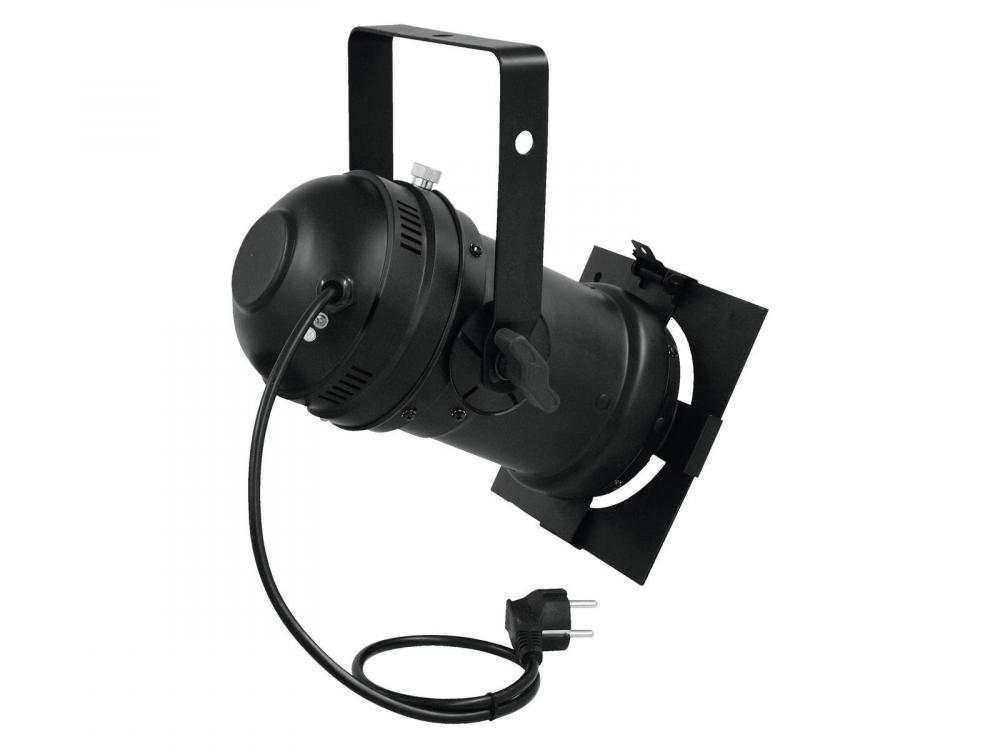

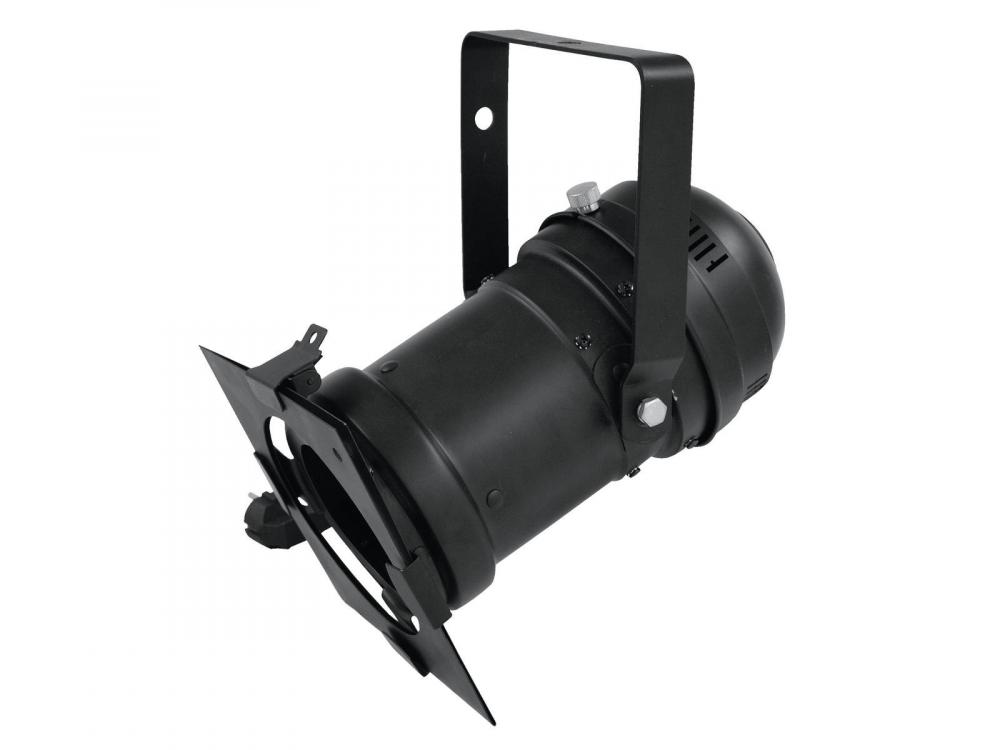

EUROLITE PAR-46 Spot CDM-70 E-27 bk

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE PAR-46 Spot CDM-70 E-27 bk

Info
order code
42000924
product link
EAN
4026397434965
Product Name
EUROLITE PAR-46 Spot CDM-70 E-27 bk
technical overview
Power supply: 230 V AC, 50/60 Hz
Dimensions: 295 x 200 x 280 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 2,95 kg
IP classification: IP20
Power consumption: 90 W
Lamp type: Discharge lamp
Height: 28 cm
Depth: 29,5 cm
Width: 20 cm
Color generation: Via color filterframe (opt)
Power connection: Fix Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
PAR spot with discharge lamp
-Rugged aluminum housing
-Strong aluminum mounting bracket with hole for fixing the obligatory safety rope
-4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
-For extremely powerful CDM-T lamp
-Ideal for theaters, exhibitions and mobil use
-Case color: Black
-Color generation: Via color filterframe (opt)
-Power connection: Fix Power supply cord with safety plug (M)
-Control: without
Electrical
power consumption watt, max
90.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
2.95 kg
width
200.00 mm
height
280.00 mm
length
295.00 mm
Optical
light source
Discharge

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00062461.pdf
