| Info | |
|---|---|
| order code |
42101072
|
| product link | |
| EAN |
4026397647976
|
| Product Name |

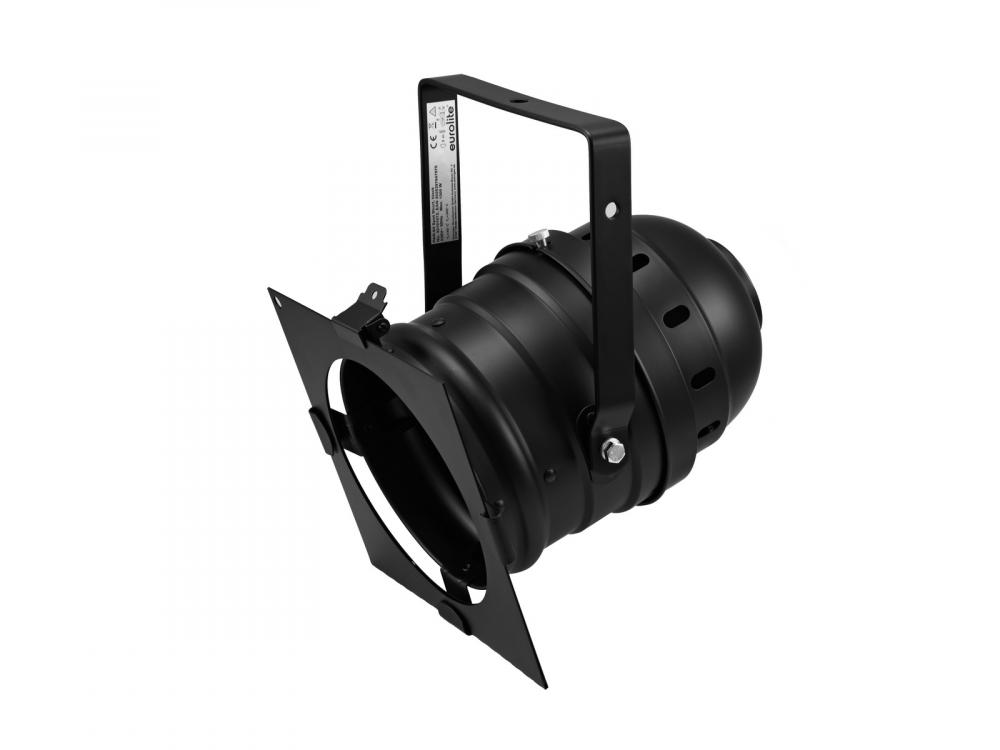

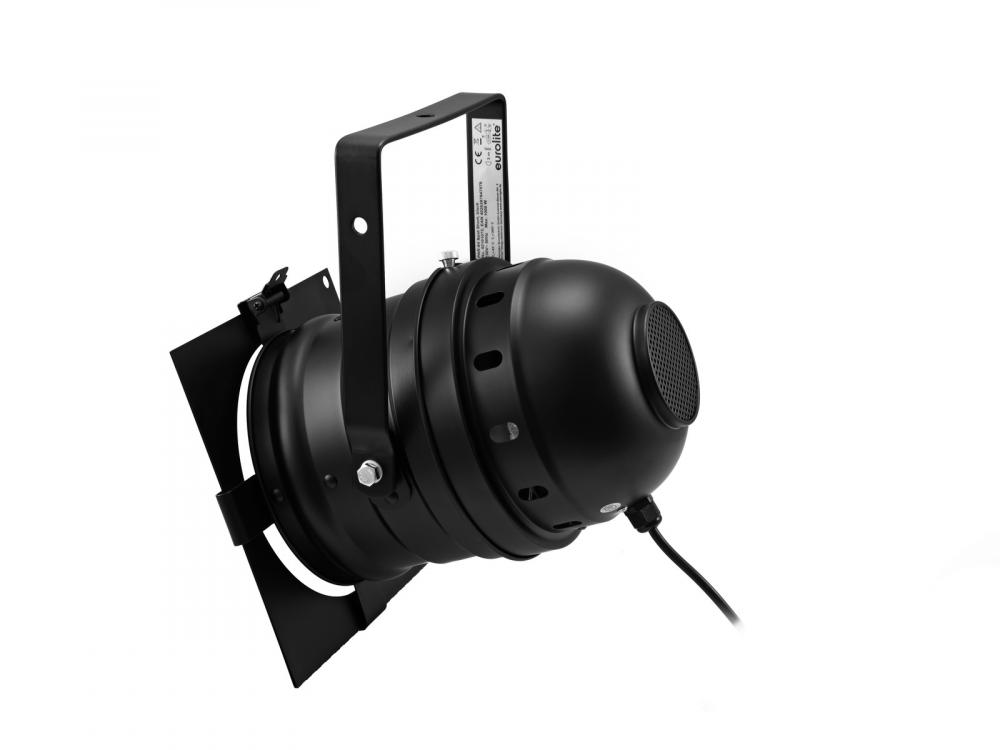

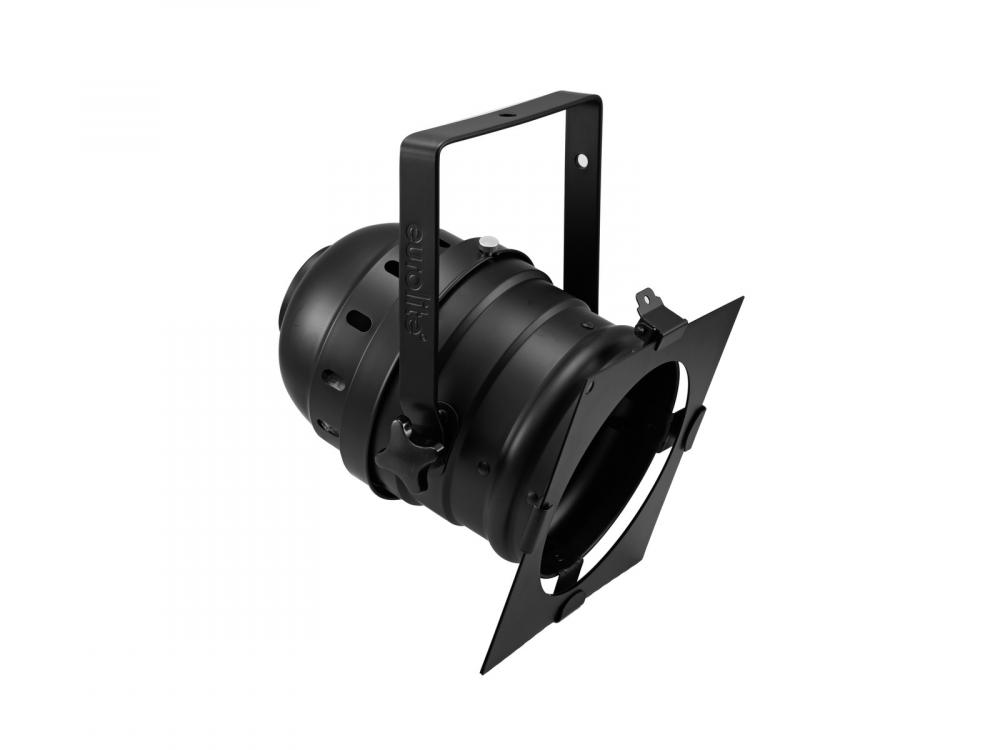

EUROLITE PAR-64 Spot Short bk
|
| technical overview |
Power supply: 230 V AC, 50 Hz Power consumption: max. 1000 W Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 1,70 kg IP classification: IP20 Power consumption: 1000 W Lamp type: Selectable Height: 34,5 cm Width: 28 cm Color generation: Via color filterframe (opt) Power connection: Fix Main input cable with open wires Depth: 30,5 cm Power supply: 230 V AC, 50 Hz |
| main features |

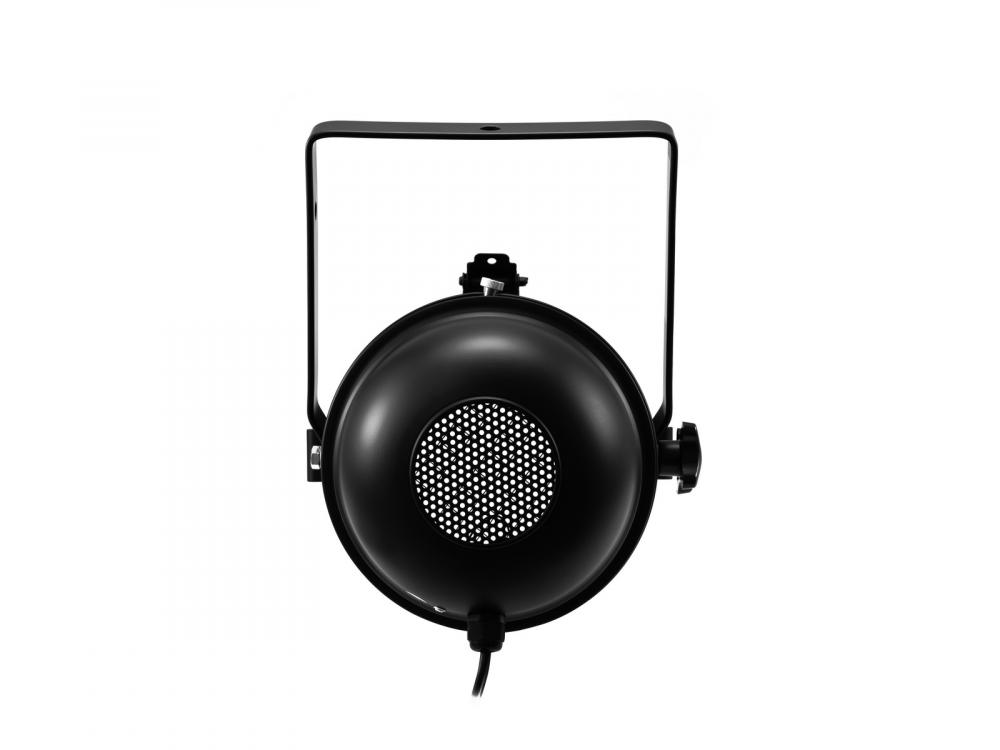

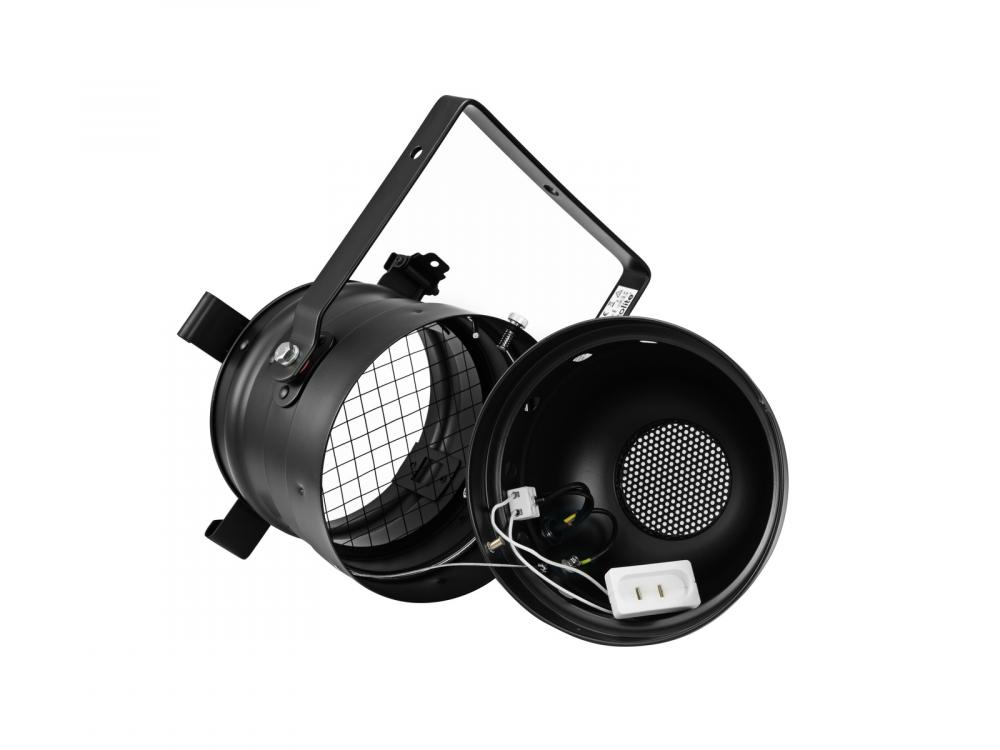

PAR-64 spotlight housing short -Spotlight housing for decoration or display windows, discotheques -Comes completely wired with GX16pin connector and color filter frame -Ready for connection with silicone cable and safety-plug -For lamps with max. 1000 W -Comes fully-wired with black silicone cable, stable earthing in the housing, directly clamped ceramic socket and safety-plug -Protection grille on the rear housing cover - complies with CE-regulations -4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame -Strong clamps with extension springs for safe hold and for quick opening of the rear housing cover -Swivel mounting bracket -Blackened tube for precise light output -Different spot angles, depending on lamp: spot (10°) or flood (30°) -Strong cable tension relief -Supplied without lamp -Silver or black housing available -Power plug has to be ordered separately -Case color: Black -Color generation: Via color filterframe (opt) -Power connection: Fix Main input cable with open wires -Control: without |
| Electrical | |
| power consumption watt, max |
1000.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| IP rating |
20
|
| Mechanical | |
| weight |
1.70 kg
|
| width |
280.00 mm
|
| height |
345.00 mm
|
| length |
305.00 mm
|
