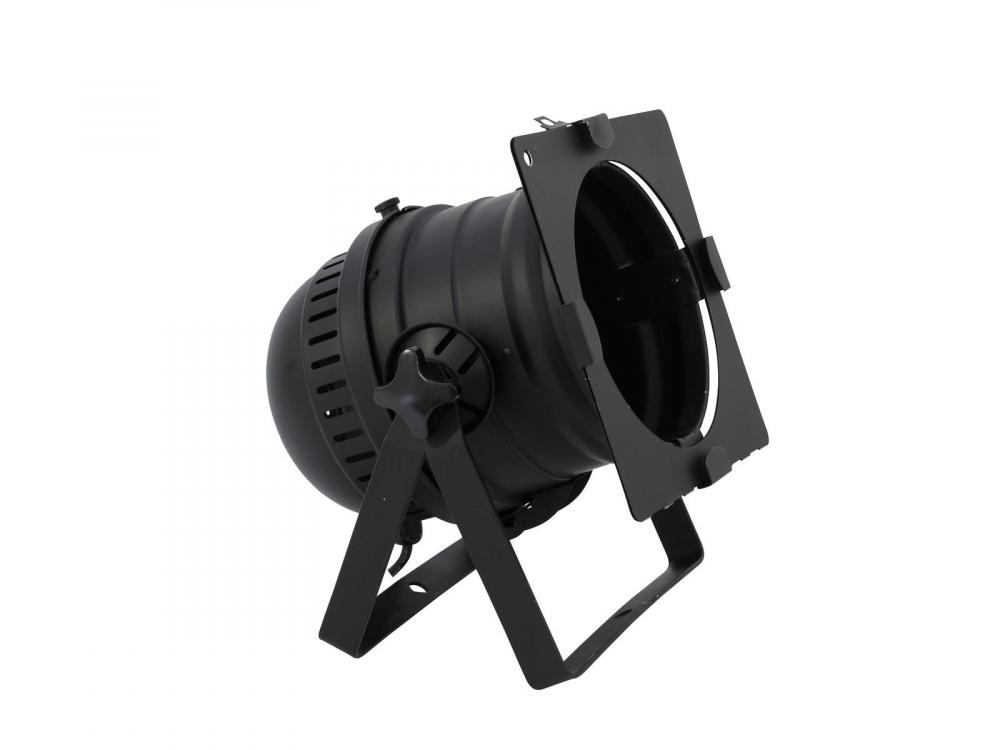

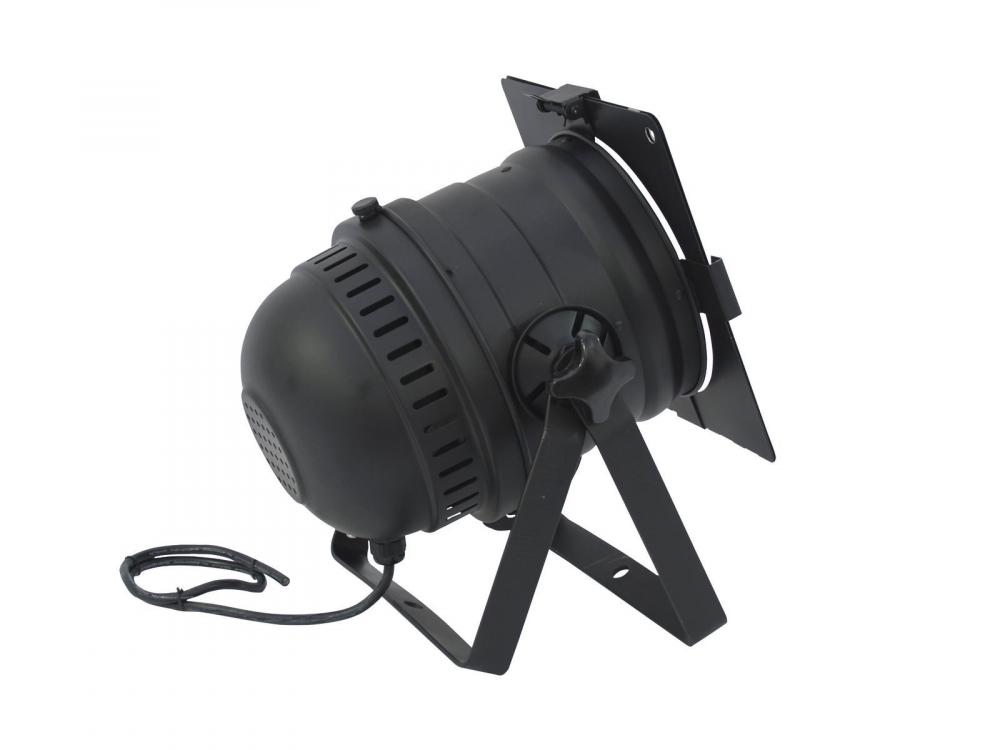

EUROLITE PAR-64 Spot Floor with cable bk

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE PAR-64 Spot Floor with cable bk

Info
order code
42101310
product link
EAN
4026397131895
Product Name
EUROLITE PAR-64 Spot Floor with cable bk
technical overview
Power supply: 230 V AC, 50 Hz
Dimensions (L x W x H): 340 x 270 x 270 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 1,7 kg
IP classification: IP20
Power consumption: 1000 W
Lamp type: Selectable
Height: 27 cm
Depth: 34 cm
Width: 27 cm
Length: 340 mm
Color generation: Via color filterframe (opt)
Power connection: Fix Main input cable with open wires
Power supply: 230 V AC, 50 Hz
main features
Short PAR-64 housing (double bracket), open cable ends
-Rugged aluminum housing
-Strong aluminum mounting bracket with hole for fixing the obligatory safety rope
-Heat-resistant fixing screw for "bombproof" fixing
-The screw is protected against turning it too far out
-4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
-Safety grille (splinter protection) is integrated in the tube
-Internally blackened tube for precise light output
-Strong brass clamps with extension spring for safe hold and for quick opening of the rear housing cover
-Protection grille on the rear housing cover - complies with CE-regulations

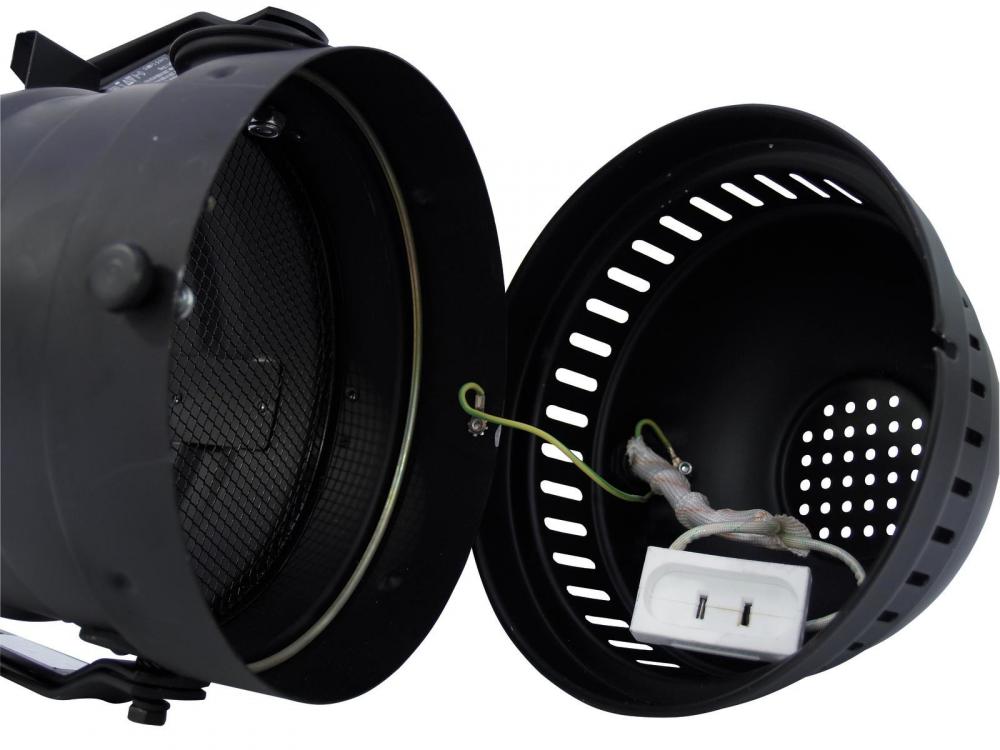

-Comes fully-wired with black silicone cable, stable earthing in the housing and directly clamped ceramic socket
-Delivered with color filter frame
-With strong cable tension relief
-Well-suited for easy installation of our Raylight reflectors with matching connector (GX16)
-Simple mounting: connect with ceramic socket - ready!
-Power plug has to be ordered separately
-Case color: Black
-Color generation: Via color filterframe (opt)
-Power connection: Fix Main input cable with open wires
-Control: without
Electrical
power consumption watt, max
1000.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
Mechanical
weight
1.70 kg
width
270.00 mm
height
270.00 mm
length
340.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00065290.pdf
