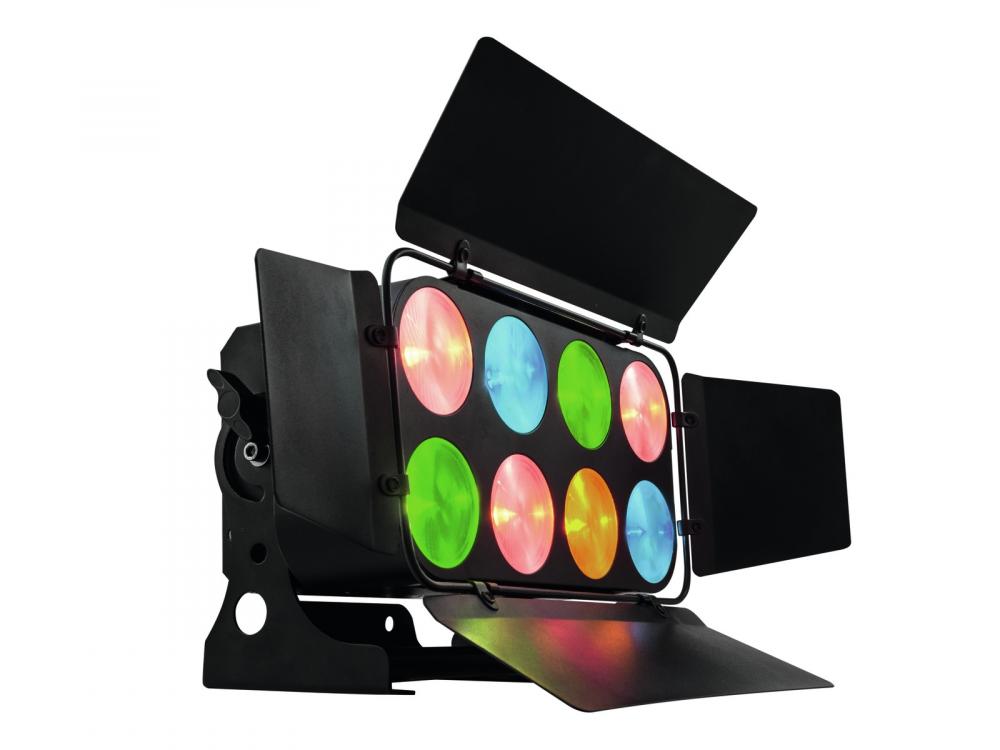

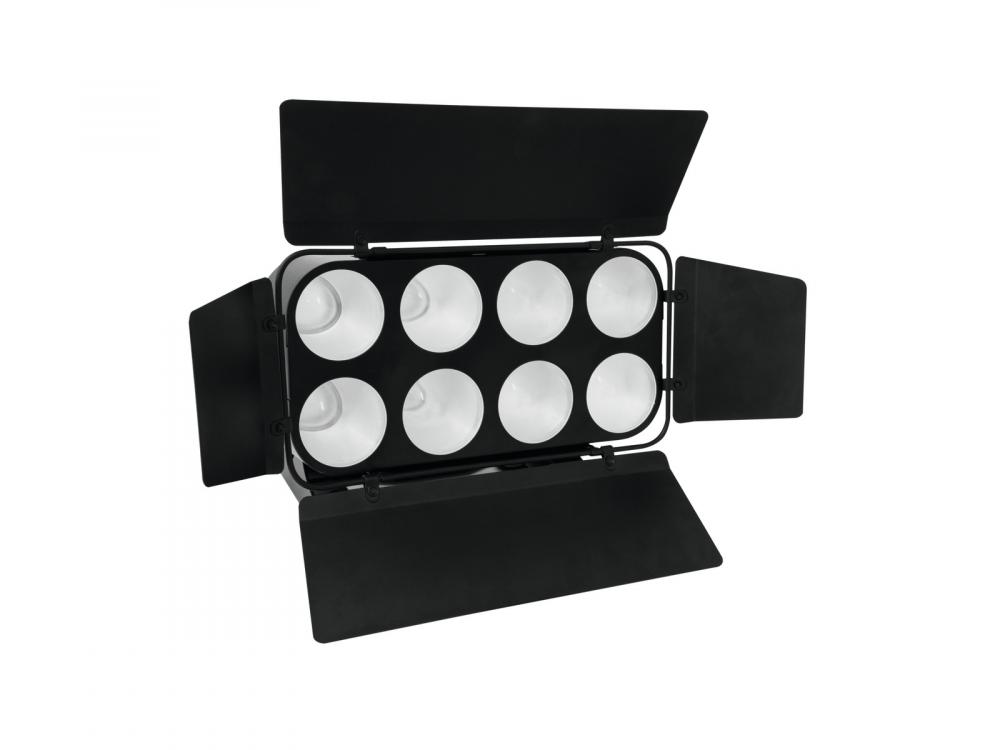

EUROLITE LED PMC-8x30W COB RGB MFL

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PMC-8x30W COB RGB MFL

Info
order code
41606450
product link
EAN
4026397507805
Product Name
EUROLITE LED PMC-8x30W COB RGB MFL
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 3/4/5/6/12/24/28/33
DMX connection: 5-pin and 3-pin XLR
Flash-rate: 18 Hz
Sound-control: via built-in microphone
LED number: 8
LED type: Array Cluster 30 W, RGB
Beam angle: 25°
Dimensions (W x D x H): 358 x 174 x 223 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Beam angle: 25°
Power consumption: 220,00 W
Lamp type: LED lamp
Weight: 6,5 kg
IP classification: IP20
Height: 22,3 cm
Depth: 17,4 cm
Width: 35,8 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels: 3; 4; 5; 6; 12; 24; 28; 33
LED: 8 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
COB Performance Cluster with 25° beam angle
-Operable in stand-alone mode via control panel with LCD screen or in DMX mode via any commercial DMX controller (occupies max. 33 channels)
-3, 4, 5, 6, 12, 24, 28 or 33 DMX channels selectable for various applications
-Supports RDM (Remote Device Management)
-Equipped with 8 x 30 W COB LEDs in the colors red, green and blue
-Each LED can be controlled individually
-Functions:Static colors, RGB color mixture, automatic color change, internal programs, dimmer and strobe settings via DMX, Master/Slave
-Dimmer speed (step response) controllable
-Adjustable white balance
-Sound-control via built-in microphone; sensitivity adjustable via control panel

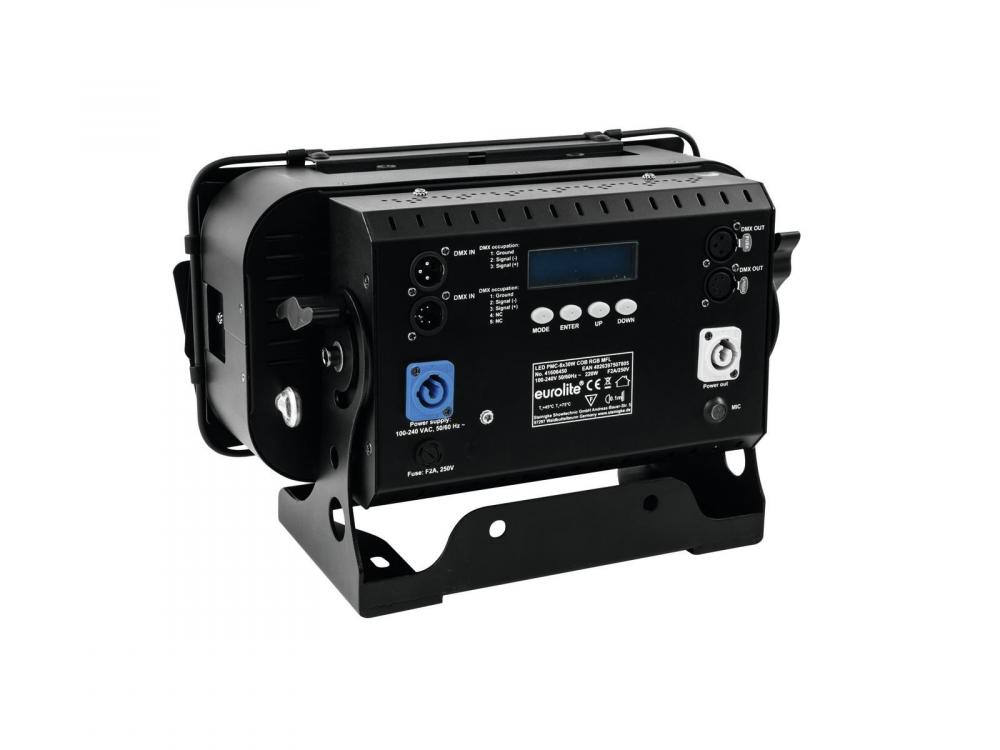

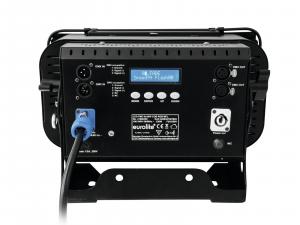

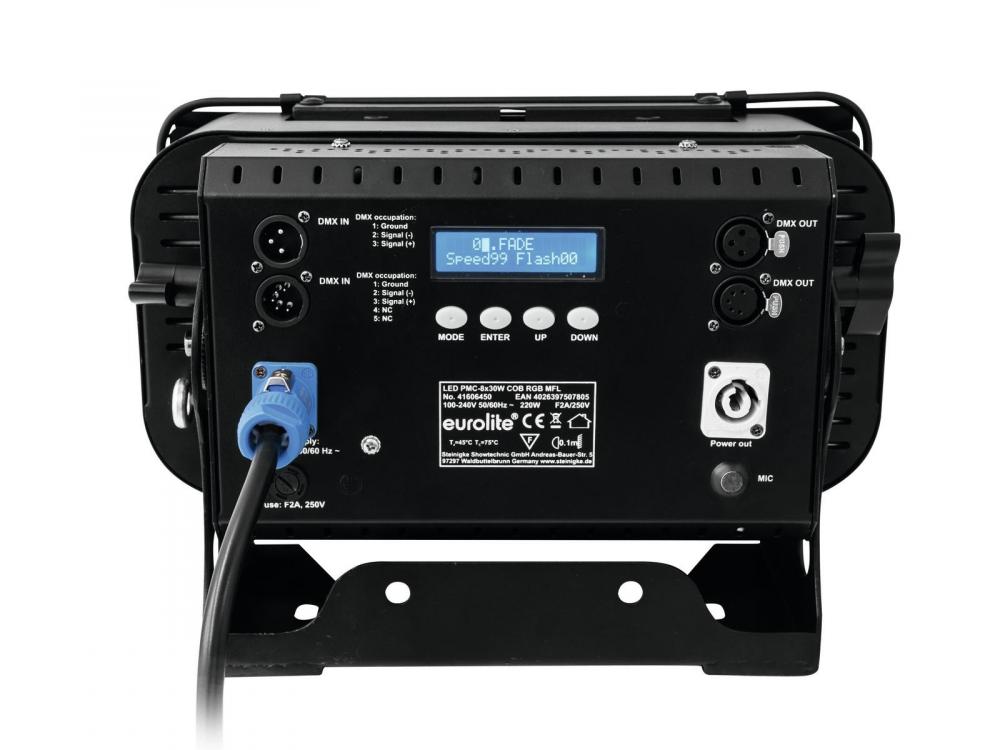

-Comfortable addressing and setting via control panel with LC display and four operating buttons
-Ideal as floor spot via base for standing installation
-Locking possibility at the mounting bracket
-With barn doors
-Feed-through output allows to power up to 8 devices
-Switch-mode power supply for operation between 100 and 240 Volts
-Power connection via Neutrik PowerCon jack and included power cable with safety plug
-Case color: Black
-Effect: Strobe effect
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Power out: 1 x Powercon (Power out) gray, mounting version
-Control: Stand-alone; DMX
-LED: 8 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
3 ch
control channels, max
33 ch
Electrical
power consumption watt, max
30.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
6.50 kg
width
358.00 mm
height
223.00 mm
length
174.00 mm
Optical
beam angle/zoom, min
25.00 °
beam angle/zoom, max
25.00 °
light source
LED
Number of light sources
8 pcs
wattage per light source
30.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
18 Hz
