Info | |
---|---|
order code |
41606440
|
product link | |
EAN |
4026397519433
|
Product Name |

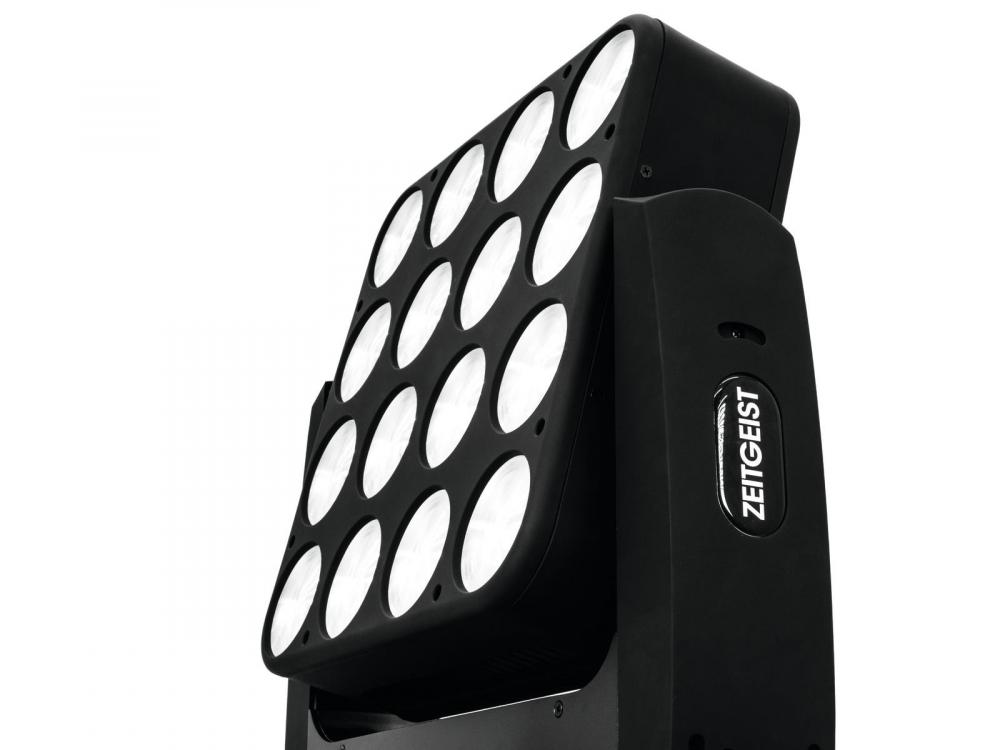

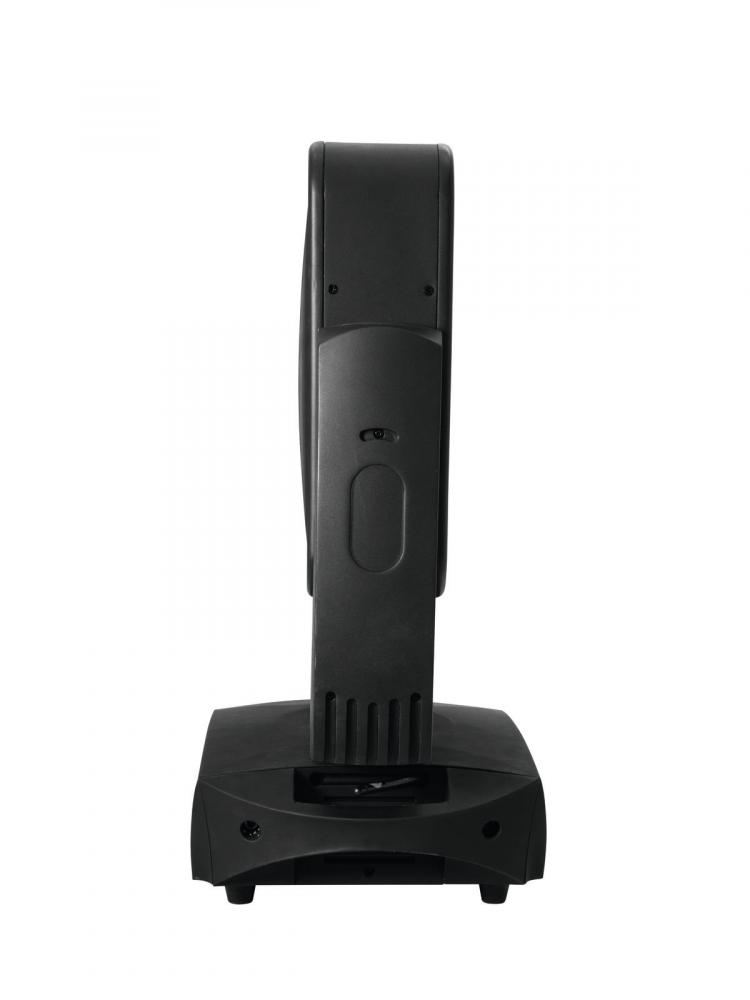

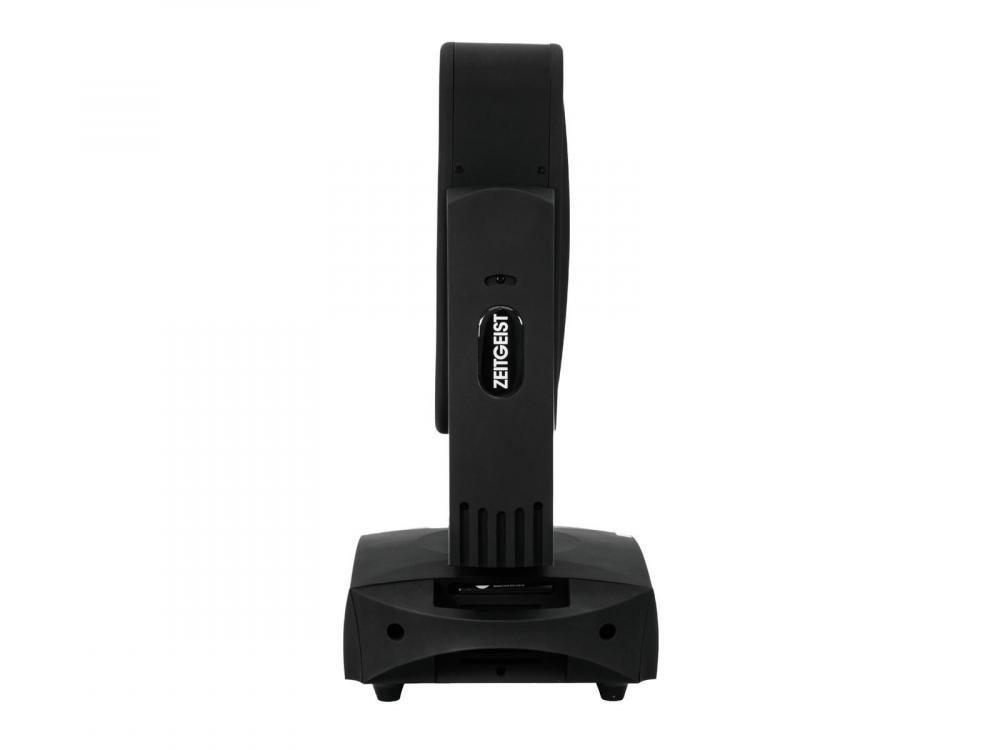

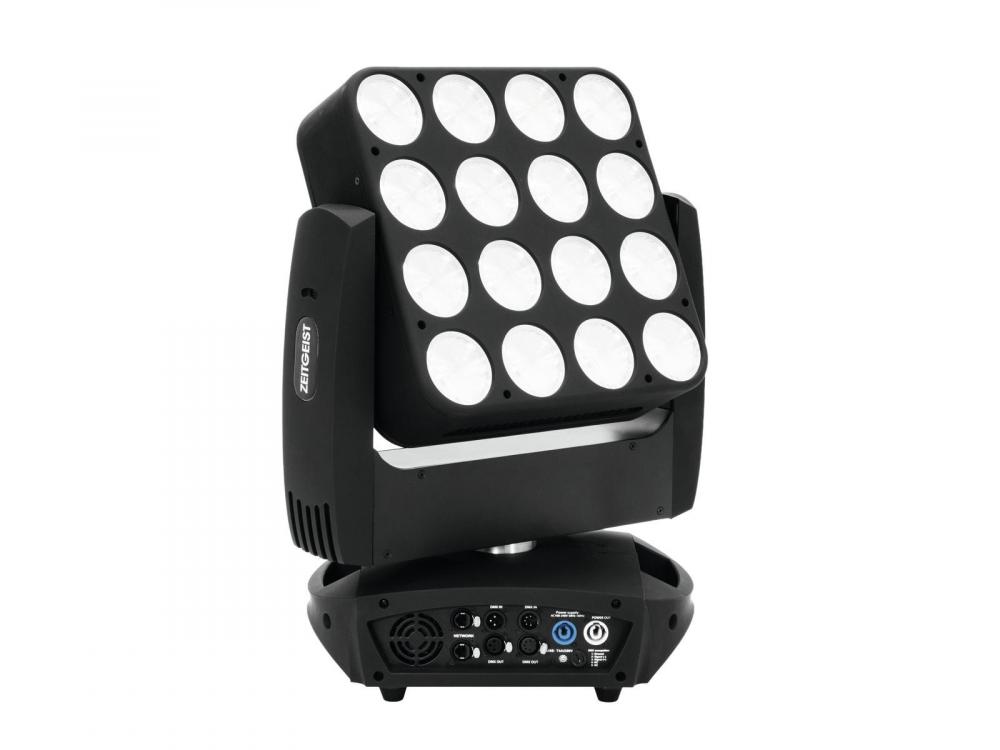

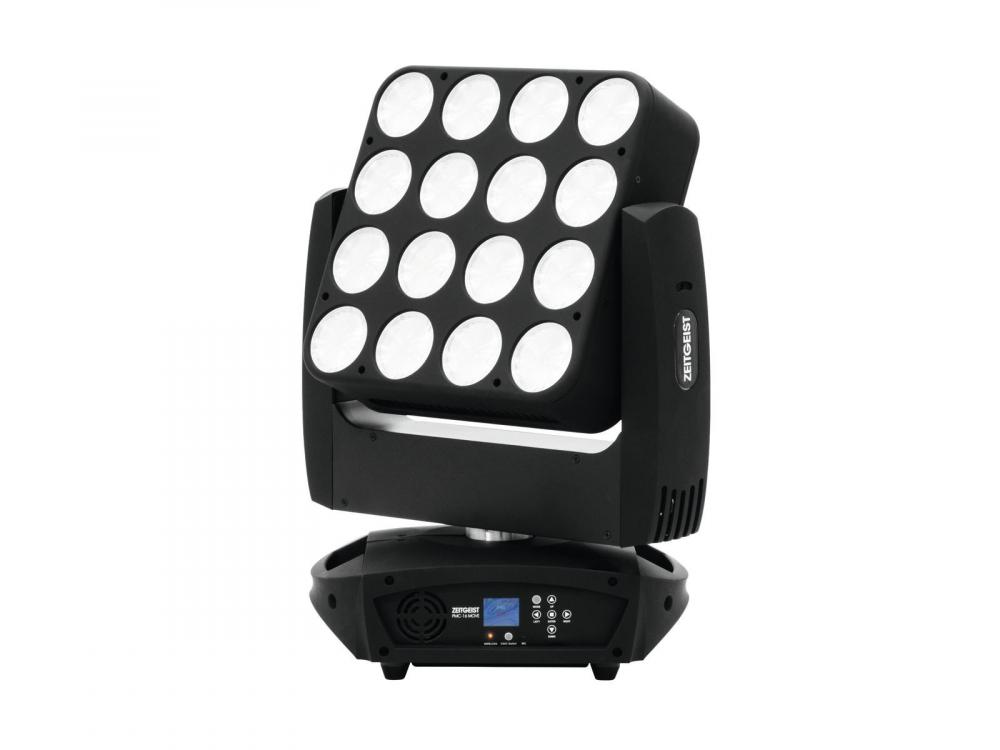

EUROLITE Zeitgeist PMC-16 MOVE
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protocol: Art-Net 3 Signal port: 2 x RJ45 (EtherCon) DMX channels: 11/13/58 DMX connection: 5-pin and 3-pin XLR Flash-rate: 20 Hz Sound-control: via built-in microphone Wireless signal transmission: 2.4 GHz (ISM) LED number: 16 LED type: Array Cluster 30 W, RGB Maximum PAN-movement: 630° Maximum TILT-movement: 270° Dimensions (W x D x H): 467 x 284 x 612 mm Beam angle: 15° Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 17,5 kg Cooling fan: Yes IP classification: IP20 Power consumption: 460 W Beam angle: 15° Height: 46,7 cm Width: 28,4 cm Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 11; 13; 58 Depth: 61,2 cm LED: 25 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
COB Moving Panel with 4 x 4 Matrix -LED Performance Cluster for pixel mapping applications via Art-Net -Equipped with 16 x 30 W COB LED in the colors red, green and blue -Each LED can be controlled individually -Quick and easy control via Art-Net -For use via appropriate lighting control software supporting Art-Net -With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden) -11, 13 or 58 DMX channels selectable -Supports RDM (Remote Device Management) -Functions: RGB color mixture, automatic color change, built-in programs and strobe effect with variable speed, dimmer, sound-control, Master/Slave operation -Sound-control via built-in microphone; sensitivity adjustable -Automatic position correction -Exact positioning via 16 bit PAN/TILT movement resolution -PAN angle switchable between 540° and 630° -DMX-controlled operation or stand-alone operation with Master/Slave function -ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. -Control board with LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -The scenes can be modified via the Control Board or via an external controller and loaded into the memory -Number of scenes can be changed individually -Integrated web interface for firmware updates through a browser -EtherCon input and output -Switch-mode power supply for operation between 100 and 240 Volts -Power connection via Neutrik PowerCon jack and included power cable -Feed-through output allows to power up to 8 devices -DMX control via every standard DMX controller -Case color: Black -Projection: flicker-free -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Power out: 1 x Powercon (Power out) gray, mounting version -Control: Stand-alone; ArtNet; DMX; RDM -LED: 25 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix) |
Connectors | |
DMX connector types |
both 3/5pin
|
RJ45 Ethercon |
2
|
Control | |
control channels, min |
11 ch
|
control channels, max |
58 ch
|
protocol-Artnet |
input
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
460.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
17.50 kg
|
width |
284.00 mm
|
height |
612.00 mm
|
length |
612.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
Optical | |
beam angle/zoom, min |
15.00 °
|
beam angle/zoom, max |
15.00 °
|
light source |
LED
|
Number of light sources |
16 pcs
|
wattage per light source |
30.00 W
|
optics/projection type |
Washlight
|
multichip LED |
yes
|
shutter/strobe frequency, max |
20 Hz
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
