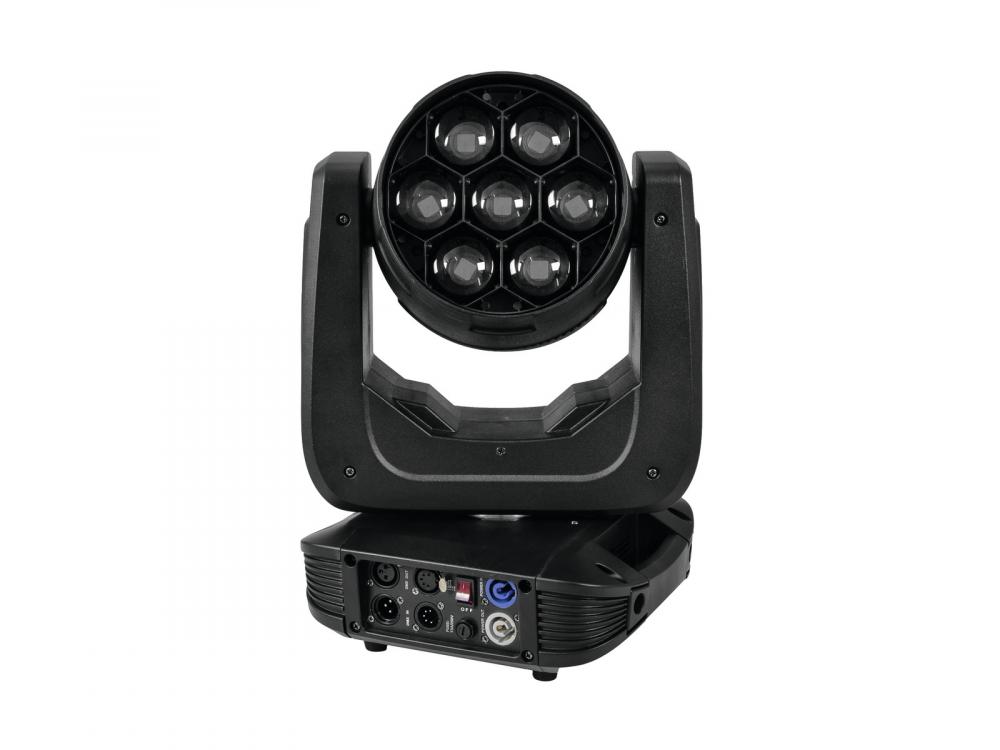

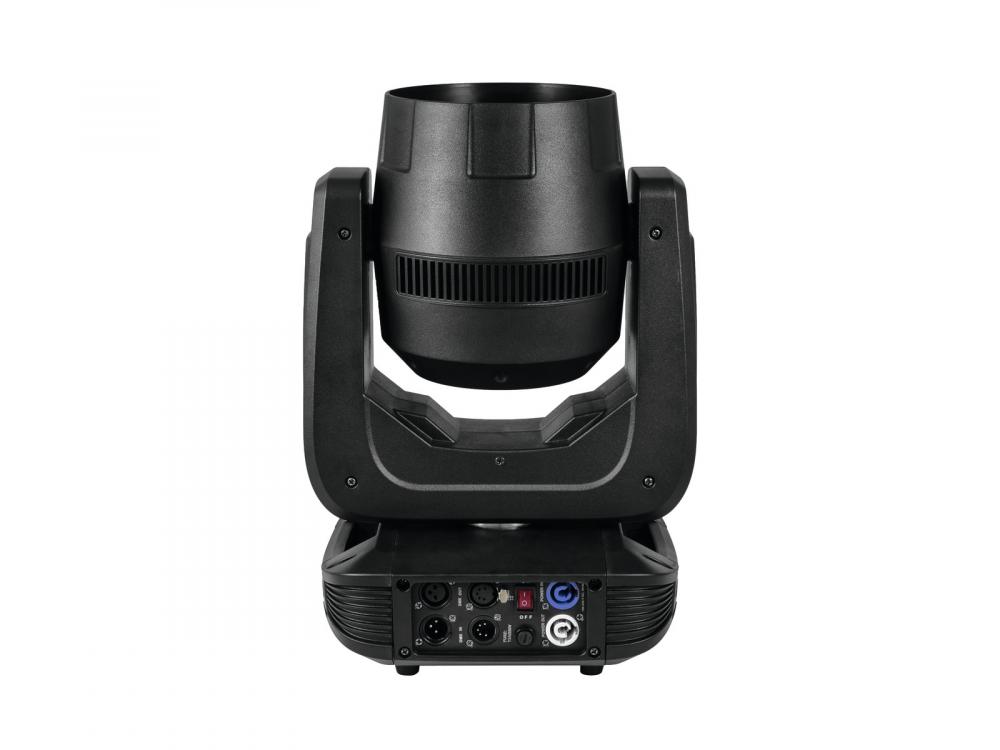

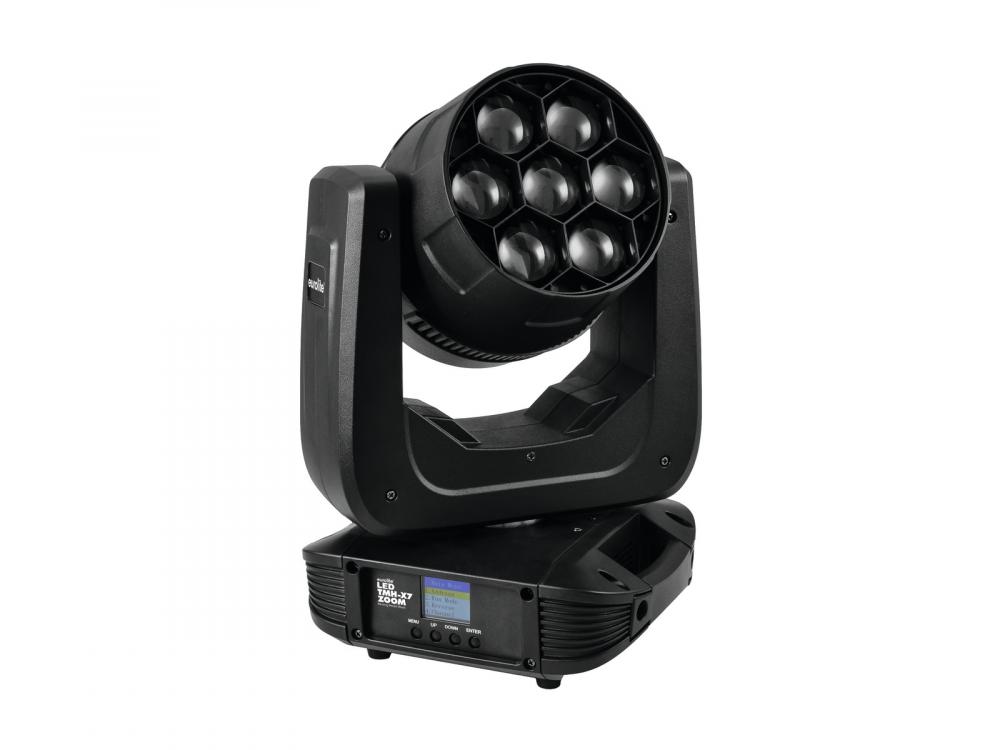

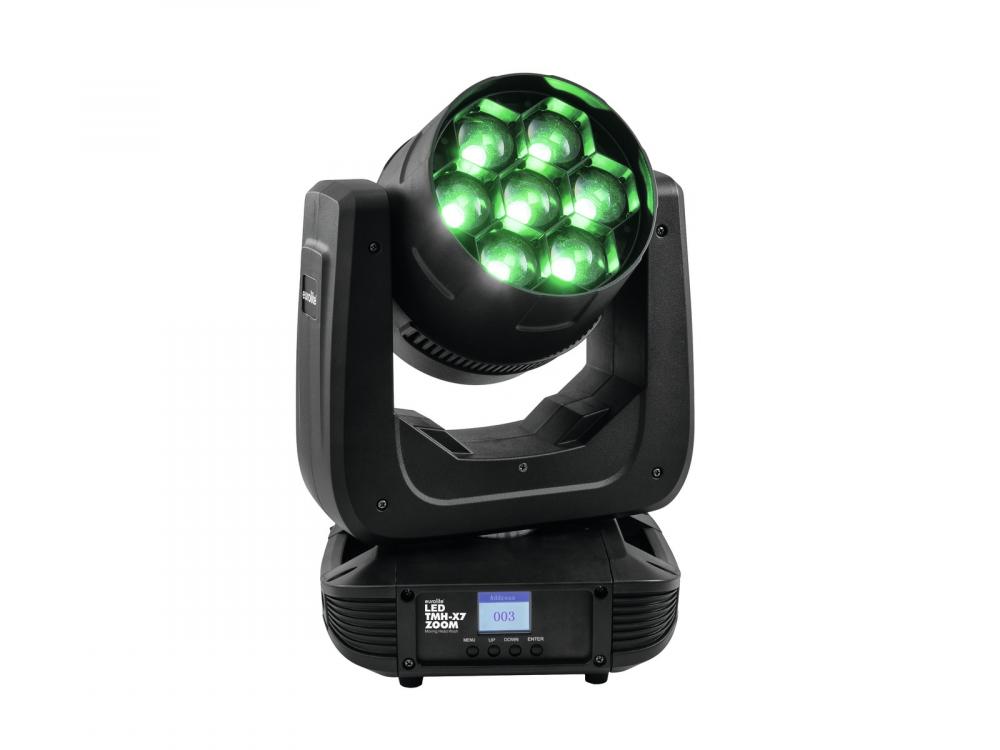

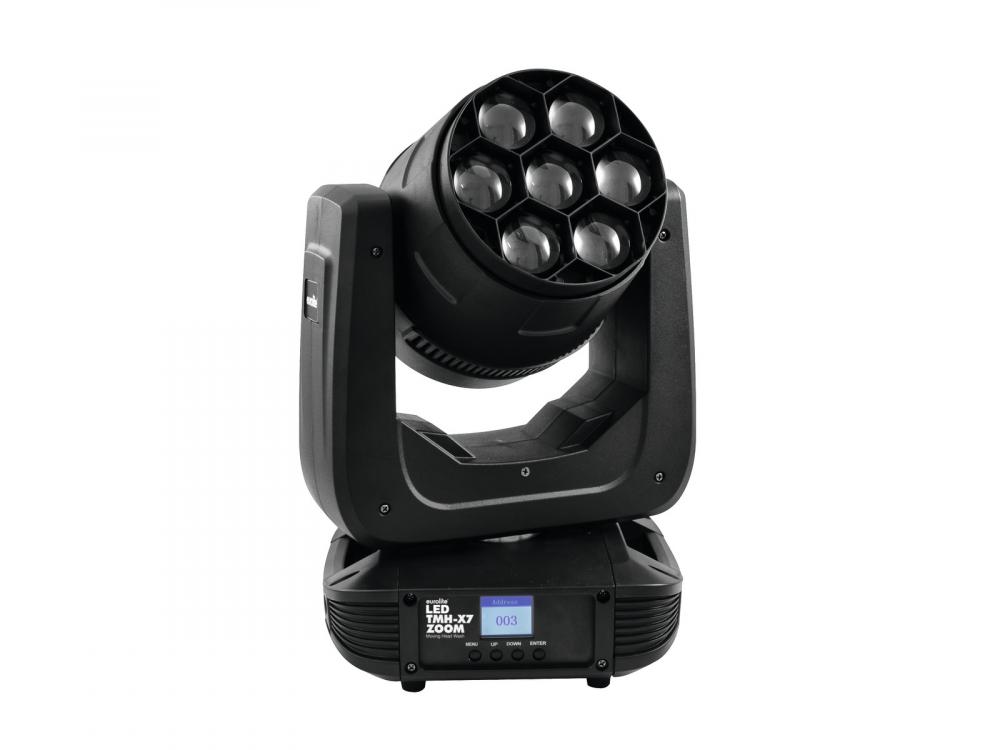

EUROLITE LED TMH-X7 Moving-Head Wash Zoom

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED TMH-X7 Moving-Head Wash Zoom

Info
order code
51785900
product link
EAN
4026397613551
Product Name
EUROLITE LED TMH-X7 Moving-Head Wash Zoom
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 20
DMX connection: 5-pin and 3-pin XLR
Flash-rate: 18 Hz
Sound-control: via built-in microphone
LED number: 7
LED type: 25 W RGBAWL+UV (7in1)
Beam angle: 3-34°
Maximum PAN-movement: 540°
Maximum TILT-movement: 270°
Dimensions (L x W x H): 231 x 291 x 411 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
Weight: 10 kg
Cooling fan: Yes, temperature-controlled
IP classification: IP20
Power consumption: 135 W
Beam angle: 3 - 34°
Height: 41,1 cm
Depth: 23,1 cm
Width: 29,1 cm
Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 360° Pan tilt feedback
Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback
Equipment: Zoom motor-driven
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels: 20
LED: 7 x high-power 25 W 7in1 SCL RGBWAL/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Compact washlight, 7 intense 25 W LEDs (7in1), unique color mixing
-Equipped with seven 25 W LEDs in the colors red, green, blue, amber, white, lemon and UV
-Positioning within 540° PAN and 270° TILT
-Stepless RGBAWL+UV color mixture
-Color change with diverse settings
-Color presets
-Dimmer
-Dimmer speed (step response) adjustable
-Motorized zoom with 3-34° beam angle
-Sound-control via built-in microphone; sensitivity adjustable
-Strobe effect with adjustable speed, random strobe effect
-Automatic position correction
-Exact positioning via 16 bit PAN/TILT movement resolution
-PAN angle switchable between 540° and 360°
-Fan-cooled
-DMX-controlled operation or stand-alone operation with Master/Slave function
-Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
-Switch-mode power supply for operation between 100 and 240 volts
-Power connection via P-Con jack and included power cable with safety plug
-Feed-through output allows to power up to 8 devices
-DMX control via every standard DMX controller
-Case color: Black
-Projection: flicker-free
-Color rendering index (CRI) more than: 90 Ra
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Power out: 1 x P-Con (Power out) gray, mounting version
-Control: DMX; Sound to light via microphone; Stand-alone
-LED: 7 x high-power 25 W 7in1 SCL RGBWAL/UV (homogenous color mix)
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
20 ch
control channels, max
20 ch
max Movement resolution
16 bit
Electrical
power consumption watt, max
25.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
active
Mechanical
weight
10.00 kg
width
291.00 mm
height
411.00 mm
length
231.00 mm
pan range
540 °
tilt range
270 °
Optical
beam angle/zoom, min
34.00 °
beam angle/zoom, max
3.00 °
light source
LED
optics/projection type
Washlight
Number of light sources
7 pcs
wattage per light source
25.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
AMBER light source
yes
shutter/strobe frequency, max
18 Hz
