Info | |
---|---|
order code |
51785910
|
product link | |
EAN |
4026397597998
|
Product Name |

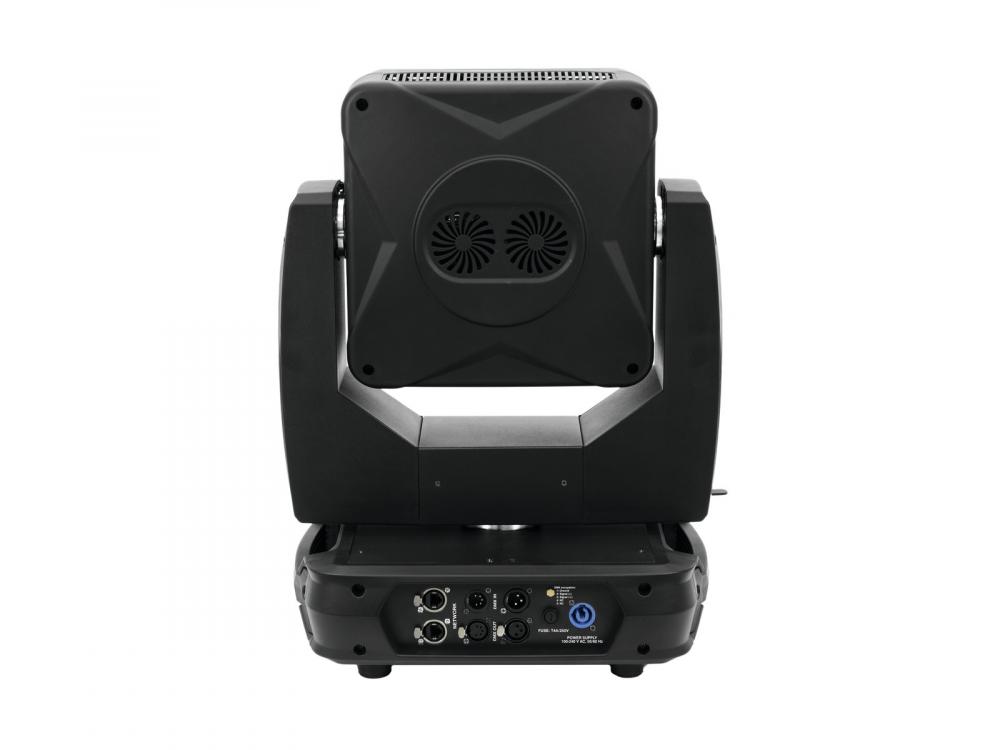

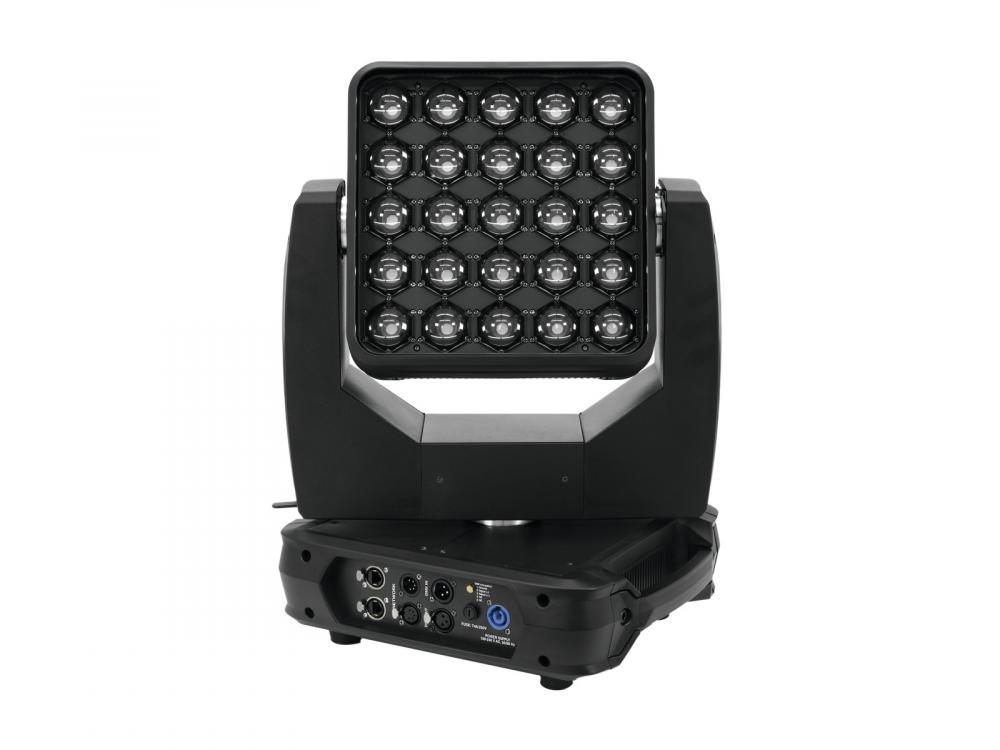

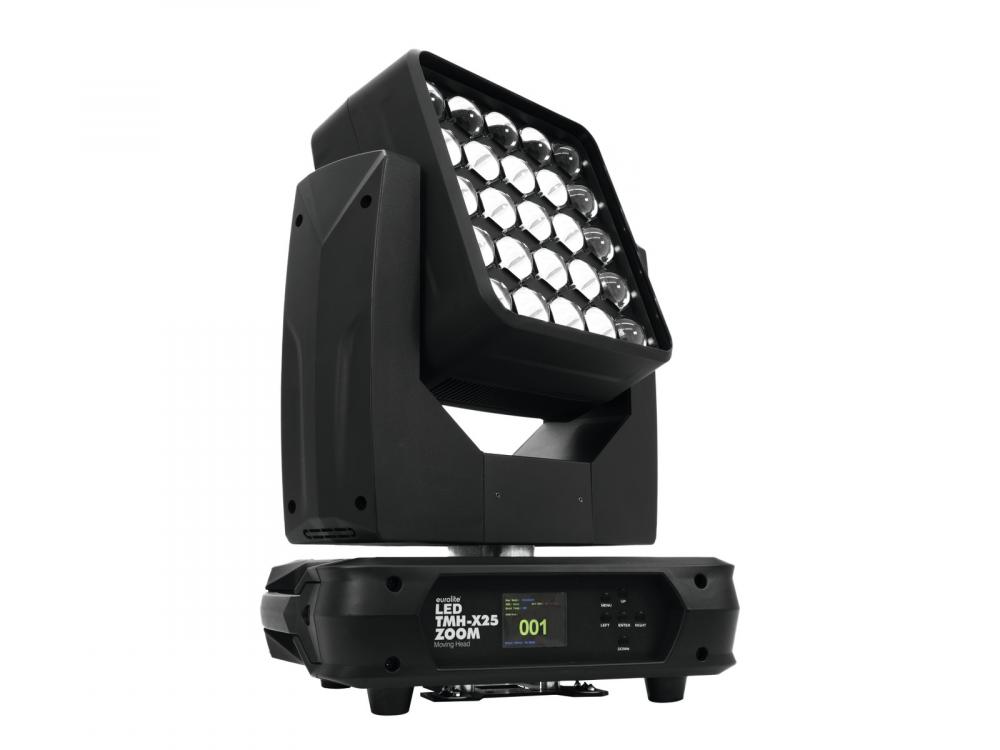

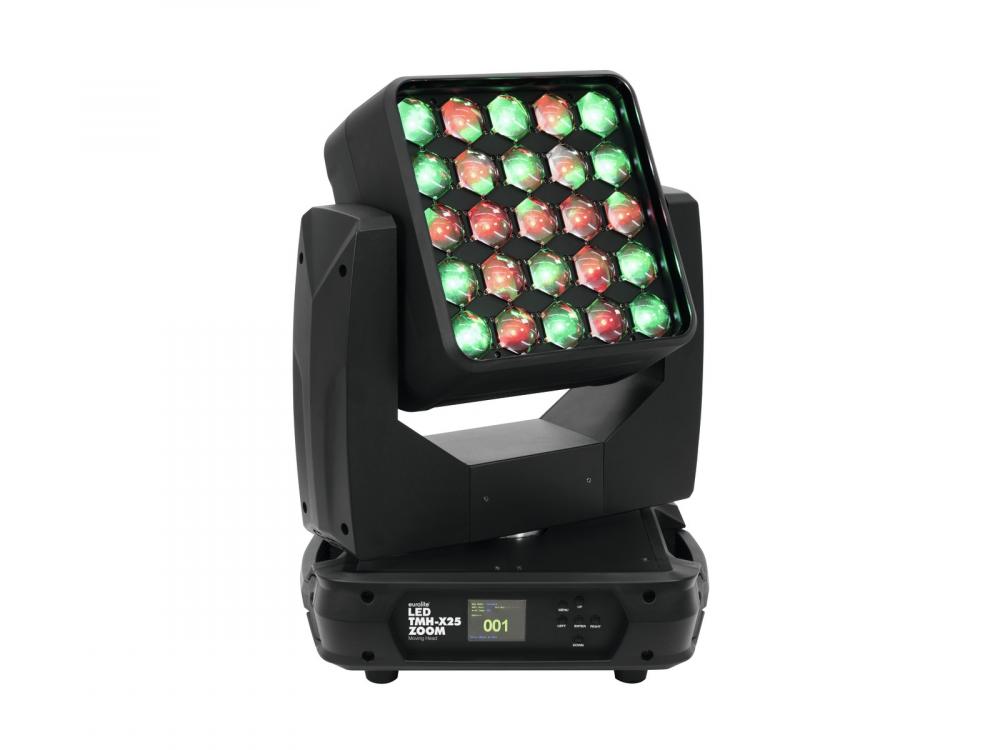

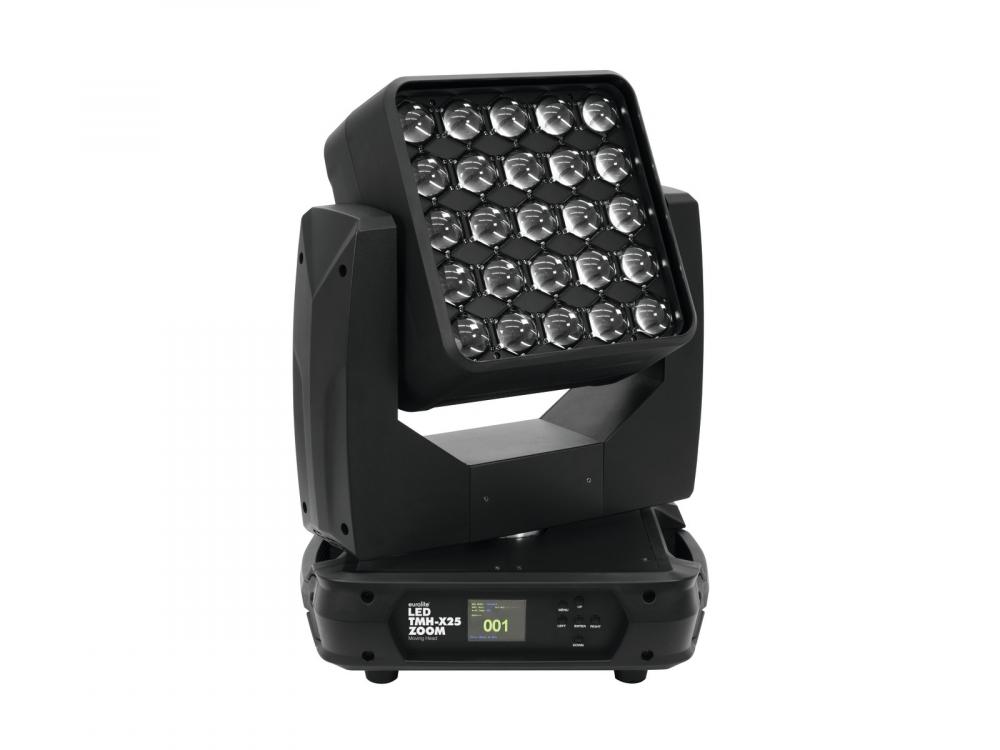

EUROLITE LED TMH-X25 Zoom Moving-Head
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protocol: Art-Net 3 Signal port: 2 x RJ45 (Ethernet) DMX channels: 13/24/88/113 DMX connection: 5-pin and 3-pin XLR Flash-rate: 20 Hz LED number: 25 LED type: 12 W RGBW (COB) Maximum PAN-movement: unlimited Maximum TILT-movement: unlimited Beam angle: 7.5-60° Dimensions (W x D x H): 415 x 310 x 535 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 18,40 kg Cooling fan: Yes IP classification: IP20 Power consumption: 450 W Laser class: Without laser Beam angle: 7,5 - 60° Height: 53,5 cm Depth: 31 cm Width: 41,5 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° plus infinity Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) plus infinity Pan tilt feedback Equipment: Zoom motor-driven Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) DMX channels: 13; 24; 88; 113 LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
5x5 Matrix Panel, bright 12 W RGBW LEDs, large zoom COB Moving Panel with 5 x 5 matrix with zoom, endless PAN/TILT and Art-Net -Equipped with 25 x 12 W COB LED in the colors red, green, blue and white -Quick and easy control via Art-Net -Infinity function for unlimited PAN and TILT movement -Each LED can be controlled individually -Motorized zoom with 7.5-60° beam angle -13, 24, 88 or 113 DMX channels selectable -Functions: stepless RGBW color mixture, automatic color change, preset colors and color temperatures, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer -Different dimmer curves and dimmer speed (step response) adjustable -Automatic position correction -Exact positioning via 16 bit PAN/TILT movement resolution -PAN angle switchable between 540° and 630° -DMX-controlled operation or for use via appropriate lighting control software supporting Art-Net -Control board with LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset -Ethernet connectors -Switch-mode power supply for operation between 100 and 240 volts -Power connection via P-Con jack and included power cable -DMX control via every standard DMX controller -Case color: Black -Effect: Single Beam -Projection: flicker-free -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Control: DMX; Stand-alone -LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix) |
Audio | |
Ethernet RJ 45 |
2 pcs
|
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
13 ch
|
control channels, max |
113 ch
|
protocol-Artnet |
input
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
450.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
18.40 kg
|
width |
415.00 mm
|
height |
535.00 mm
|
length |
310.00 mm
|
pan range |
9999 °
|
tilt range |
16 °
|
Optical | |
beam angle/zoom, min |
60.00 °
|
beam angle/zoom, max |
7.50 °
|
light source |
LED
|
optics/projection type |
Washlight
|
Number of light sources |
25 pcs
|
wattage per light source |
12.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
20 Hz
|
