Info | |
---|---|
order code |
51785973
|
product link | |
EAN |
4026397483383
|
Product Name |

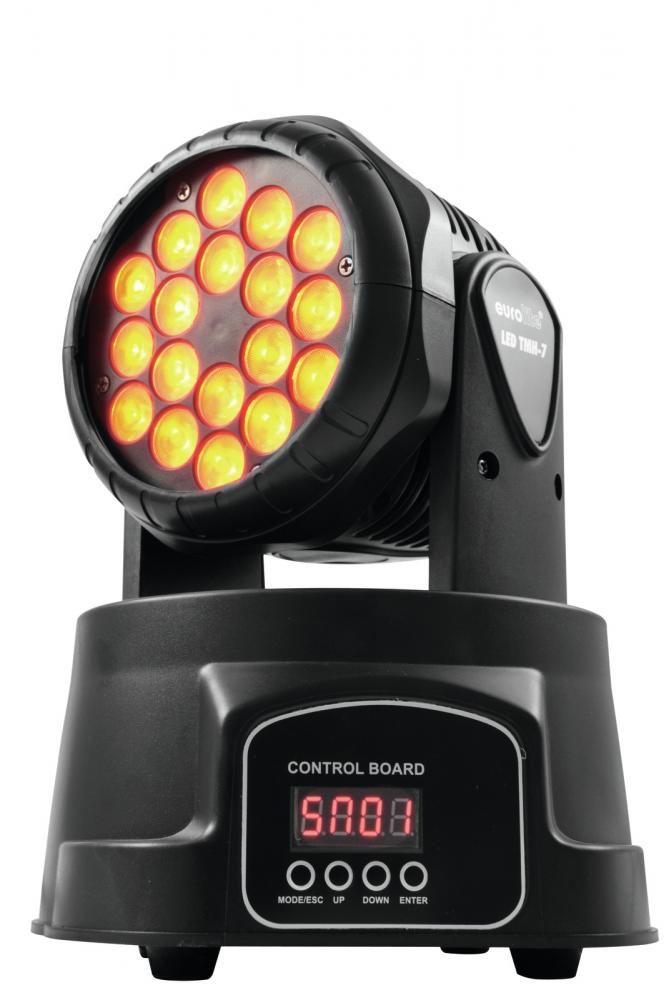

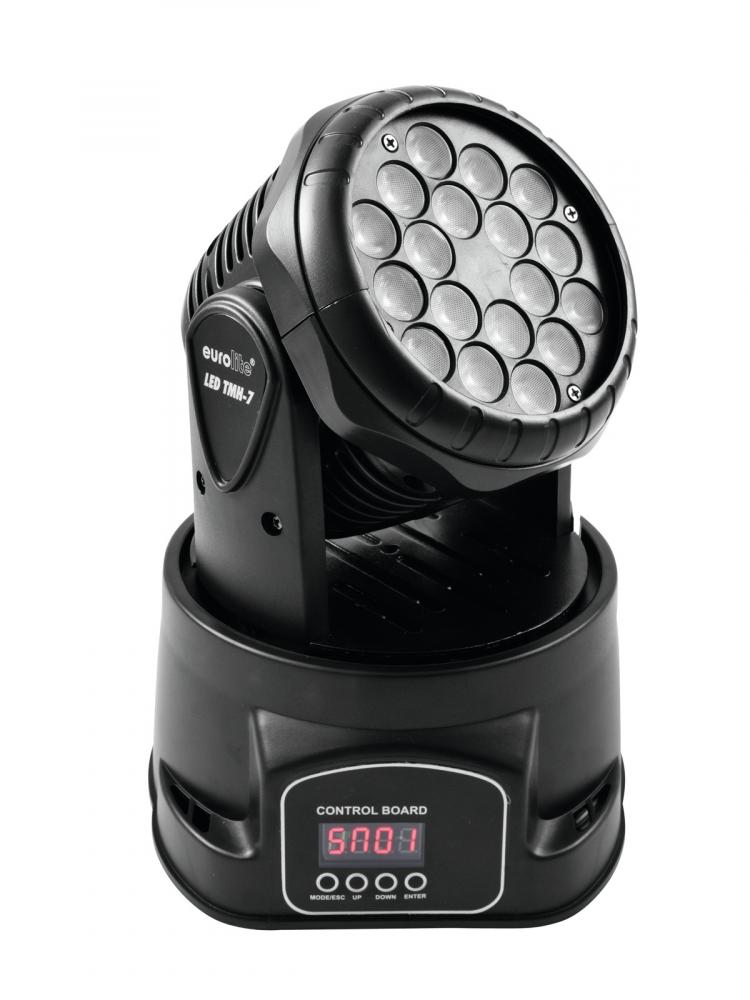

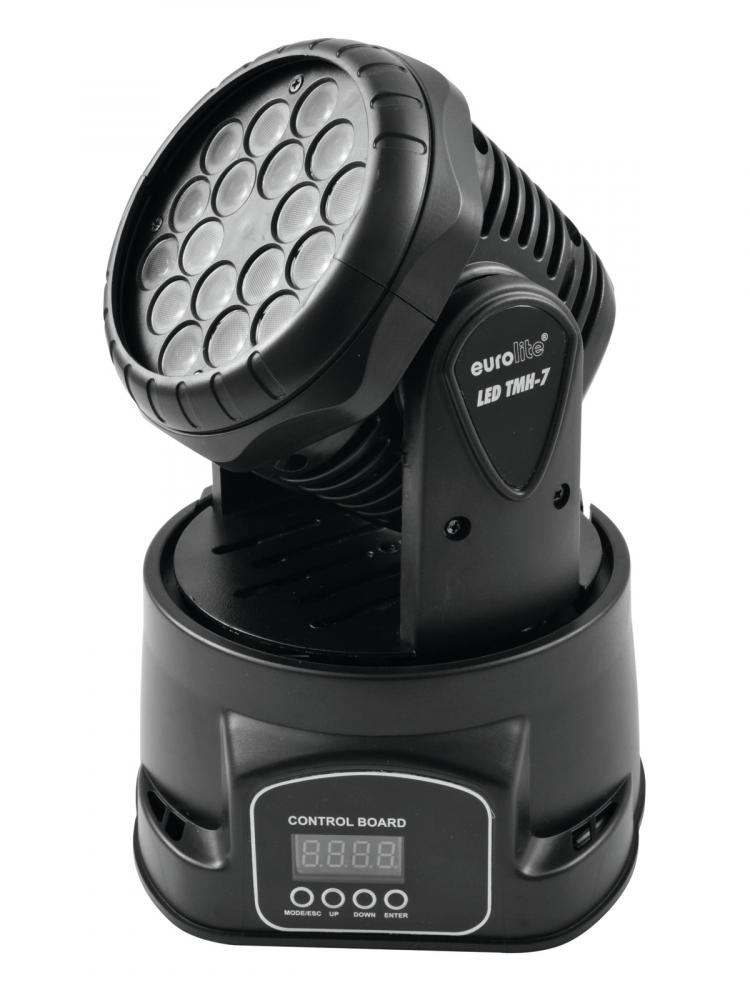

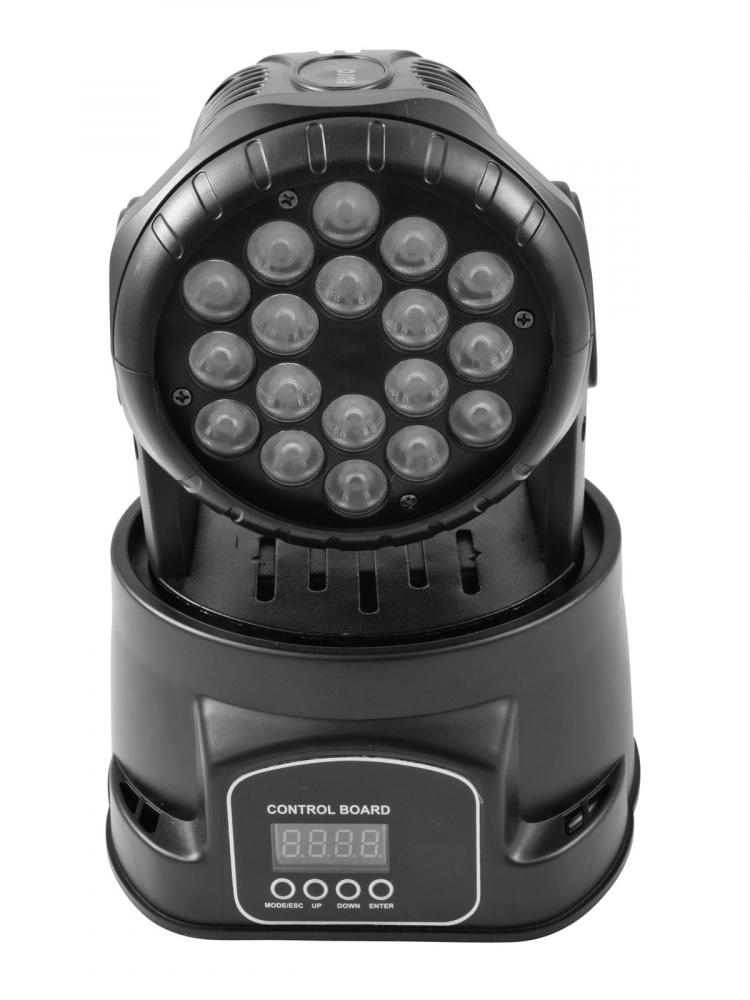

EUROLITE LED TMH-7 Moving Head Wash
|
technical overview |
Power supply: 230 V AC, 50 Hz DMX channels: 11 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz LED number: 18 LED type: 3 W RGB (3in1) Beam angle: 25° Maximum PAN-movement: 540° Maximum TILT-movement: 180° Dimensions (L x W x H): 175 x 175 x 245 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting DMX channels: 11 Power consumption: 75 W Flash rate: 1 - 18 Hz Max. TILT movement: Exact positioning (16 bit resolution) 180° Max. PAN movement: Exact positioning (16 bit resolution) 540° Weight: 3 kg Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Beam angle: 25° Height: 24,5 cm Depth: 17,5 cm Width: 17,5 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) LED: 18 x high-power 3 W 3in1 TCL RGB (homogenous color mix) Power supply: 230 V AC, 50 Hz |
main features |

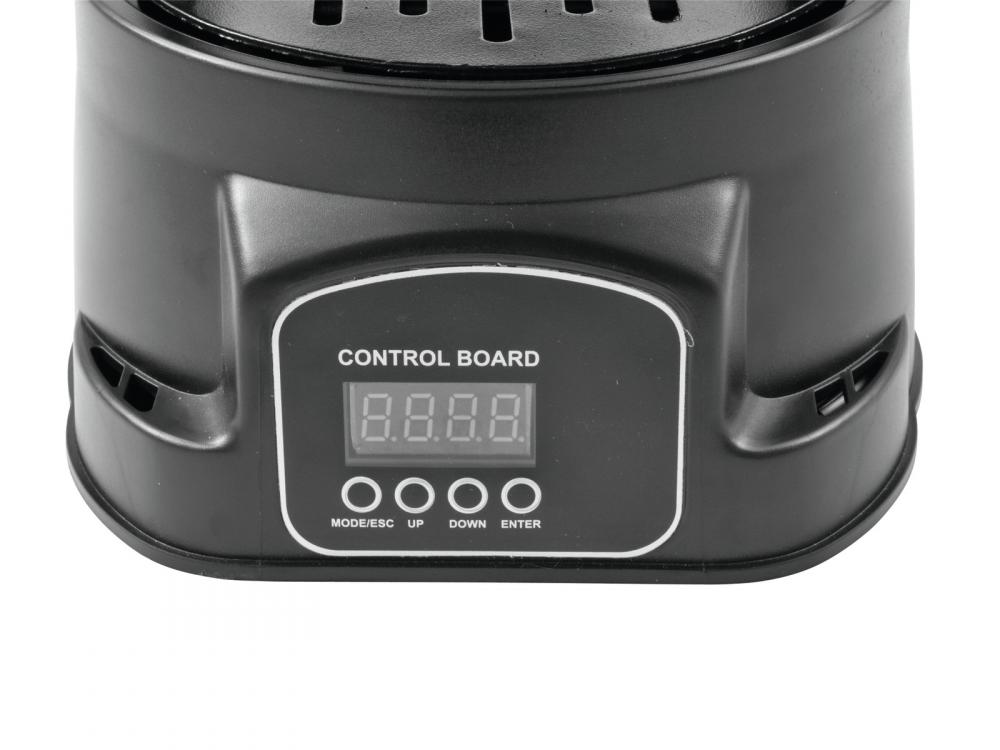

Compact washlight with 3 W tricolor LEDs and RGB color mixing -Equipped with 18 x 3 W tricolor LEDs with RGB colors -Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided -Compact lightweight -Positioning within 540° PAN and 180° TILT -Stepless RGB color mixture -6 color macros can be called up via DMX controller -Dimmer -Strobe effect with adjustable speed -Random strobe effect -Exact positioning via 16 bit PAN/TILT movement resolution -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Reset -DMX control via every standard DMX controller -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Sound to light via microphone; DMX; Stand-alone -LED: 18 x high-power 3 W 3in1 TCL RGB (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
11 ch
|
control channels, max |
11 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
3.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
3.00 kg
|
width |
175.00 mm
|
height |
245.00 mm
|
length |
175.00 mm
|
pan range |
540 °
|
tilt range |
180 °
|
Optical | |
beam angle/zoom, min |
25.00 °
|
beam angle/zoom, max |
25.00 °
|
light source |
LED
|
optics/projection type |
Washlight
|
Number of light sources |
18 pcs
|
wattage per light source |
3.00 W
|
multichip LED |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
18 Hz
|
