| Info | |
|---|---|
| order code |
42109928
|
| product link | |
| EAN |
4026397429091
|
| Product Name |

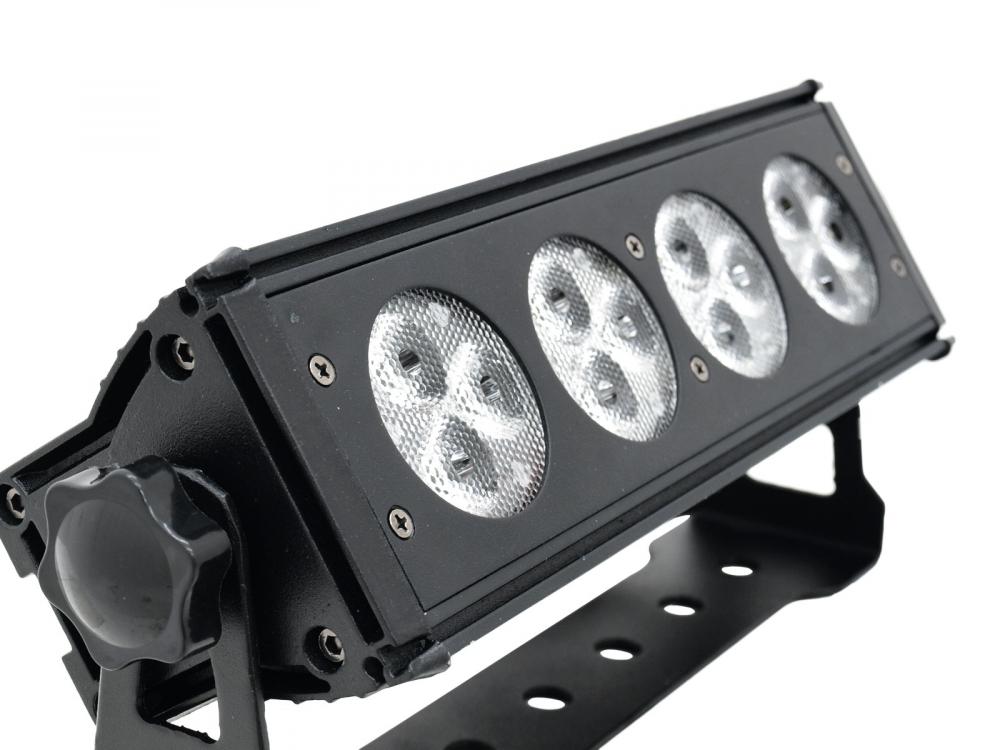

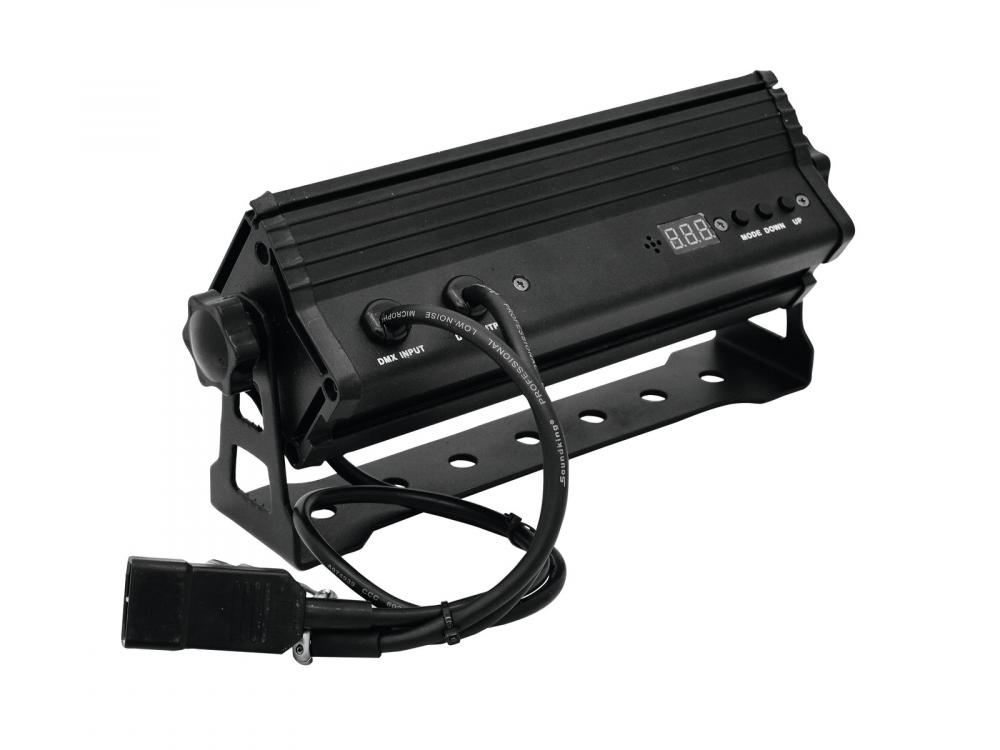

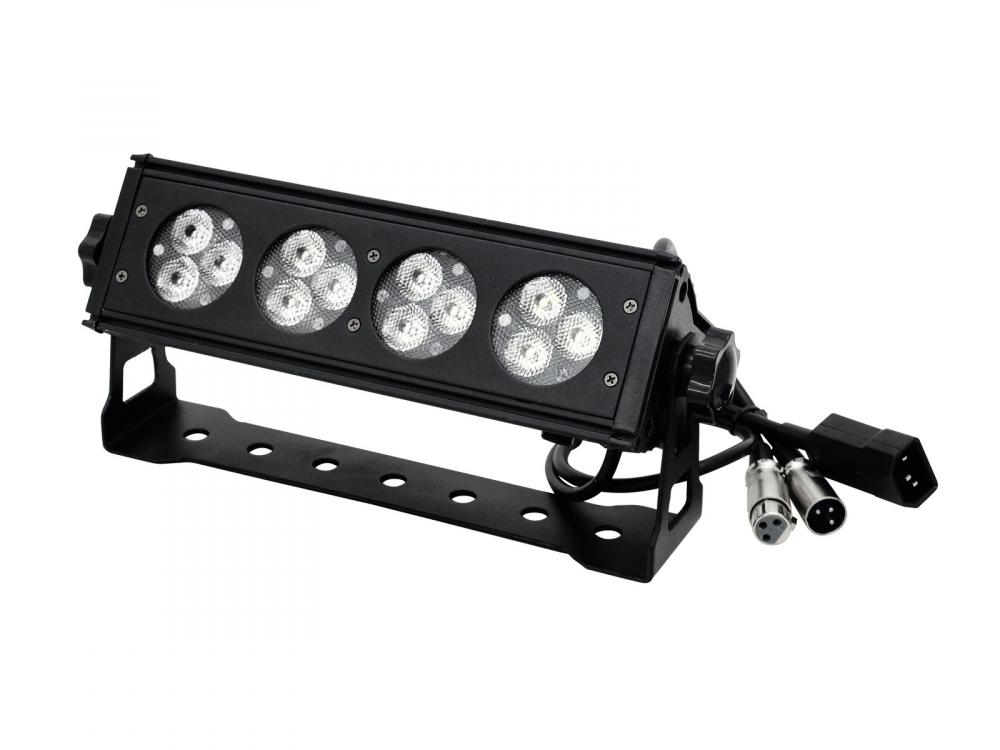

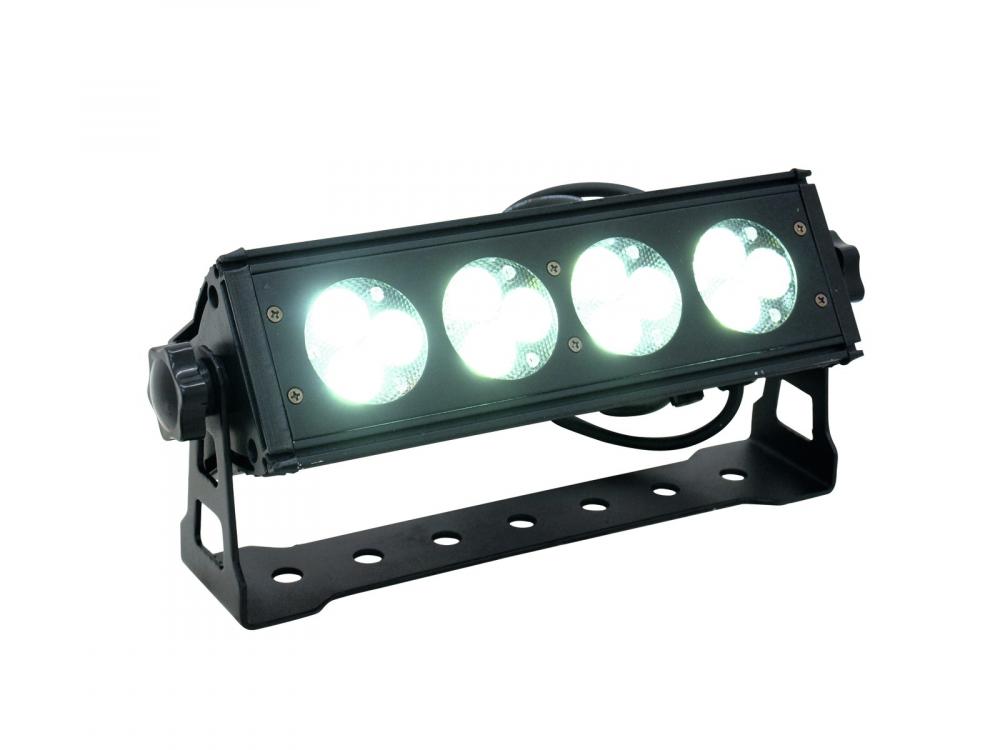

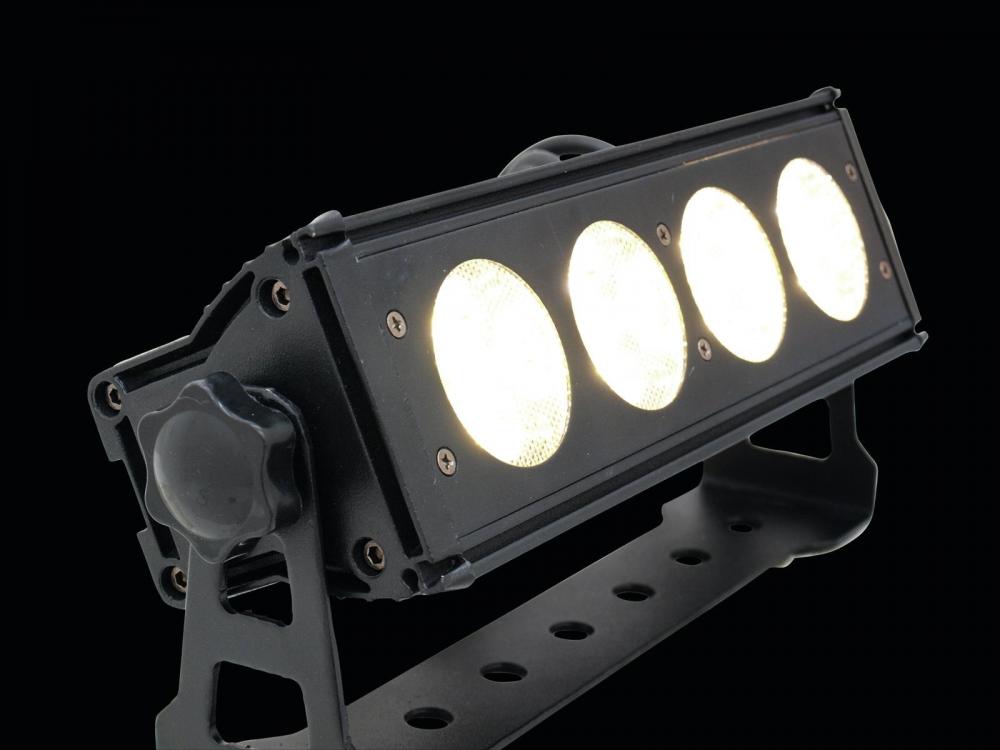

EUROLITE LED ACS BAR-12 6000K 12x1W
|
| technical overview |
Power supply: 230 V AC, 50 Hz DMX channels: 2/5 DMX connection: 3-pin XLR Sound-control: via built-in microphone LED type: 1 W LED number: 12 Beam angle: 16° Dimensions (L x W x H): 80 x 285 x 130 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 1,4 kg Beam angle: 16° Power consumption: 20,00 W IP classification: IP20 Lamp type: LED lamp Height: 13 cm Depth: 8 cm Width: 28,5 cm Power connection: Fix Power supply cord with safety plug (M) DMX channels: 2; 5 LED: 12 x high-power 1 W CW (homogenous color mix) Power supply: 230 V AC, 50 Hz |
| main features |
Handy professional light bar with cold white LEDs -Equipped with 12 x 1 W LEDs -Beam angle approximately 16° -Floor, ceiling or trussing installation possible -Locking possibility at the mounting bracket -Operable in stand-alone mode or via DMX -DMX512 control possible via any commercial DMX controller (occupies max. 5 channels) -2 or 5 DMX channels selectable for numerous applications -Sound-control via built-in microphone -Adjustable microphone sensitivity via control panel -Comfortable addressing and setting via control panel with LED screen and three operating buttons -Functions: LED intensity and strobe settings via DMX, Master/Slave -Ready for connection via power cord with IEC plug for direct KLS-connection -For stand alone operation you need a normal power cord with safety plug -Case color: Black -Power connection: Fix Power supply cord with safety plug (M) -Control: Stand-alone; DMX -LED: 12 x high-power 1 W CW (homogenous color mix) |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
2 ch
|
| control channels, max |
5 ch
|
| Electrical | |
| power consumption watt, max |
1.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| IP rating |
20
|
| power input connector |
fixed
|
| Mechanical | |
| weight |
1.40 kg
|
| width |
285.00 mm
|
| height |
130.00 mm
|
| length |
80.00 mm
|
| Optical | |
| beam angle/zoom, min |
16.00 °
|
| beam angle/zoom, max |
16.00 °
|
| light source |
LED
|
| Number of light sources |
12 pcs
|
| wattage per light source |
1.00 W
|
