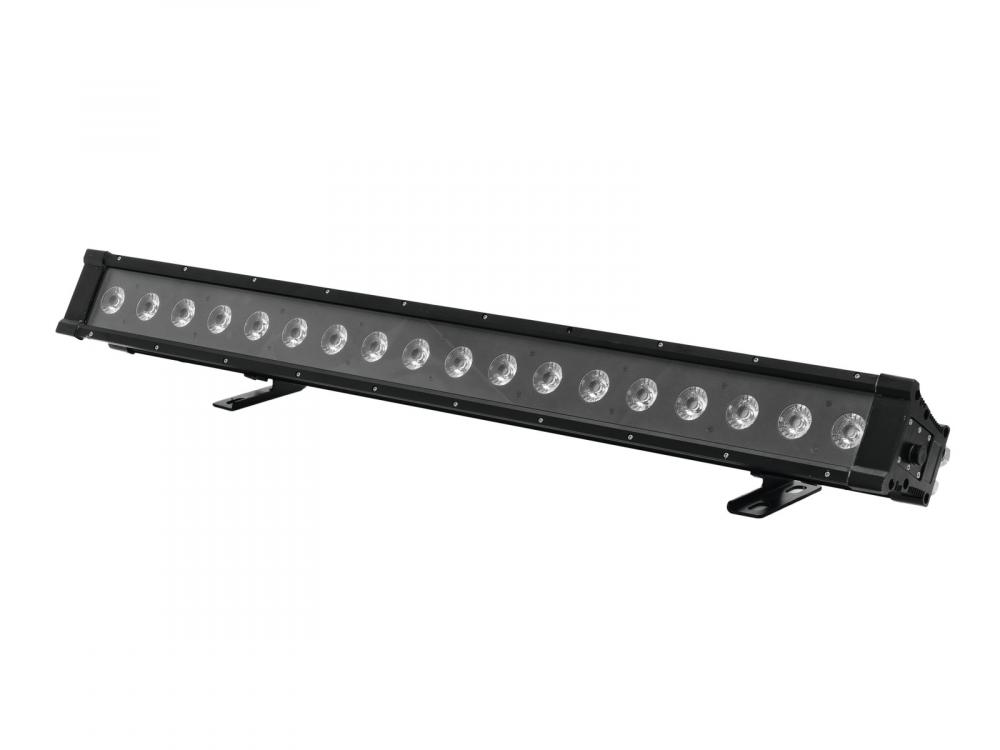

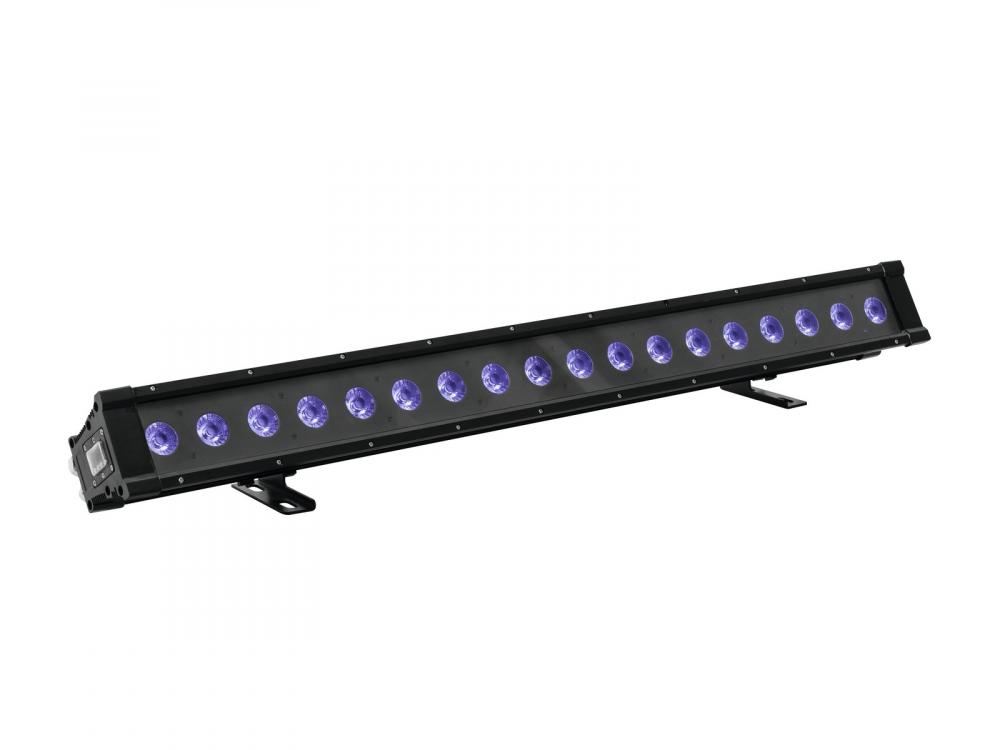

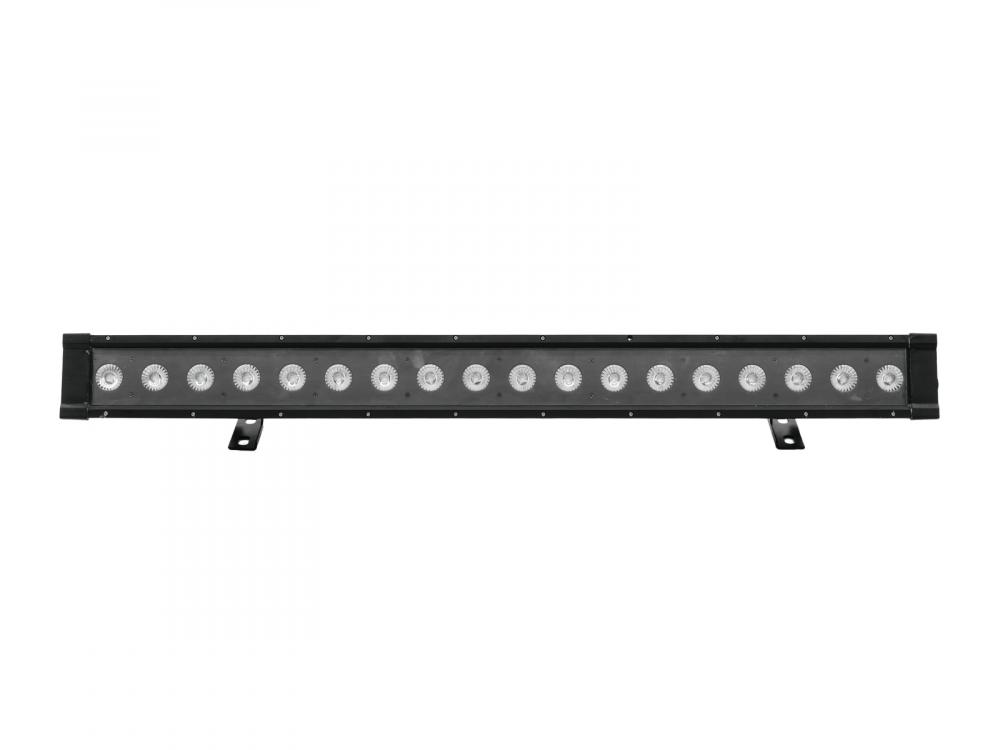

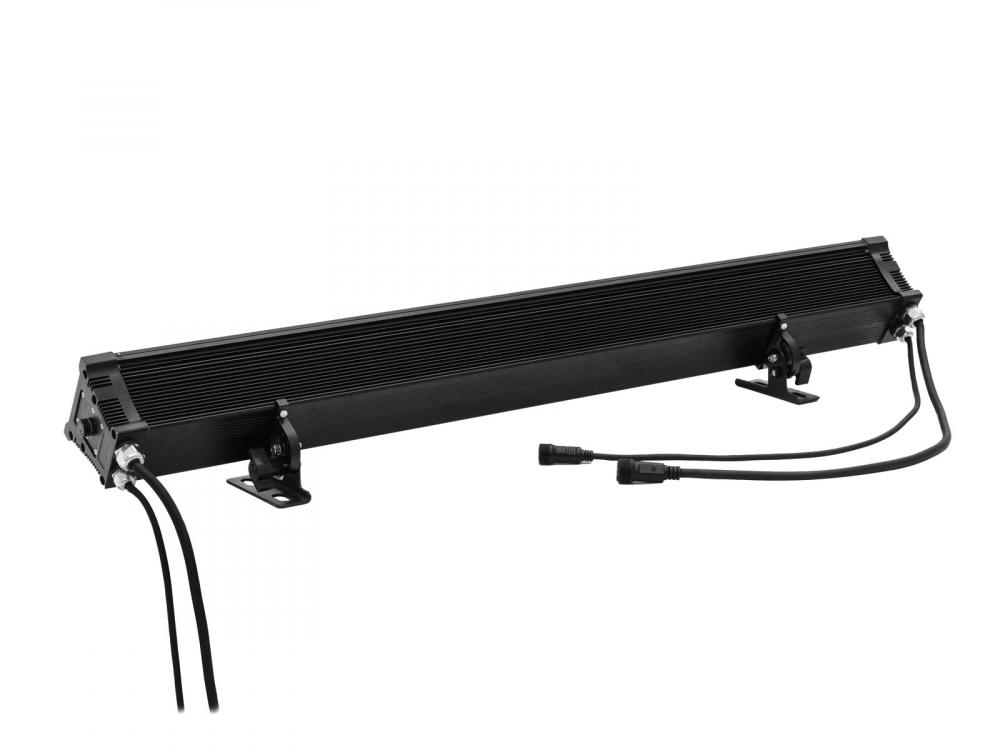

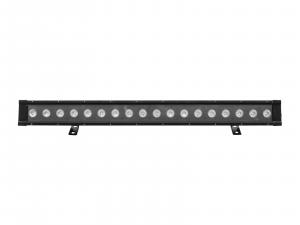

EUROLITE LED IP T2000 HCL Bar
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP T2000 HCL Bar
| Info | |
|---|---|
| order code |
51914118
|
| product link | |
| EAN |
4026397605877
|
| Product Name |
EUROLITE LED IP T2000 HCL Bar
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protection grade: IP65 Beam angle: 30° LED type: 10 W RGBAW+UV (6in1) LED number: 18 DMX channels: 4/5/6/7/9/12 DMX connection: 3-pin screw connector Flash-rate: 18 Hz Dimensions (L x W x H): 1009 x 159 x 125 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP65 Cooling fan: No, cooling by convection Weight: 6 kg Lamp type: LED lamp Power consumption: 140 W Beam angle: 30° Height: 10,1 cm Depth: 17 cm Length: 101 cm Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) DMX channels: 4; 5; 6; 7; 9; 12 LED: 18 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |
Weather-proof bar (IP65) with 16 x 10 W 6in1 LED (RGBAW+UV), 100 cm -Equipped with 18 high-power 6in1 LEDs in the colors red, green, blue, amber, white and UV -4, 5, 6, 7, 9 or 12 DMX channels selectable -For architectural lighting -Suitable for external use (IP65) -Fully convection cooled, no fans -Stepless RGBAW+UV color mixture -Dimmer -Different dimmer curves and dimmer speed (step response) adjustable -Strobe effect with adjustable speed -Random strobe effect -Preset colors and color temperatures -Internal programs -Programmable color change speed -Programmed and programmable chaser -DMX-controlled operation or stand-alone operation with Master/Slave function -Addressing and setting via Control Board with LED display and four operating buttons -Switch-mode power supply for operation between 100 and 240 volts -DMX control via every standard DMX controller -Feed-through output allows to power up to 8 devices -Case color: Black -Effect: Strobe effect; UV -Projection: flicker-free -Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) (provided) -Power out: 1 x 3-pin screw plug connector (F) IP -Control: Stand-alone; DMX -LED: 18 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Connectors | |
| DMX connector types |
other
|
| Control | |
| control channels, min |
4 ch
|
| control channels, max |
12 ch
|
| Electrical | |
| power consumption watt, max |
140.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
65
|
| cooling |
passive
|
| Mechanical | |
| weight |
6.00 kg
|
| width |
159.00 mm
|
| height |
125.00 mm
|
| length |
1009.00 mm
|
| Optical | |
| beam angle/zoom, min |
30.00 °
|
| beam angle/zoom, max |
30.00 °
|
| light source |
LED
|
| Number of light sources |
18 pcs
|
| wattage per light source |
10.00 W
|
| multichip LED |
yes
|
| COLD WHITE LED source |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
| UV light source |
yes
|
| AMBER light source |
yes
|
| shutter/strobe frequency, max |
18 Hz
|
