| Info | |
|---|---|
| order code |
51930278
|
| product link | |
| EAN |
4026397616033
|
| Product Name |

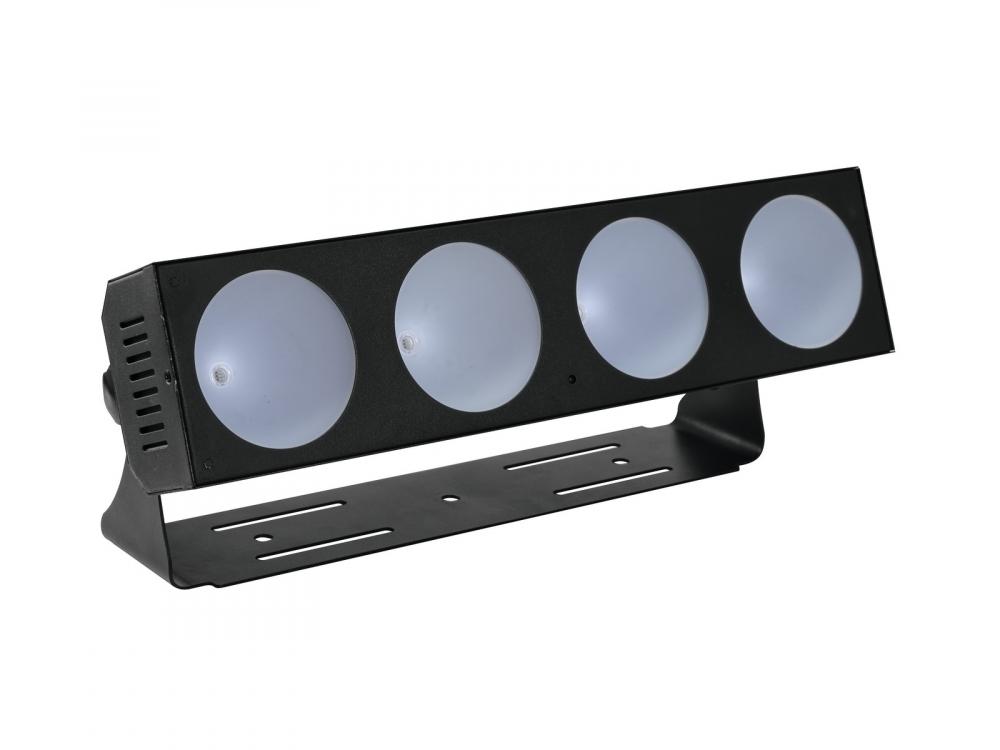

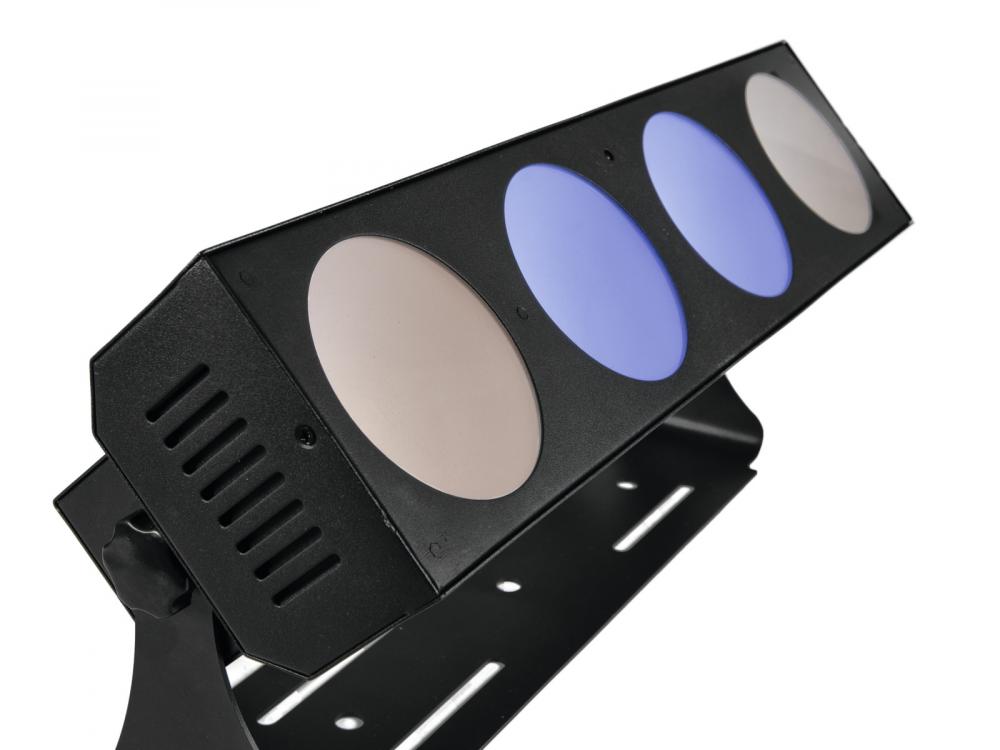

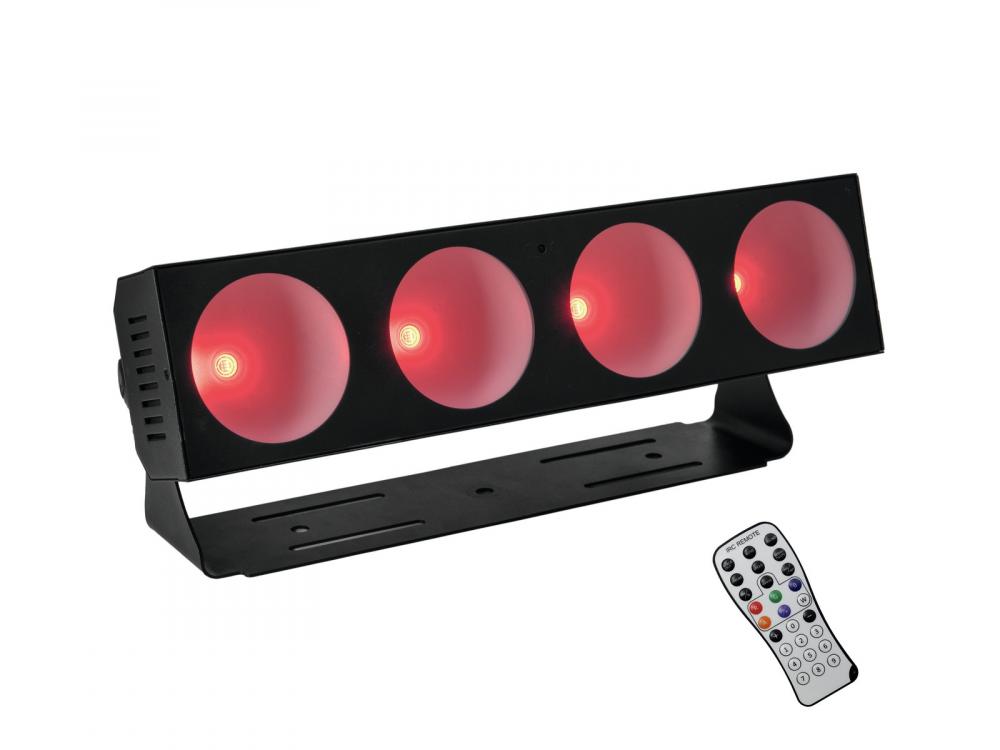

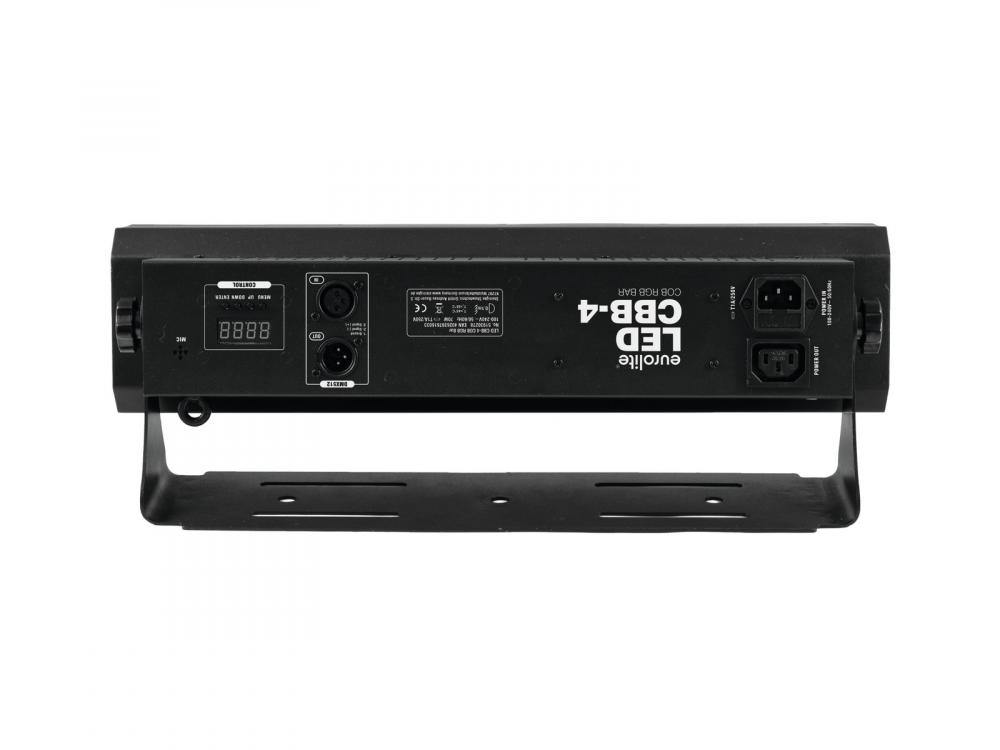

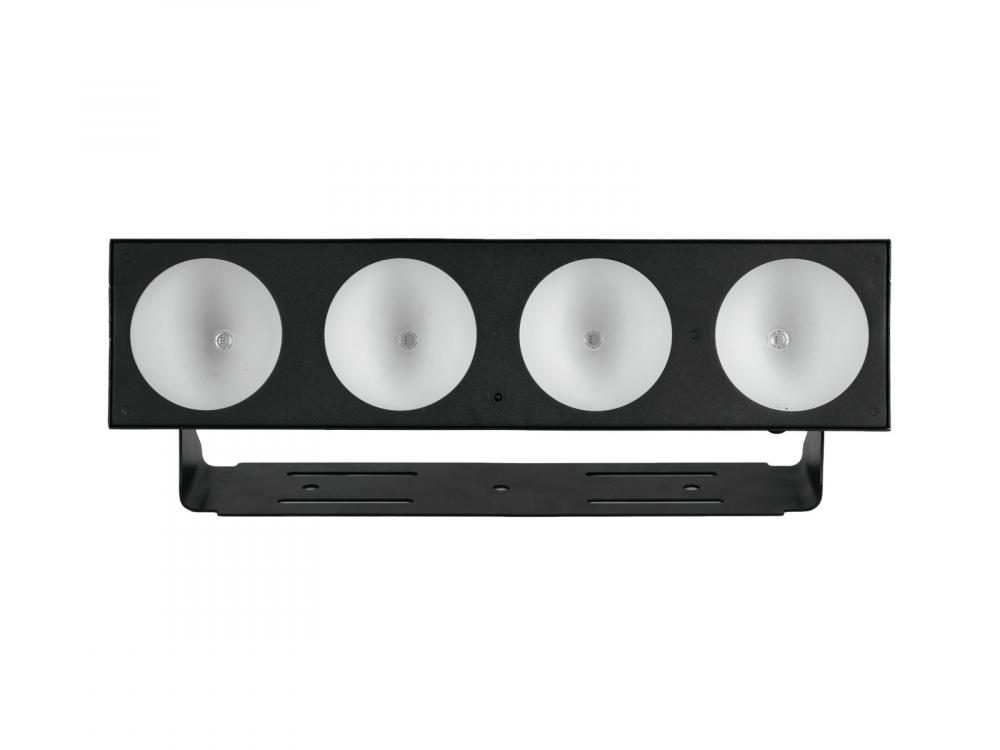

EUROLITE LED CBB-4 COB RGB Bar
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 3/5/12/15/19 DMX connection: 3-pin XLR Sound-control: via built in microphone LED type: 30 W RGB (COB) LED number: 4 Beam angle: 39° Dimensions (L x W x H): 160 x 460 x 160 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Lamp type: LED lamp Weight: 4 kg Cooling fan: Yes, super silent Power consumption: 70 W Beam angle: 39° Height: 16 cm Depth: 16 cm Length: 46 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 3; 5; 12; 15; 19 LED: 4 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |
LED light effect bar with RGB color mixing, incl. IR remote control -4 high-power 30 W RGB LEDs (COB) -Auto, music, master/slave and DMX mode -Built-in auto and music show programs -Direct color selection for 19 preset colors -Stepless RGBW color blend, color change, color fade, dimmer and strobe effect -Addressing and setting via control panel with 4-digit LED display -Convenient wireless control via included IR remote control EUROLITE IR-7 -Sound-control via built-in microphone with adjustable microphone sensitivity -DMX512 control possible via any commercial DMX controller -3, 5, 12, 15 or 19 DMX channels selectable for various applications -Swivel mounting bracket -Feed-through output allows to power up to 8 devices -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: IR remote control (provided); Stand-alone; DMX -LED: 4 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix) |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
3 ch
|
| control channels, max |
19 ch
|
| Electrical | |
| power consumption watt, max |
30.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
IEC-60320 C13/C14
|
| cooling |
active
|
| Mechanical | |
| weight |
4.00 kg
|
| width |
460.00 mm
|
| height |
160.00 mm
|
| length |
460.00 mm
|
| Optical | |
| beam angle/zoom, min |
39.00 °
|
| beam angle/zoom, max |
39.00 °
|
| light source |
LED
|
| Number of light sources |
4 pcs
|
| wattage per light source |
30.00 W
|
| multichip LED |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
