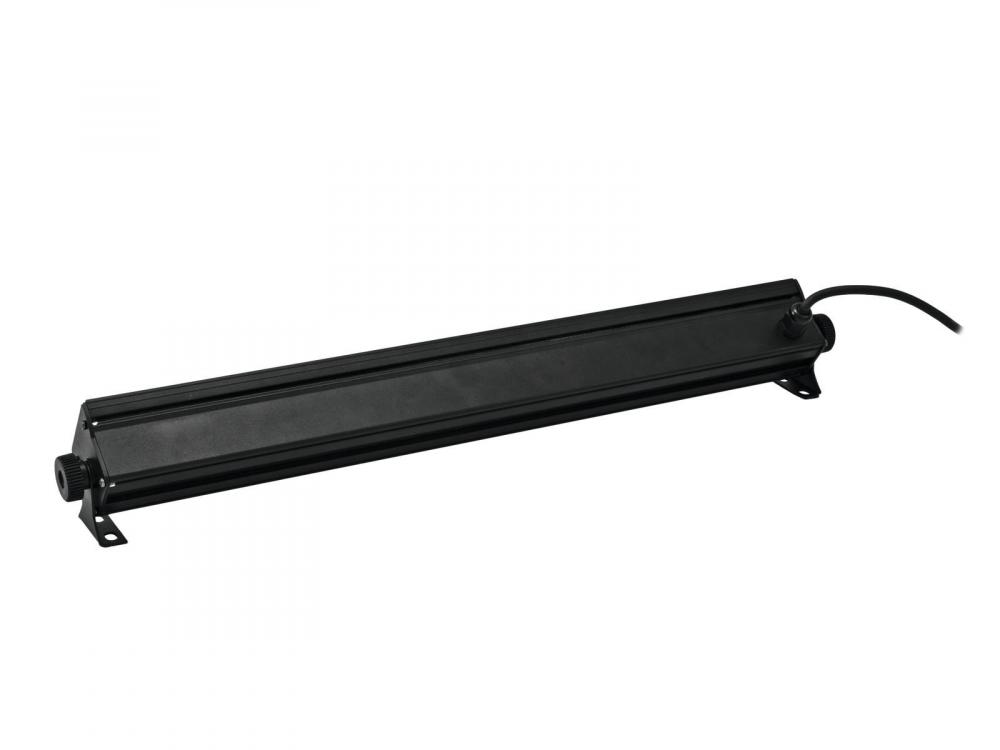

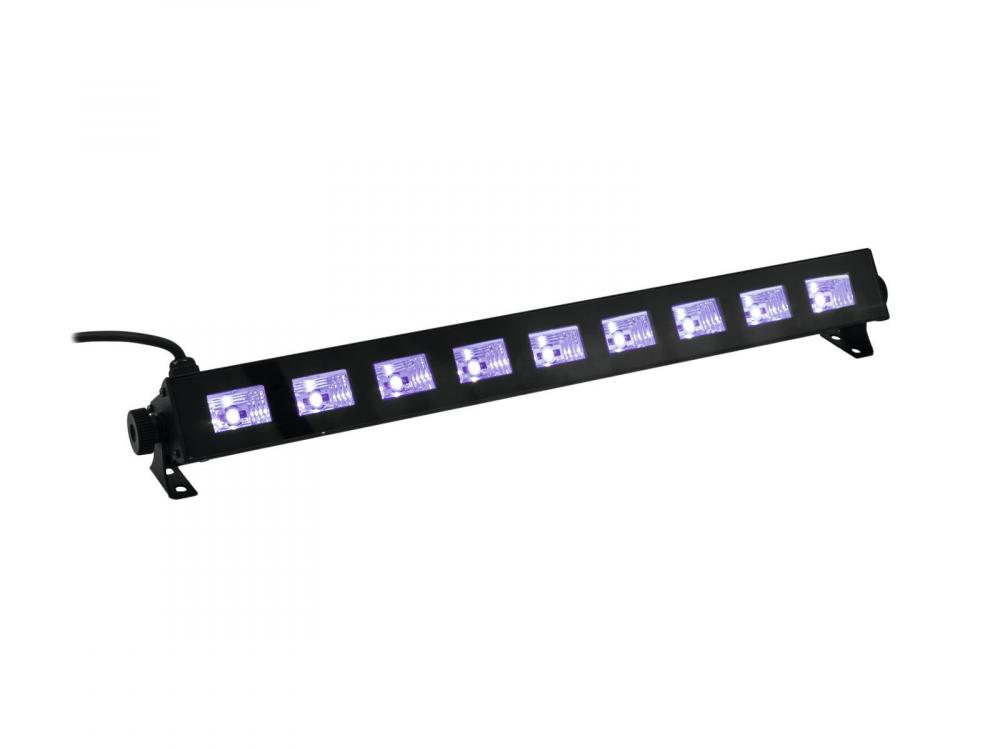

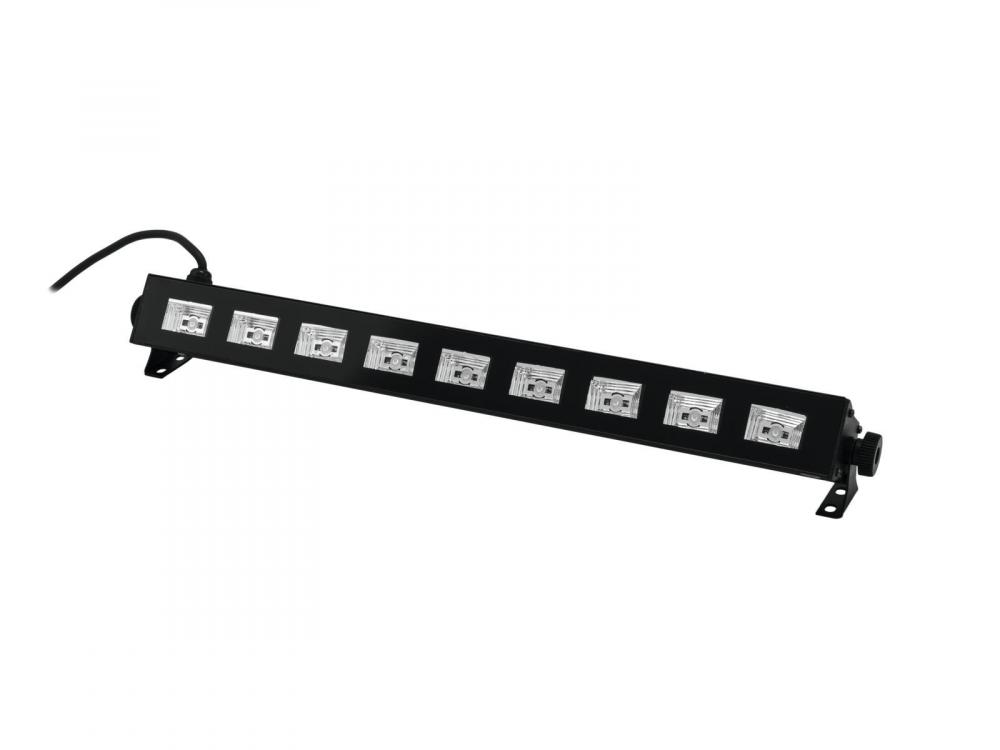

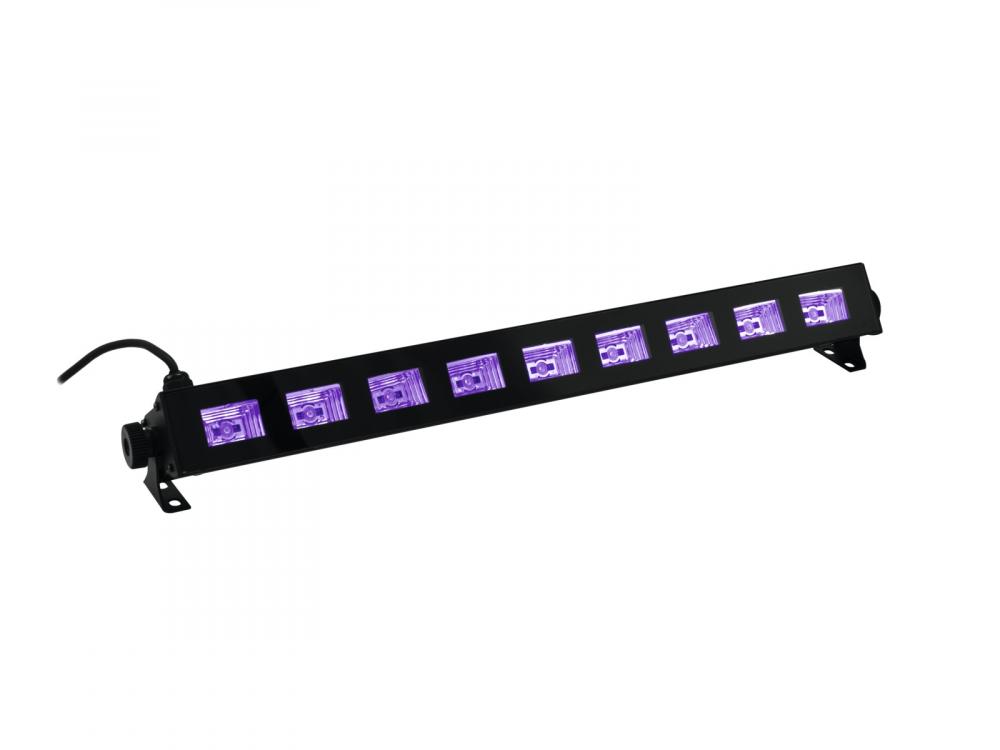

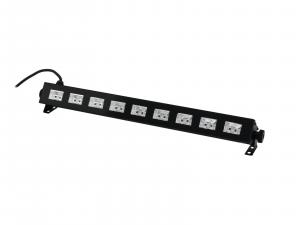

EUROLITE LED Party UV Bar-9

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Party UV Bar-9

Info
order code
51930304
product link
EAN
4026397590630
Product Name
EUROLITE LED Party UV Bar-9
technical overview
Power supply: 100-240 V AC, 50/60 Hz
LED type: 1 W UV (SMD)
LED number: 9
Dimensions (L x W x H): 500 x 65 x 65 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Weight: 0,7 kg
Lamp type: LED lamp
Power consumption: 20 W
Beam angle: 30°
Height: 6,5 cm
Depth: 6,5 cm
Length: 50 cm
Power connection: Fix Power supply cord with safety plug (M)
Material: Metal

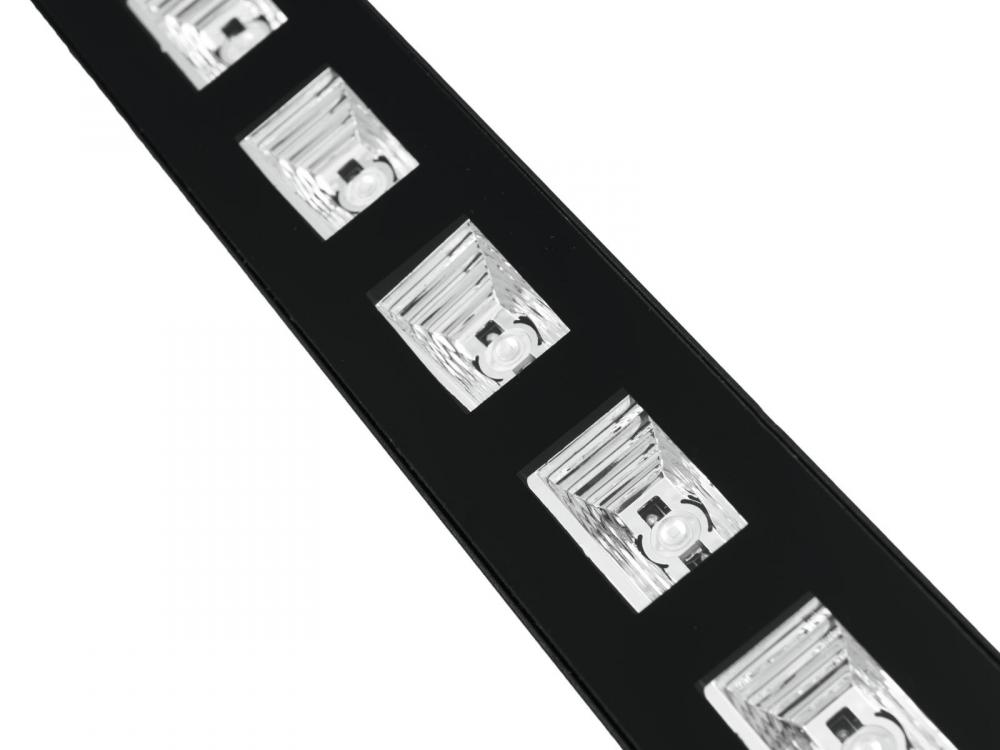

LED: 9 x SMD 1 W UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Simple UV lighting bar with 9 x 1 W UV LED
-Perfect for decorative and illumination purposes in party rooms, etc.
-For permanent installation
-Locking possibility at the mounting brackets
-Slender housing
-Available in two sizes
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection via power cord with safety power plug
-ON/OFF switch on the power cable
-Case color: Black
-Effect: UV
-Power connection: Fix Power supply cord with safety plug (M)
-Control: without
-LED: 9 x SMD 1 W UV (homogenous color mix)
Electrical
power consumption watt, max
1.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
0.70 kg
width
65.00 mm
height
65.00 mm
length
500.00 mm
enclosure material
Metal
Optical
beam angle/zoom, min
30.00 °
beam angle/zoom, max
30.00 °
light source
LED
Number of light sources
9 pcs
wattage per light source
1.00 W

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00101942.pdf
