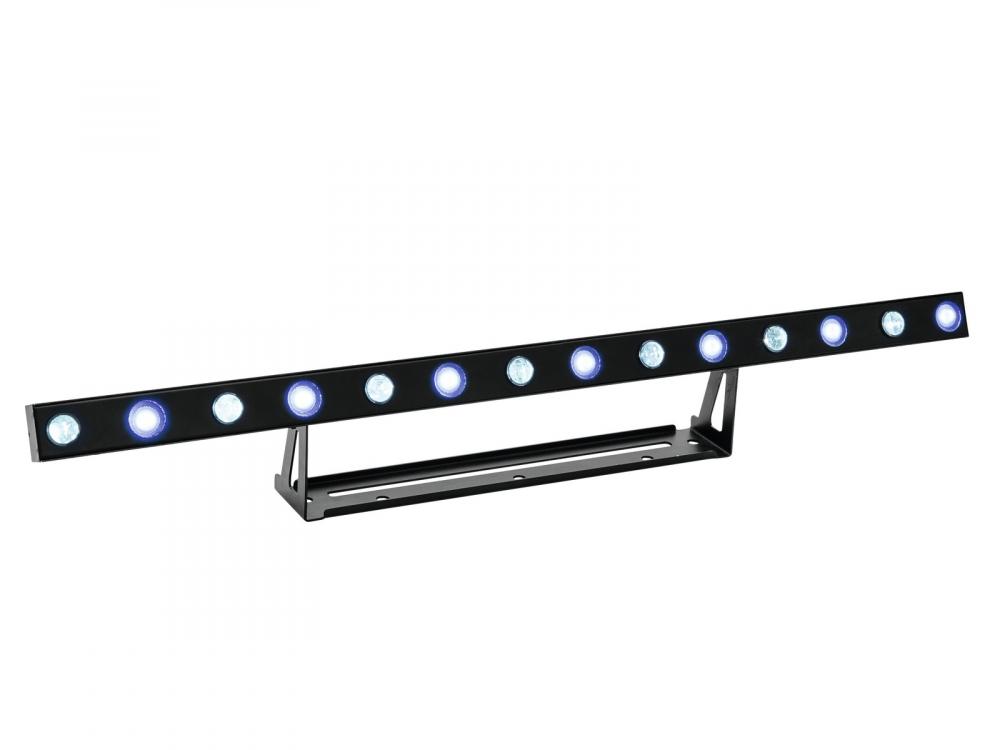

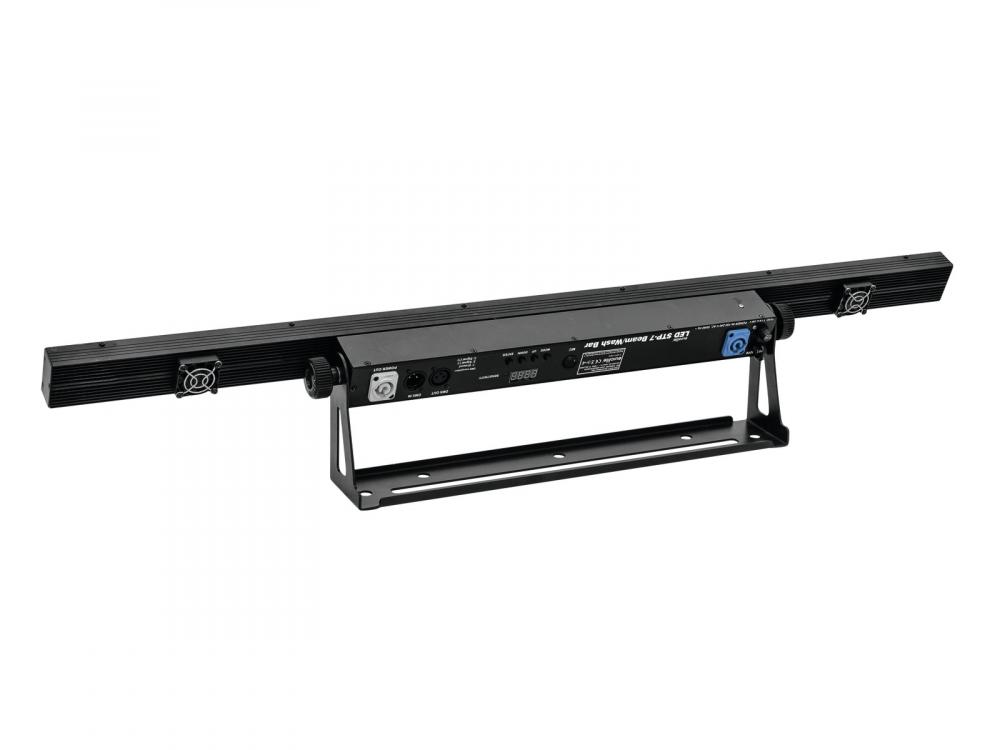

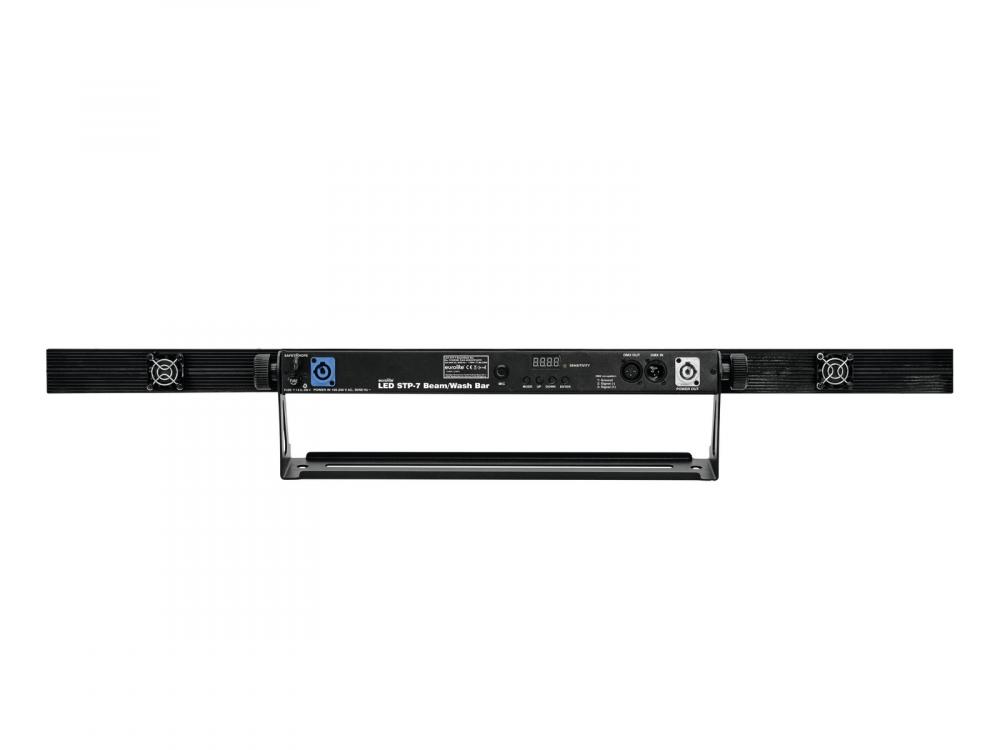

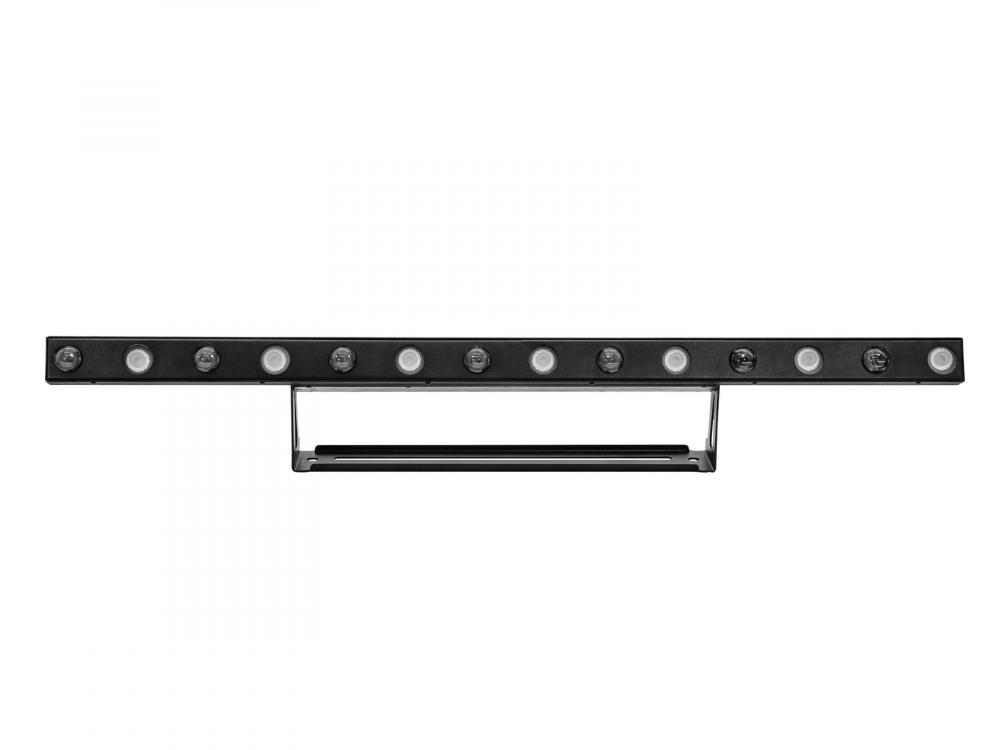

EUROLITE LED STP-7 Beam/Wash Bar

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED STP-7 Beam/Wash Bar

Info
order code
51930390
product link
EAN
4026397616279
Product Name
EUROLITE LED STP-7 Beam/Wash Bar
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 3/4/6/10/12/15
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flashrate: 20 Hz
Type of LED: 3 W cold white, 7 W RGB (3in1)
LED number: 2 x 7
Beam angle: Beam 2°, Wash 40°
Dimensions (L x W x H): 1000 x 120 x 140 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Beam angle: 2°; 40°
Weight: 4 kg
Lamp type: LED lamp
Power consumption: 180 W
Height: 14 cm
Depth: 12 cm
Length: 100 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels: 3; 6; 4; 10; 12; 15
LED: 7 x high-power 3 W CW (homogenous color mix); 7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
LED light bar with 7 LEDs for beam and 7 LEDs for wash effects
-Operable in stand-alone mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies max. 15 channels)
-3, 4, 6, 10, 12, or 15 DMX channels selectable
-Each Beam-LED can be controlled individually via DMX
-Sound-control via built-in microphone with adjustable microphone sensitivity
-Addressing and setting via control panel with 4-digit LED display
-Functions: Static colors, RGB color blend, built-in show programs in auto and sound control modes, dimmer and strobe settings, Master/Slave
-7 cold white 3 W LEDs for Beam-Effects (Beam angle 2°)
-7 powerful 7 W RGB LEDs (3in1) for Wash-Effects (Beam angle 40°)
-Hanging as well as standing installation possible
-Locking possibility at the mounting bracket
-Fan-cooled
-Feed-through output allows to power up to 8 devices
-Switch-mode power supply for operation between 100 and 240 volts
-P-Con power input and feed-through output to power up to 8 devices
-Case color: Black
-Effect: Strobe effect
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Power out: 1 x P-Con (Power out) gray, mounting version
-Control: Stand-alone; DMX
-LED: 7 x high-power 3 W CW (homogenous color mix); 7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
15 ch
Electrical
power consumption watt, max
180.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
4.00 kg
width
120.00 mm
height
140.00 mm
length
1000.00 mm
Optical
light source
LED
Number of light sources
2 pcs
shutter/strobe frequency, max
20 Hz
