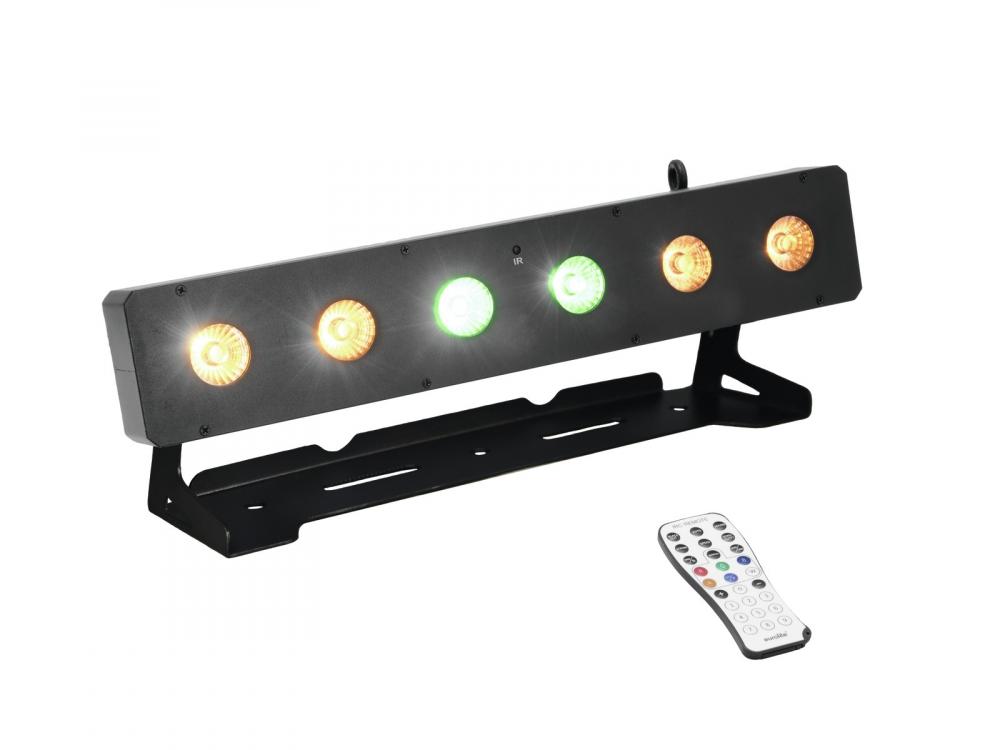

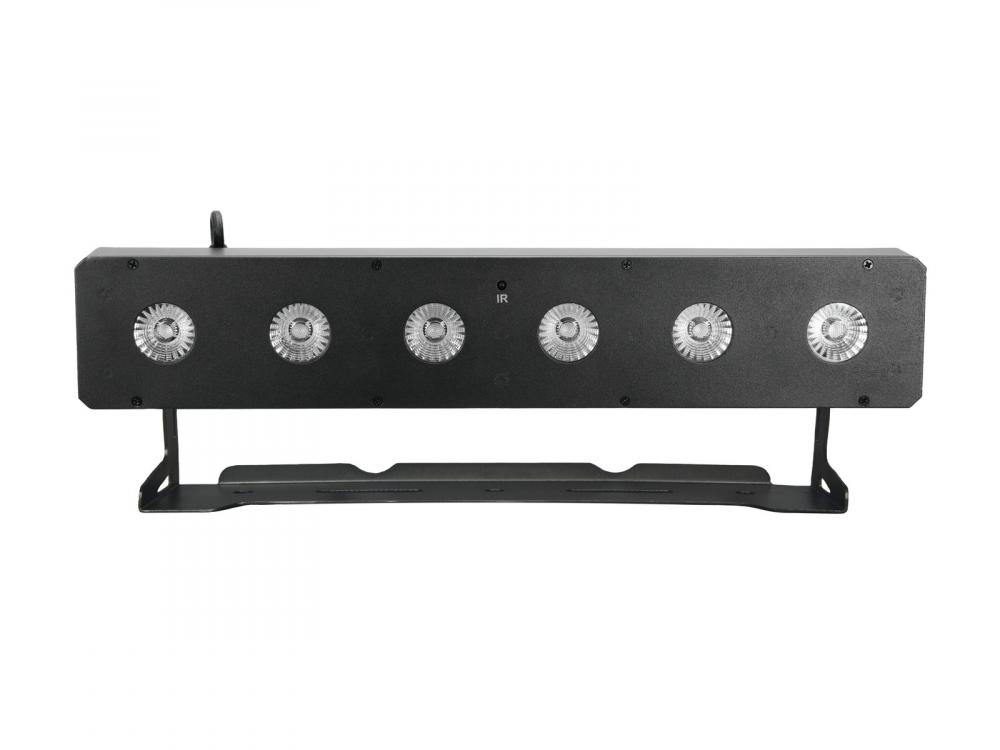

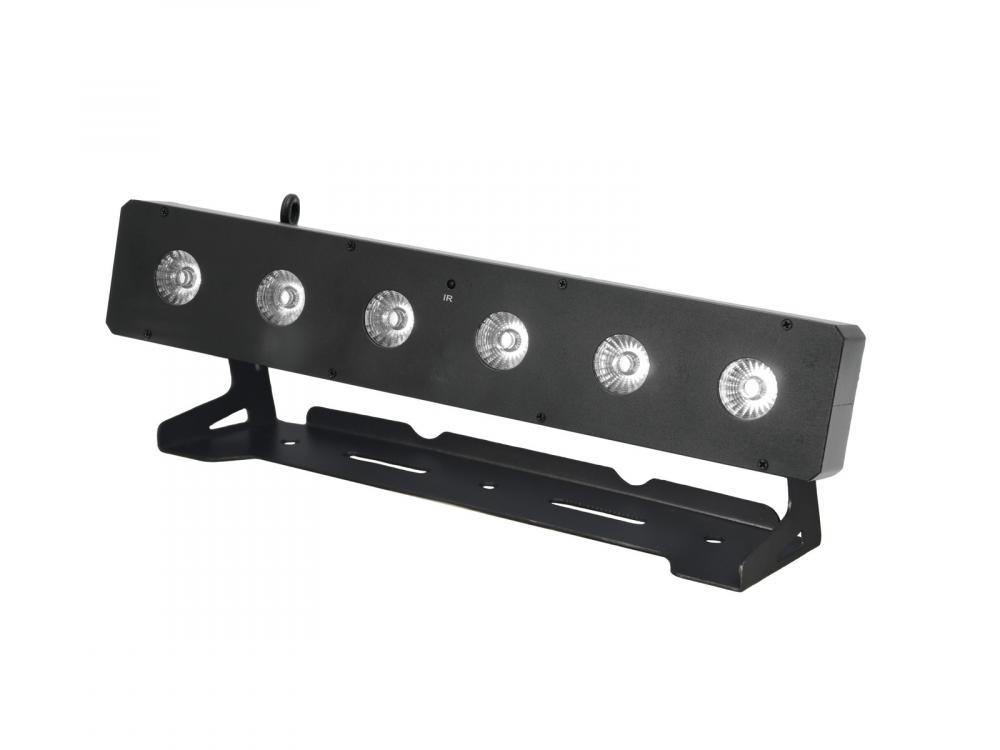

EUROLITE LED PIX-6 HCL Bar

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PIX-6 HCL Bar

Info
order code
51930401
product link
EAN
4026397588514
Product Name
EUROLITE LED PIX-6 HCL Bar
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 4/6/9/36/38
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 10 W RGBAW+UV (6in1)
LED number: 6
Beam angle: 24°
Dimensions (L x W x H): 440x105x150 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Lamp type: LED lamp
Weight: 3,5 kg
Power consumption: 66 W
Beam angle: 24°
Height: 15 cm
Depth: 10,5 cm
Length: 44 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 4; 6; 9; 36; 38
LED: 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Spotlight bar (44 cm) with 6 x 10 W 6in1 LED (RGBAW+UV), pixel control
-Operable in stand-alone mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies max. 38 channels)
-Each LED can be controlled individually
-4, 6, 9, 36 or 38 DMX channels selectable for numerous applications
-Sound-control via built-in microphone
-Microphone sensitivity adjustable via Control Board
-Comfortable addressing and setting via control board with LED display and four operating buttons

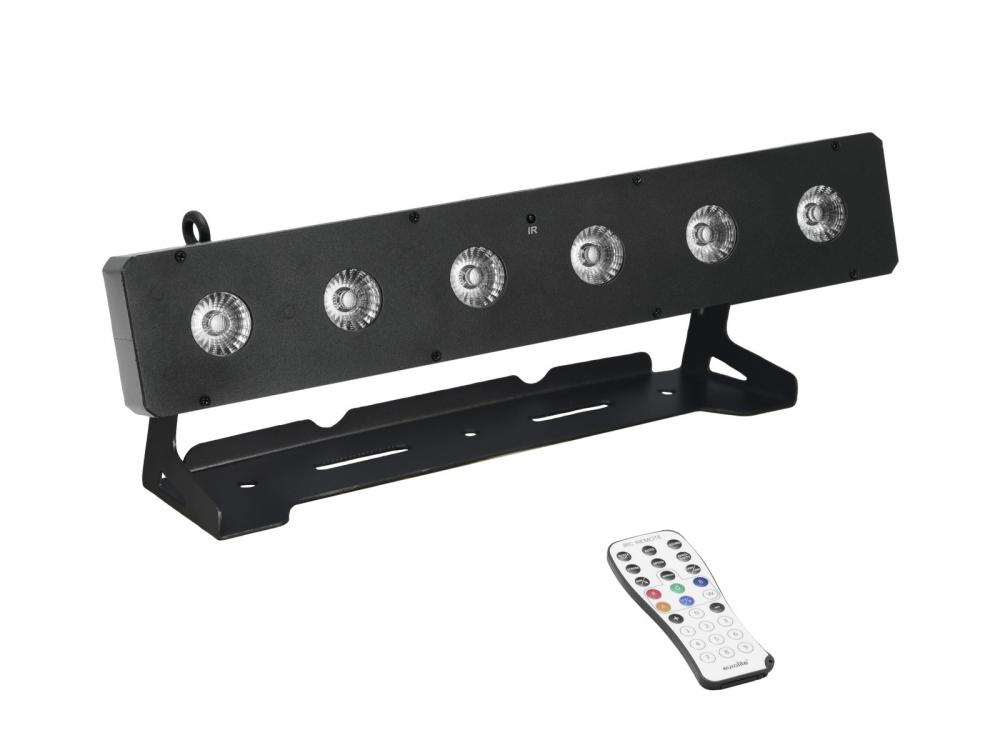

-Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
-Functions: Static colors, RGBAWUV color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
-Equipped with 6 x 10 W 6in1LEDs in the colors red, green, blue, amber, white and UV
-Floor, ceiling or trussing installation possible
-Locking possibility at the mounting bracket
-Fan-cooled
-Feed-through output allows to power up to 8 devices
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection via enclosed IEC power cord with safety-plug
-Case color: Black
-Effect: Strobe effect; UV
-Projection: flicker-free

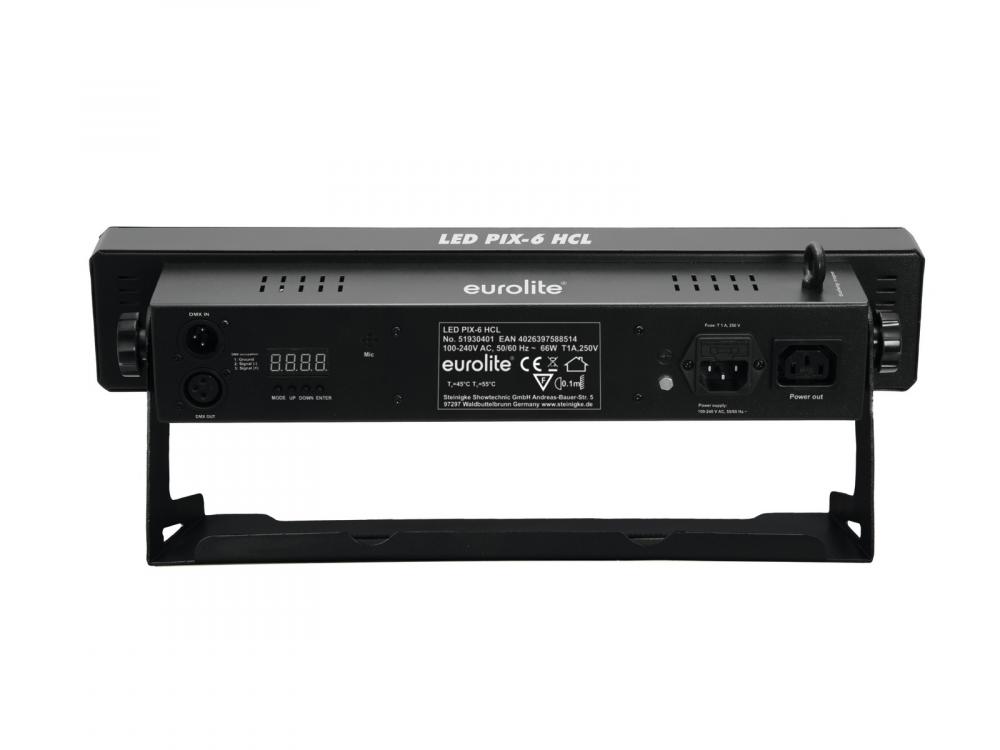

-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
4 ch
control channels, max
38 ch
Electrical
power consumption watt, max
10.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
3.50 kg
width
105.00 mm
height
150.00 mm
length
105.00 mm
Optical
beam angle/zoom, min
24.00 °
beam angle/zoom, max
24.00 °
light source
LED
Number of light sources
6 pcs
wattage per light source
10.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
AMBER light source
yes
