EUROLITE LED PIX-7 Hybrid SCL Bar

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PIX-7 Hybrid SCL Bar

Info
order code
51930407
product link
EAN
4026397643664
Product Name
EUROLITE LED PIX-7 Hybrid SCL Bar
technical overview
Power supply: 100-240 V AC, 50/60 Hz
LEDs:
Wash effect: 6 x 9 W RGBA/CW/WW+UV (7in1)
Strobe effect: 72 x 0,5 W RGB (SMD)
DMX control channels: 3/7/9/22/43
DMX512 connection: 3-pin XLR
QuickDMX connection: USB, type A
Sound-control: via built-in microphone
Flash rate: 0-20 Hz
Beam angle: 18°
Dimensions (LxWxH): 100 x 500 x 149 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Beam angle: 18°
Cooling fan: No, cooling by convection
IP classification: IP20
Lamp type: LED lamp
Weight: 3,95 kg
Power consumption: 50 W
Length: 50 cm
Depth: 10 cm
Height: 14,9 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
LED: 72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix); 6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

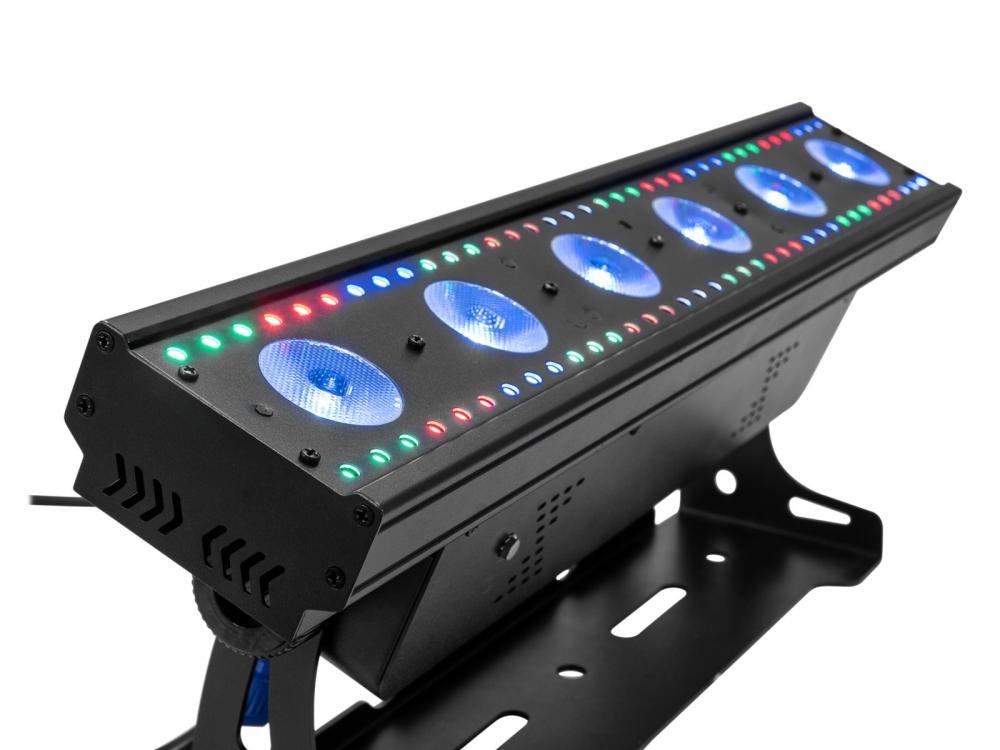

Light effect bar with RGBA/CW/WW+UV LEDs and pixel control
-6 high power 9 W RGBA/CW/WW+UV LEDs (7in1) for wash light and blacklight effects
-72 additional 0.5 W RGB LEDs for dynamic chase and strobe effects
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-Direct color selection for 27 preset colors
-3, 7, 9, 22 or 43 DMX channels selectable for numerous applications
-Each 7in1 LED can be controlled individually
-Color temperature adjustable in 6 steps 2700-8000 K
-Sound-control via built-in microphone with adjustable microphone sensitivity
-Supports QuickDMX - the wireless DMX system from Eurolite
-Built-in phantom-powered USB port for QuickDMX receivers (accessories)

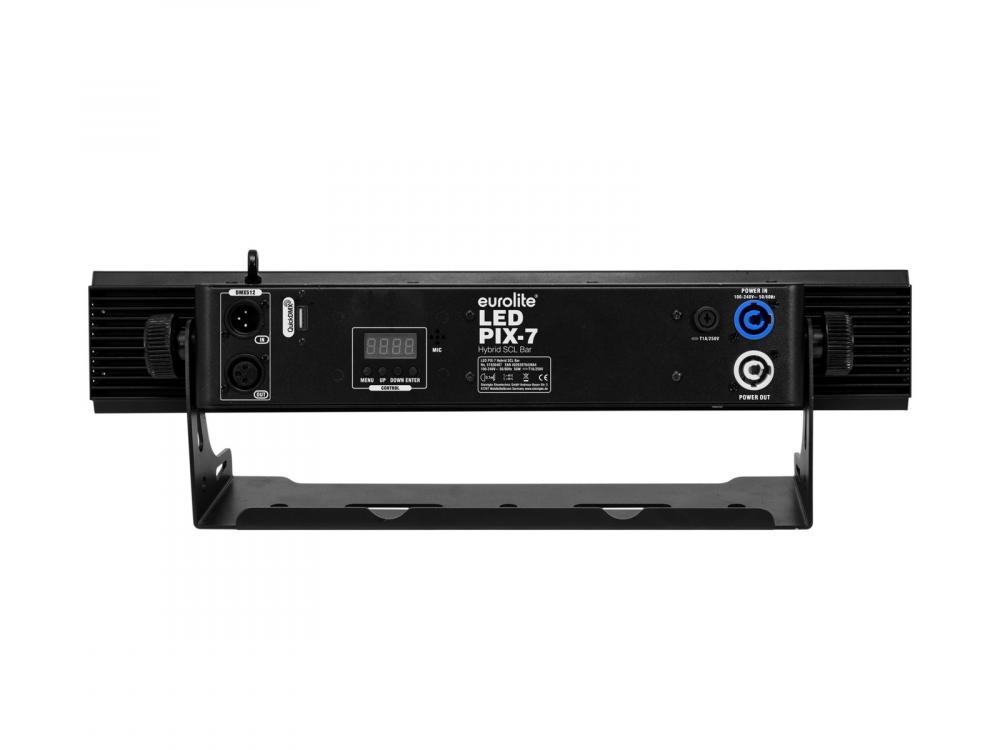

-Addressing and setting via control panel with 4-digit LED display

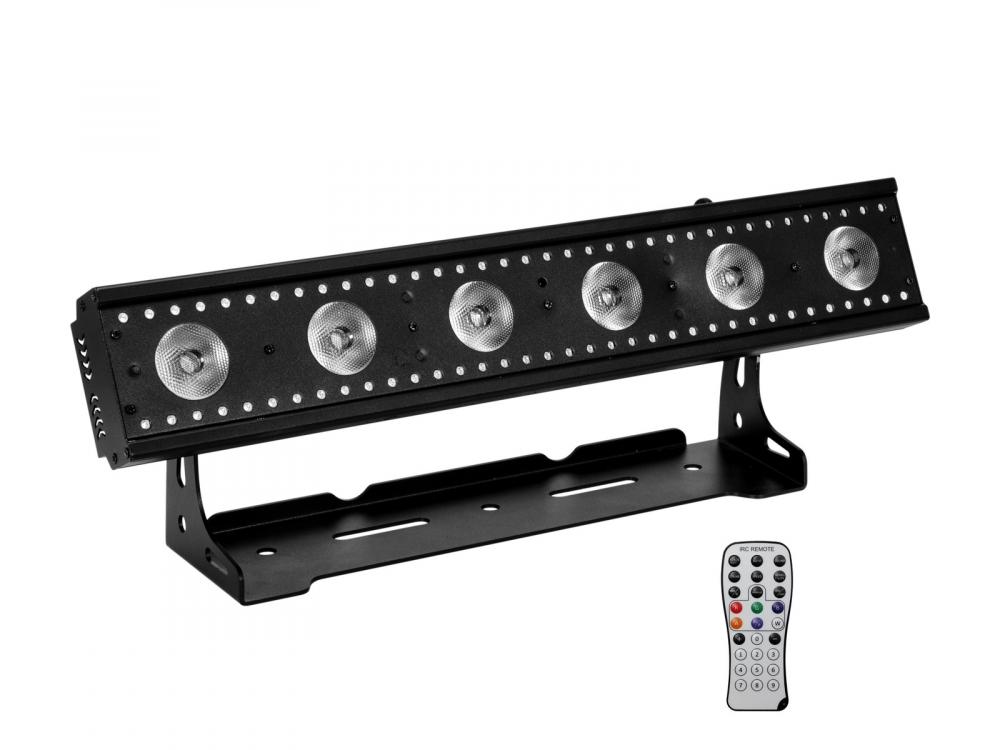

-Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
-Swivel mounting bracket
-Feed-through output allows to power up to 8 devices
-Power connection via P-Con jack and included power cable with safety plug
-Case color: Black
-Effect: Strobe effect; UV
-Projection: flicker-free
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Power out: 1 x P-Con (Power out) gray, mounting version
-Control: QuickDMX USB; IR remote control (provided); Stand-alone; DMX
-LED: 72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix); 6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
43 ch
Electrical
power consumption watt, max
5.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
passive
Mechanical
weight
3.95 kg
width
500.00 mm
height
149.00 mm
length
500.00 mm
Optical
beam angle/zoom, min
18.00 °
beam angle/zoom, max
18.00 °
light source
LED
Number of light sources
72 pcs
wattage per light source
5.00 W
multichip LED
yes
WARM WHITE LED source
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
shutter/strobe frequency, max
20 Hz
