EUROLITE LED BAR-252 RGB 10mm 40° black

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED BAR-252 RGB 10mm 40° black

Info
order code
51930422
product link
EAN
4026397397734
Product Name
EUROLITE LED BAR-252 RGB 10mm 40° black
technical overview
Power supply: 230 V AC, 50 Hz
DMX channels: 12
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED number: 252
Beam angle: 40°
Dimensions (L x W x H): 1070 x 65 x 90 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
DMX channels: 12
Beam angle: 40°
Weight: 2,5 kg
Power consumption: 50,00 W
IP classification: IP20
Lamp type: LED lamp
Height: 9 cm
Depth: 6,5 cm
Length: 107 cm
Power connection: Fix Power supply cord with safety plug (M)
LED: 252 x 10 mm RGB
Power supply: 230 V AC, 50 Hz
main features
LED bar with 252 LEDs in red, green and blue, 110 cm length and 40°
-DMX512 control via regular DMX controller
-Sound-control via built-in microphone
-Stand-alone mode functions adjustable via DIP switches
-Color change speed and strobe effect adjustable via DIP switches
-Multi-color color changes
-Master/Slave function
-Ideal for bands, stages or solo entertainers
-Perfect in public places, main halls, lounges
-Illuminants: 252 10 mm LEDs (48 x red, 108 x green and 96 x blue)
-Available in 2 LED beam angles: 20° or 40°
-Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
-Case color: Black
-Effect: Strobe effect
-Power connection: Fix Power supply cord with safety plug (M)
-Control: Stand-alone; DMX
-LED: 252 x 10 mm RGB

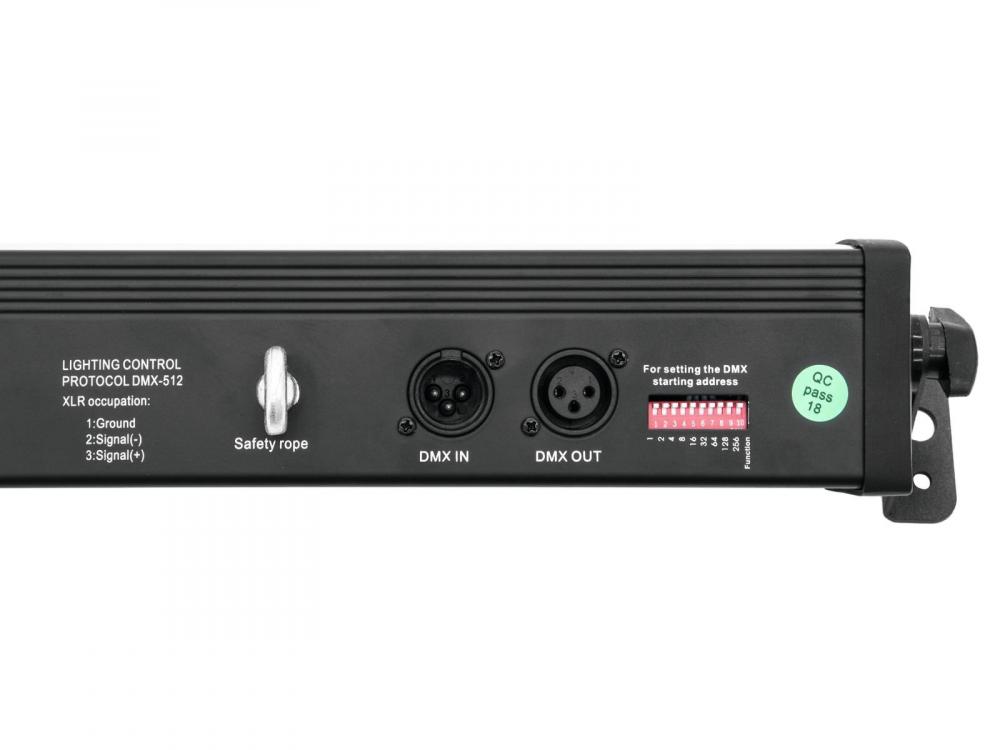

Connectors
DMX connector types
3pin
Control
control channels, min
12 ch
control channels, max
12 ch
Electrical
power consumption watt, max
50.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
2.50 kg
width
65.00 mm
height
90.00 mm
length
1070.00 mm
Optical
beam angle/zoom, min
40.00 °
beam angle/zoom, max
40.00 °
light source
LED
Number of light sources
252 pcs
RED light source
yes
GREEN light source
yes
BLUE light source
yes
