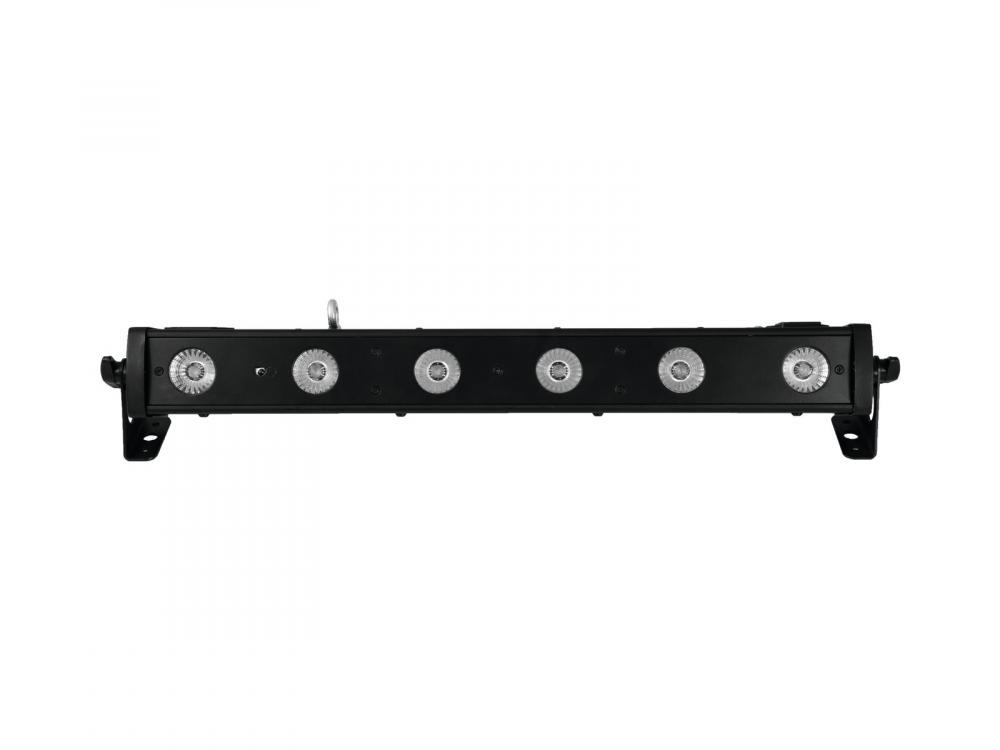

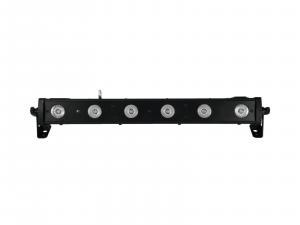

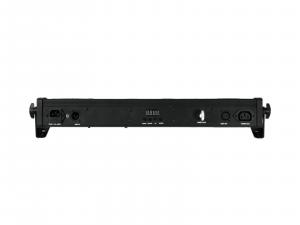

EUROLITE LED BAR-650 RGB+UV 4in1

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED BAR-650 RGB+UV 4in1

Info
order code
51930433
product link
EAN
4026397572261
Product Name
EUROLITE LED BAR-650 RGB+UV 4in1
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 1/3/4/6/7/12
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 5 W QCL (R,G,B,UV)
LED number: 6
Beam angle: 20°
Dimensions (L x W x H): 575 x 80 x 85 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Beam angle: 20°
Weight: 2 kg
Lamp type: LED lamp
Power consumption: 30 W
Height: 8,5 cm
Depth: 8 cm
Length: 57,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 1; 3; 4; 6; 7; 12
LED: 6 x high-power 5 W 4in1 QCL RGB/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Spotlight bar (60 cm) with 6 x 5 W 4in1 LED (RGB+UV) and 3 segments
-Equipped with six QCL LEDs in the colors red, green, blue and UV
-1, 3, 4, 6, 7 or 12 DMX channels selectable
-DMX-controlled operation or stand-alone operation with Master/Slave function

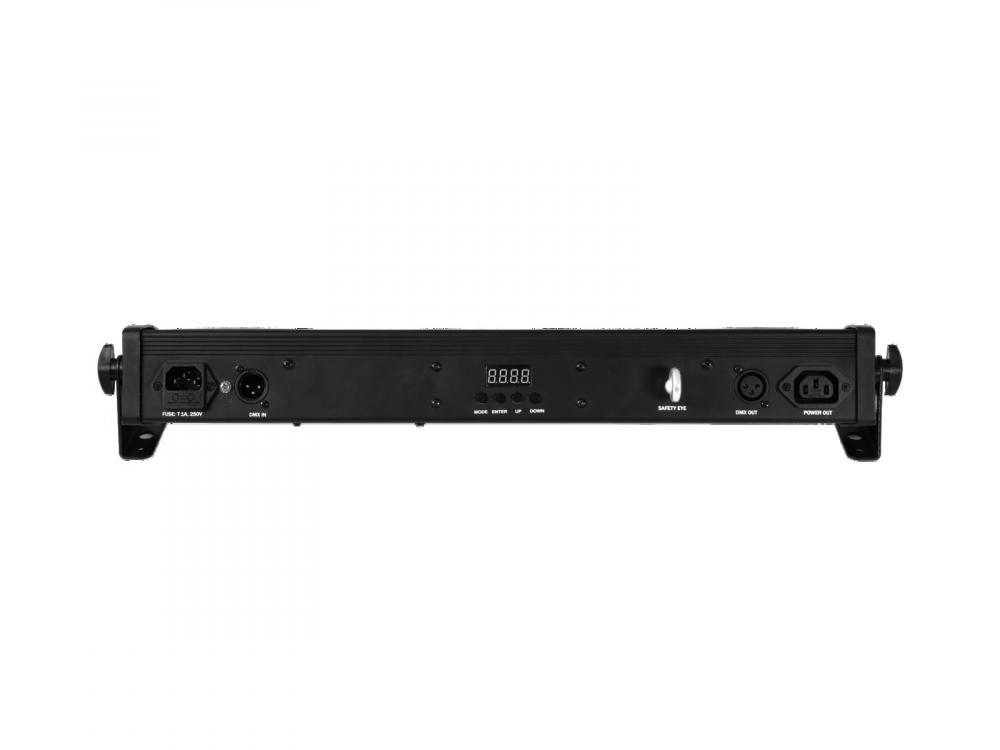

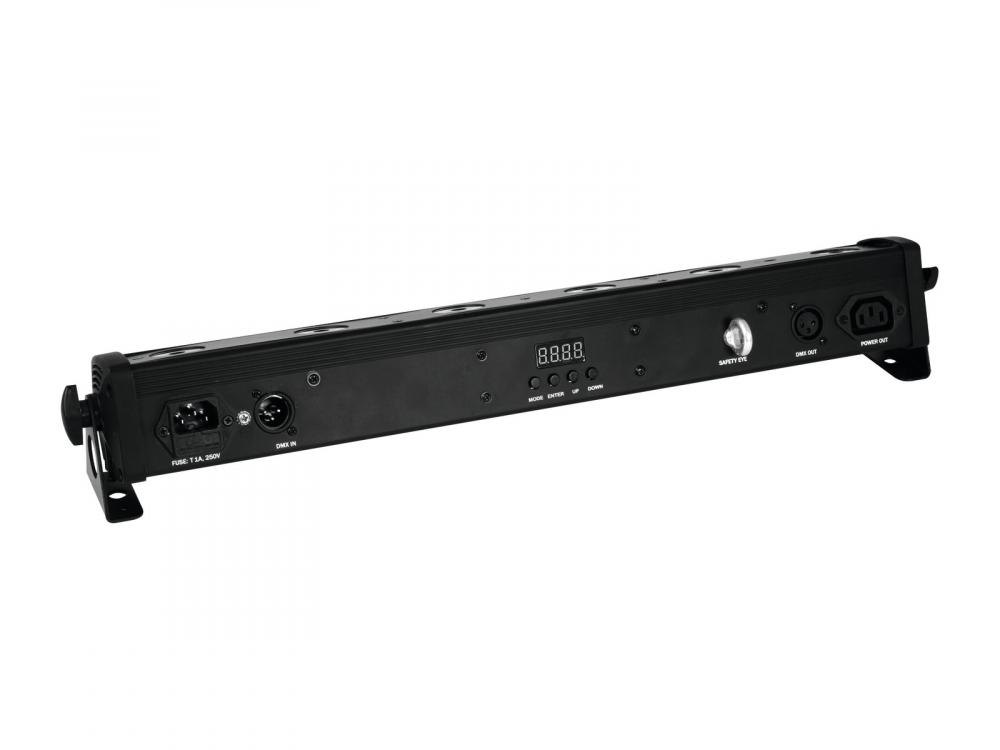

-Addressing and setting via Control Board with LED display and four operating buttons

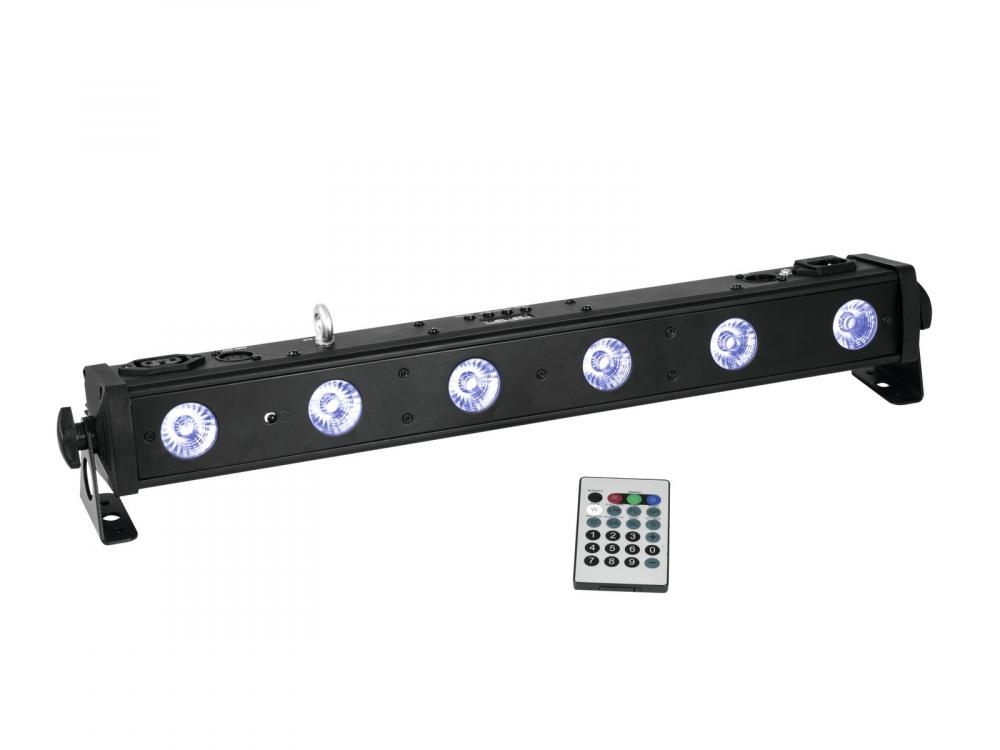

-Additional controlling possibility via the EUROLITE IR-8 remote control, included in delivery
-Functions: Static colors, RGBUV color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
-Every LED group (each with 2 LEDs) can be controlled individually in 12CH mode
-Sound-control via built-in microphone

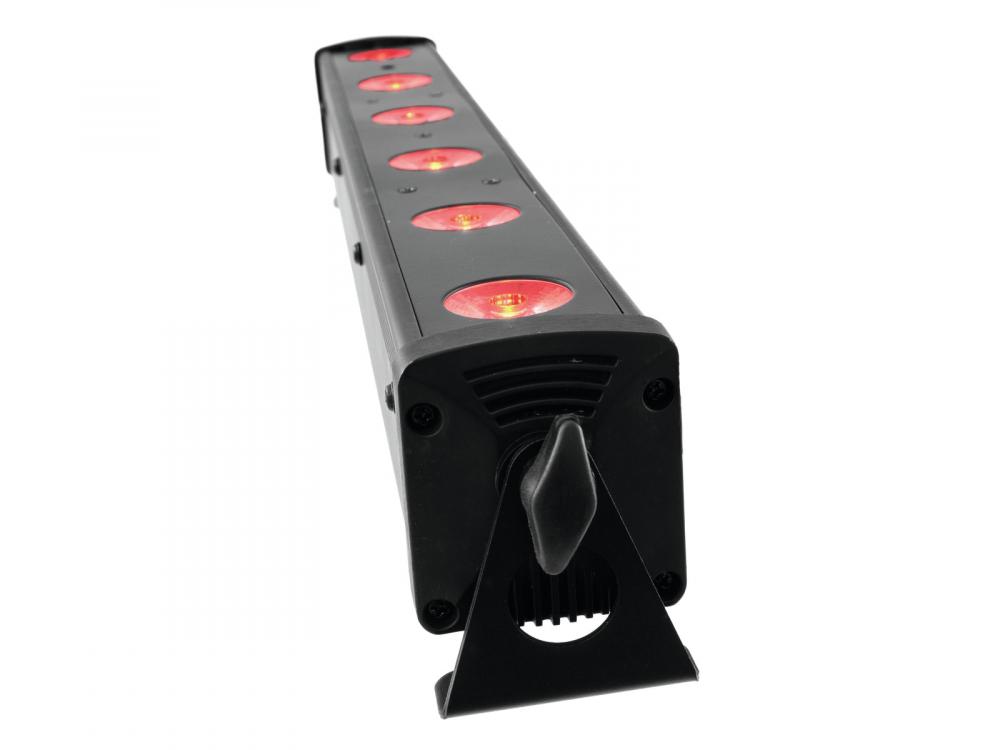

-Hanging as well as standing installation possible
-Locking possibility at the brackets
-Switch-mode power supply for operation between 100 and 240 volts
-DMX control via every standard DMX controller
-Feed-through output allows to power up to 8 devices
-Ready for connection via enclosed IEC power cord with safety-plug
-Case color: Black
-Effect: Strobe effect
-Projection: flicker-free
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 6 x high-power 5 W 4in1 QCL RGB/UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
1 ch
control channels, max
12 ch
Electrical
power consumption watt, max
30.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
2.00 kg
width
80.00 mm
height
85.00 mm
length
575.00 mm
Optical
beam angle/zoom, min
20.00 °
beam angle/zoom, max
20.00 °
light source
LED
Number of light sources
6 pcs
wattage per light source
5.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
