EUROLITE AKKU BEL-15 Beam tc

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE AKKU BEL-15 Beam tc

Info
order code
41700300
product link
EAN
4026397561654
Product Name
EUROLITE AKKU BEL-15 Beam tc
technical overview
Power supply: 3.7 V, 2200 mA
via charger (100-240 V AC, 50/60 Hz)
Battery pack type: Li-ion 3.7 V, 2200 mA (8 Wh)
Battery operation: 4 hours
Recharging time: 4.5 hours
Battery remote control: CR2025 button cell 3 V
Sound-control: via built-in microphone
LED type: 3 W RGBAW
LED number: 5
Dimensions (L x W x H): 150 x 146 x 155 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
IP classification: IP20
Weight: 0,5 kg
Cooling fan: No, cooling by convection
Power consumption: 9,2 W
Height: 15 cm
Width: 14,6 cm
Power connection: Battery/battery pack; Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
Depth: 15,5 cm
LED: 5 x high-power 3 W RGBWA
main features
Handy battery-powered beam effect with up to 5 beams, transparent housing
-Powerful battery-powered Beam Effect in a pocket housing
-Equipped with five bright 3 W LEDs in the colors red, green, blue, amber and white
-Each LED produces one beam
-Ideal for mobile use thanks to quick setup and rechargeable lithium-ion battery pack (up to 4 hours operating time)
-Transparent plastic housing with plastic bracket

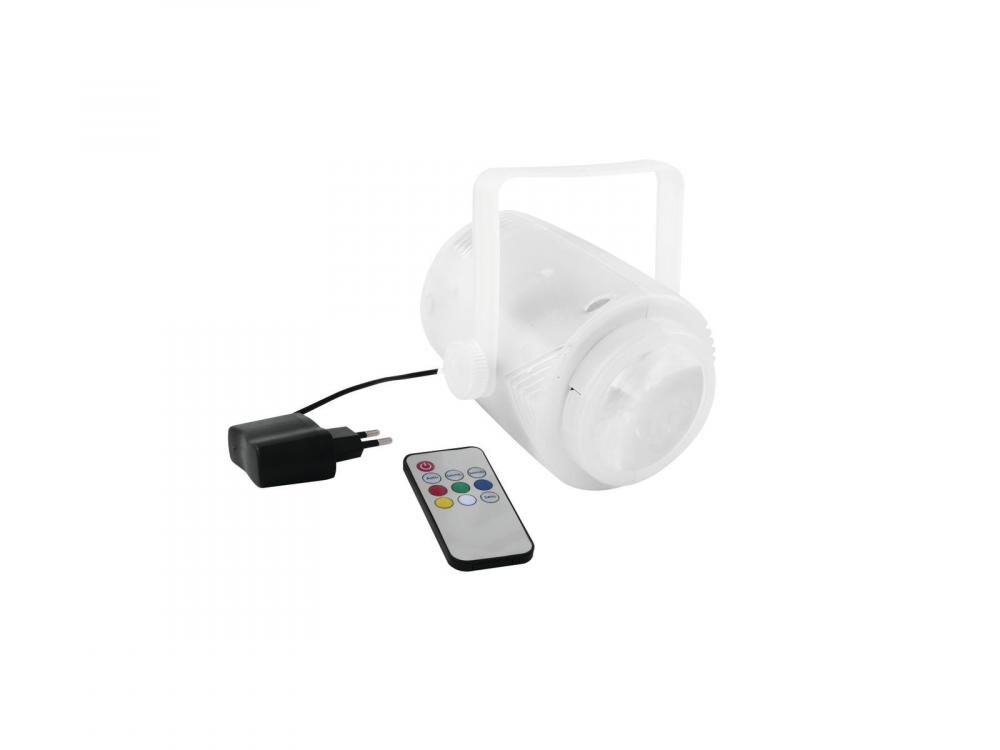

-Controllable via EUROLITE IR-11 remote control; included in delivery
-Functions: Auto mode, automatic color change, fading colors, strobe effect, sound-control
-Sound-control via built-in microphone
-Charger included in delivery
-Switch-mode power supply for operation between 100 and 240 volts
-Case color: Clear
-Effect: Multi beam effect
-Power connection: Battery/battery pack; Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
-Control: IR remote control (provided); Stand-alone
-LED: 5 x high-power 3 W RGBWA
Electrical
power consumption watt, max
9.20 W
IP rating
20
Battery powered
yes
cooling
passive
Battery recharge time (max)
4.50 h
external PSU
yes
Mechanical
weight
0.50 kg
width
146.00 mm
height
155.00 mm
length
155.00 mm
Optical
light source
LED
Number of light sources
5 pcs

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00104549.pdf
