EUROLITE AKKU UP-4 QCL Spot QuickDMX

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE AKKU UP-4 QCL Spot QuickDMX

Info
order code
41700540
product link
EAN
4026397573374
Product Name
EUROLITE AKKU UP-4 QCL Spot QuickDMX
technical overview
Power supply: 100-240 V AC, 50/60 Hz for mains operation
Battery pack type: Li-ion 14.8 V, 7800 mAh (115.44 Wh)
Battery operation: depending on program used up to 9.5 hours
Recharging time: 3 hours
Battery remote control: CR2032 button cell 3 V
DMX channels: 3/4/6/8/10
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Wireless signal transmission: 2.4 GHz (ISM), 78 channels
LED type: 8 W RGBW (4in1)
LED number: 4
Beam angle: 22°
Dimensions (L x W x H): 138 x 167 x 188 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Lamp type: LED lamp
Weight: 3,59 kg
Cooling fan: No, cooling by convection
Power consumption: 50 W
Beam angle: 22°
Height: 18,8 cm
Recharging time: 3 h
Width: 167 cm
DMX channels: 3; 4; 6; 8; 10
Power connection: Battery/battery pack; Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
Depth: 13,8 cm
LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
Battery pack type: 1 x Lithium ion 14,8 V, 7800 mAh, 114,44 Wh
main features
Bright Uplight with 4 x 8 W 4in1 LED and QuickDMX transceiver
-Compact and bright
-Equipped with 4 x 8 W QCL LED in red, green, blue and white
-With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
-Operation via mains connection or built-in rechargeable lithium-ion battery with up to 9.5 hours operating time
-Integrated automatic charging of the battery with indicator

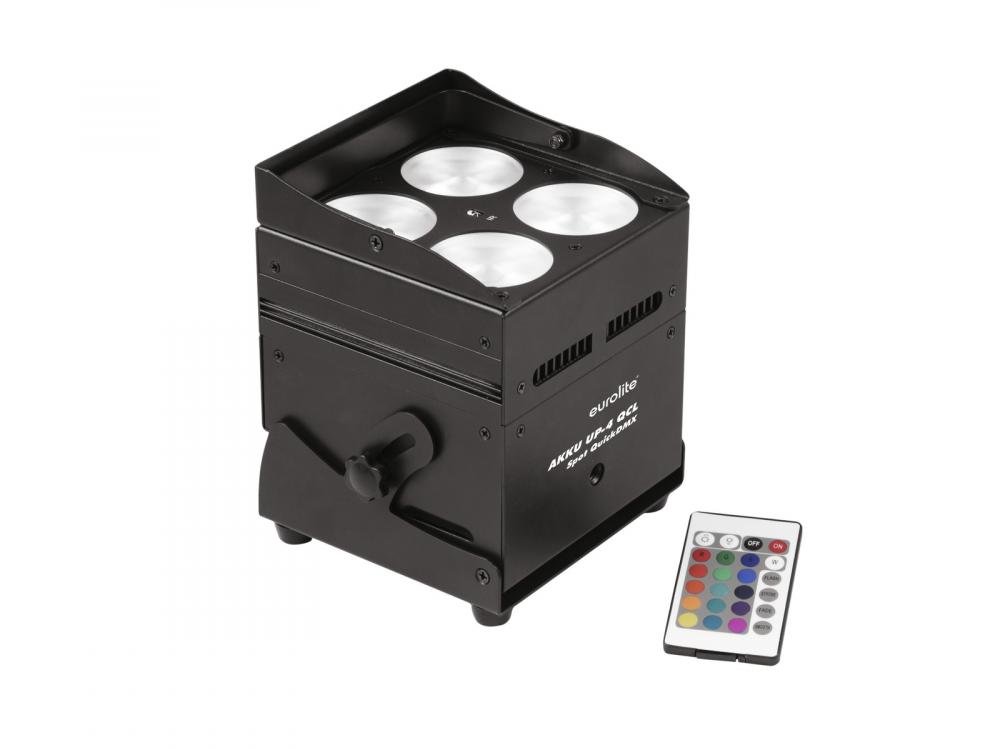

-Controllable via EUROLITE IR-13 remote control; included in the delivery
-DMX-controlled operation or stand-alone operation with Master/Slave function
-3, 4, 6, 8 or 10 DMX channels selectable
-Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
-Dimmer speed (step response) adjustable
-Adjustable microphone sensitivity
-With integrated folding foot for angled placement by floor installation

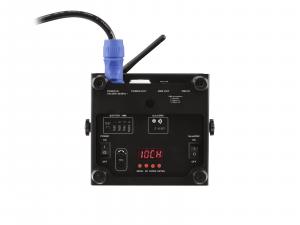

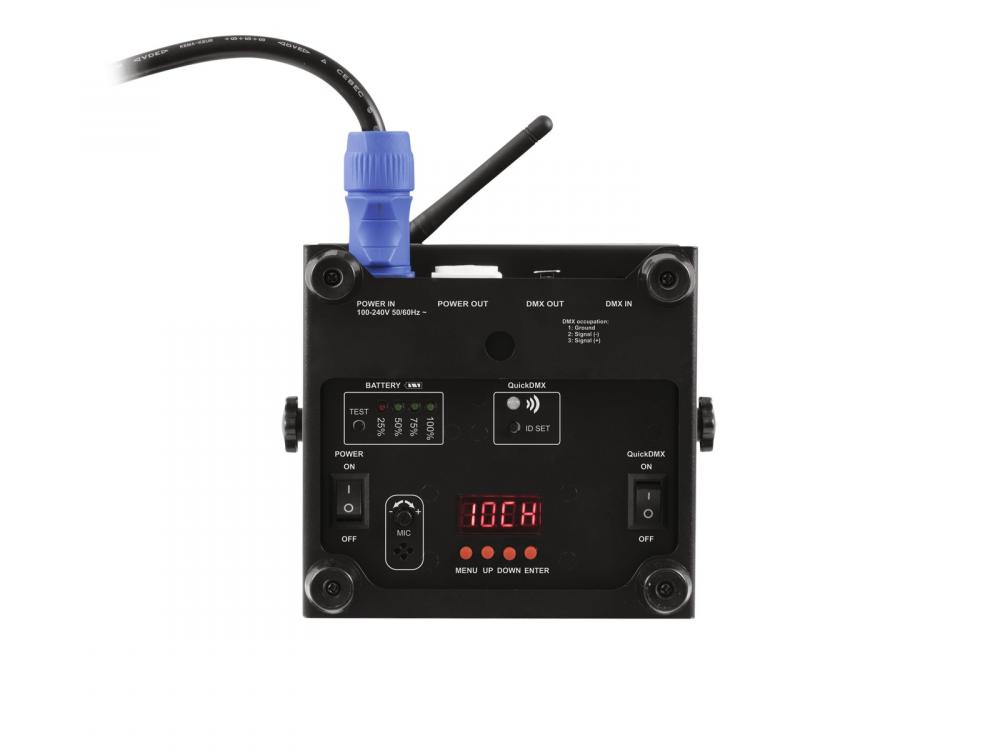

-Addressing via control panel with 4-digit LED display
-Switch-mode power supply for operation between 100 and 240 volts
-Power connection via P-Con jack and included power cable with safety plug
-Feed-through output allows to power up to 8 devices
-DMX control via any standard DMX controller
-Case color: Black
-Projection: flicker-free
-Power out: 1 x P-Con (Power out) gray, mounting version
-Power connection: Battery/battery pack; Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Control: Master/slave function; IR remote control (provided); DMX; QuickDMX; Stand-alone
-LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)

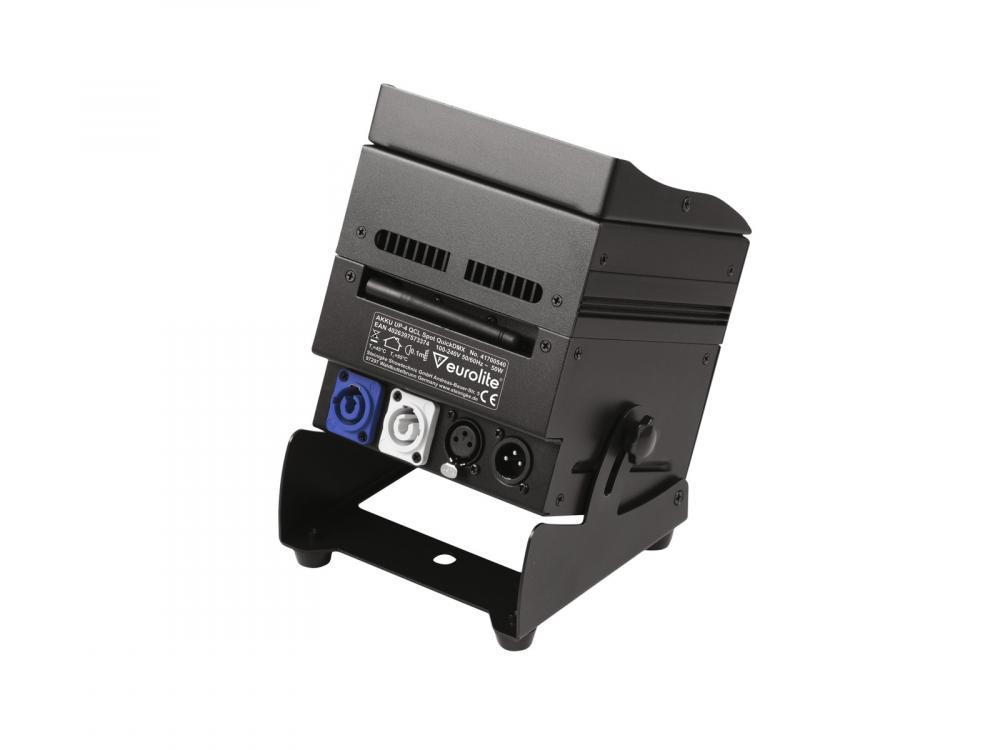

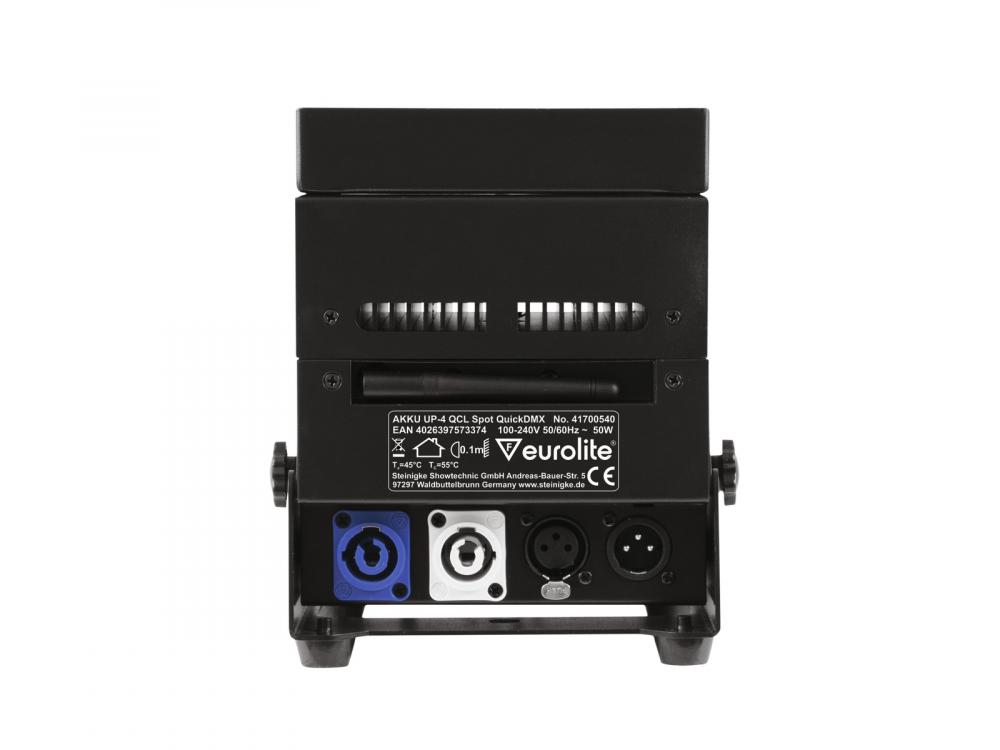

Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
10 ch
Electrical
power consumption watt, max
8.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
passive
Battery runtime (max)
9.50 h
Battery recharge time (max)
3.00 h
Mechanical
weight
3.59 kg
width
167.00 mm
height
188.00 mm
length
138.00 mm
Optical
beam angle/zoom, min
22.00 °
beam angle/zoom, max
22.00 °
light source
LED
Number of light sources
4 pcs
wattage per light source
8.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
