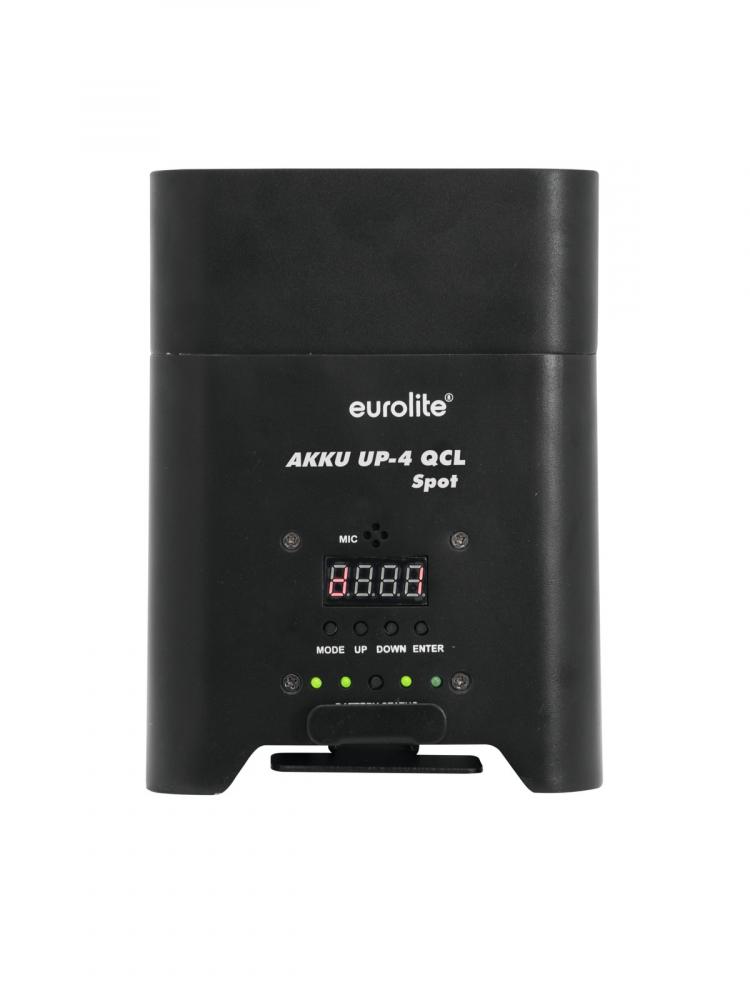

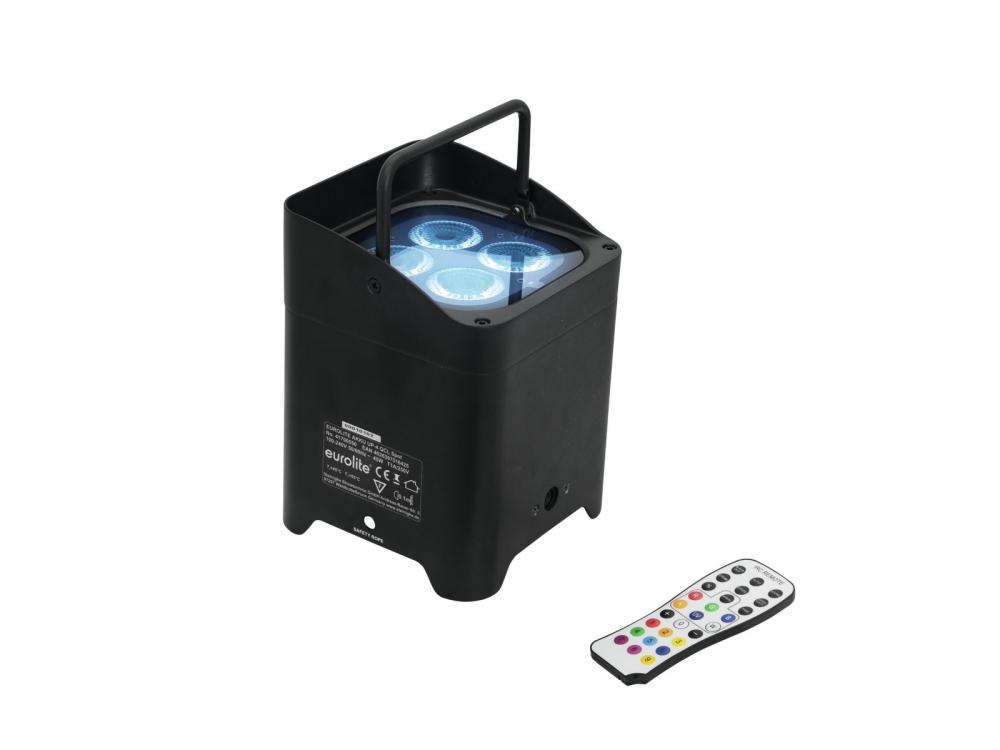

EUROLITE AKKU UP-4 QCL Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE AKKU UP-4 QCL Spot

Info
order code
41700550
product link
EAN
4026397516425
Product Name
EUROLITE AKKU UP-4 QCL Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz for mains operation
Battery pack type: Li-ion 14.8 V, 6600 mAh (97.68 Wh)
Battery operation: 8.5 hours
Recharging time: 5 hours
Battery remote control: CR2025 button cell 3 V
DMX channels: 4/6/10
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 8 W RGBW (4in1)
LED number: 4
Beam angle: 13°
Dimensions (L x W x H): 145 x 138 x 191 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: No, cooling by convection
Beam angle: 13°
Power consumption: 45,00 W
IP classification: IP20
Lamp type: LED lamp
Weight: 2,90 kg
Height: 19,1 cm
Width: 13,8 cm
DMX channels: 4; 6; 10
Power connection: Battery/battery pack; Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Depth: 14,5 cm
LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

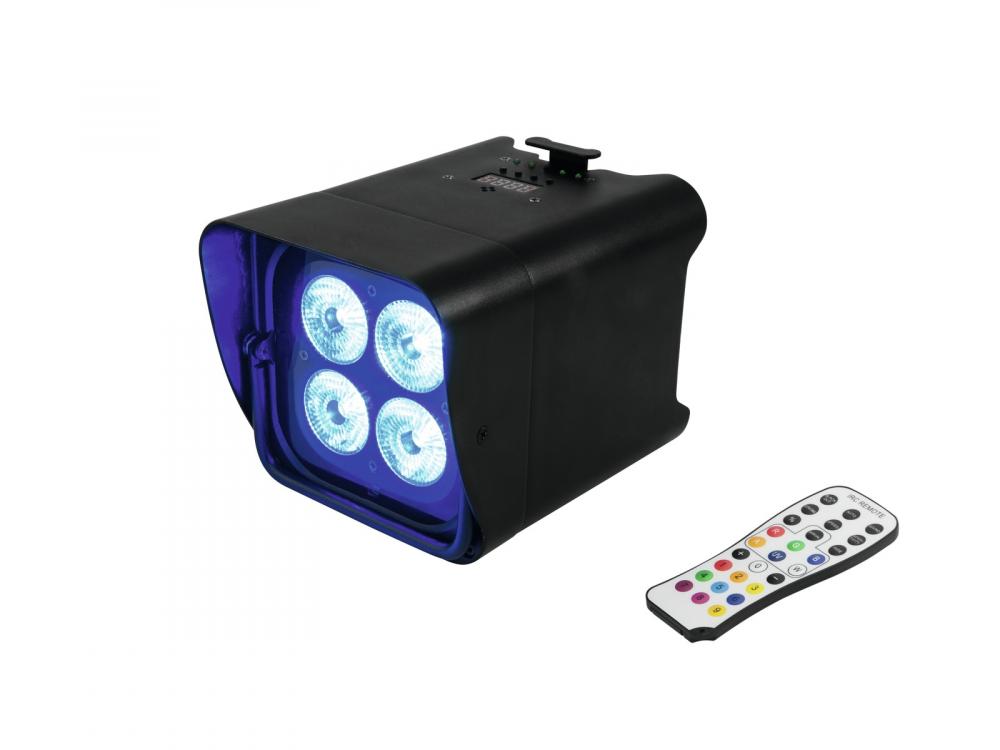

Bright Uplight with 4 x 8 W 4in1 LED
-Compact and bright
-Equipped with 4 x 8 W QCL LED in red, green, blue and white
-Operation via mains connection or built-in rechargeable lithium-ion battery with up to 8.5 hours operating time
-Integrated automatic charging of the battery with indicator

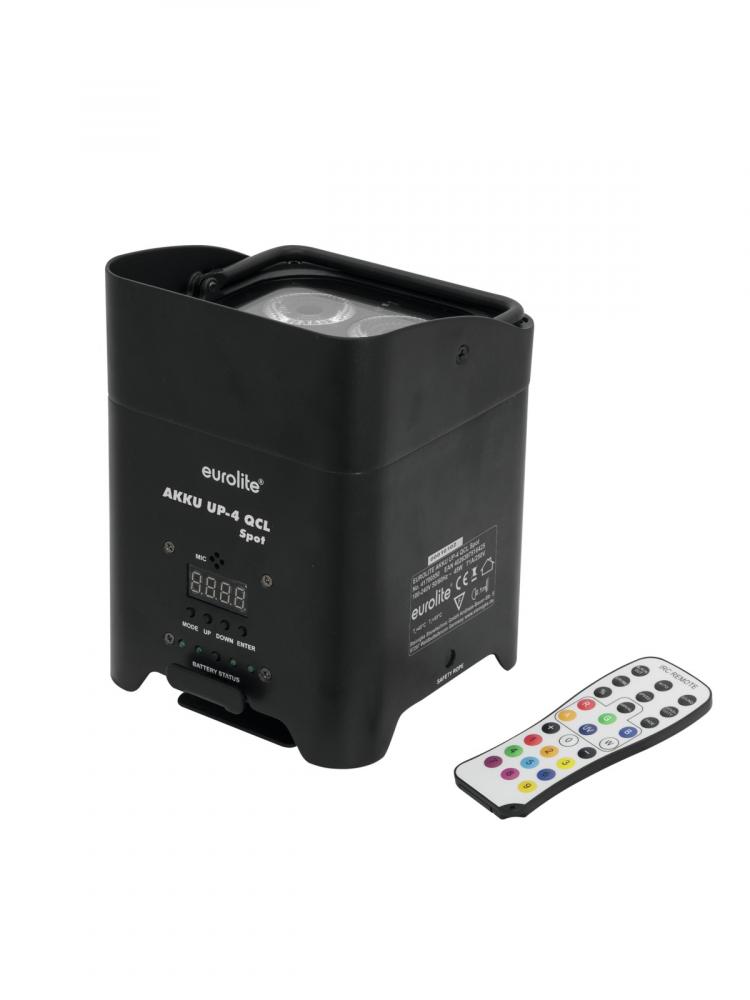

-Controllable via EUROLITE IR-7 remote control; included in the delivery

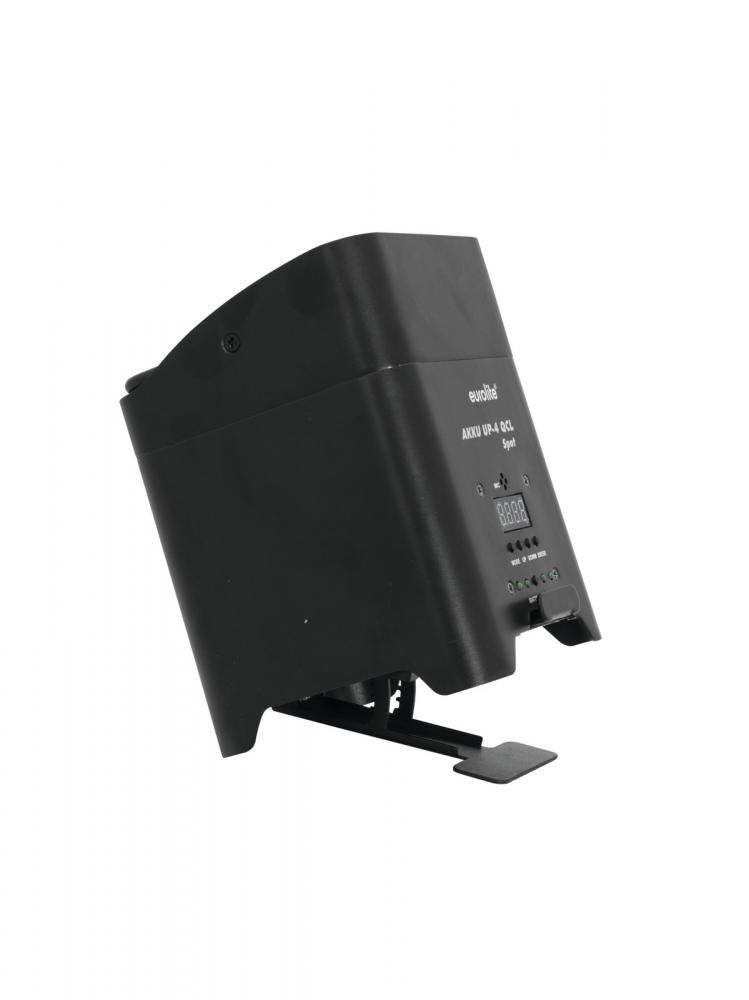

-With integrated folding foot for flexible placement
-DMX-controlled operation or stand-alone operation with Master/Slave function
-4, 6 or 10 DMX channels selectable
-Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
-Dimmer speed (step response) adjustable
-Adjustable microphone sensitivity
-Addressing via control panel with 4-digit LED display
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection via included power cable with safety power plug
-Feed-through output allows to power up to 8 devices
-DMX control via any standard DMX controller
-Case color: Black
-Projection: flicker-free
-Power out: 1 x IEC connector (F) mounting version
-Power connection: Battery/battery pack; Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: IR remote control (provided); DMX; Stand-alone
-LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
4 ch
control channels, max
10 ch
Electrical
power consumption watt, max
8.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
passive
Battery runtime (max)
8.50 h
Battery recharge time (max)
5.00 h
Mechanical
weight
2.90 kg
width
138.00 mm
height
191.00 mm
length
145.00 mm
Optical
beam angle/zoom, min
13.00 °
beam angle/zoom, max
13.00 °
light source
LED
Number of light sources
4 pcs
wattage per light source
8.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
