Info | |
---|---|
order code |
42109781
|
product link | |
EAN |
4026397422443
|
Product Name |

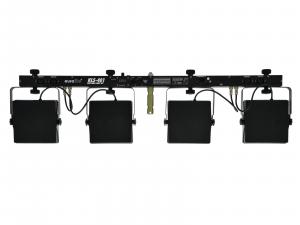

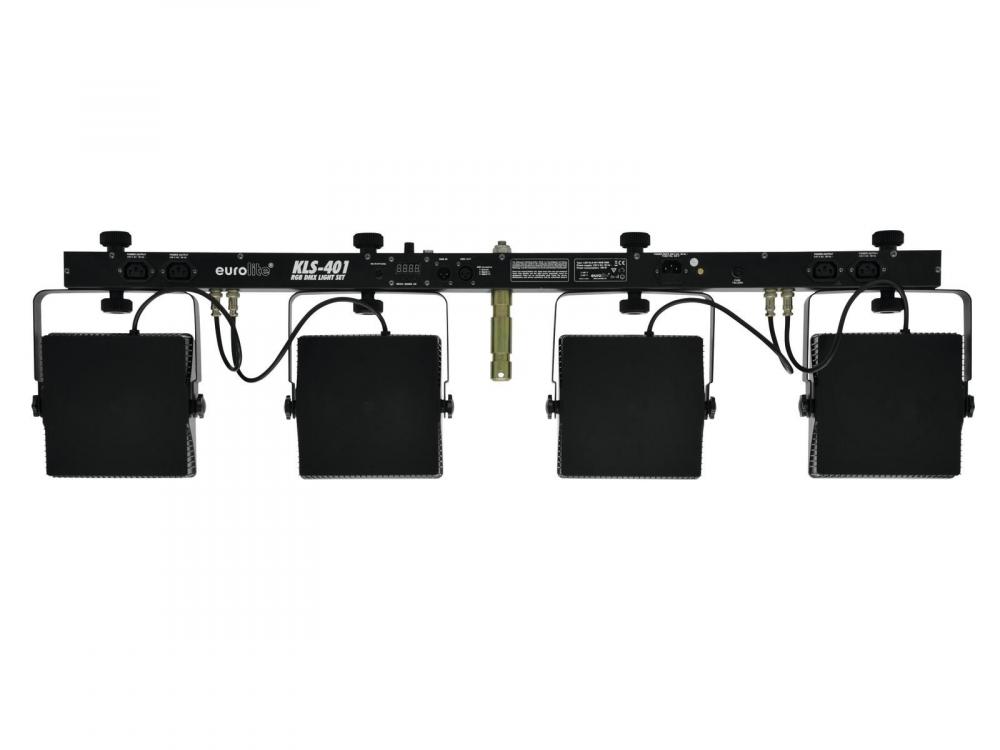

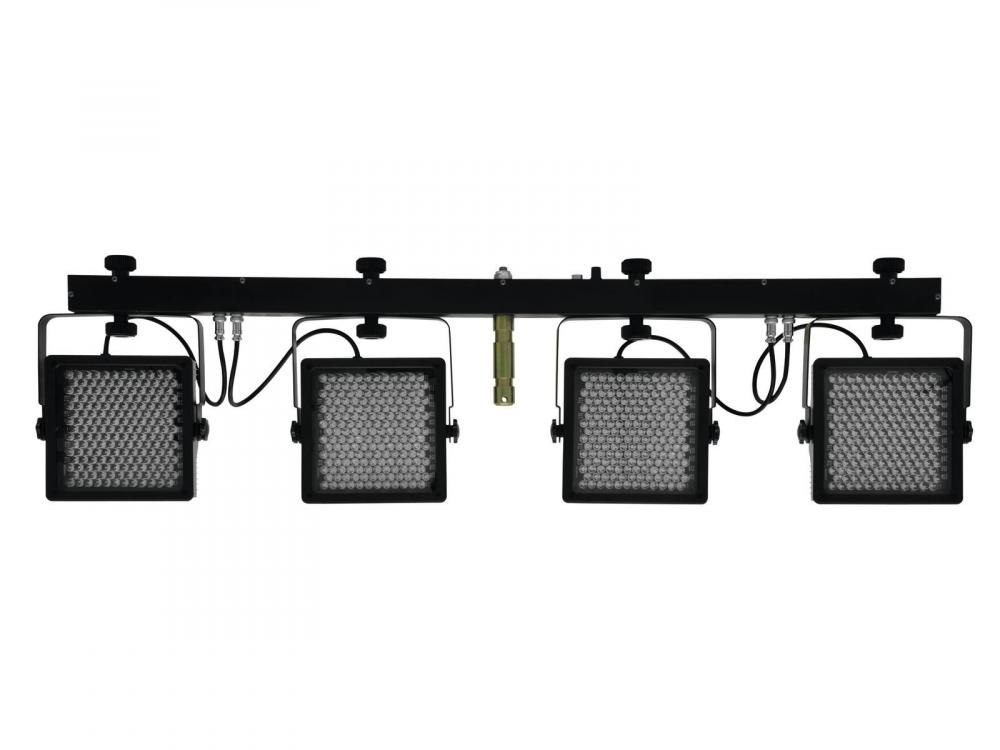

EUROLITE LED KLS-401 Compact Light Set
|
technical overview |
Power supply: 230 V AC, 50 Hz DMX channels: 15 DMX connection: 3-pin XLR LED type: 10 mm LED number: 720 (240 red, 240 green, 240 blue) Beam angle: 25° TV spigot: D = 28 mm Dimensions (L x W x H): 1200 x 55 x 310 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 7 kg Beam angle: 25° Power consumption: 55,00 W Lamp type: LED lamp IP classification: IP20 Laser class: Without laser Height: 31 cm Depth: 5,5 cm Width: 120 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 15 LED: 180 x 10 mm RGB Power supply: 230 V AC, 50 Hz |
main features |
Bar with 4 spots with 108 LEDs (RGB) each, inclusive transport bag -Complete LED light set with four slimline LED spots -Crossbar with integrated DMX control unit -Installation via TV pin for tripods with 28 mm interior diameter -Ultra-light ideally suited for mobile use -Comes pre-assembled with practical transport bag -180 x 10 mm LED per spot (60 x red, 60 x green, 60 x blue) -Movable and tiltable spotlights -DMX-controlled operation or stand-alone operation with processor-controlled color change -Master/Slave operation -Sound-control via built-in microphone with sensitivity control -Convenient control possible via optional 4-pedal foot pedal FP-1 or IR remote control -DMX512 control via regular DMX controller (occupies 15 channels) -Optimized for control with the optional control panel DMX LED Operator 4 -Via DMX, each spot can be individually controlled -DMX functions: dimmer, automatic mode, music control, strobe effect -Addressing and setting via control panel with 4-digit LED display -Suited for installation on a lighting stand (not included) -Black lacquered metal version -Ideal for bands, stages or solo entertainers -Ready for connection with power cord and safety plug -4 IEC outputs for power supply of further devices -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: Wired remote control; IR remote control; Stand-alone; DMX -LED: 4 x separate controlling 180 x 10 mm RGB |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
15 ch
|
control channels, max |
15 ch
|
Electrical | |
power consumption watt, max |
55.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
7.00 kg
|
width |
55.00 mm
|
height |
310.00 mm
|
length |
55.00 mm
|
Optical | |
beam angle/zoom, min |
25.00 °
|
beam angle/zoom, max |
25.00 °
|
light source |
LED
|
Number of light sources |
720 pcs
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
