EUROLITE LED PARty UV Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PARty UV Spot

Info
order code
42110194
product link
EAN
4026397646825
Product Name
EUROLITE LED PARty UV Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 25 W
DMX channels: 2
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 30 W COB
LED number: 1
Dimensions (L x W x H): 120 x 150 x 160 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Weight: 0,63 kg
Cooling fan: Yes, super silent
Lamp type: LED lamp
Power consumption: 25 W
Beam angle: 40°
Power connection: Fix Power supply cord with Euro plug (M)
Width: 15 cm
DMX channels: 6
Height: 16 cm
Depth: 12 cm
Material: Plastic
LED: 1 x COB (chip-on-board) 30 W UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Compact UV spotlight with 30 W COB LED and DMX control
-Striking blacklight effect for party rooms and household use
-Equipped with 1 high-power COB UV LED
-Operable in stand-alone mode or via DMX

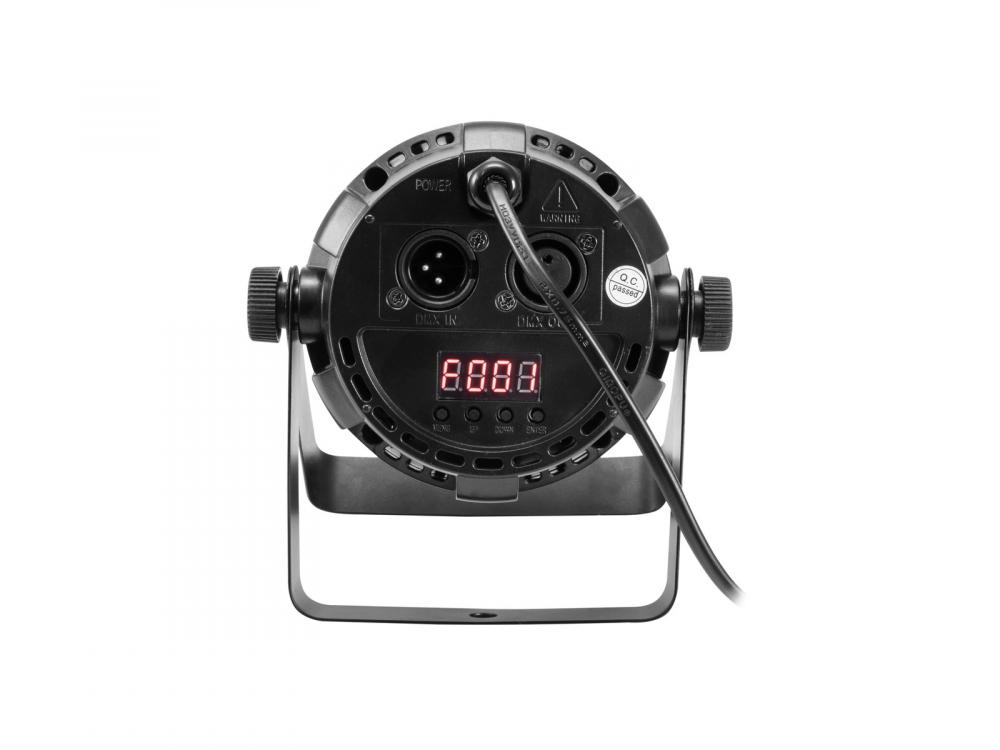

-Address setting via control panel with 4-digit LED display
-Sound control via built-in microphone
-Strobe effect with adjustable speed
-Mounting bracket for ceiling or wall mounting
-Additional bracket for floor use
-Ready for connection via power cord with Euro plug
-Switch-mode power supply for operation between 100 and 240 volts
-DMX512 control possible via any commercial DMX controller
-Case color: Black
-Effect: UV
-Power connection: Fix Power supply cord with Euro plug (M)
-Projection: flicker-free
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 30 W UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
6 ch
control channels, max
6 ch
Electrical
power consumption watt, max
30.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Europlug
cooling
active
Mechanical
weight
0.63 kg
width
150.00 mm
height
160.00 mm
length
120.00 mm
enclosure material
Plastic
Optical
beam angle/zoom, min
40.00 °
beam angle/zoom, max
40.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
30.00 W

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00121261.pdf
