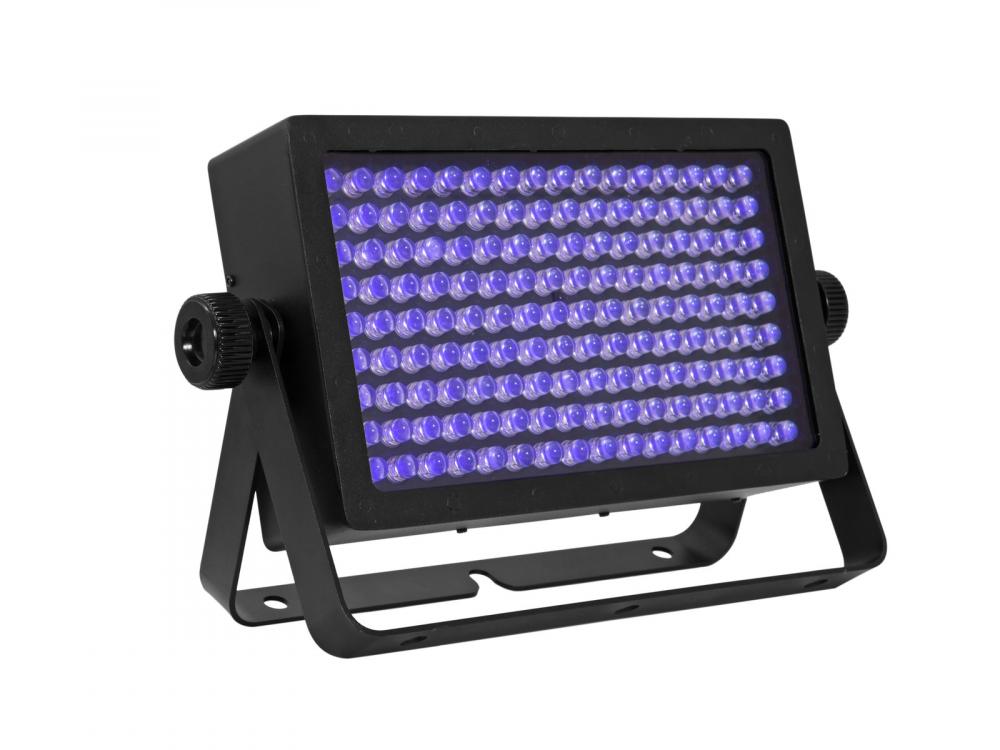

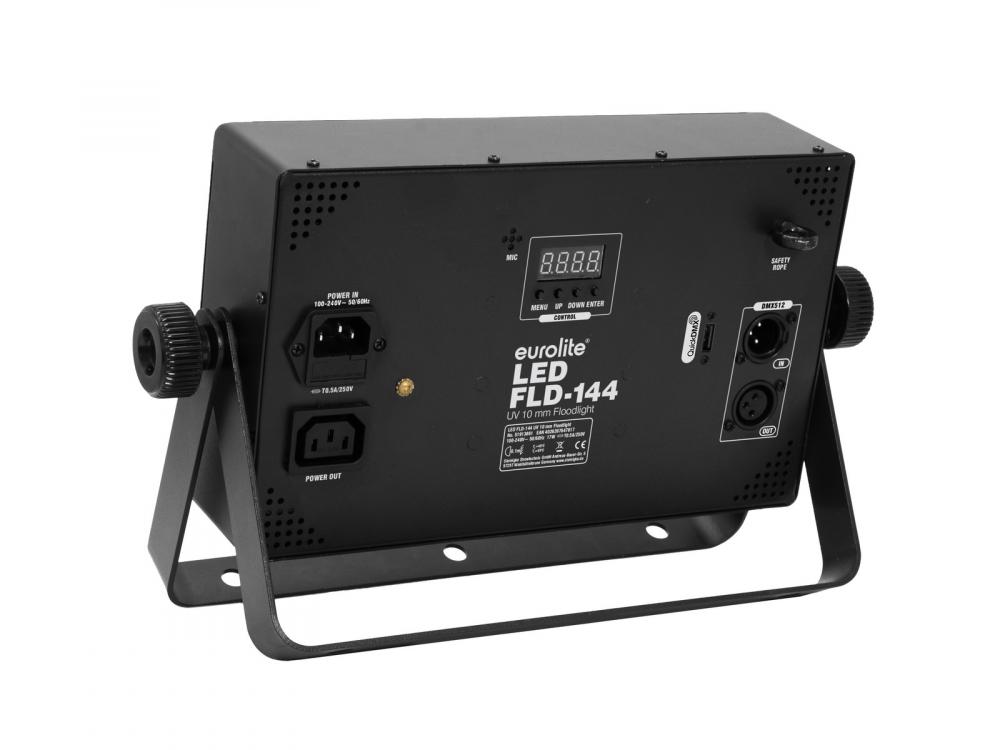

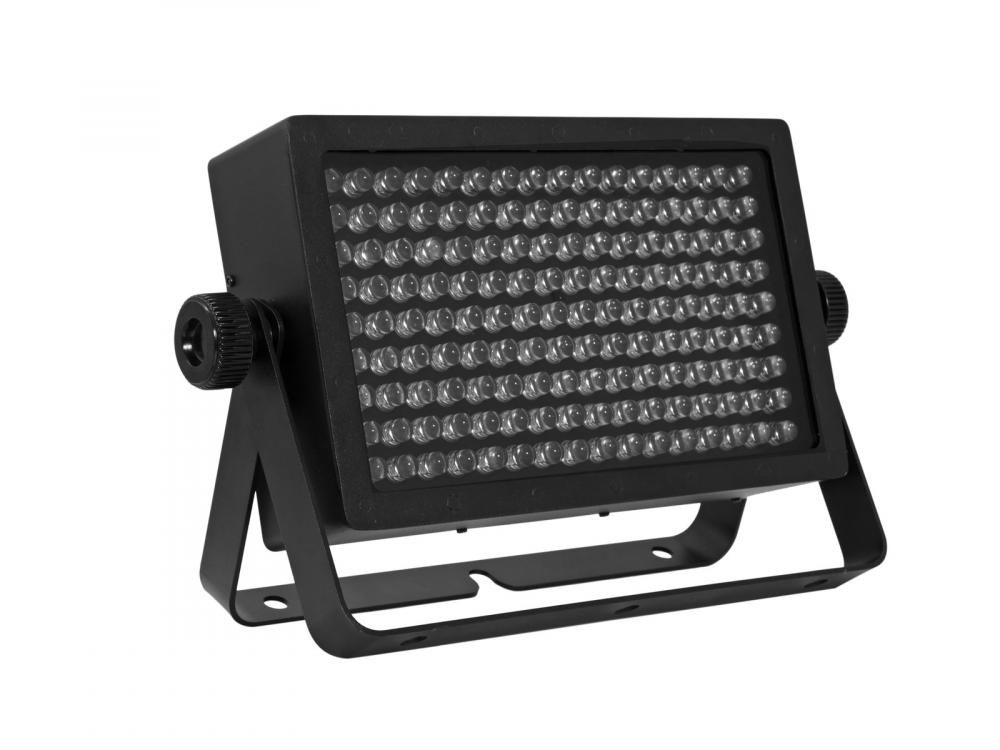

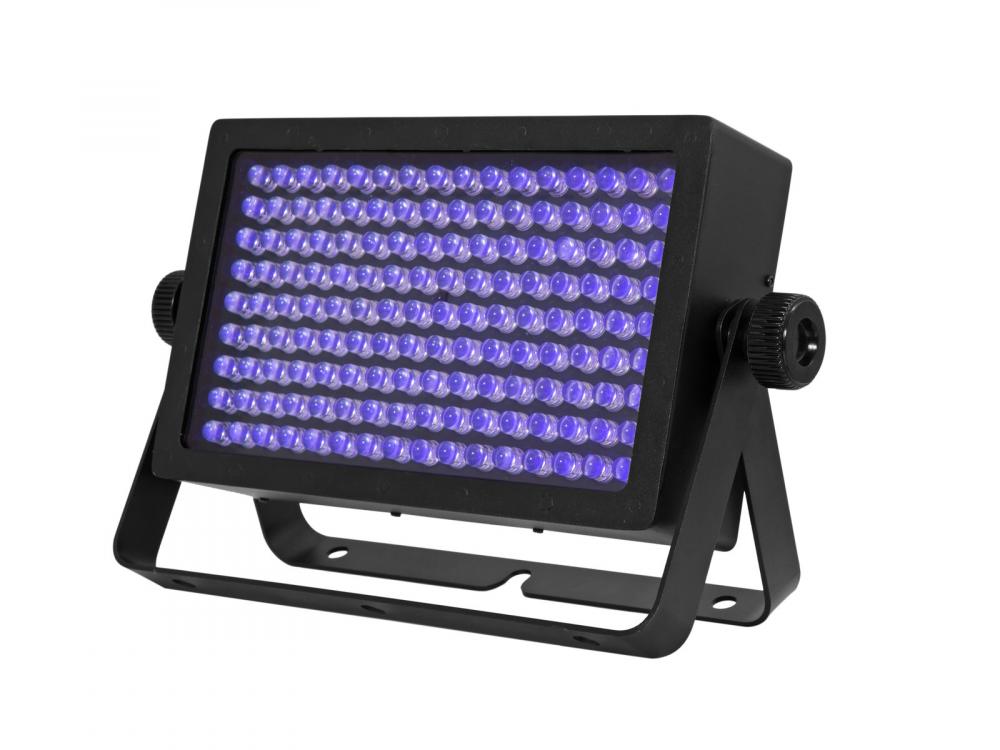

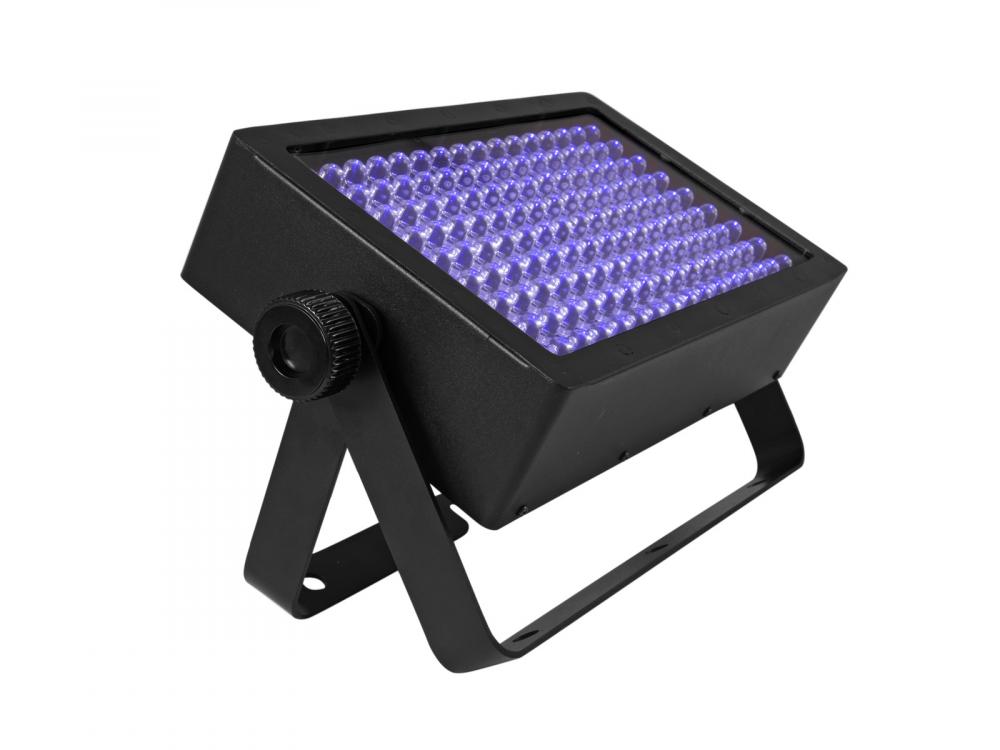

EUROLITE LED FLD-144 UV 10mm Flood

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED FLD-144 UV 10mm Flood

Info
order code
51913861
product link
EAN
4026397647617
Product Name
EUROLITE LED FLD-144 UV 10mm Flood
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 17 W
DMX channels: 1/2/2-1/3
DMX connection: 3-pin XLR
QuickDMX connection: USB, type A
Sound-control: via built-in microphone
LED type: 10 mm UV
LED number: 144
Beam angle: 40°
Dimensions (L x W x H): 85 x 345 x 220 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Weight: 2,40 kg
Cooling fan: No, cooling by convection
Lamp type: LED lamp
Power consumption: 17 W
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Width: 34,5 cm
Depth: 8,5 cm
DMX channels: 1; 2; 3
Height: 22 cm
LED: 144 x 10 mm UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
LED UV floodlight, incl. IR remote control
-144 x 10 mm UV LED for dynamic strobe effects and blacklight
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-UV, dimmer and strobe effects
-Addressing and setting via control panel with 4-digit LED display
-Convenient wireless control via included IR remote control EUROLITE IR-7
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-Supports QuickDMX - the wireless DMX system from Eurolite
-Built-in phantom-powered USB port for QuickDMX receivers (accessories)
-1, 2, 2-1 or 3 DMX channels selectable
-Swivel mounting bracket
-Additional bracket for floor use
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Effect: UV
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 144 x 10 mm UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
1 ch
control channels, max
3 ch
Electrical
power consumption watt, max
17.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
passive
Mechanical
weight
2.40 kg
width
345.00 mm
height
220.00 mm
length
85.00 mm
Optical
beam angle/zoom, min
40.00 °
beam angle/zoom, max
40.00 °
light source
LED
Number of light sources
144 pcs
