| Info | |
|---|---|
| order code |
51914549
|
| product link | |
| EAN |
4026397507294
|
| Product Name |

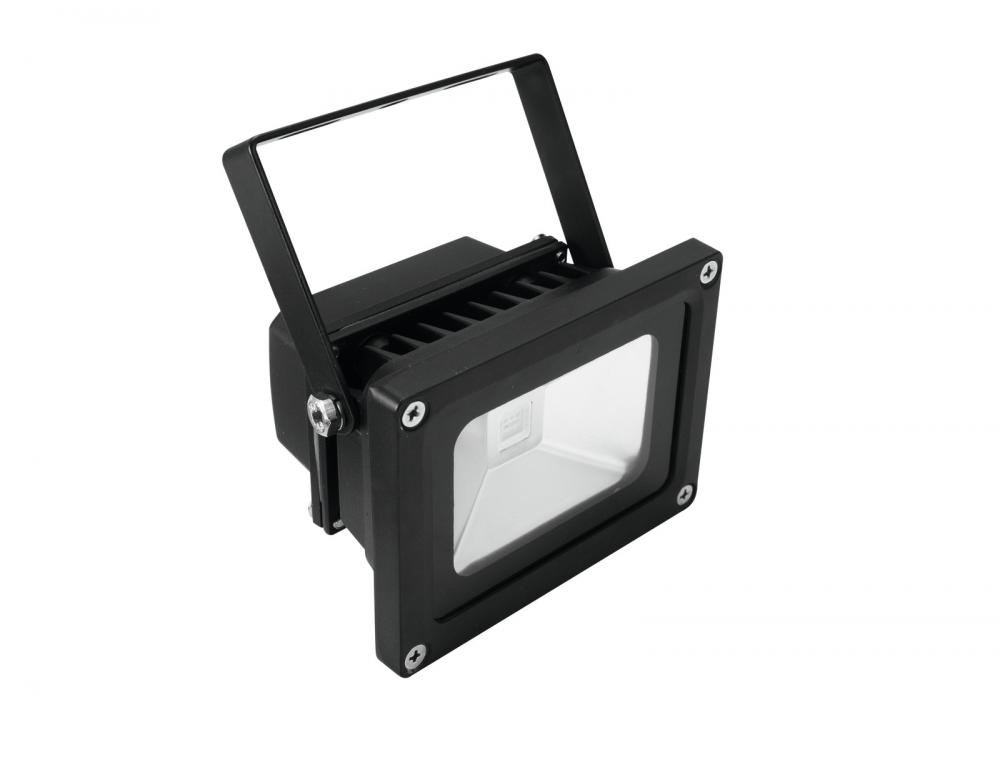

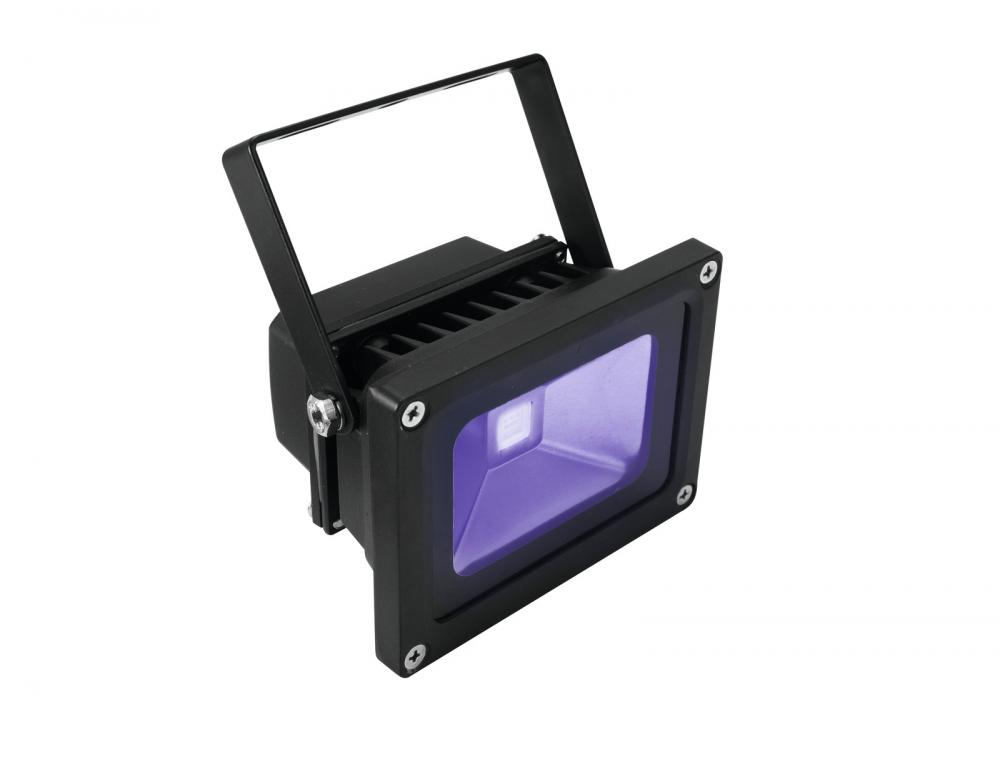

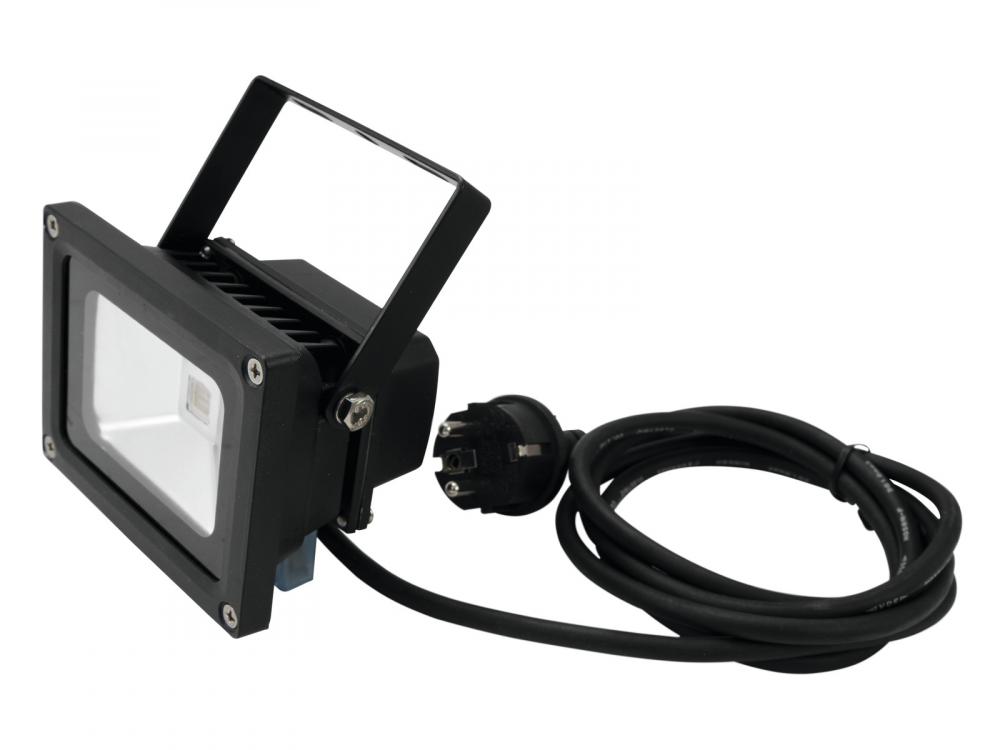

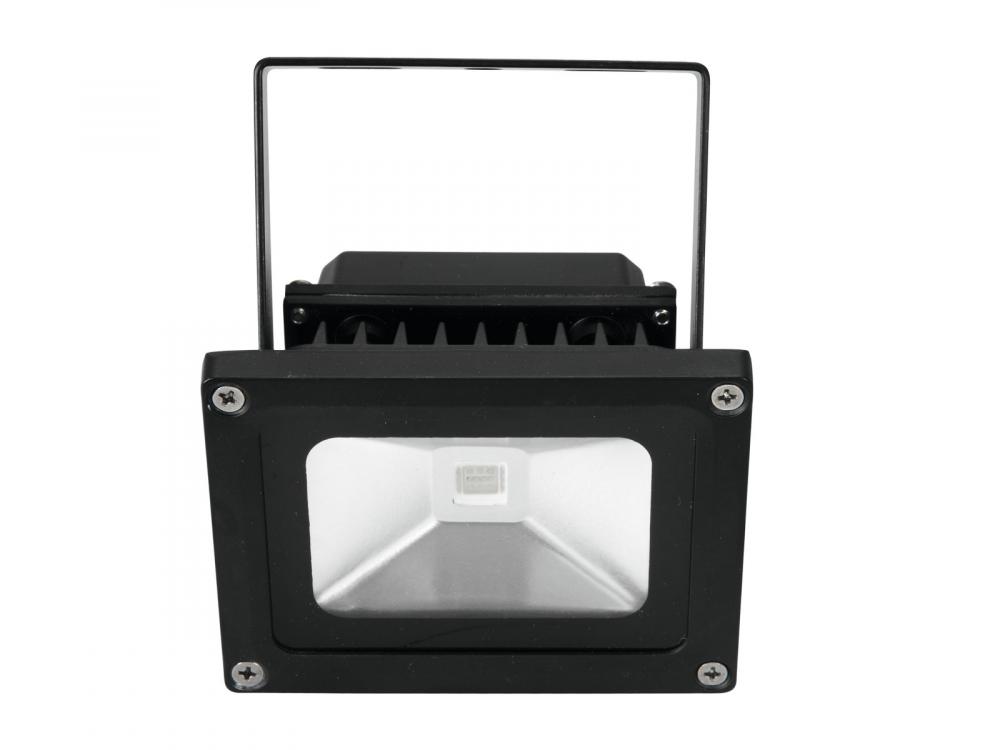

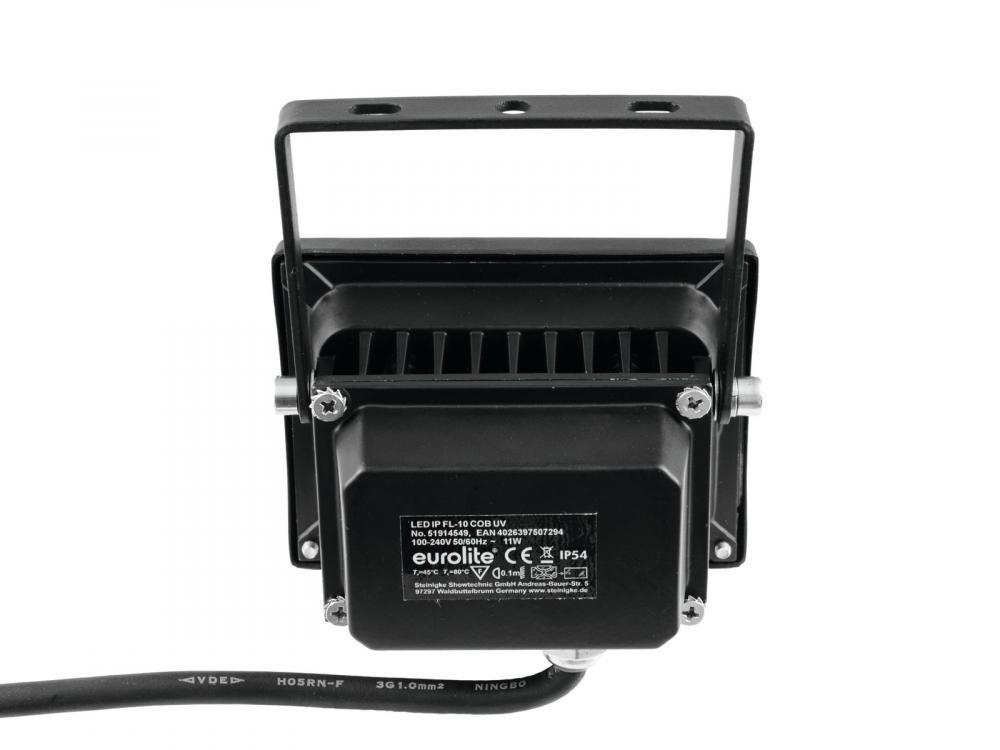

EUROLITE LED IP FL-10 COB UV
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protection grade: IP54 LED type: 10 W Array, UV LED number: 1 Beam angle: 120° Dimensions (L x W x H): 80 x 113 x 130 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Cooling fan: No, cooling by convection Beam angle: 120° Power consumption: 11 W IP classification: IP54 Weight: 0,64 kg Lamp type: LED lamp Height: 13 cm Depth: 8 cm Width: 11,3 cm Power connection: Fix Power supply cord with safety plug (M) Material: aluminium LED: 1 x COB (chip-on-board) 10 W UV (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |
Weatherproof (IP54) UV spot with 10 W COB UV LED -Equipped with 1 x 10 W COB UV LED for blacklight effects -Ideal LED luminary for outdoor use -Weather-proof housing (IP54) -Mounting bracket for permanent installation included -Suitable for larger distances -Beam reflection angle of 120° -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection via power cord with safety-plug -Case color: Black -Effect: UV -Power connection: Fix Power supply cord with safety plug (M) -Control: without -LED: 1 x COB (chip-on-board) 10 W UV (homogenous color mix) |
| Electrical | |
| power consumption watt, max |
10.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
54
|
| power input connector |
fixed
|
| cooling |
passive
|
| Mechanical | |
| weight |
0.64 kg
|
| width |
113.00 mm
|
| height |
130.00 mm
|
| length |
80.00 mm
|
| Optical | |
| beam angle/zoom, min |
120.00 °
|
| beam angle/zoom, max |
120.00 °
|
| light source |
LED
|
| Number of light sources |
1 pcs
|
| wattage per light source |
10.00 W
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00079753.pdf |
