Info | |
---|---|
order code |
51914559
|
product link | |
EAN |
4026397506396
|
Product Name |

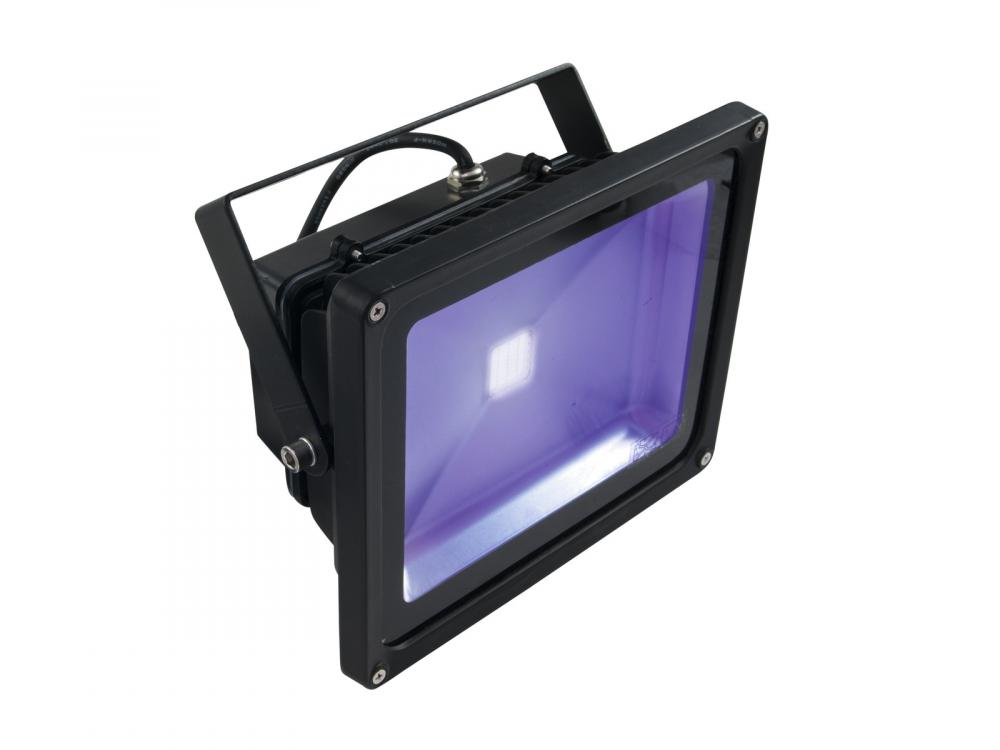

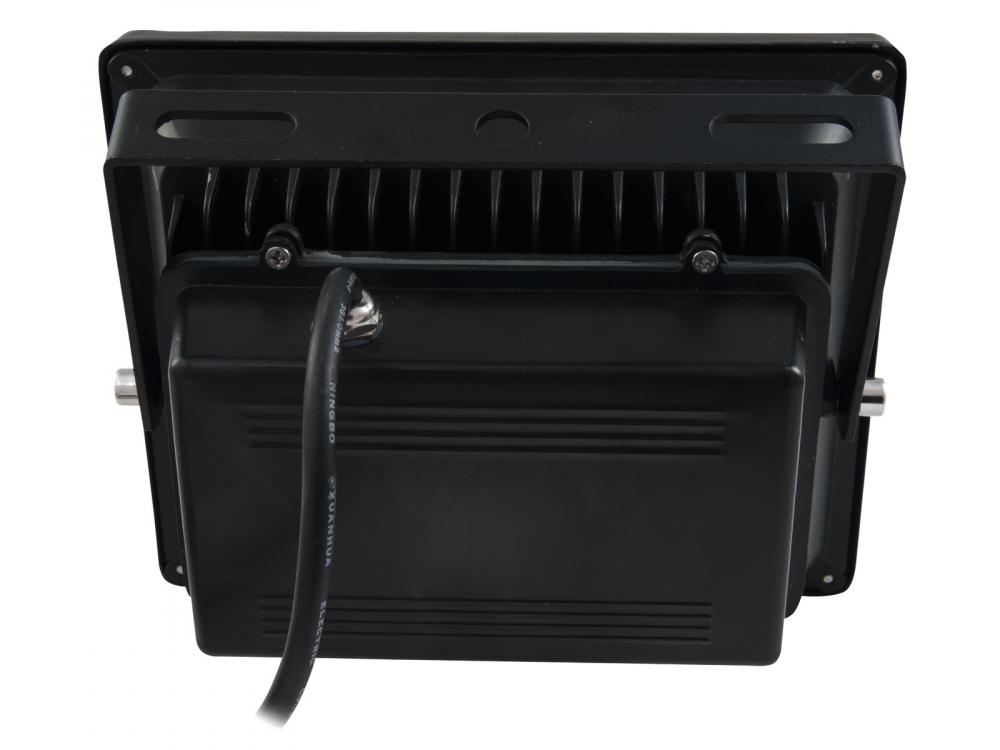

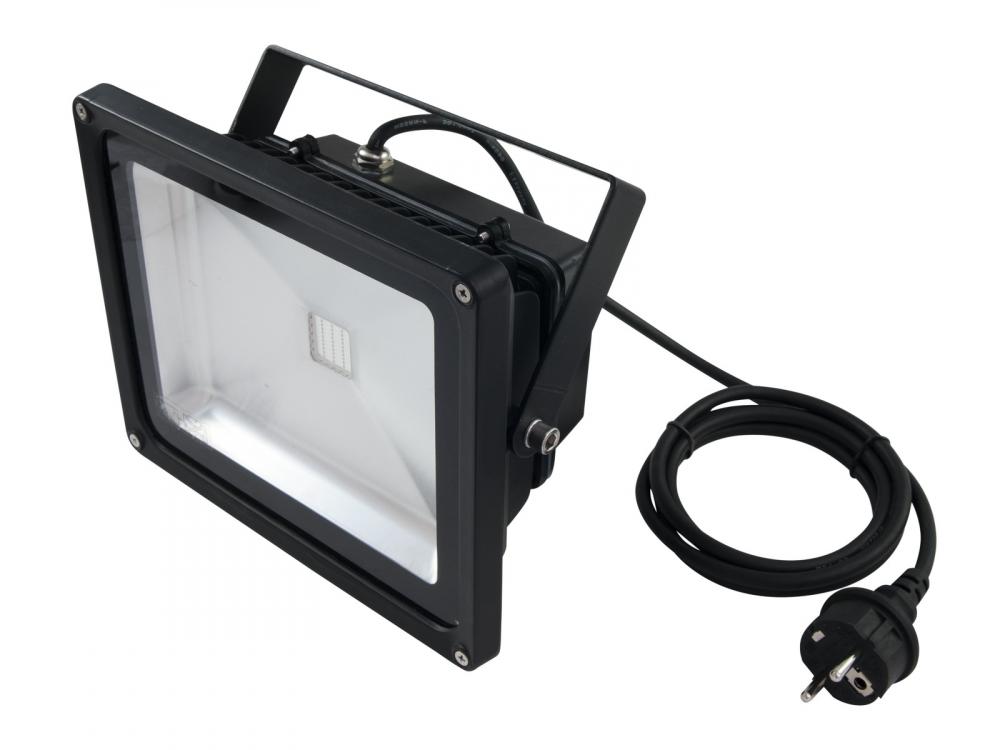

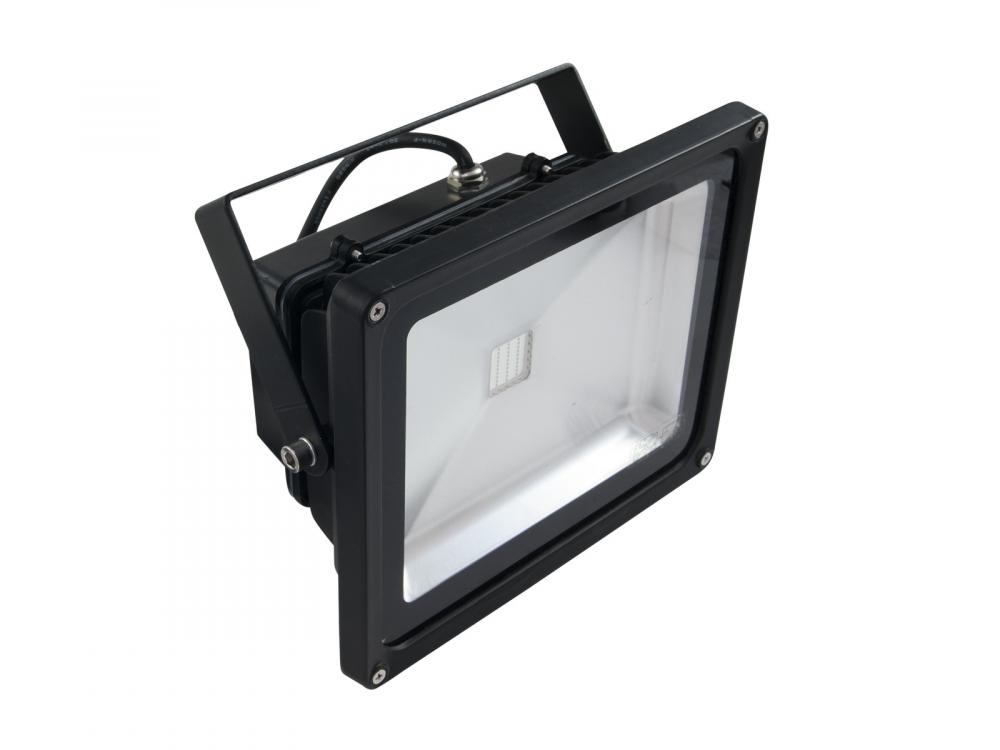

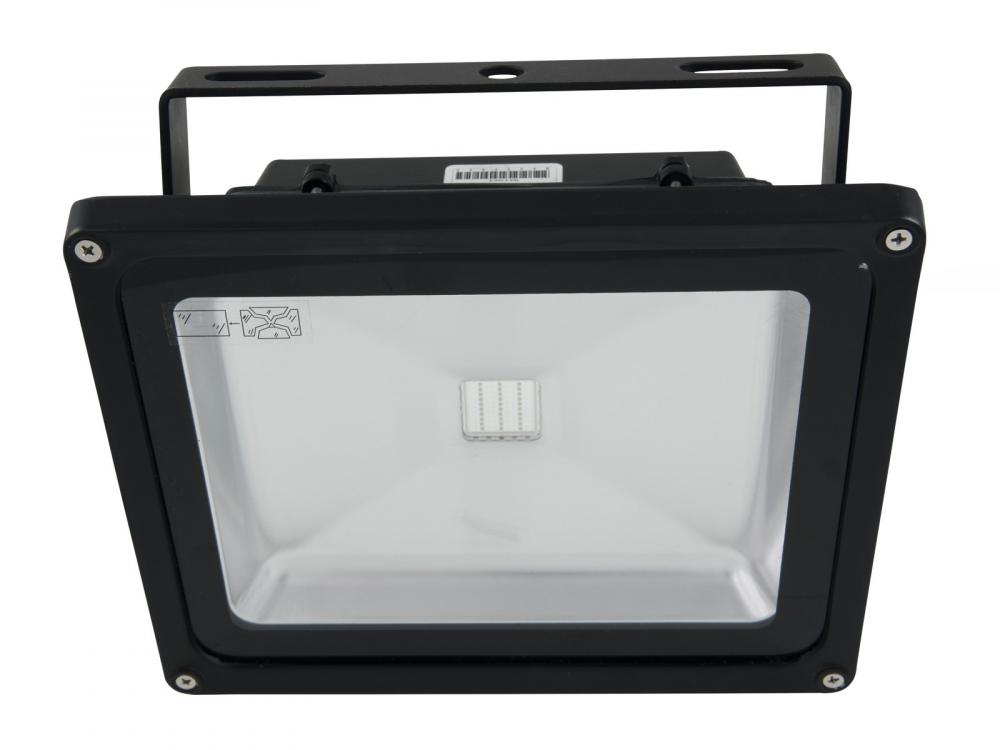

EUROLITE LED IP FL-30 COB UV
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protection grade: IP54 LED type: 30 W Array, UV LED number: 1 Beam angle: 120° Dimensions (L x W x H): 125 x 225 x 195 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Cooling fan: No, cooling by convection Beam angle: 120° Power consumption: 34 W IP classification: IP54 Weight: 1,50 kg Lamp type: LED lamp Height: 19,5 cm Depth: 12,5 cm Width: 22,5 cm Color: Clear Power connection: Fix Power supply cord with safety plug (M) Material: Metal LED: 1 x COB (chip-on-board) 30 W UV (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Weatherproof (IP54) UV spot with 30 W COB UV LED -Equipped with 1 x 30 W COB UV LED for blacklight effects -Ideal LED luminary for outdoor use -Weather-proof housing (IP54) -Mounting bracket for permanent installation included -Beam reflection angle of 120° -Permanent installation is recommended -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection via power cord with safety-plug -Case color: Black -Effect: UV -Power connection: Fix Power supply cord with safety plug (M) -Control: without -LED: 1 x COB (chip-on-board) 30 W UV (homogenous color mix) |
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
54
|
power input connector |
fixed
|
cooling |
passive
|
Mechanical | |
weight |
1.50 kg
|
width |
225.00 mm
|
height |
195.00 mm
|
length |
125.00 mm
|
enclosure material |
Metal
|
Optical | |
beam angle/zoom, min |
120.00 °
|
beam angle/zoom, max |
120.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
30.00 W
|
