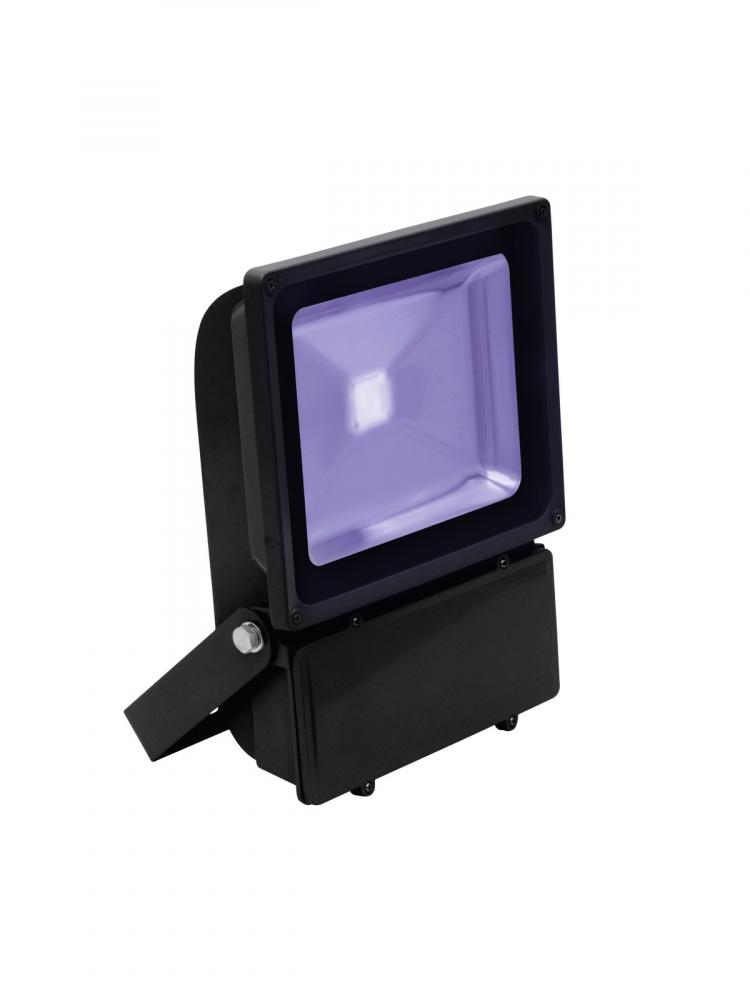

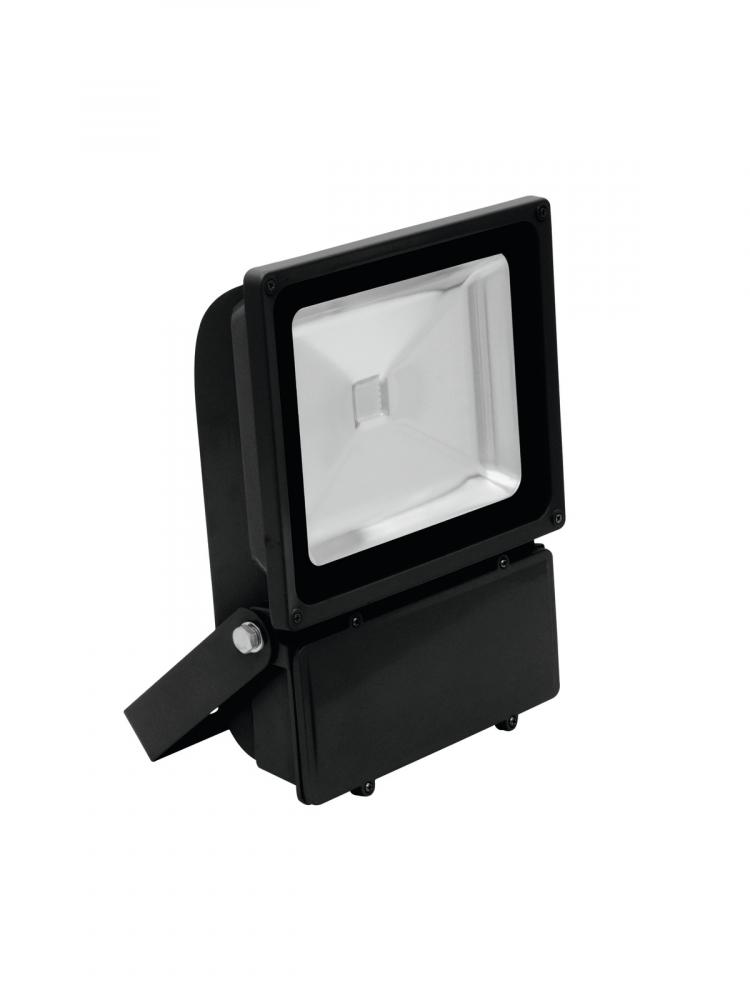

EUROLITE LED IP FL-100 COB UV

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP FL-100 COB UV

Info
order code
51914629
product link
EAN
4026397537512
Product Name
EUROLITE LED IP FL-100 COB UV
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Protection grade: IP65
LED type: 100 W Array, UV
LED number: 1
Beam angle: 120°
Dimensions (L x W x H): 100 x 380 x 290 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP65
Weight: 5,7 kg
Cooling fan: No, cooling by convection
Power consumption: 108 W
Lamp type: LED lamp
Beam angle: 120°
Height: 29 cm
Depth: 10 cm
Width: 38 cm
Color: Clear
Power connection: Fix Power supply cord with safety plug (M)
Material: Metal
LED: 1 x COB (chip-on-board) 100 W UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Weatherproof (IP65) UV spot with 100 W COB UV LED
-Equipped with 1 x 100 W COB UV LED for blacklight effects
-Ideal LED luminary for outdoor use
-Weather-proof housing (IP65)
-Mounting bracket for permanent installation included
-Suitable for larger distances
-Beam reflection angle of 120°
-Permanent installation is recommended
-Switch-mode power supply for operation between 100 and 240 Volts
-Ready for connection via power cord with safety-plug
-Case color: Black
-Effect: UV
-Power connection: Fix Power supply cord with safety plug (M)
-Control: without
-LED: 1 x COB (chip-on-board) 100 W UV (homogenous color mix)
Electrical
power consumption watt, max
100.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
65
power input connector
fixed
cooling
passive
Mechanical
weight
5.70 kg
width
380.00 mm
height
290.00 mm
length
100.00 mm
enclosure material
Metal
Optical
beam angle/zoom, min
120.00 °
beam angle/zoom, max
120.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
100.00 W
