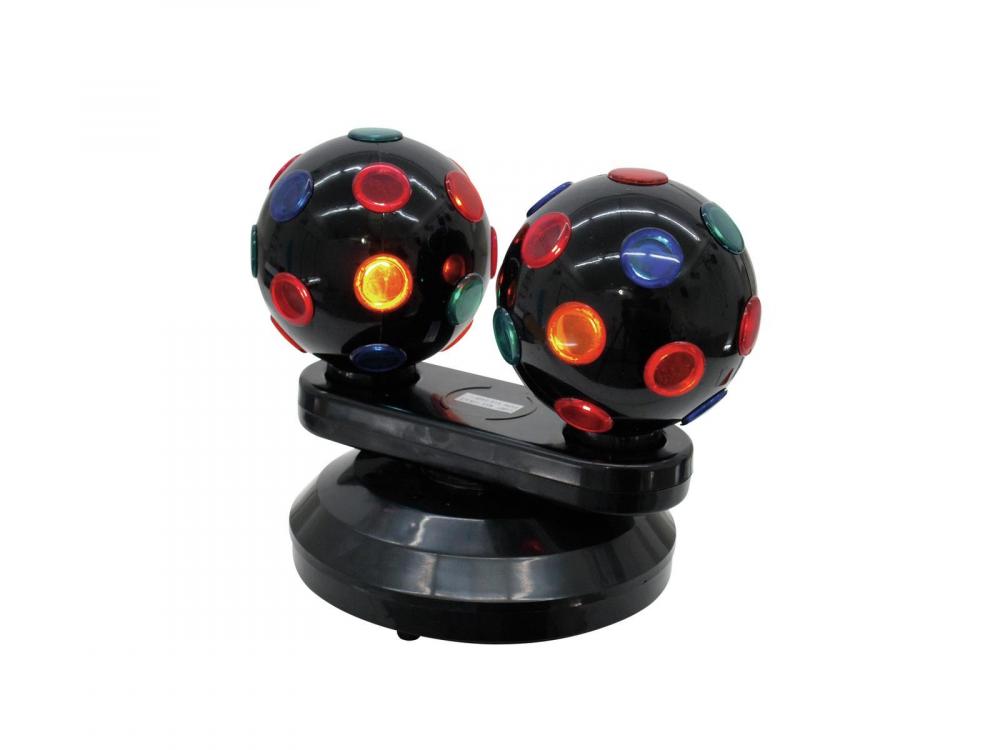

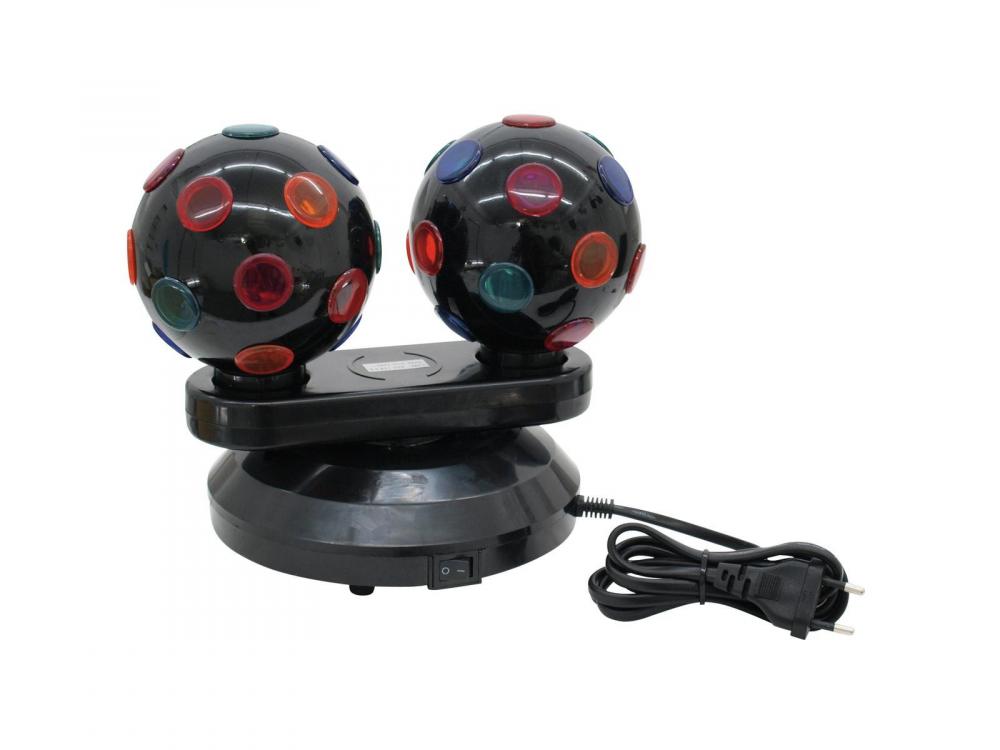

EUROLITE Mini Double ball Eeam Effect

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Mini Double ball Eeam Effect

Info
order code
51812234
product link
EAN
4026397381344
Product Name
EUROLITE Mini Double ball Eeam Effect
technical overview
Power supply: 230 V AC, 50 Hz
Rotation-speed:
Around main axle: approx. 16 RPM
Around ball-axle: approx. 43 RPM
Dimensions (L x W x H): 230 x 180 x 200 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Power consumption: 35,00 W
Lamp type: Halogen lamp
Weight: 0,8 kg
Laser class: Without laser
Height: 20 cm
Depth: 18 cm
Width: 23 cm
Power connection: Fix Power supply cord with Euro plug (M)
Power supply: 230 V AC, 50 Hz
main features
Simple light effect with double rotation for two E14 230V/15W lamps
-Two beam-balls rotate around their own axis plus around the effect's main axis
-2 x 19 beams in 4 colors are thrown whirlwind-like through the room
-Brilliant, intensive colors
-Standing installation
-High-quality motor
-When smoke is used, this effect becomes especially attractive
-Easy installation
-Ready for connection with power cord and Euro-plug
-Delivered in a four-color carton
-Ideal for mobile operation, party-rooms and small discotheques
-For two inexpensive 230V/15W E14 lamps
-Effect: Multi beam effect
-Power connection: Fix Power supply cord with Euro plug (M)
-Control: Stand-alone
Electrical
power consumption watt, max
35.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
Europlug
Mechanical
weight
0.80 kg
width
230.00 mm
height
200.00 mm
length
180.00 mm
Optical
light source
Halogen

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00047076.pdf
