EUROLITE LED Mini Party Set

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Mini Party Set

Info
order code
51915501
product link
EAN
4026397603507
Product Name
EUROLITE LED Mini Party Set
technical overview
Power supply: 100-240 V AC, 50/60 Hz
via supplied power unit (12 V/1 A)
Flower effect: 8 W
UV strobe: 11 W
Wash light: 4 W
LED type:
Flower effect: 1 x RGB, 9 W
UV strobe: 5 x UV, 1 W each
4 x white, 0.5 W each
Wash light: 1 x R, 1 x G, 1 x B, 1 W each
Dimensions and weight:
Flower effect: 146 x 146 x 160 mm, 0.7 kg
UV strobe: 560 x 40 x 60 mm, 0.4 kg
Wash light: 190 x 60 x 110 mm, 0.3 kg
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Lamp type: LED lamp
Weight: 1,4 kg
Power consumption: 23 W
Laser class: Without laser
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
LED: 3 x high-power 1 W RGB; 4 x SMD 0,5 W CW (homogenous color mix); 5 x high-power 1 W UV (homogenous color mix); 1 x high-power 9 W RBW
Power supply: 110-240 V AC, 50/60 Hz
main features

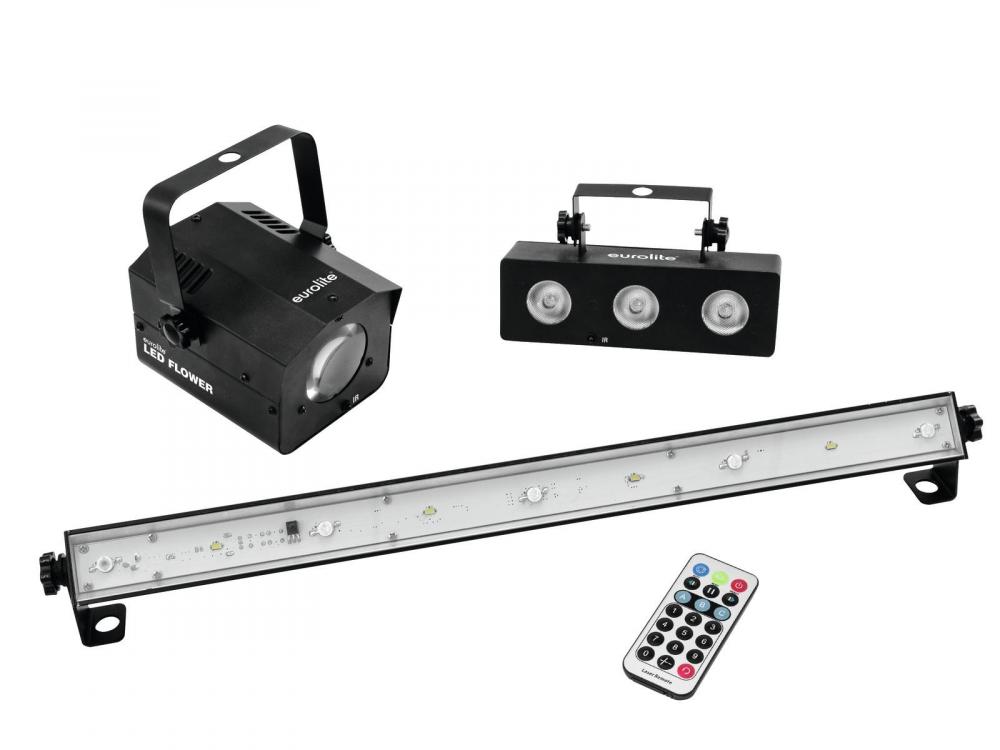

Set with flower effect, washlight and black light/stroboscope bar
-3 party light effects in one convenient package
-1 x flower effect, 1 x wash light, 1 x UV/strobe bar
-Adds fun to any party
-Easy operation thanks to small design
-Ready to use right out of the box via sound-to-light mode

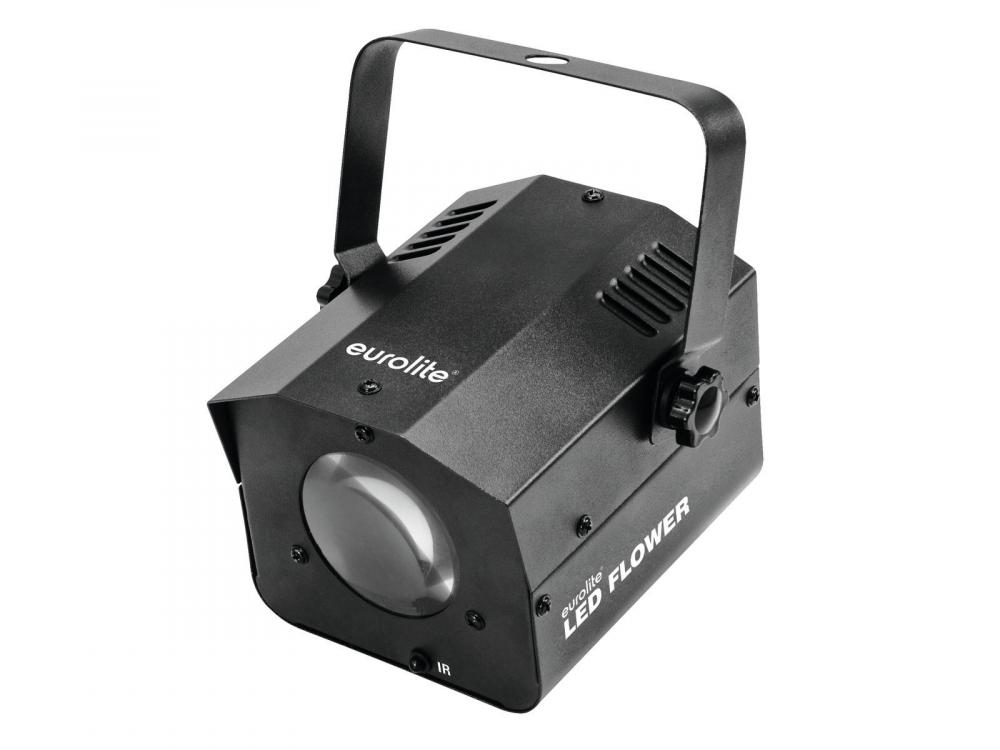

-Flower effect projects bright colors in your room

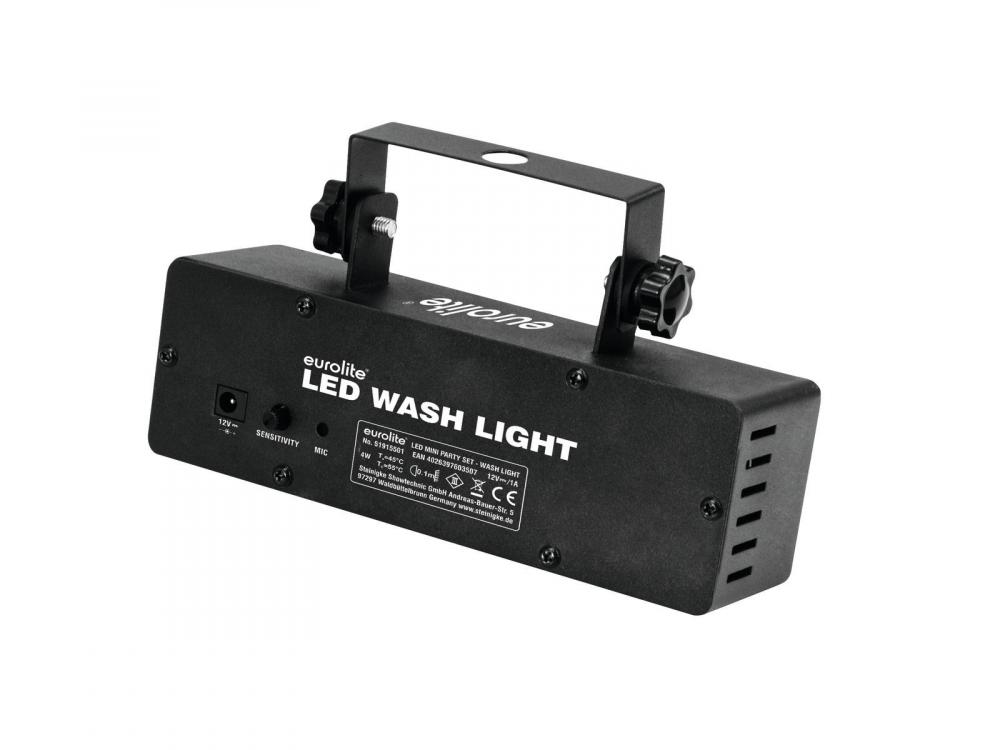

-Wash light covers large area with RGB wash
-2-in-1 bar pairs UV light effect with white strobe effect

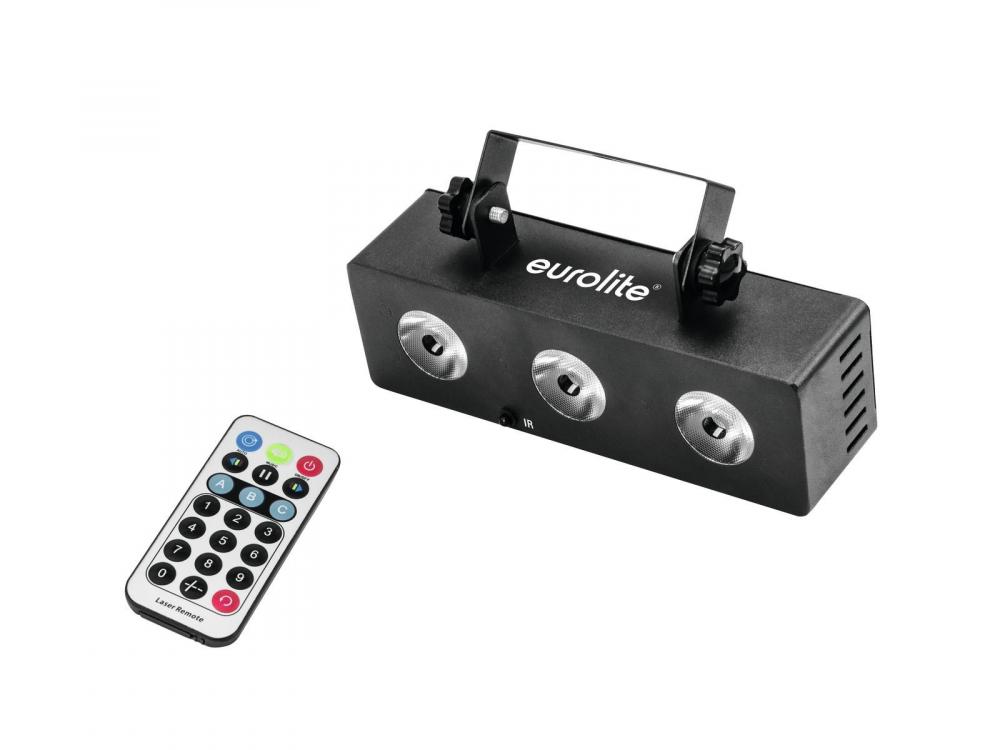

-Easy wireless control of all 3 effects with one IR remote control
-Various show programs in auto and sound mode
-Mounting bracket
-Low power consumption
-Operation via included power units
-Case color: Black
-Effect: Multi beam effect; Flower effect; Strobe effect; UV
-Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
-Control: IR remote control (provided); Stand-alone
-LED: 3 x high-power 1 W RGB; 4 x SMD 0,5 W CW (homogenous color mix); 5 x high-power 1 W UV (homogenous color mix); 1 x high-power 9 W RBW
Electrical
power consumption watt, max
1.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
external PSU
yes
Mechanical
weight
1.40 kg
Optical
light source
LED
Number of light sources
3 pcs
wattage per light source
1.00 W
RED light source
yes
GREEN light source
yes
BLUE light source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00107356.pdf
