EUROLITE LED Umbrella 95

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Umbrella 95

Info
order code
42111010
product link
EAN
4026397646061
Product Name
EUROLITE LED Umbrella 95
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 6/24
DMX connection: 3-pin XLR
QuickDMX connection: USB, type A
Sound-control: via built-in microphone
LED number: 114
LED type: SMD RGB (3in1)
Diameter (umbrella): 95 cm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: No, cooling by convection
IP classification: IP20
Weight: 2,68 kg
Power consumption: 10 W
Diameter: 95 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels: 6; 24
LED: 114 x SMD 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Extraordinary RGB eye-catcher

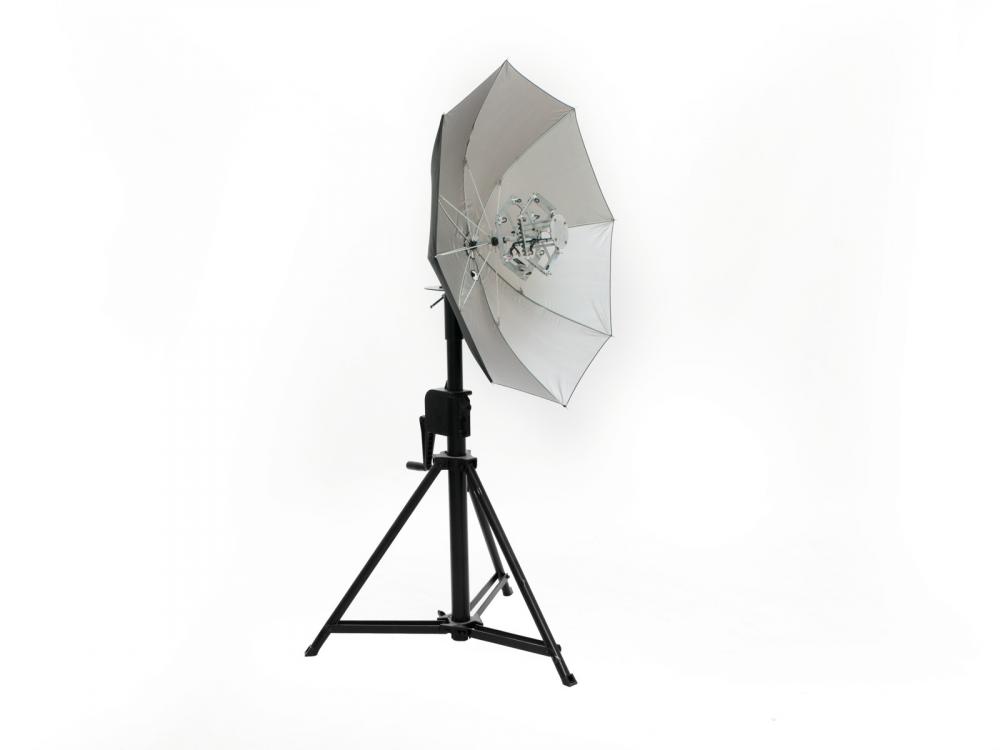

-DMX-controllable lighting effect umbrella with 114 SMD RGB LEDs, distributed in 7 segments
-Segments can be controlled individually via DMX

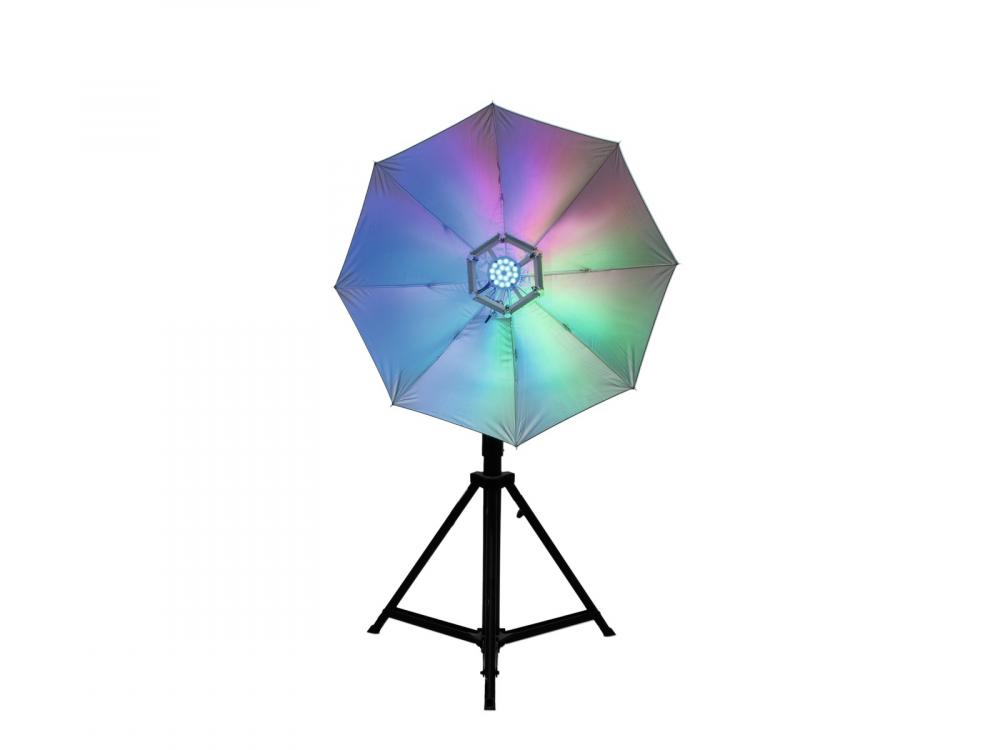

-6 segments make the surface of the umbrella shine, one segment in the middle shines directly at the audience
-Perfect as stage background and eye-catcher for decorative purposes in shops, display windows, fair stands, hotels, bars and clubs

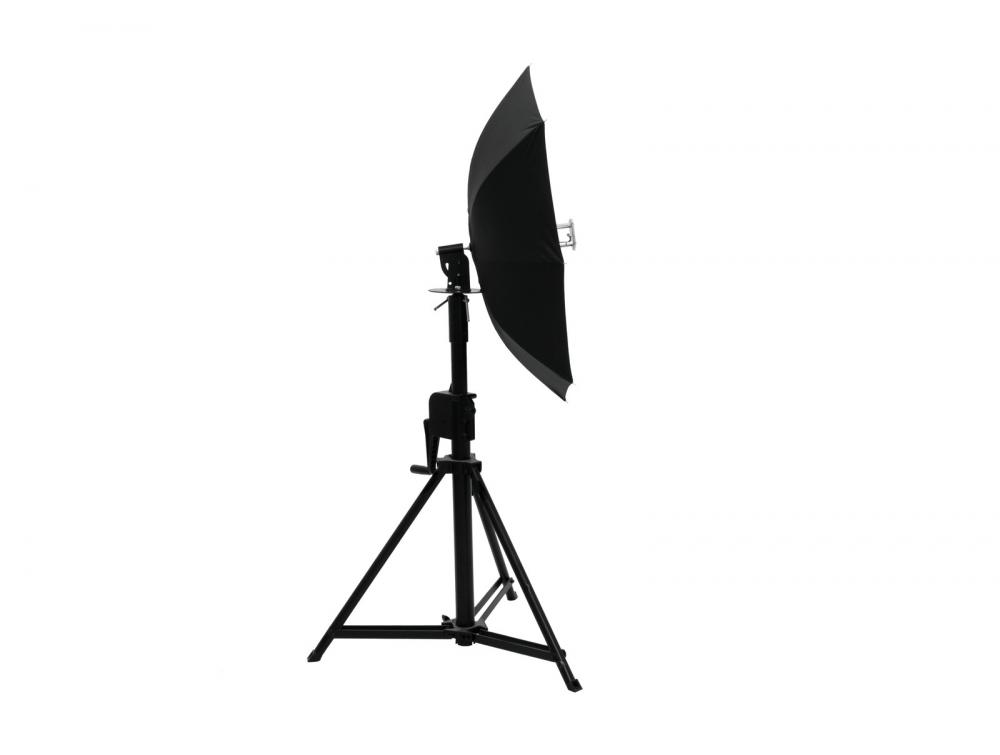

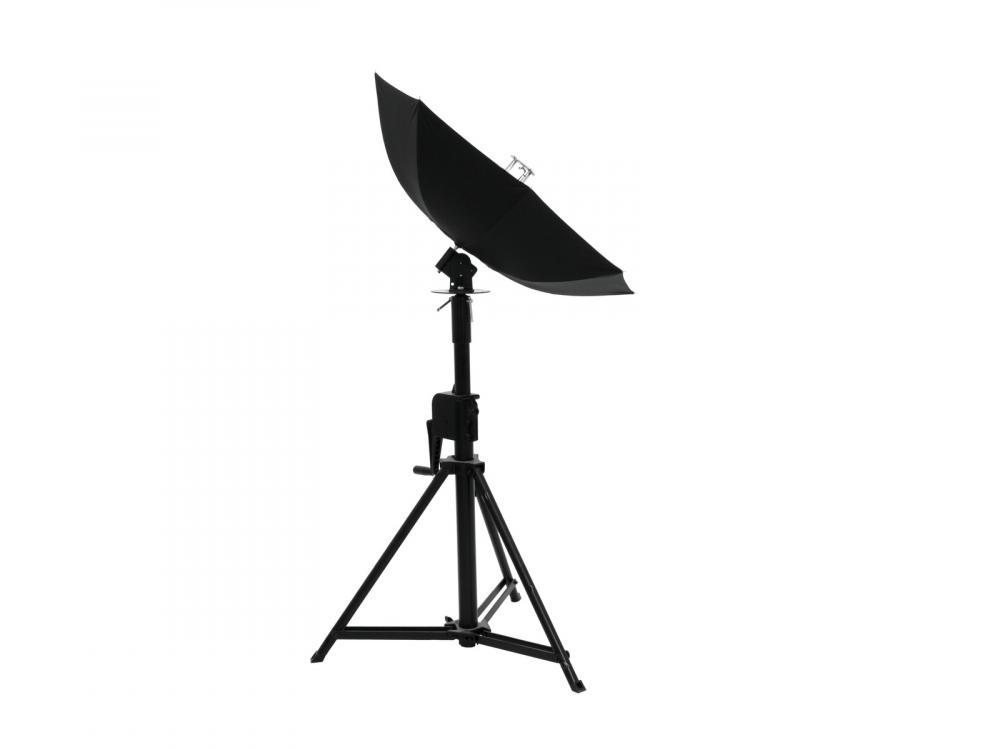

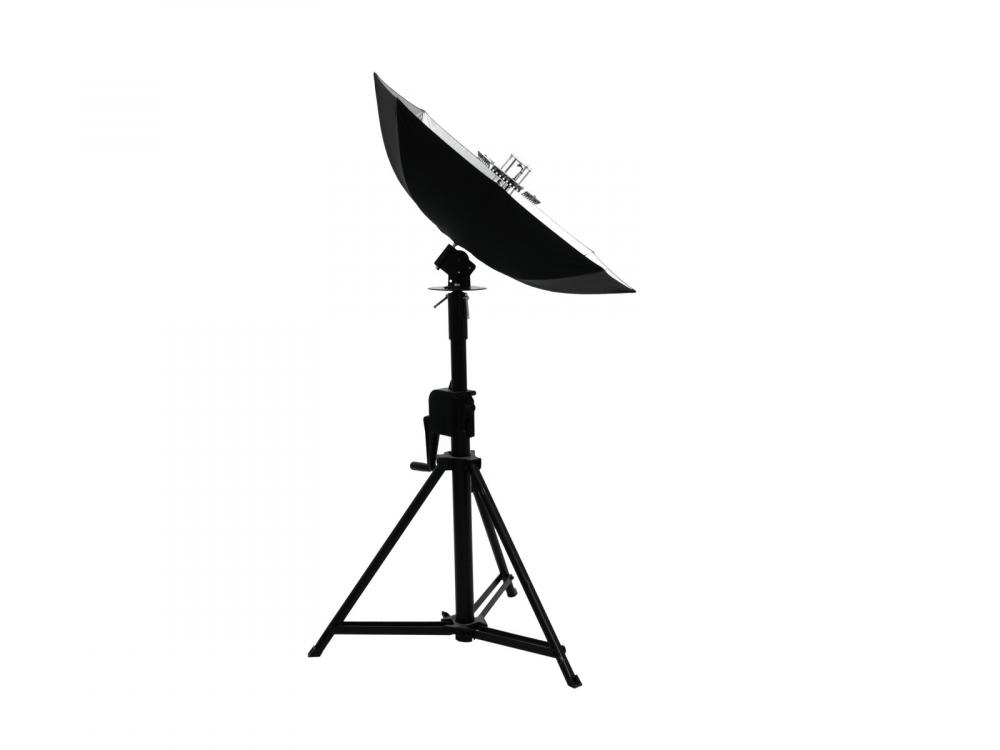

-Can be mounted to a lighting stand or trussing - the umbrella's angle can be adjusted
-Easy transport (can be folded), setup and installation
-Covers an area with a diameter of 95 cm
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-6 or 24 DMX channels selectable
-Stepless RGB color mixture, dimmer and strobe effect
-Sound-control via built-in microphone
-Supports QuickDMX - the wireless DMX-system from Eurolite
-Built-in phantom-powered USB port for QuickDMX receivers (accessories)
-DMX512 control possible via any commercial DMX controller
-Addressing via control panel with 4-digit LED display
-Appropriate control unit included in the delivery
-Power connection via P-Con jack and included power cable with safety plug
-Case color: Black
-Projection: flicker-free
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Control: QuickDMX USB; Stand-alone; DMX
-LED: 114 x SMD 3in1 TCL RGB (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
6 ch
control channels, max
24 ch
Electrical
power consumption watt, max
10.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
passive
Mechanical
weight
2.68 kg
outer diameter
950 mm
Optical
Number of light sources
114 pcs
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
