EUROLITE LED PSU-10A Artnet/DMX

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PSU-10A Artnet/DMX

Info
order code
51928781
product link
EAN
4026397532425
Product Name

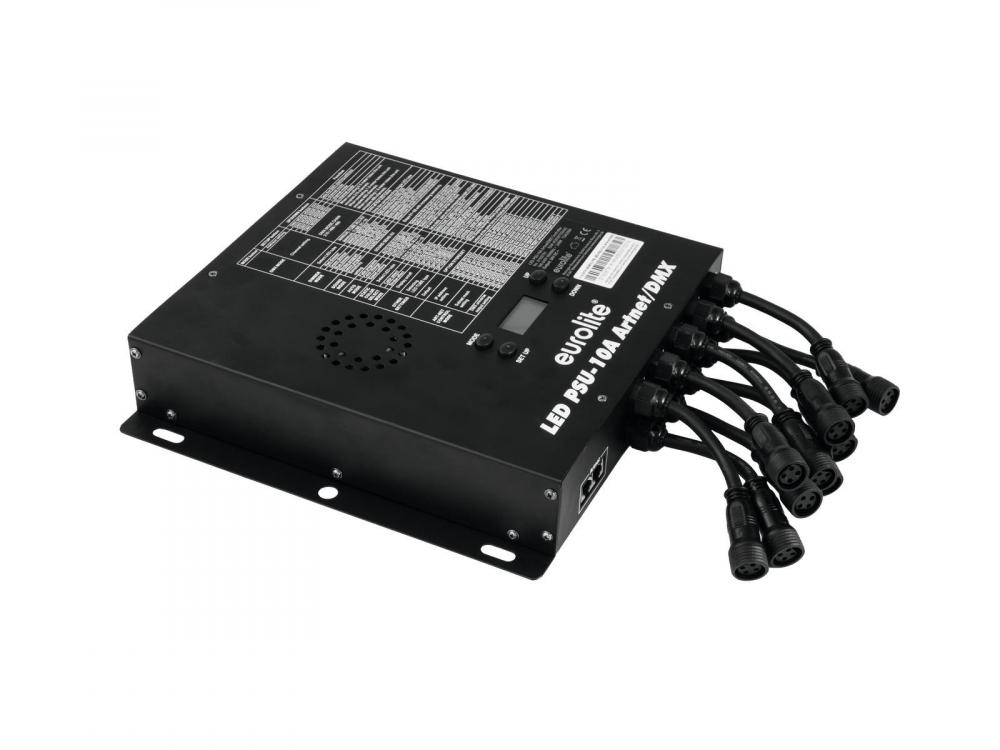

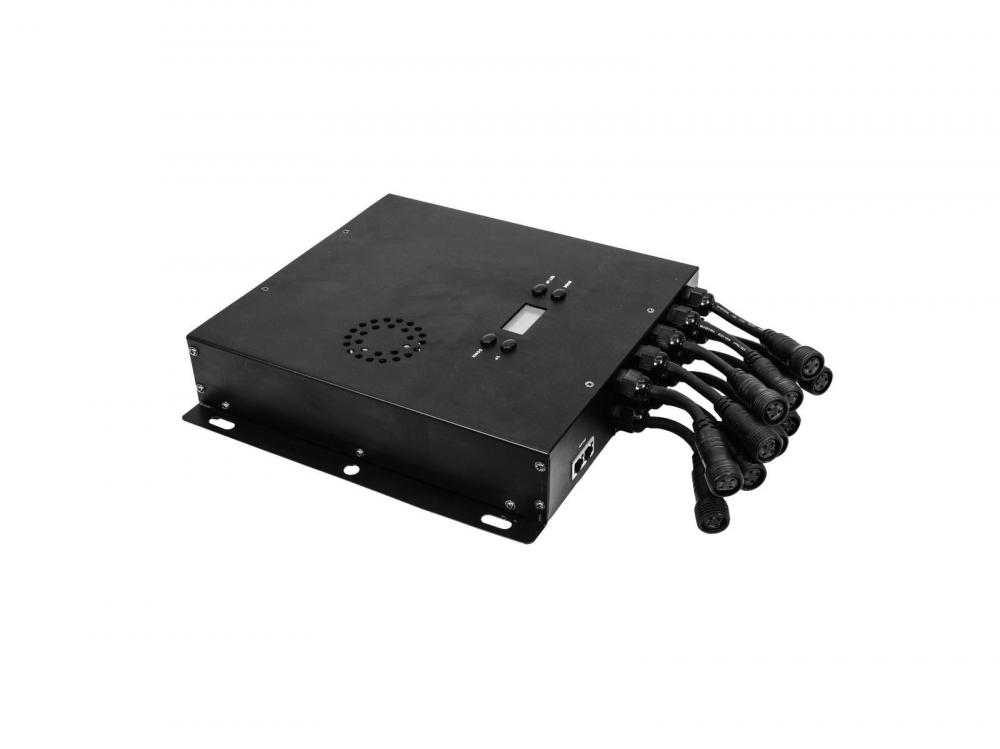

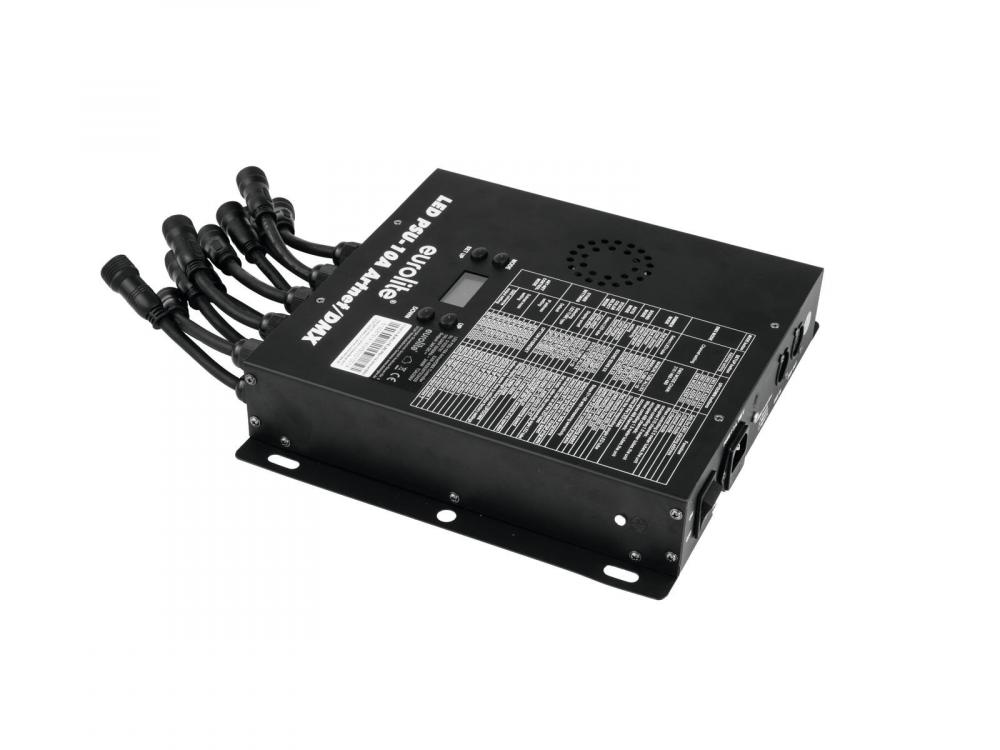

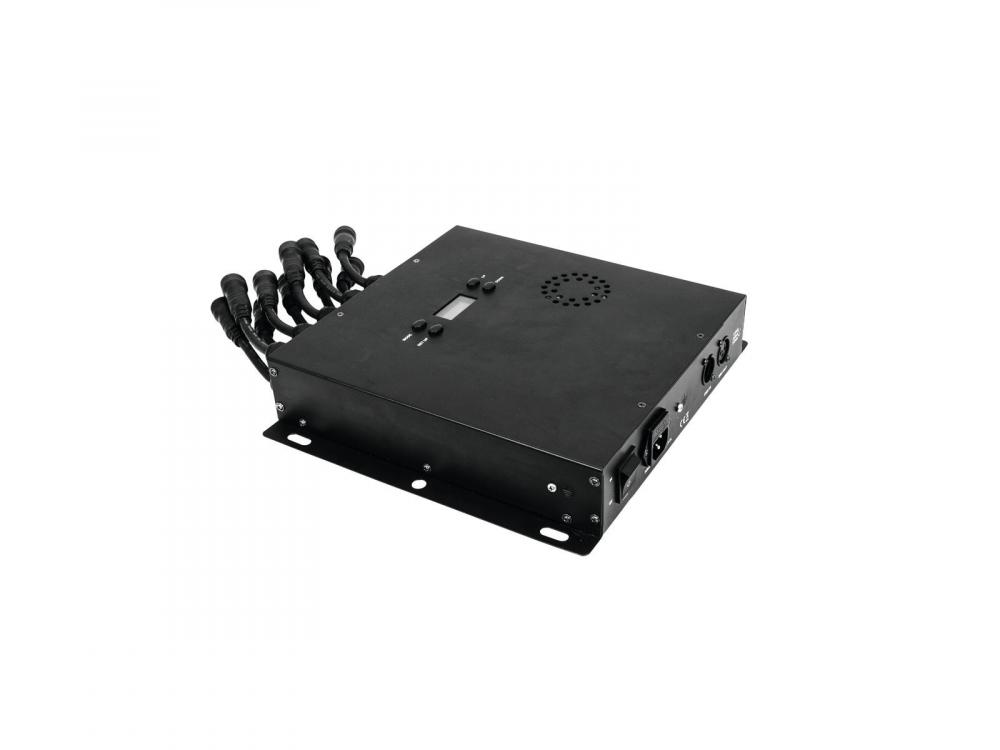

EUROLITE LED PSU-10A Artnet/DMX
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Output voltage: 24 V DC
Number of DMX channels: 5/7/32/210/468/480
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Dimensions (L x W x H): 300 x 290 x 60 mm
Weight: 3 kg
Power consumption: 240 W
Height: 6 cm
Depth: 30 cm
Width: 29 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 5; 7; 32; 210; 468; 480
Power supply: 110-240 V AC, 50/60 Hz
main features
Controller for EUROLITE LED Pixel Tubes 360°
-Controller and power supply unit for LED light tubes
-Suitable for 51928790 EUROLITE LED Pixel Tube 360° clear 1 m, 51928792 EUROLITE LED Pixel Tube 360° clear 0.5m, or 51928793 EUROLITE LED Pixel Tube 360° clear 1.5m (not included in the delivery)
-Comfortable addressing and setting via control panel with LCD display
-Functions: Static colors, RGBW color blend, internal programs, dimmer, strobe, sound-control, sensitivity
-Further display settings: display on or off, LED tube selection, default settings
-Operable in stand-alone mode, via DMX or Art-Net
-Master/Slave for parallel operation of several devices
-DMX512 control via any commercial DMX-controller
-Number of DMX channels (5, 7, 32, 210, 468, 480) selectable for numerous applications
-Sound-control via built-in microphone
-Ready for connection with power cord and safety plug
-Switch-mode power supply for operation between 100 and 240 Volts
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: Stand-alone; ArtNet; DMX

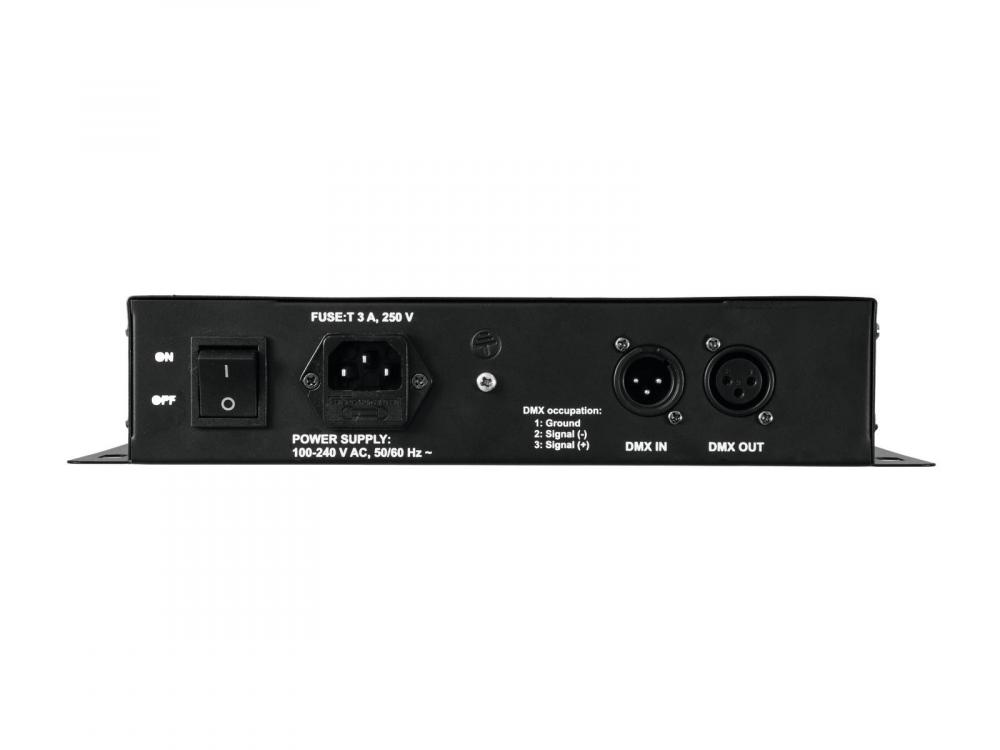

Connectors
DMX connector types
3pin
Control
control channels, min
5 ch
control channels, max
480 ch
Electrical
power consumption watt, max
240.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
power input connector
IEC-60320 C13/C14
Mechanical
weight
3.00 kg
width
290.00 mm
height
60.00 mm
length
300.00 mm
