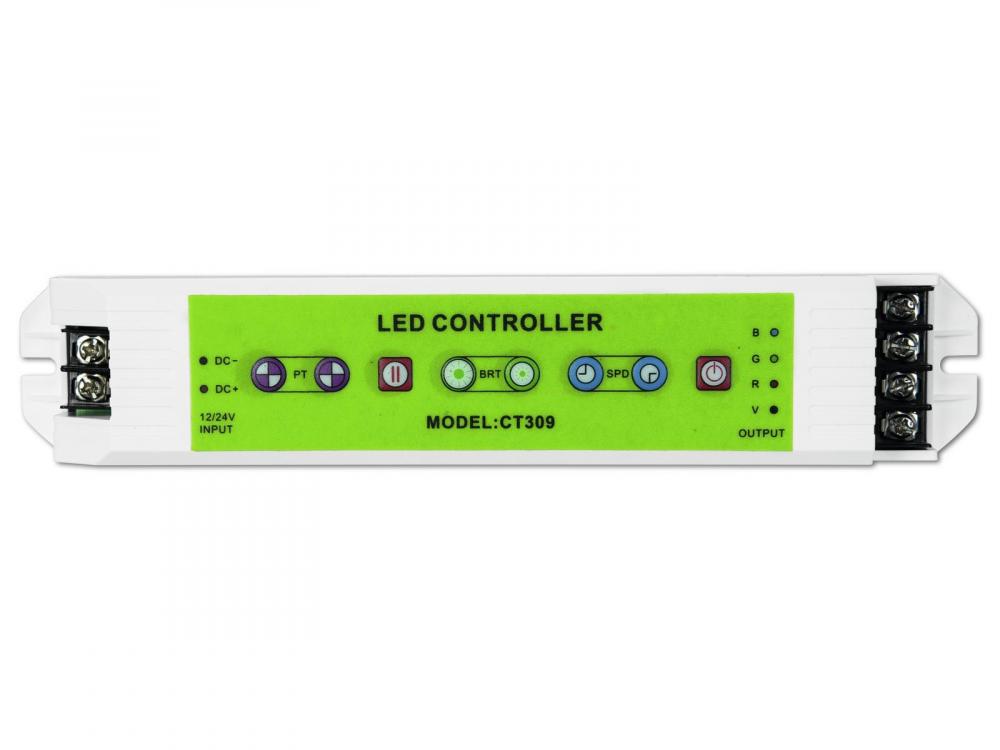

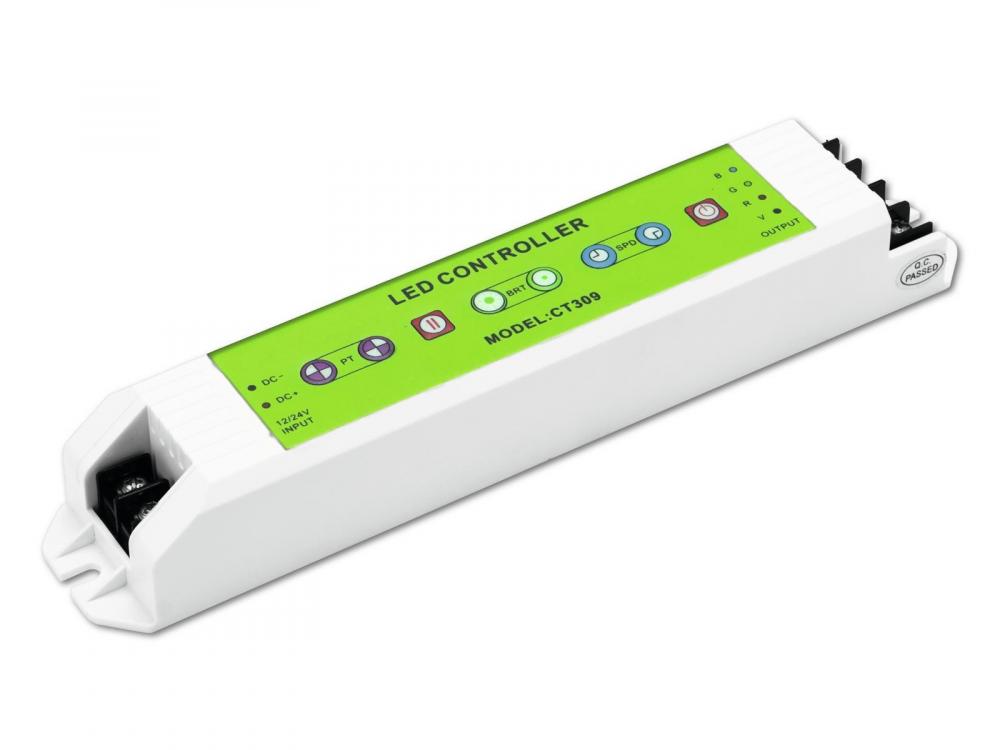

EUROLITE LC-1 LED Strip RGB Controller
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LC-1 LED Strip RGB Controller
| Info | |
|---|---|
| order code |
50530555
|
| product link | |
| EAN |
4026397255256
|
| Product Name |
EUROLITE LC-1 LED Strip RGB Controller
|
| technical overview |
Power supply: 12-24 V DC Standby current: Output power: max. 180 W (12 V), 280 W (24 V) Output current: max. 5 A per channel (15 A total) Dimensions (L x W x H): 211 x 40 x 30 mm Weight: 0,3 kg Height: 3 cm Depth: 21,1 cm Width: 4 cm |
| main features |
Control unit for RGB LED strips -Control unit for RGB LED strips (12 V and 24 V versions) -3 separate control channels for individual color mixing of red, green and blue LEDs -Automatic color change or manual or color selection -Adjustable program speed and brightness -4 built-in programs (running light, flash, color fadings), with pause function -Screw terminals for connecting the LED strips -Screw terminals for connecting a 12 V or 24 V PSU (not included) |
| Electrical | |
| AC Volts, min |
12 V
|
| AC Volts, max |
24 V
|
| DC Volts, min |
12 V
|
| DC Volts, max |
24 V
|
| total power rating per phase/channel, max |
5 A
|
| Mechanical | |
| weight |
0.30 kg
|
| width |
40.00 mm
|
| height |
30.00 mm
|
| length |
211.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00121366.pdf |
