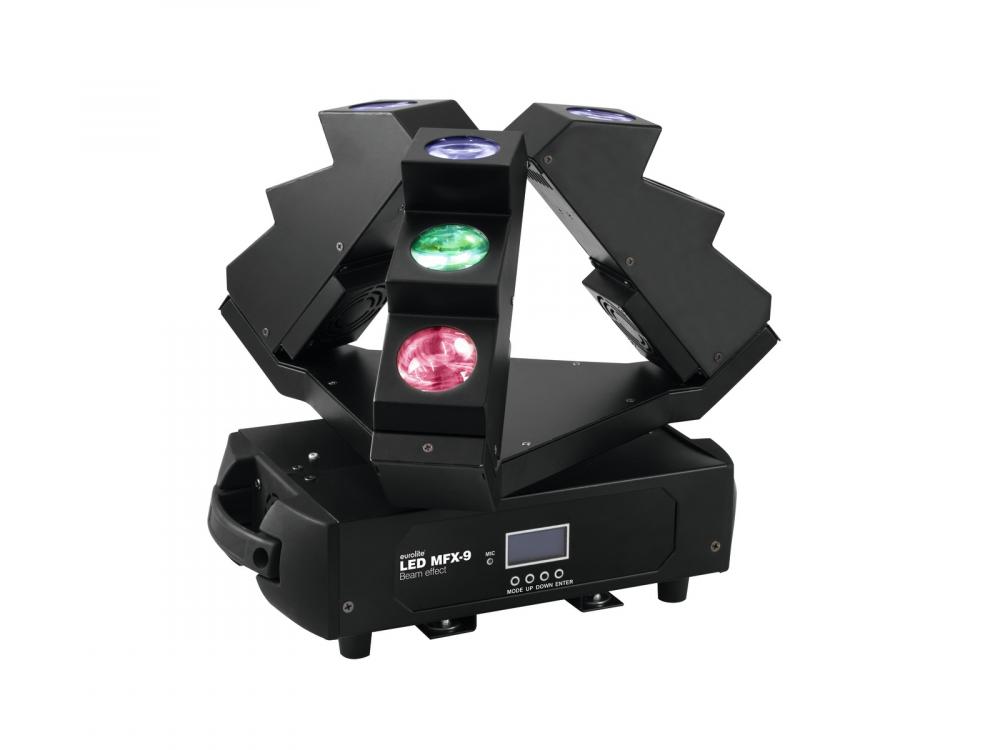

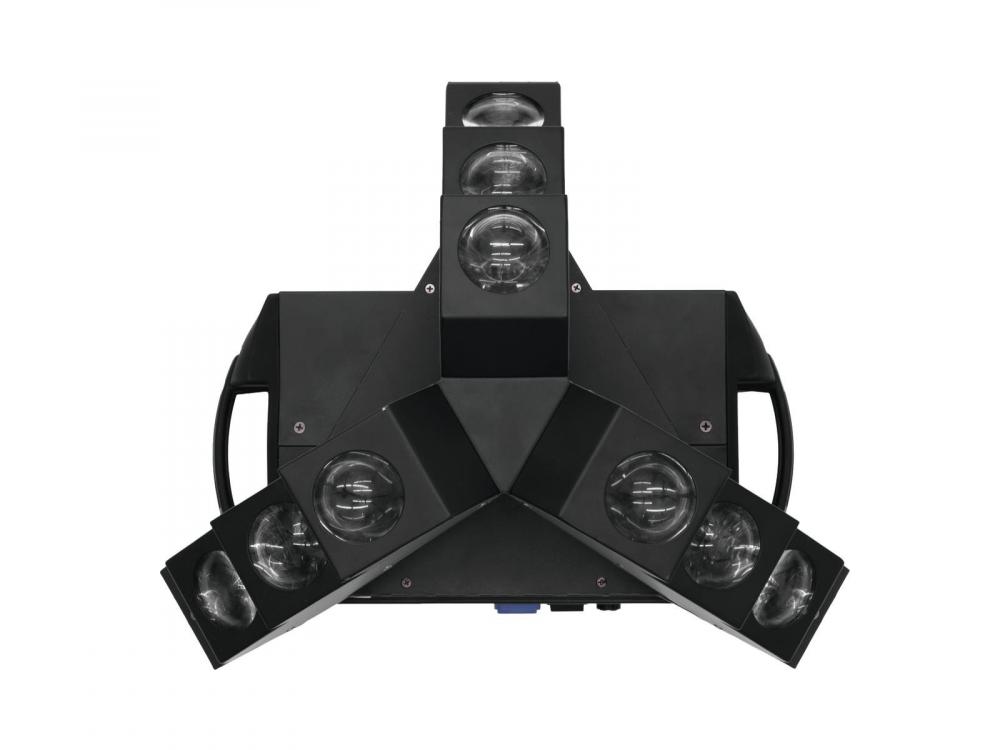

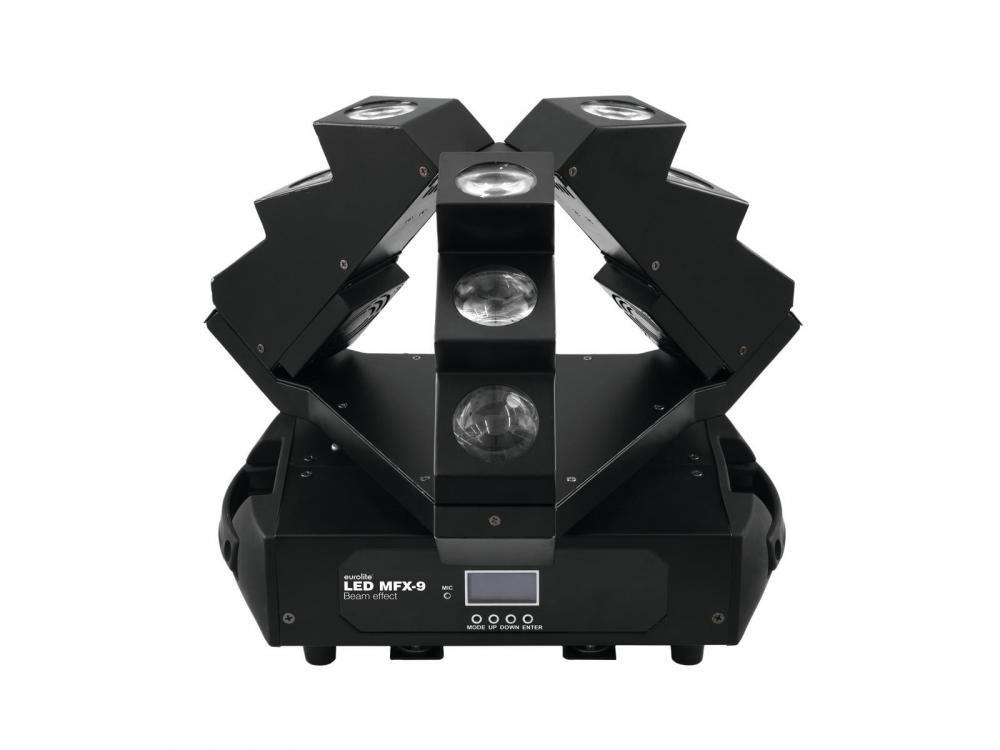

EUROLITE LED MFX-9 Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED MFX-9 Beam Effect

Info
order code
50944308
product link
EAN
4026397597240
Product Name
EUROLITE LED MFX-9 Beam Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 5/8/11/13/22/49
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 13 Hz
LED number: 9
LED type: 8 W QCL, RGBW
Beam angle (single-color beam): 1°
Maximum PAN-movement: unlimited
Dimensions (L x W x H): 360x320x315 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
Weight: 7 kg
IP classification: IP20
Power consumption: 125 W
Beam angle: 1°
Height: 31,5 cm
Depth: 32 cm
Width: 36 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels: 5; 8; 11; 13; 22; 49
LED: 9 x high-power 8 W 4in1 QCL RGBW
Power supply: 110-240 V AC, 50/60 Hz
main features
Beam Pyramid with unlimited PAN and with 9 RGBW LEDs
-Equipped with nine 8 W quadcolor LEDs with RGBW colors
-DMX-controlled operation or stand-alone operation with Master/Slave function
-DMX512 control possible via any commercial DMX controller (occupies max. 49 channels)
-5, 8, 11, 13, 22 or 49 DMX channels selectable
-Positioning within 540° PAN
-Exact positioning via 16 bit PAN movement resolution
-With Infinity function for unlimited PAN movement
-PAN-angle adjustable
-Each LED can be controlled individually
-Sound-controlled via built-in microphone
-Microphone sensitivity adjustable via control board
-Fan-cooled
-Narrow illumination angle
-Addressing and setting via control board with LCD
-Functions: colored RGBW beams, stepless RGBW color changing, color presets for each LED independently controllable, internal programs, dimmer, strobe effect with variable speed, sound control, Master/Slave operation

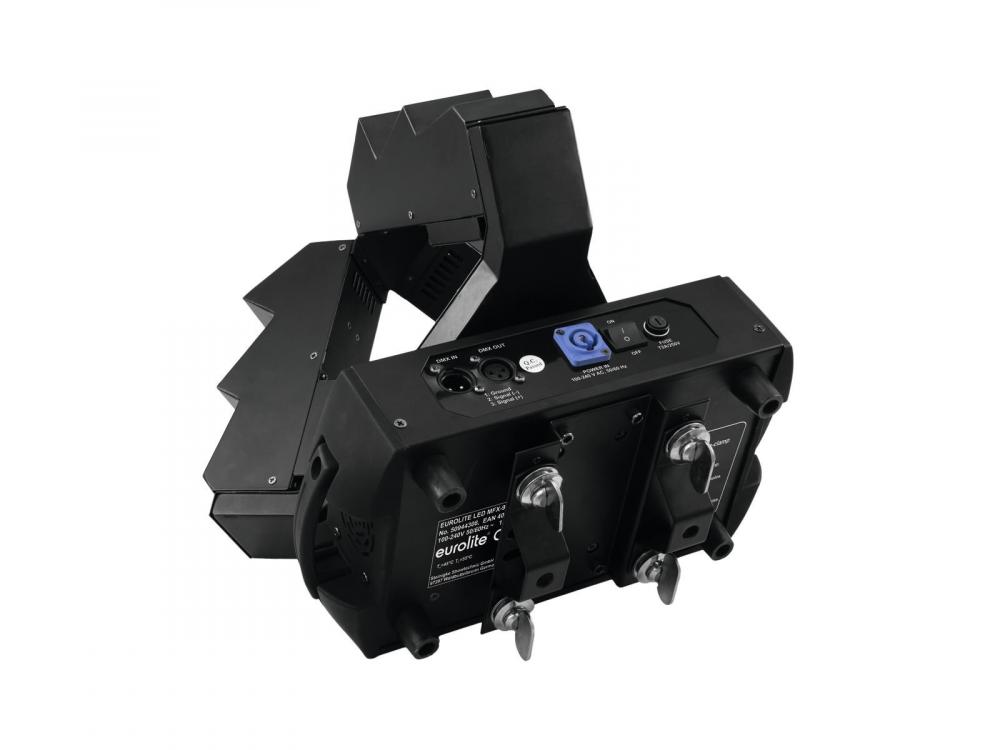

-Standing or hanging installation possible
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection via P-Con power cord with safety plug
-Case color: Black
-Effect: Multi beam effect
-Projection: flicker-free
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Control: DMX; Stand-alone
-LED: 9 x high-power 8 W 4in1 QCL RGBW

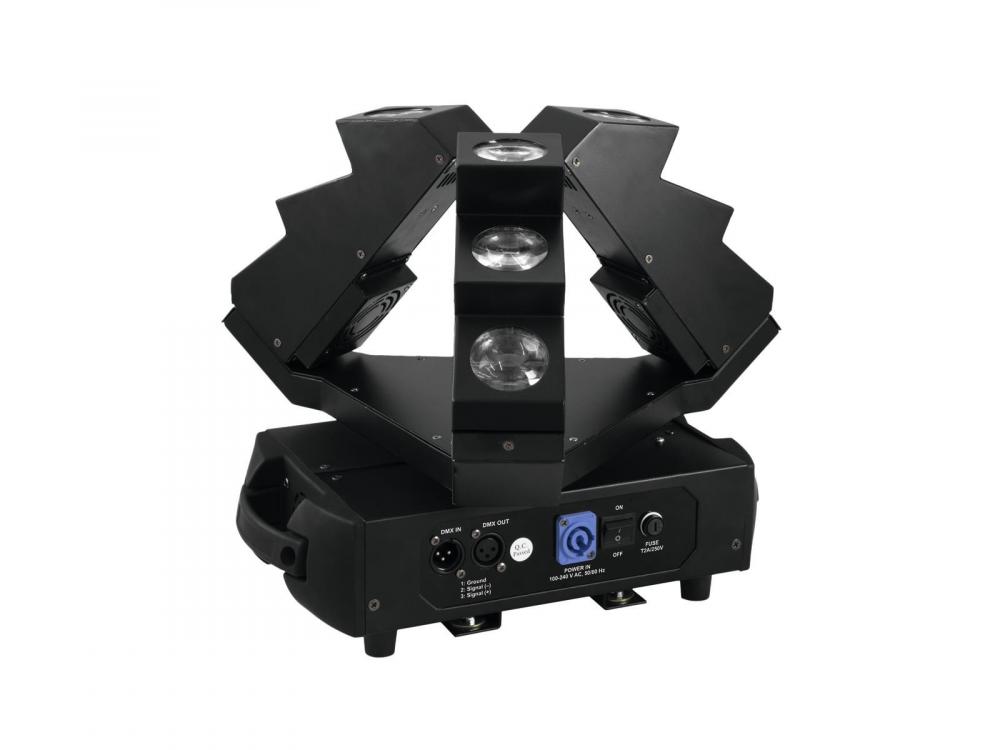

Connectors
DMX connector types
3pin
Control
control channels, min
5 ch
control channels, max
49 ch
Electrical
power consumption watt, max
8.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
7.00 kg
width
360.00 mm
height
315.00 mm
length
360.00 mm
pan range
9999 °
Optical
beam angle/zoom, min
1.00 °
beam angle/zoom, max
1.00 °
light source
LED
Number of light sources
9 pcs
wattage per light source
8.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
13 Hz
