Info | |
---|---|
order code |
50944309
|
product link | |
EAN |
4026397600940
|
Product Name |
EUROLITE LED MFX-10 Beam Effect
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 6/19/29/32 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 20 Hz LED type: 10 W QCL, RGBW LED number: 8 Maximum PAN-movement: 360° Maximum TILT-movement: 200° Beam angle (single-color beam): 8° Dimensions (L x W x H): 610x215x235 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 7 kg IP classification: IP20 Power consumption: 80 W Beam angle: 8° Height: 23,5 cm Depth: 21,5 cm Width: 61 cm Max. TILT movement: Exact positioning (16 bit resolution) 200° plus infinity Max. PAN movement: Exact positioning (16 bit resolution) 360° plus infinity Pan tilt feedback Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 6; 19; 29; 32 LED: 5 x high-power 10 W 4in1 QCL RGBW Power supply: 110-240 V AC, 50/60 Hz |
main features |

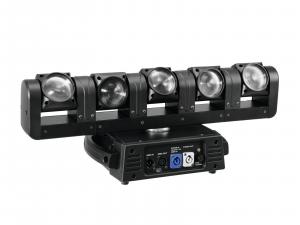

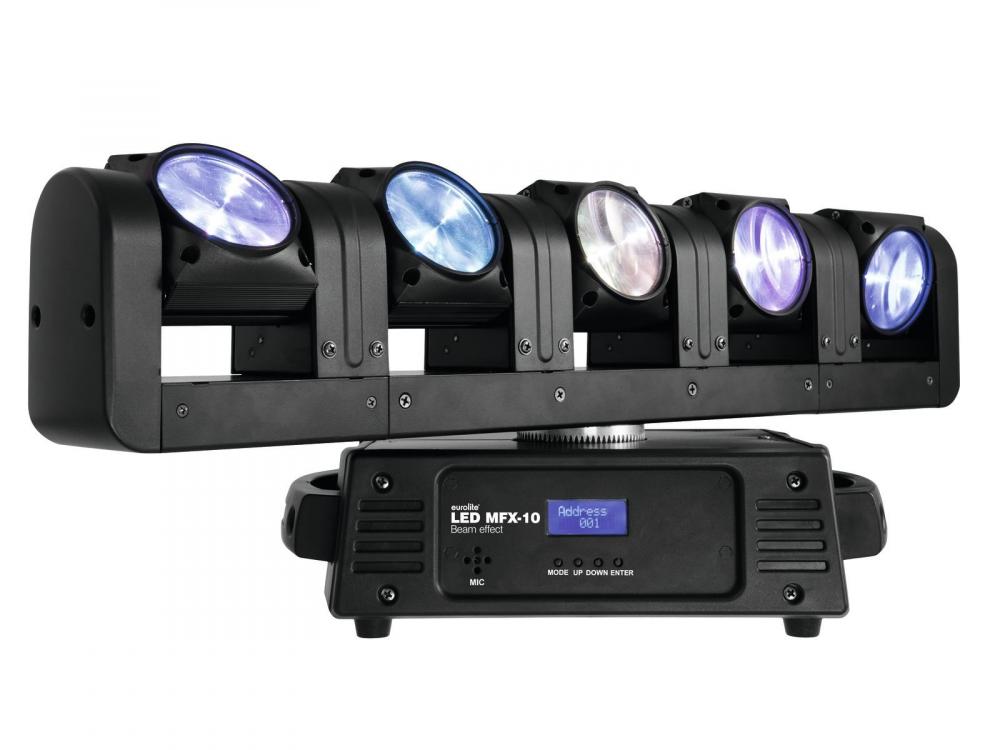

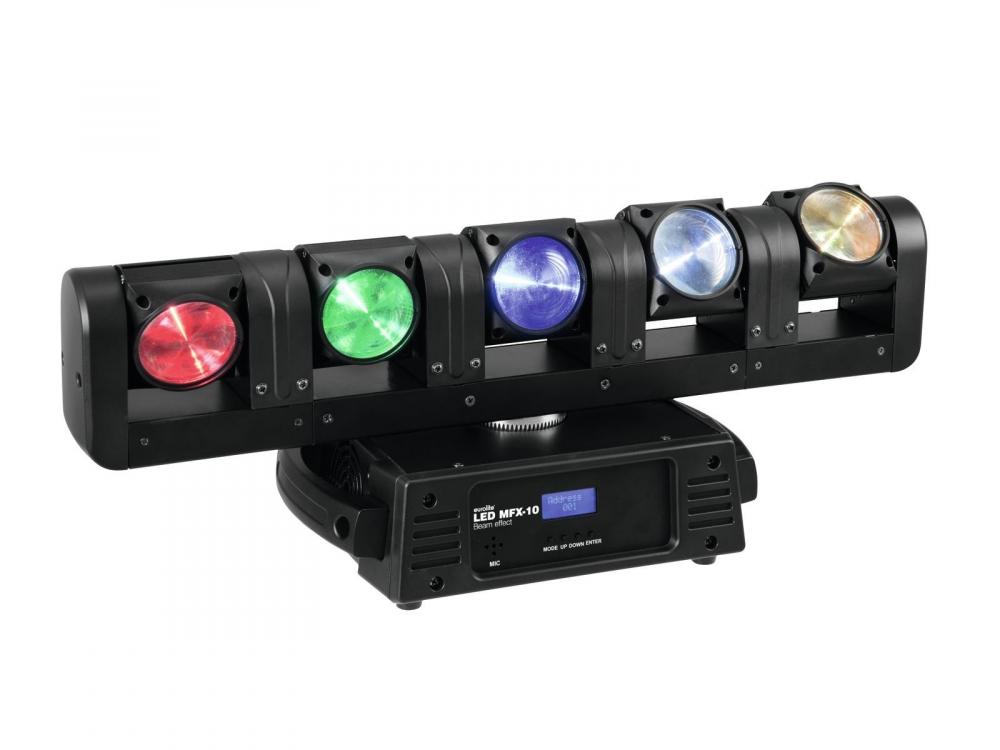

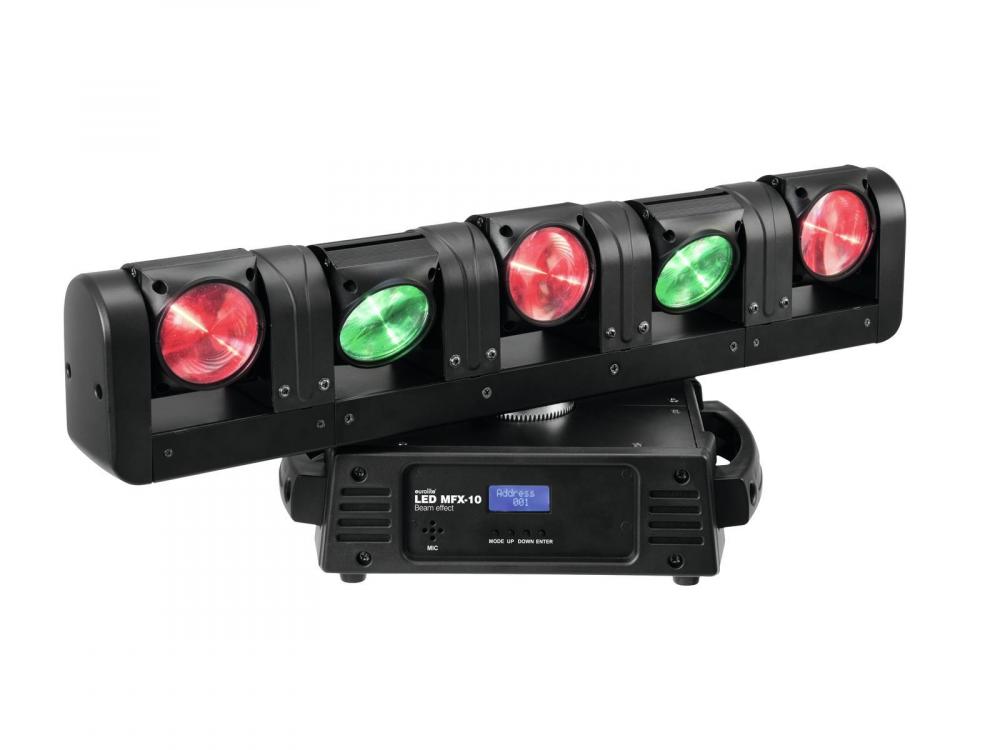

Effect Bar with 5 heads, separately controllable (TILT) with RGBW colors -Equipped with five 10 W quadcolor LEDs in the colors red, green, blue and white -Each LED can be controlled individually -Narrow beam angle -TILT movement for each LED head separately and steplessly adjustable -Positioning within 200° TILT -With Infinity function for unlimited PAN and TILT movement -Exact positioning via 16 bit PAN and TILT movement resolution -6, 19, 29, or 32 DMX channels selectable -Functions: Colored beams in R, G, B and W, stepless RGBW color mixture, color presets, auto mode, sound control, Master/Slave function, built-in programs, strobe effect with adjustable speed, dimmer -Automatic position correction for PAN -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Addressing and setting via control board with LCD -Switch-mode power supply for operation between 100 and 240 volts -Feed-through output allows to power up to 8 devices -Power connection via P-Con jack and included power cable with safety plug -DMX512 control possible via any commercial DMX controller -Case color: Black -Effect: Multi beam effect -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Power out: 1 x Powercon (Power-Out) -Control: DMX; Stand-alone -LED: 5 x high-power 10 W 4in1 QCL RGBW |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
6 ch
|
control channels, max |
32 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
Mechanical | |
weight |
7.00 kg
|
width |
610.00 mm
|
height |
235.00 mm
|
length |
610.00 mm
|
pan range |
360 °
|
tilt range |
200 °
|
Optical | |
beam angle/zoom, min |
8.00 °
|
beam angle/zoom, max |
8.00 °
|
light source |
LED
|
Number of light sources |
5 pcs
|
wattage per light source |
10.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
20 Hz
|
