Info | |
---|---|
order code |
50944323
|
product link | |
EAN |
4026397592733
|
Product Name |

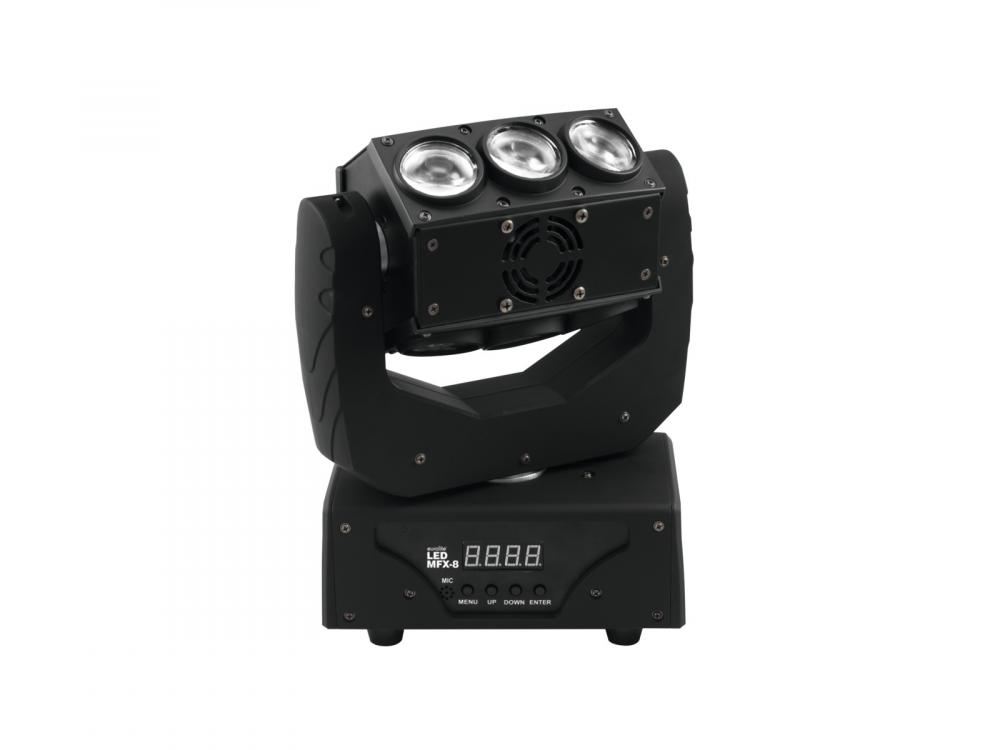

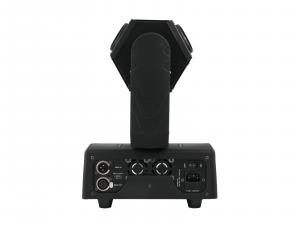

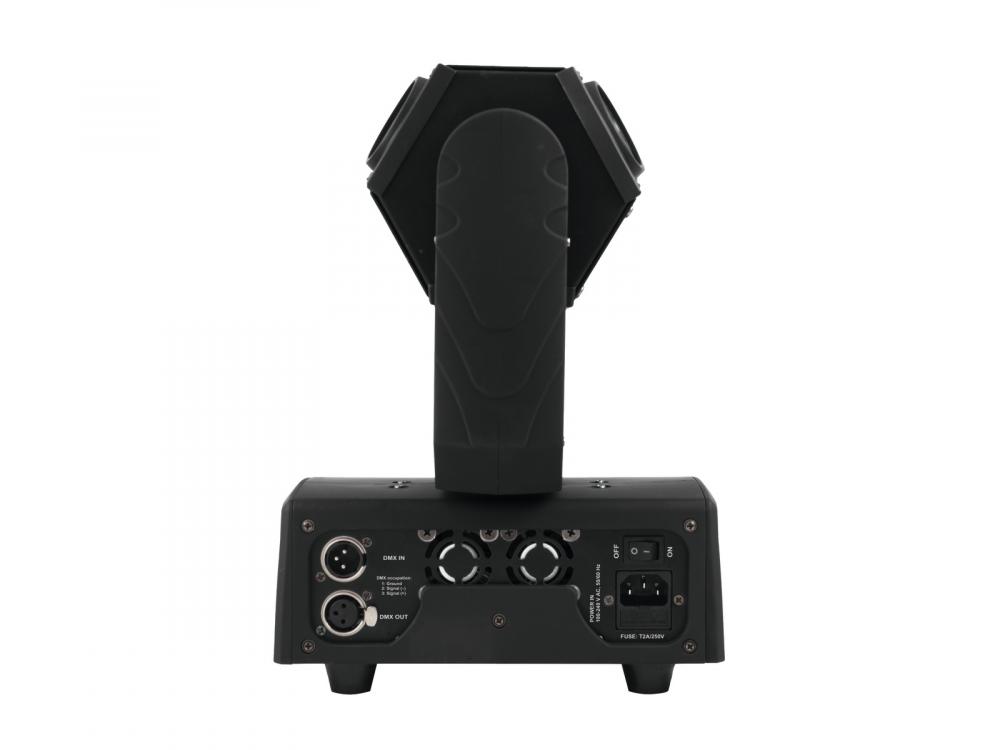

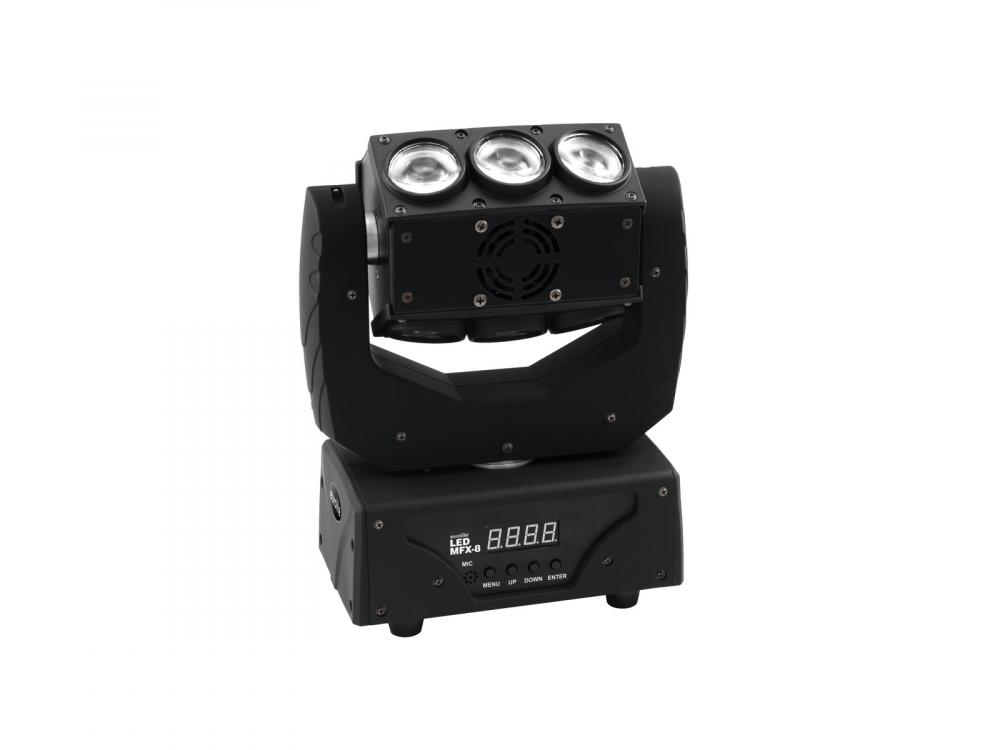

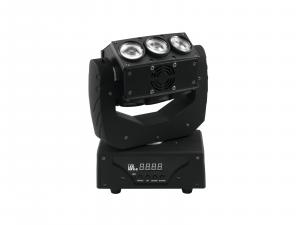

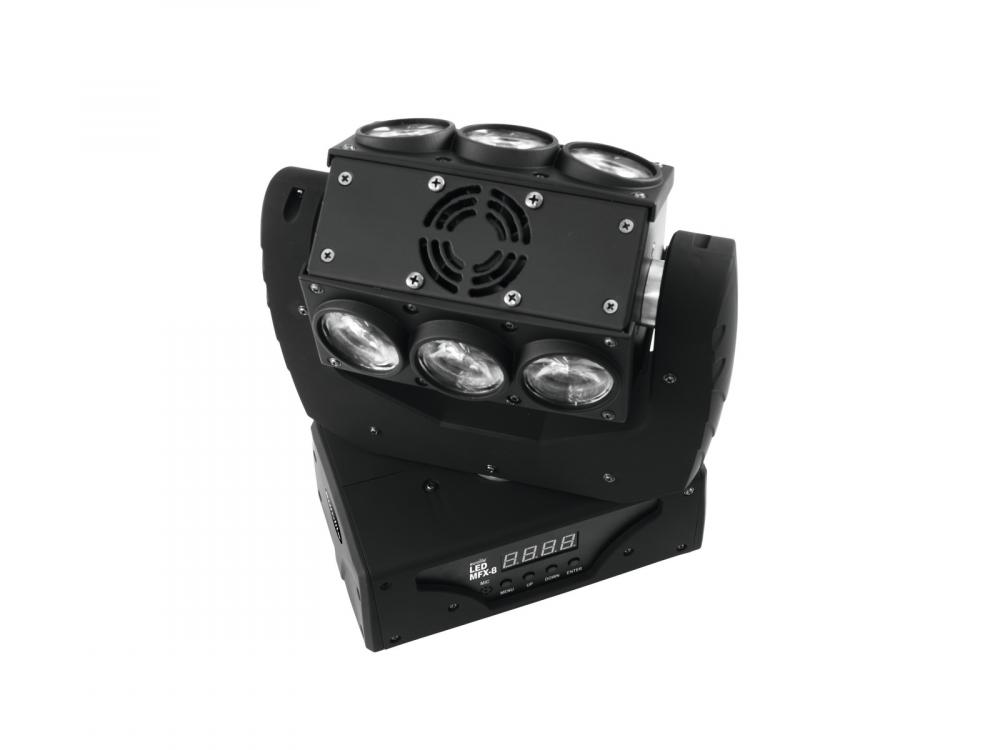

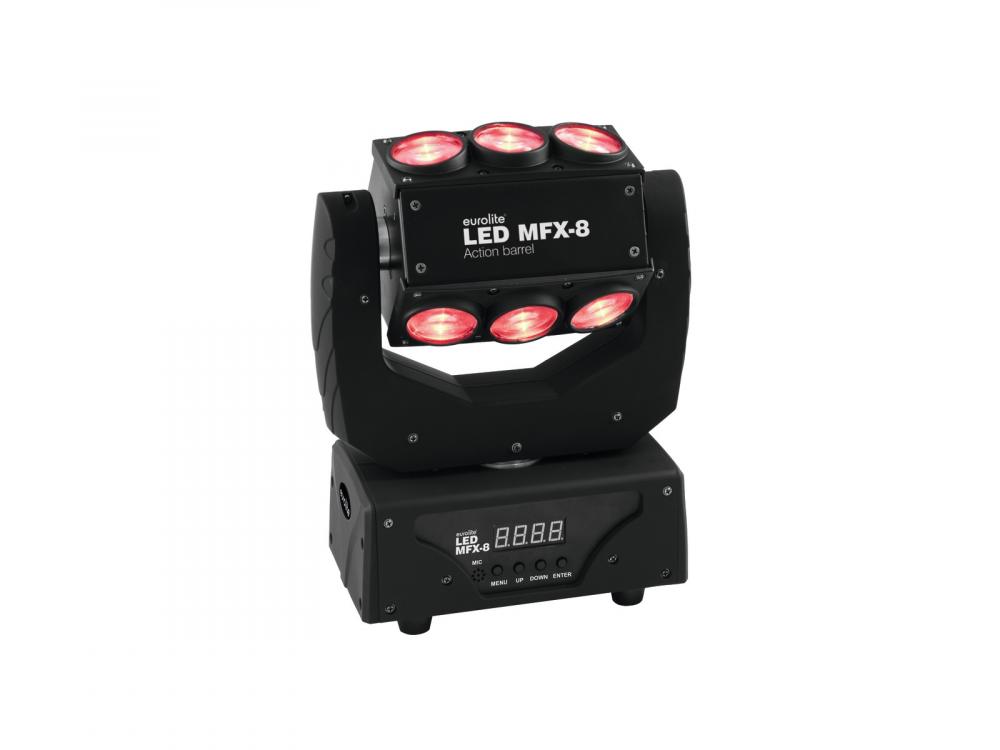

EUROLITE LED MFX-8 Action Barrel
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 12/22 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 25 Hz LED number: 9 LED type: 10 W QCL, RGBW Maximum PAN-movement: 630° Maximum TILT-movement: unlimited Dimensions (L x W x H): 255 x 135 x 325 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 5,5 kg IP classification: IP20 Power consumption: 130 W Beam angle: 9° Height: 32,5 cm Depth: 13,5 cm Width: 25,5 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 200° plus infinity Pan tilt feedback Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 12; 22 LED: 9 x high-power 10 W 4in1 QCL RGBW Power supply: 110-240 V AC, 50/60 Hz |
main features |
LED Barrel, unlimited PAN/TILT movement, 15 W LEDs in RGBW -Beam effect with 9 lenses with 10 W quadcolor LEDs in RGBW colors arranged in 3 rows -Compact lightweight -With Infinity function for unlimited TILT movement -Positioning within 630° PAN and 200° TILT -PAN-angle switchable between 630° and 540° -12 or 22 DMX channels selectable -Functions: Colored beams, auto mode, sound control, color presets, color change, Master/Slave function, built-in programs, stepless RGBW color mixture - each LED row can be controlled individually -Masterdimmer -Strobe effect with 1-25 flashes per second and with adjustable speed -Random strobe effect -Automatic position correction -Exact positioning via 16 bit PAN/TILT movement resolution -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone, sensitivity adjustable -Addressing via control panel with 4-digit LED display -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection with power cord and safety plug -DMX512 control via every standard DMX controller -Case color: Black -Effect: Multi beam effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: DMX; Stand-alone -LED: 9 x high-power 10 W 4in1 QCL RGBW |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
12 ch
|
control channels, max |
22 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
5.50 kg
|
width |
135.00 mm
|
height |
325.00 mm
|
length |
135.00 mm
|
pan range |
540 °
|
tilt range |
200 °
|
Optical | |
beam angle/zoom, min |
9.00 °
|
beam angle/zoom, max |
9.00 °
|
light source |
LED
|
Number of light sources |
9 pcs
|
wattage per light source |
10.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
25 Hz
|
