Info | |
---|---|
order code |
50944306
|
product link | |
EAN |
4026397586121
|
Product Name |

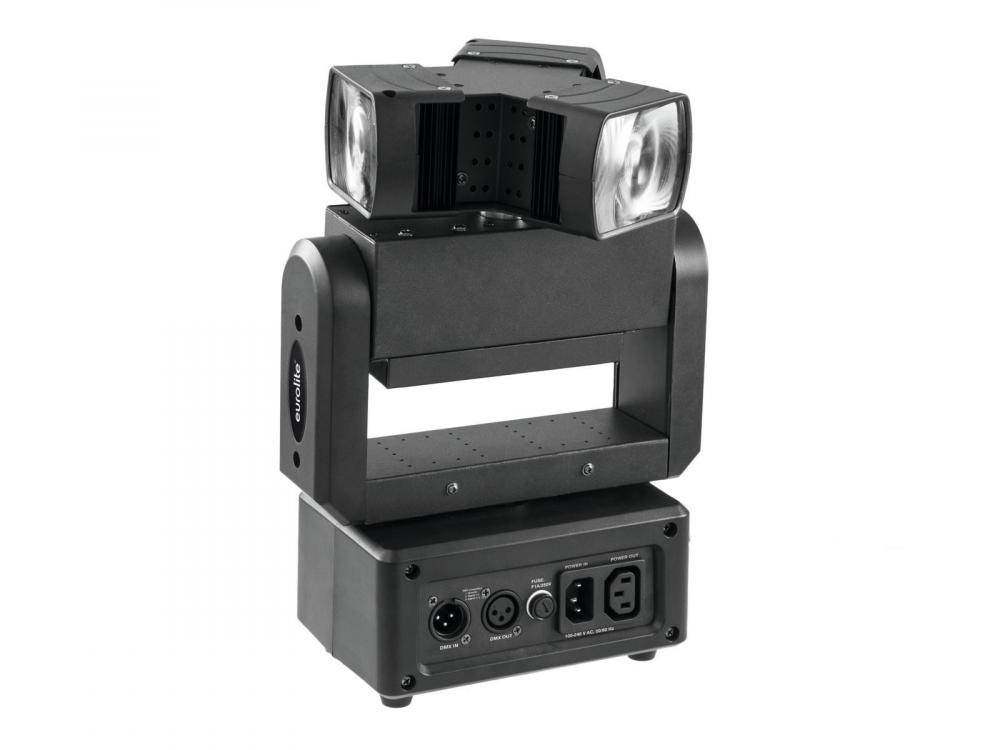

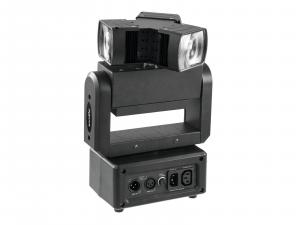

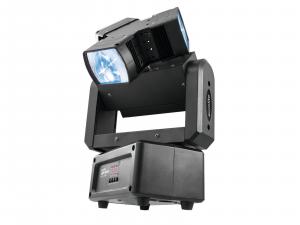

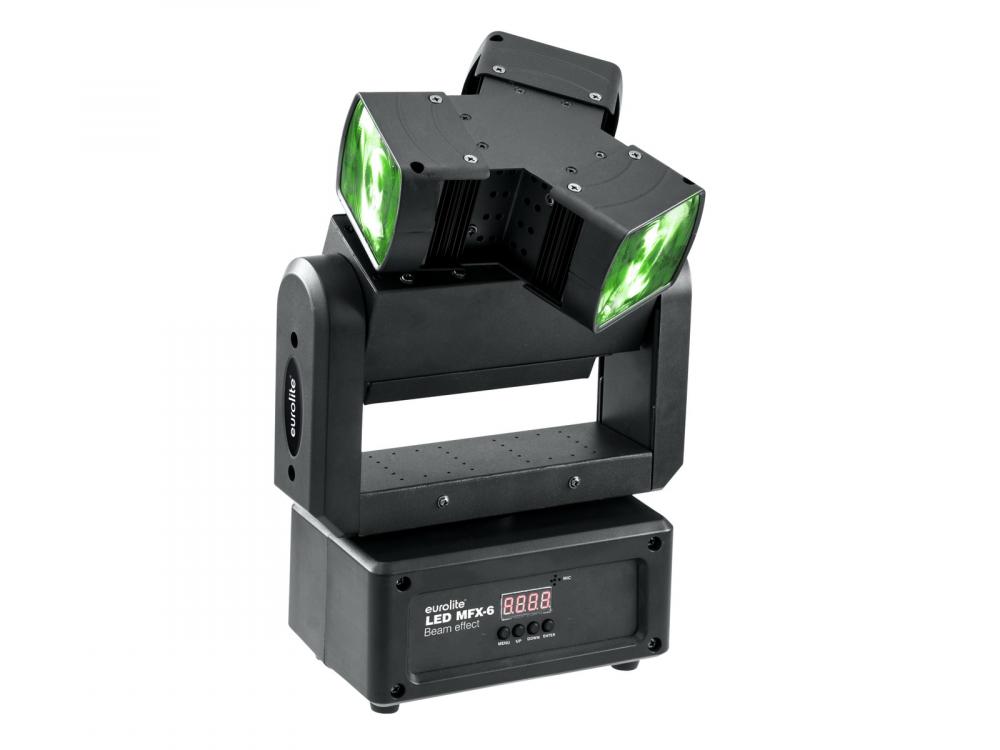

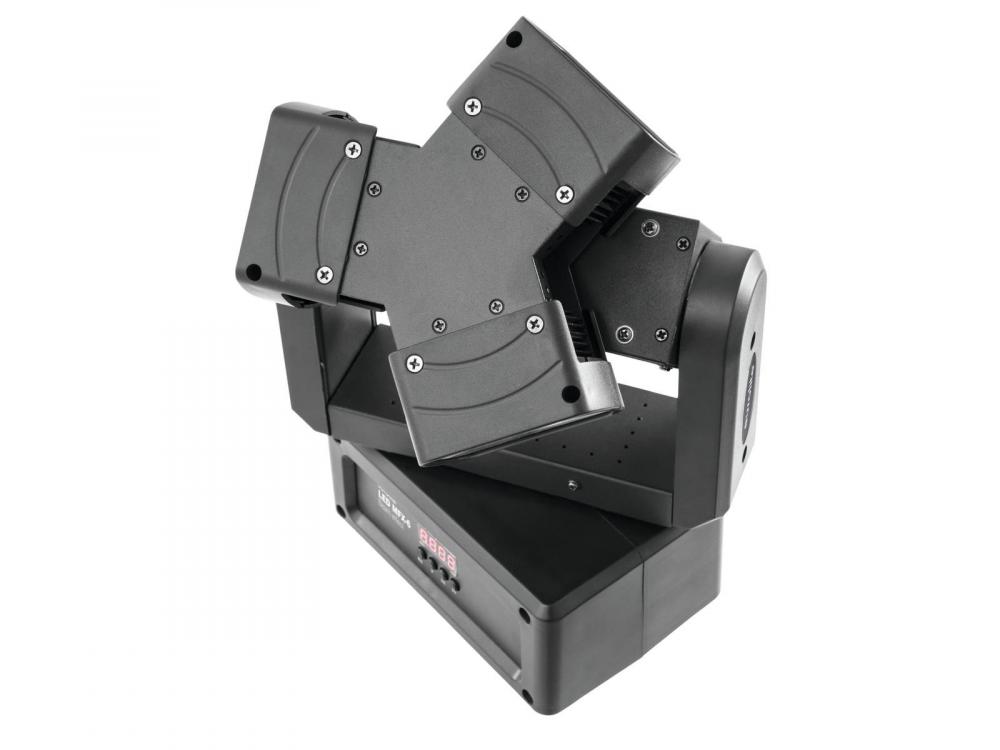

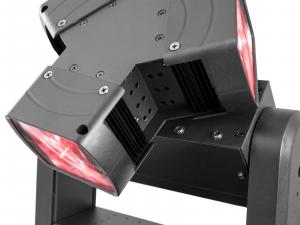

EUROLITE LED MFX-6 Beam Effect
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 20 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz LED type: 8 W QCL, RGBW LED number: 3 Maximum PAN-movement: unlimited Maximum TILT-movement: 180° Maximum movement Z axis: unlimited Beam angle (single-color beam): 5° Dimensions (L x W x H): 232 x 189 x 352 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 4 kg Cooling fan: Yes IP classification: IP20 Power consumption: 40 W Beam angle: 5° Height: 35,2 cm Width: 23,2 cm Max. PAN movement: Exact positioning (16 bit resolution) plus infinity Max. TILT movement: Exact positioning (16 bit resolution) 180° Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 20 Depth: 18,9 cm LED: 3 x high-power 8 W 4in1 QCL RGBW Power supply: 110-240 V AC, 50/60 Hz |
main features |
RGBW Beam Effect with 3 lenses and 3 movement axes -With Infinity function for unlimited PAN and Z axis movement -Equipped with three 8 W quadcolor LEDs with RGBW colors -3 movement axes (PAN, TILT, Z) provide for incredible movement sequences -Narrow beam angle -Compact lightweight -Functions: Colored beams in R, G, B and W, auto mode, sound control, color presets, Master/Slave function, built-in programs -Stepless RGBW color mixture -Dimmer -Strobe effect with adjustable speed -Random strobe effect -Exact positioning via 16 bit PAN/TILT and Z axis movement resolution -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Addressing via control panel with 4-digit LED display -Switch-mode power supply for operation between 100 and 240 volts -Feed-through output allows to power up to 8 devices -Ready for connection with power cord and safety plug -DMX512 control possible via any commercial DMX controller -Case color: Black -Effect: Multi beam effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: Stand-alone; DMX -LED: 3 x high-power 8 W 4in1 QCL RGBW |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
20 ch
|
control channels, max |
20 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
40.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
4.00 kg
|
width |
189.00 mm
|
height |
352.00 mm
|
length |
189.00 mm
|
pan range |
9999 °
|
tilt range |
180 °
|
Optical | |
beam angle/zoom, min |
5.00 °
|
beam angle/zoom, max |
5.00 °
|
light source |
LED
|
Number of light sources |
3 pcs
|
wattage per light source |
8.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
18 Hz
|
