Info | |
---|---|
order code |
50944307
|
product link | |
EAN |
4026397594492
|
Product Name |

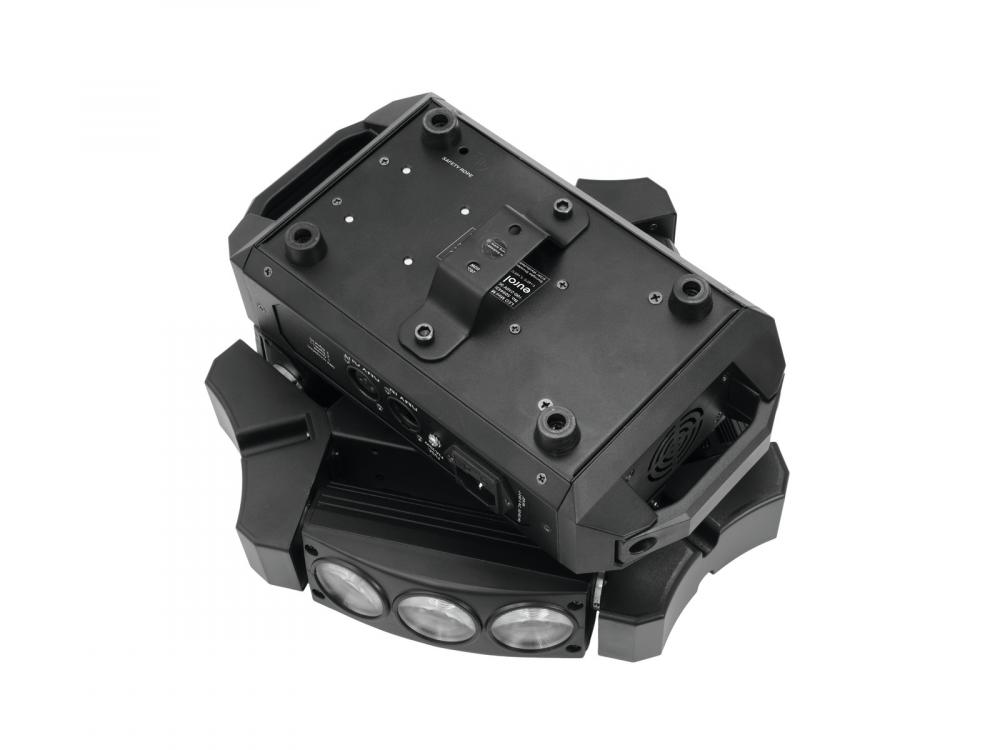

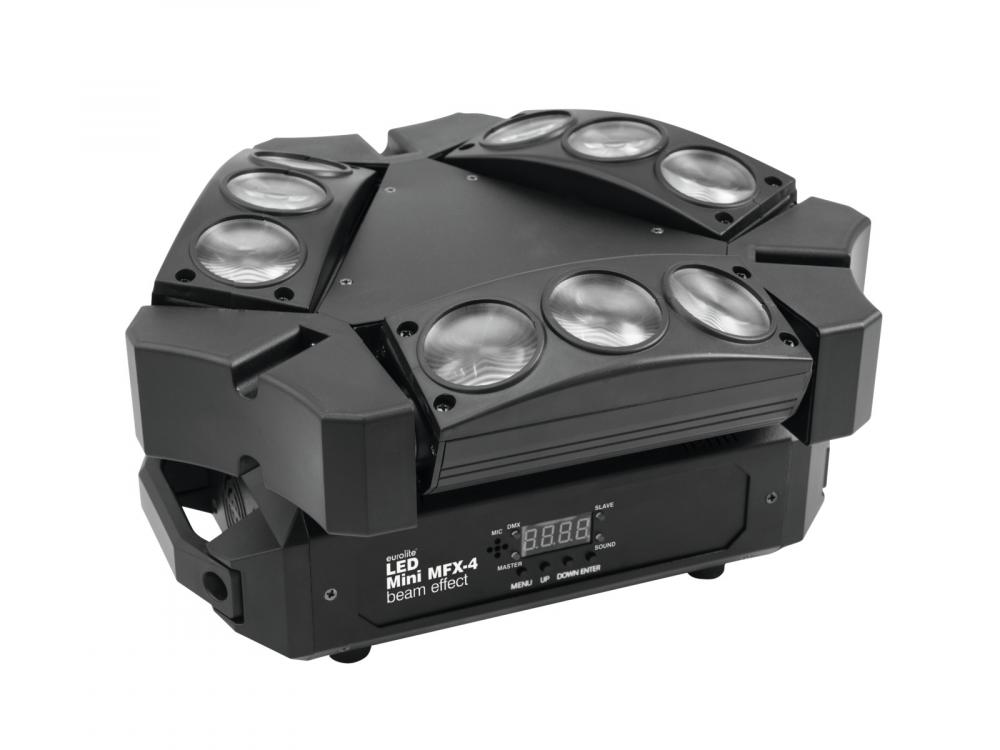

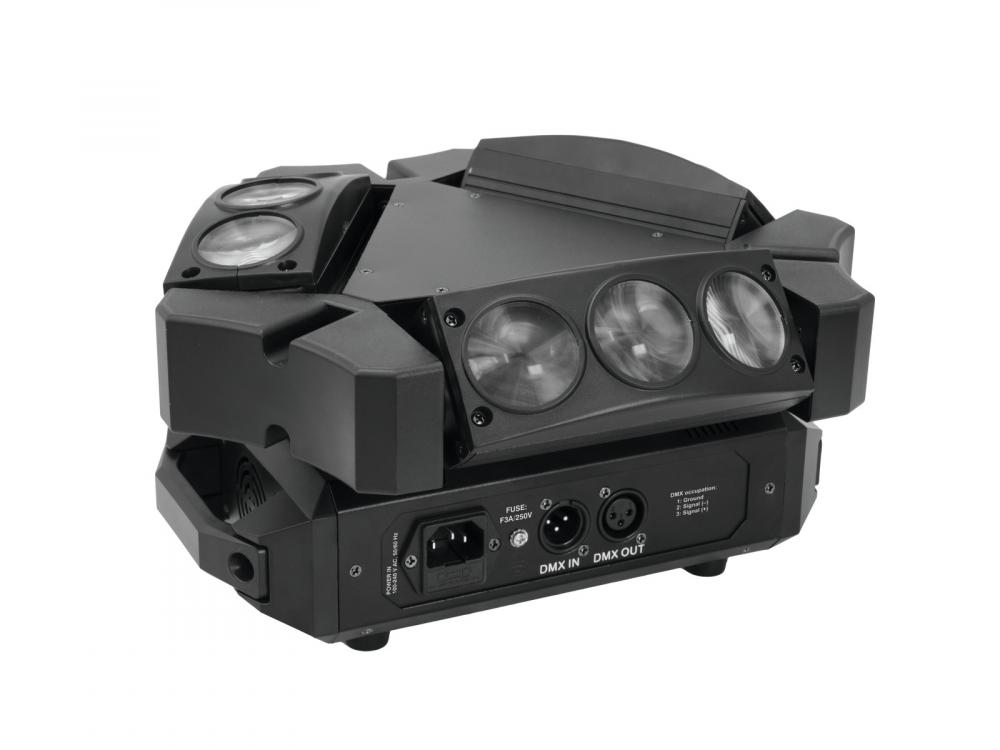

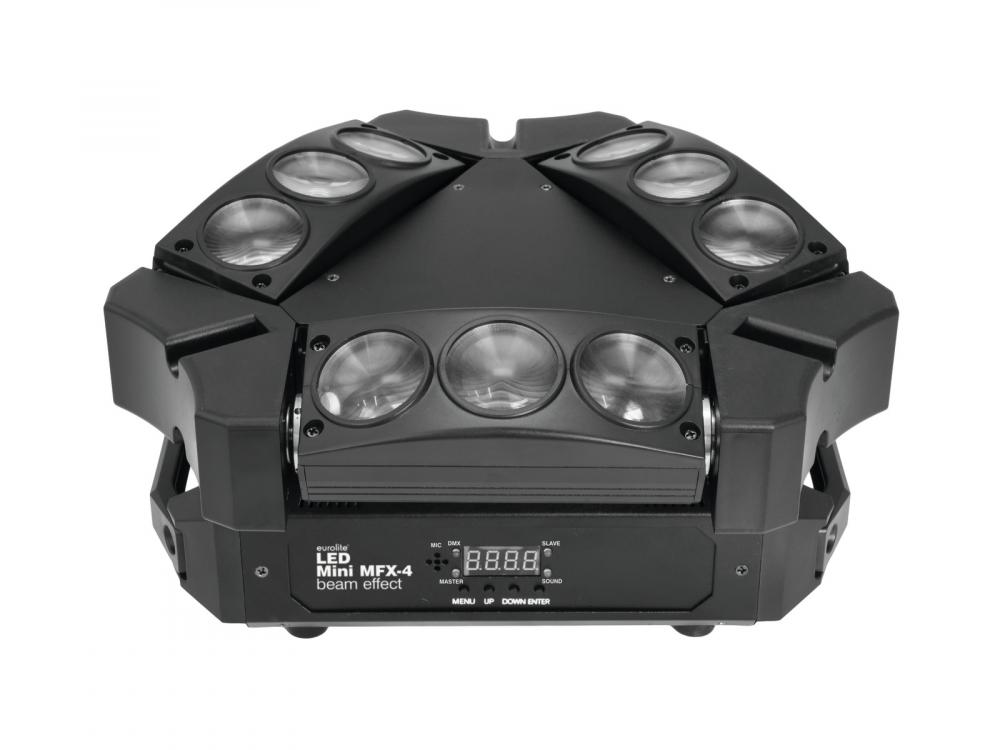

EUROLITE LED Mini MFX-4 Beam Effect
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 16/48 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 10 Hz LED type: 10 W QCL, RGBW LED number: 9 Maximum PAN-movement: unlimited Maximum TILT-movement: 90° Dimensions (L x W x H): 285 x 285 x 155 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 4,8 kg Cooling fan: Yes IP classification: IP20 Power consumption: 100 W Height: 15,5 cm Width: 28,5 cm Max. PAN movement: Positioning 630° plus infinity Max. TILT movement: Positioning 90° Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 16; 48 Depth: 28,5 cm Power supply: 110-240 V AC, 50/60 Hz |
main features |
Light Effect with 9 lenses, arranged in 3 LED bars and unlimited PAN -Beam effect with 9 Fresnel lenses and 10 W quadcolor LEDs in RGBW colors -Each LED can be controlled individually -TILT movement for each LED bar separately and steplessly adjustable -With Infinity function for unlimited PAN movement -Positioning within 630° PAN and 90° TILT -16 or 48 DMX channels selectable -Functions: Colored beams in R, G, B and W, stepless RGBW color mixture, color change, auto mode, sound control, Master/Slave function, internal programs, strobe effect with adjustable speed, dimmer -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Control board with LED display for adjusting the DMX-starting address, PAN/TILT reverse, reset -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection with power cord and safety plug -DMX512 control possible via any commercial DMX controller -Case color: Black -Effect: Multi beam effect; Fan effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Stand-alone; DMX |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
16 ch
|
control channels, max |
48 ch
|
Electrical | |
power consumption watt, max |
100.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
4.80 kg
|
width |
285.00 mm
|
height |
155.00 mm
|
length |
285.00 mm
|
pan range |
630 °
|
tilt range |
90 °
|
Optical | |
light source |
LED
|
Number of light sources |
9 pcs
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
10 Hz
|
