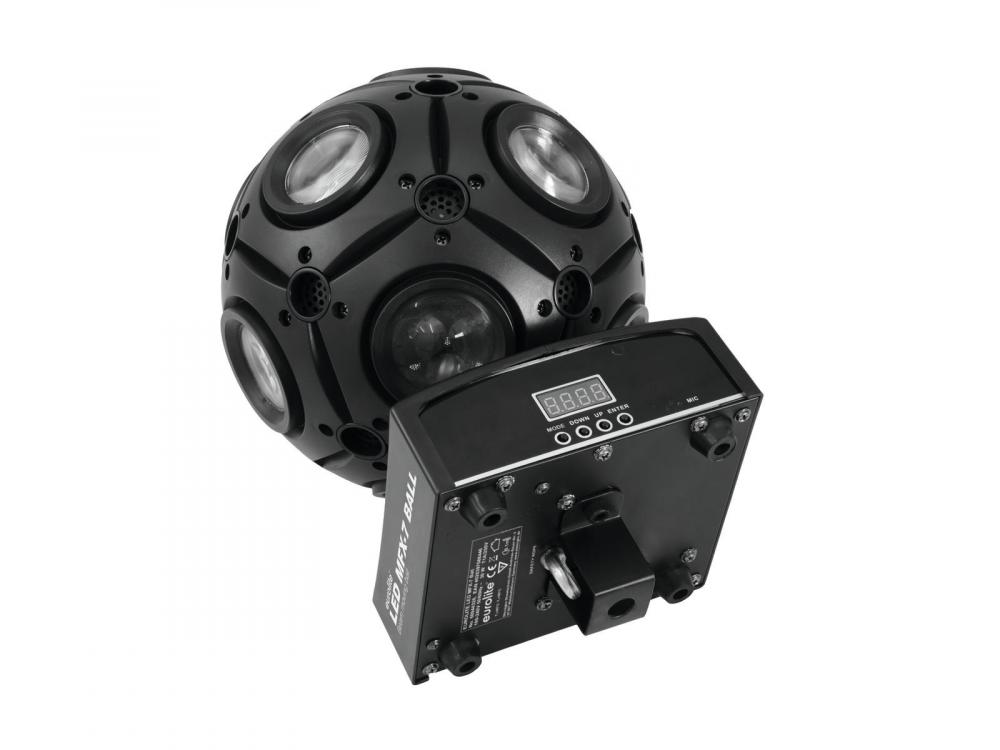

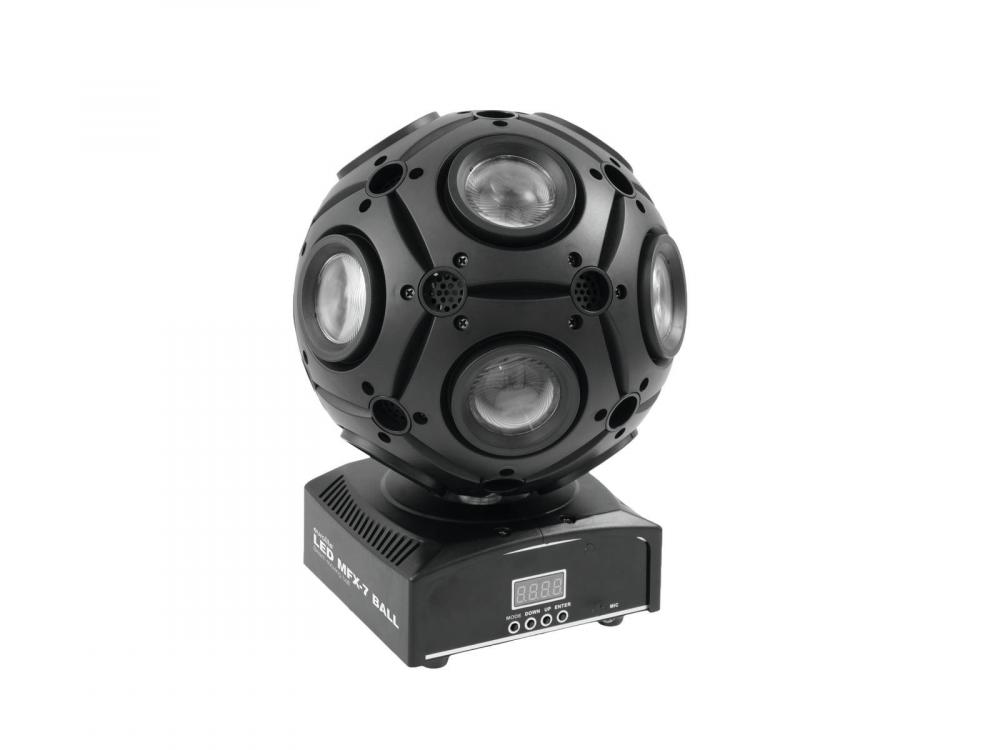

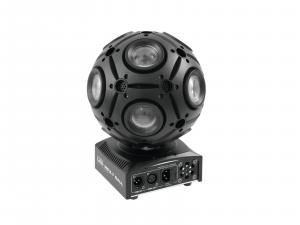

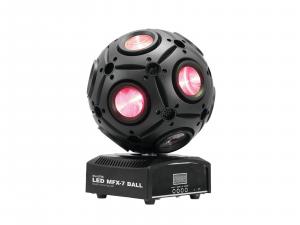

EUROLITE LED MFX-7 Ball

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED MFX-7 Ball

Info
order code
50944320
product link
EAN
4026397588446
Product Name
EUROLITE LED MFX-7 Ball
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 6
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 25 Hz
LED number: 9
LED type: 15 W QCL, RGBW
Maximum PAN-movement: 540°
Dimensions (L x W x H): 210 x 210 x 290 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
Weight: 2,5 kg
Cooling fan: Yes
IP classification: IP20
Power consumption: 30 W
Height: 29 cm
Width: 21 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 6
Depth: 21 cm
LED: 9 x high-power 15 W 4in1 QCL RGBW
Power supply: 110-240 V AC, 50/60 Hz
main features
LED Ball with narrow beams, 15 W 4in1 LEDs in RGBW
-Beam effect with 15 W quadcolor LEDs in RGBW colors
-Compact lightweight
-PAN-angle adjustable between 0° and 540°
-With Infinity function for unlimited PAN movement
-Fan-cooled
-Functions: Colored beams, auto mode, sound control, Master/Slave, built-in programs
-Masterdimmer
-Strobe effect with adjustable speed
-DMX-controlled operation or stand-alone operation with Master/Slave function
-Sound-controlled via built-in microphone
-Addressing via control panel with 4-digit LED display
-Standing or hanging installation possible
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection with power cord and safety plug
-DMX512 control possible via any commercial DMX controller (occupies 6 channels)
-Case color: Black
-Effect: Multi beam effect
-Projection: flicker-free
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
-LED: 9 x high-power 15 W 4in1 QCL RGBW
Connectors
DMX connector types
3pin
Control
control channels, min
6 ch
control channels, max
6 ch
Electrical
power consumption watt, max
15.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
2.50 kg
width
210.00 mm
height
290.00 mm
length
210.00 mm
pan range
540 °
Optical
light source
LED
Number of light sources
9 pcs
wattage per light source
15.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
25 Hz
