Info | |
---|---|
order code |
50944322
|
product link | |
EAN |
4026397588460
|
Product Name |

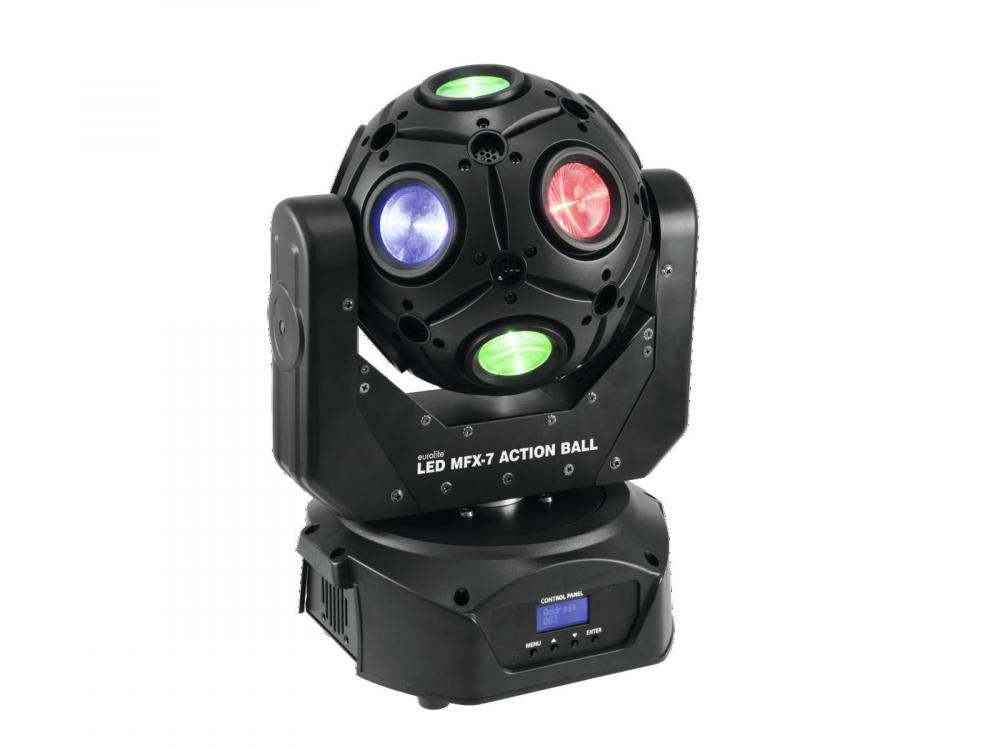

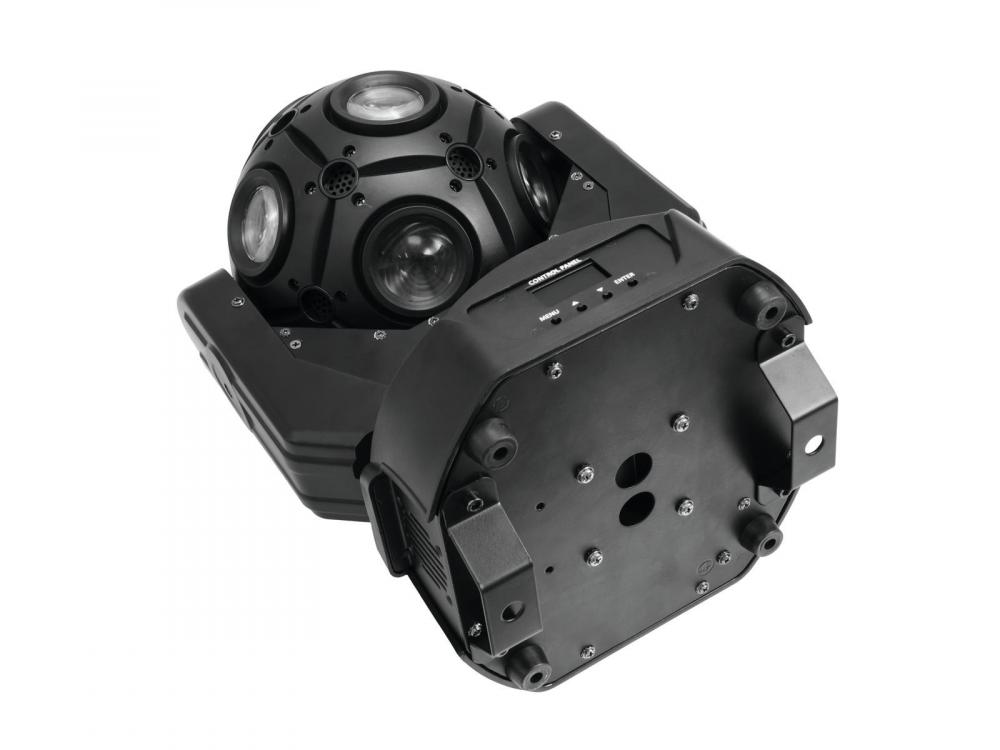

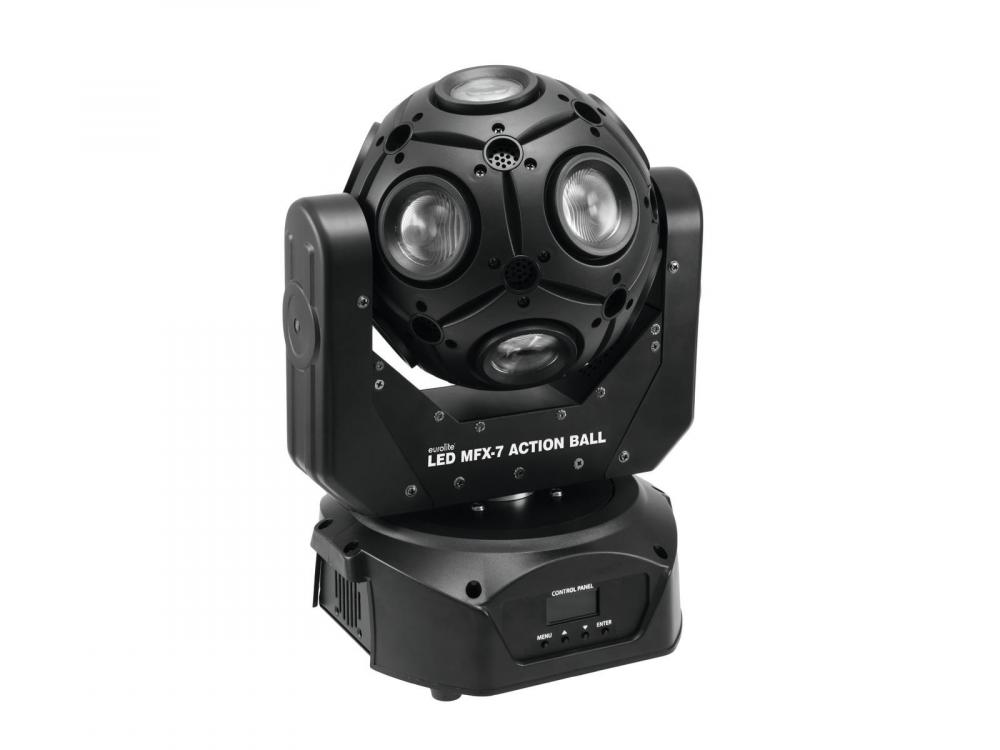

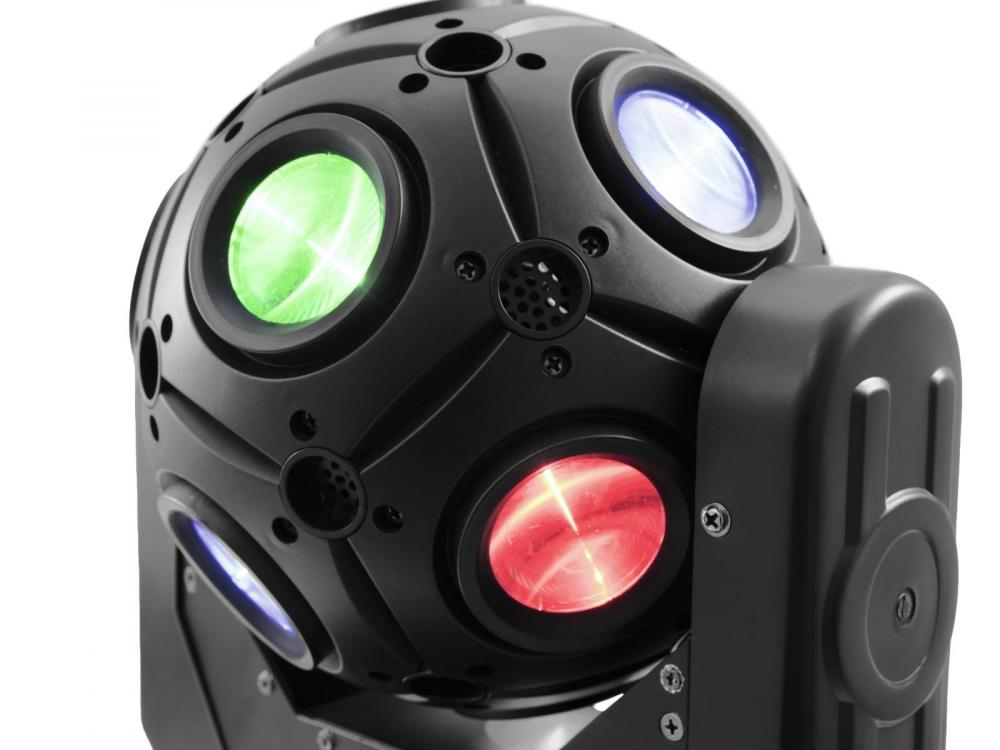

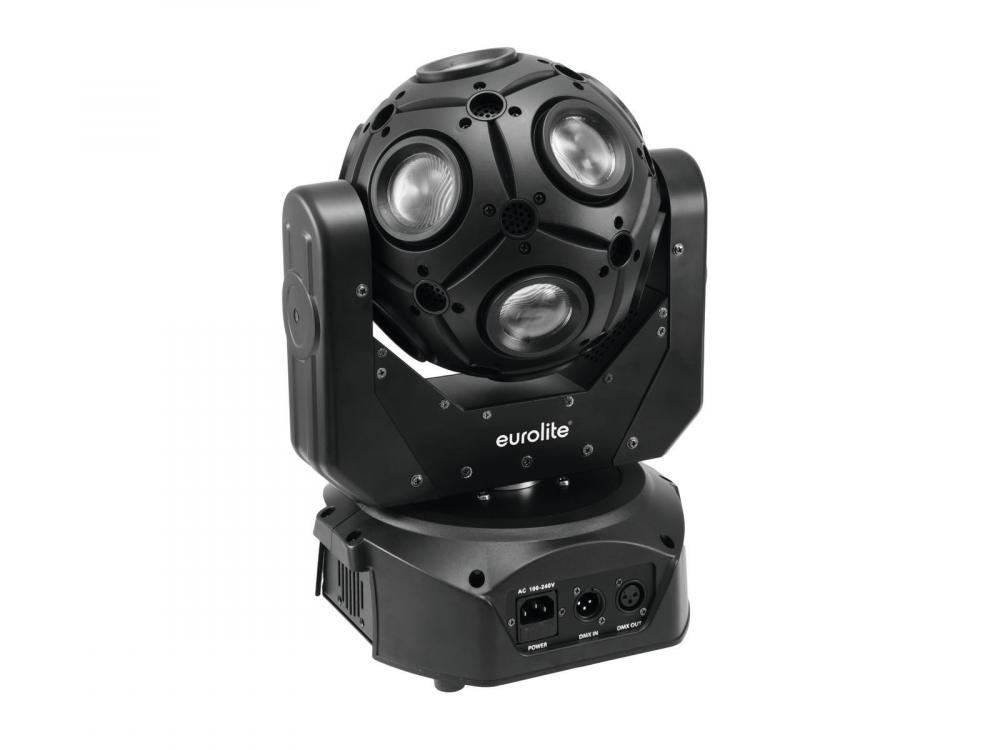

EUROLITE LED MFX-7 Action ball
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 6/17 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 20 Hz LED number: 12 LED type: 15 W QCL, RGBW Maximum PAN-movement: 630° Maximum TILT-movement: unlimited Dimensions (L x W x H): 245x285x390 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 5 kg Cooling fan: Yes IP classification: IP20 Power consumption: 50 W Height: 39 cm Width: 28,5 cm Max. PAN movement: Positioning 630° plus infinity Max. TILT movement: Positioning 630° plus infinity Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 6; 17 Depth: 24,5 cm LED: 12 x high-power 15 W 4in1 QCL RGBW Power supply: 110-240 V AC, 50/60 Hz |
main features |
LED Ball, unlimited PAN/TILT movement, 15 W 4in1 LEDs in RGBW -Beam effect with 15 W quadcolor LEDs in RGBW colors -Compact lightweight -PAN- and TILT angle adjustable between 0° and 630° -With Infinity function for unlimited PAN and TILT movement -PAN- and TILT-angle adjustable -6 or 17 DMX channels selectable -Each LED can be controlled individually -Sound-controlled via built-in microphone -Fuzzy sound control: program continues automatically during periods without music or bass-beat -Fan-cooled -Functions: Colored beams, auto mode, sound control, Master/Slave, built-in programs -Dimmer via Control Board -Strobe effect with adjustable speed -DMX-controlled operation or stand-alone operation with Master/Slave function -Addressing via control panel with 4-digit LED display -Standing or hanging installation possible -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection with power cord and safety plug -DMX512 control possible via any commercial DMX controller (occupies max. 17 channels) -Case color: Black -Effect: Multi beam effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Stand-alone; DMX -LED: 12 x high-power 15 W 4in1 QCL RGBW |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
6 ch
|
control channels, max |
17 ch
|
Electrical | |
power consumption watt, max |
15.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
5.00 kg
|
width |
285.00 mm
|
height |
390.00 mm
|
length |
245.00 mm
|
pan range |
630 °
|
tilt range |
630 °
|
Optical | |
light source |
LED
|
Number of light sources |
12 pcs
|
wattage per light source |
15.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
20 Hz
|
