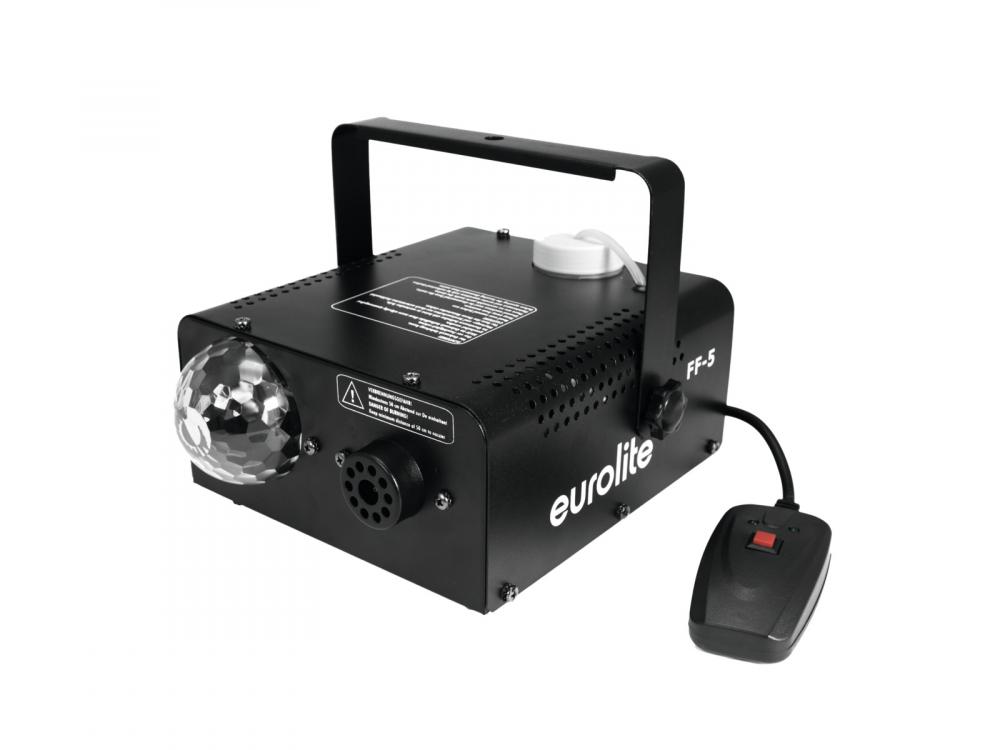

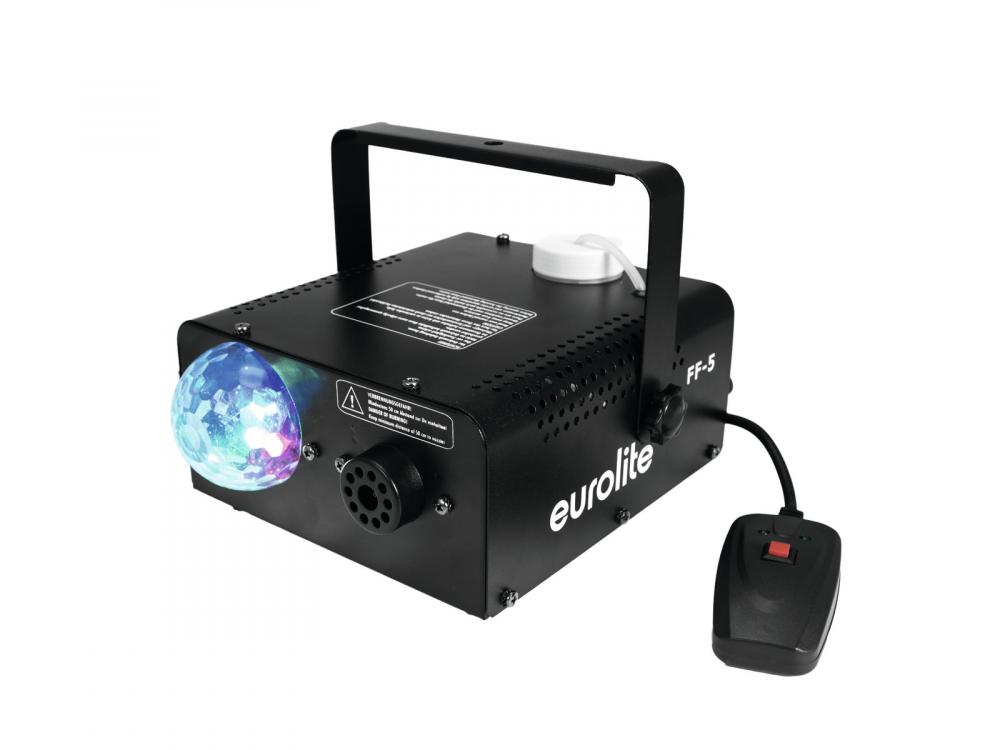

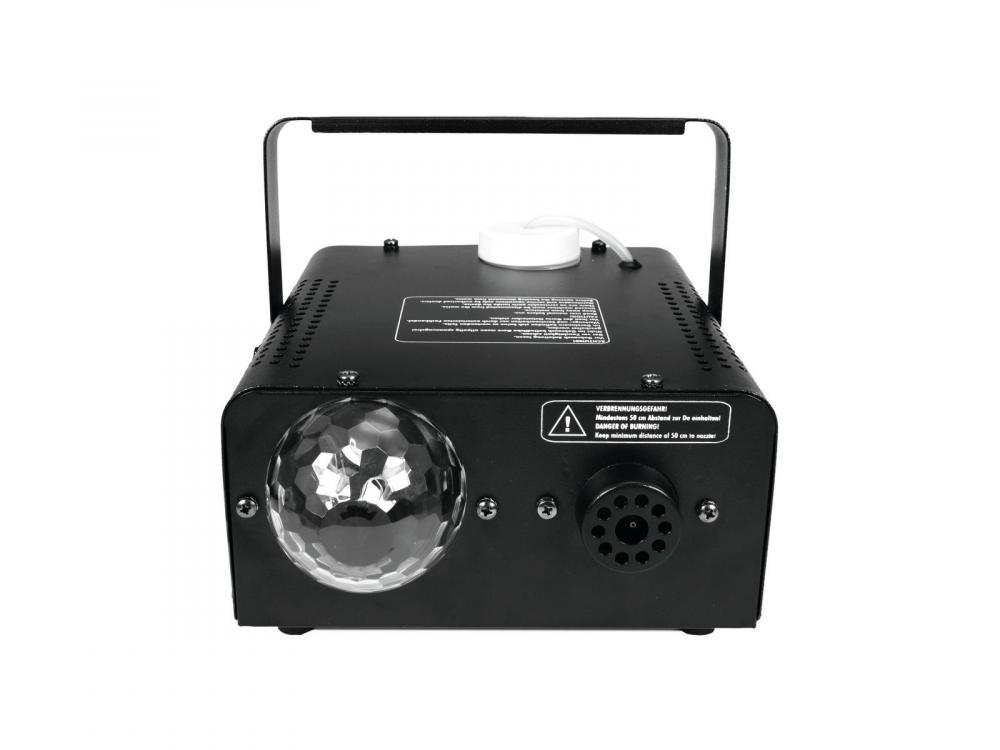

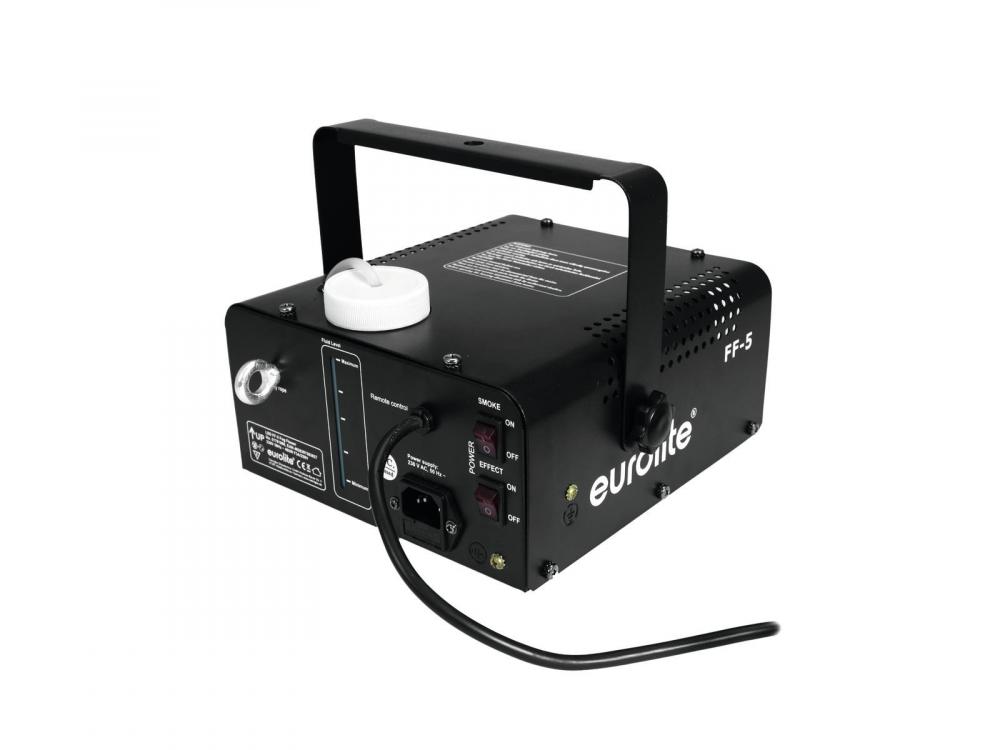

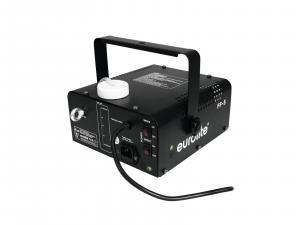

EUROLITE LED FF-5 Hybrid Fog Flower

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED FF-5 Hybrid Fog Flower

Info
order code
51701896
product link
EAN
4026397563627
Product Name
EUROLITE LED FF-5 Hybrid Fog Flower
technical overview
Power supply: 230 V AC, 50 Hz
Smoke output: 3 m
Warm-up time: 5 min.
Tank capacity: 0.2 l
Beam angle: 60°
Dimensions (L x W x H): 280 x 225 x 195 mm
Lamp type: LED lamp
IP classification: IP20
Weight: 2,4 kg
Power consumption: 485 W
Beam angle: 60°
Height: 19,5 cm
Width: 22,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
Depth: 28 cm
main features
450 W fog machine and lighting effect in one device
-Ideal for party rooms or small discotheques
-On/off cable remote control
-Mounting bracket
-Powerful output
-Overheat protection
-Fluid level indication
-Rotating decorative luminary at 180° with red, green and blue LEDs
-Colorful flower-beams
-Disco feeling anywhere, in no time at all
-Permanent installation recommended, mounting bracket
-Power connection via included IEC power cable with safety plug
-Case color: Black
-Smoke-output: ca. 3 m
-Effect: Multi beam effect; Flower effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Wired remote control (provided)
*# category-effect
tank size
2.00 l
Electrical
power consumption watt, max
485.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
2.40 kg
width
225.00 mm
height
195.00 mm
length
280.00 mm
Optical
beam angle/zoom, min
60.00 °
beam angle/zoom, max
60.00 °
light source
LED

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00094809.pdf
