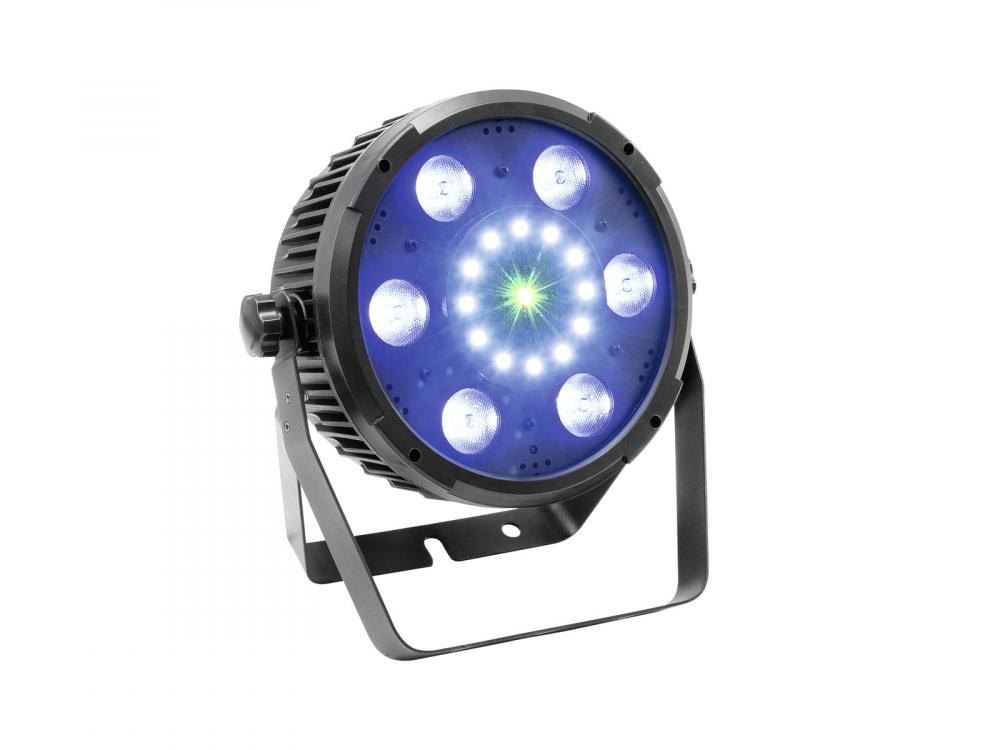

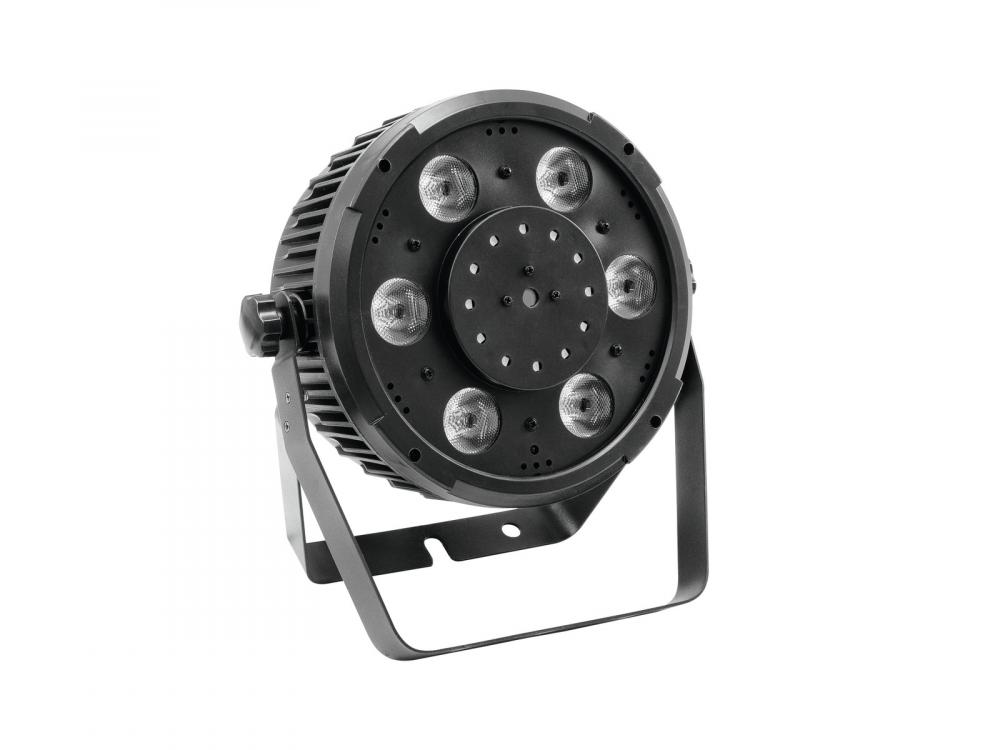

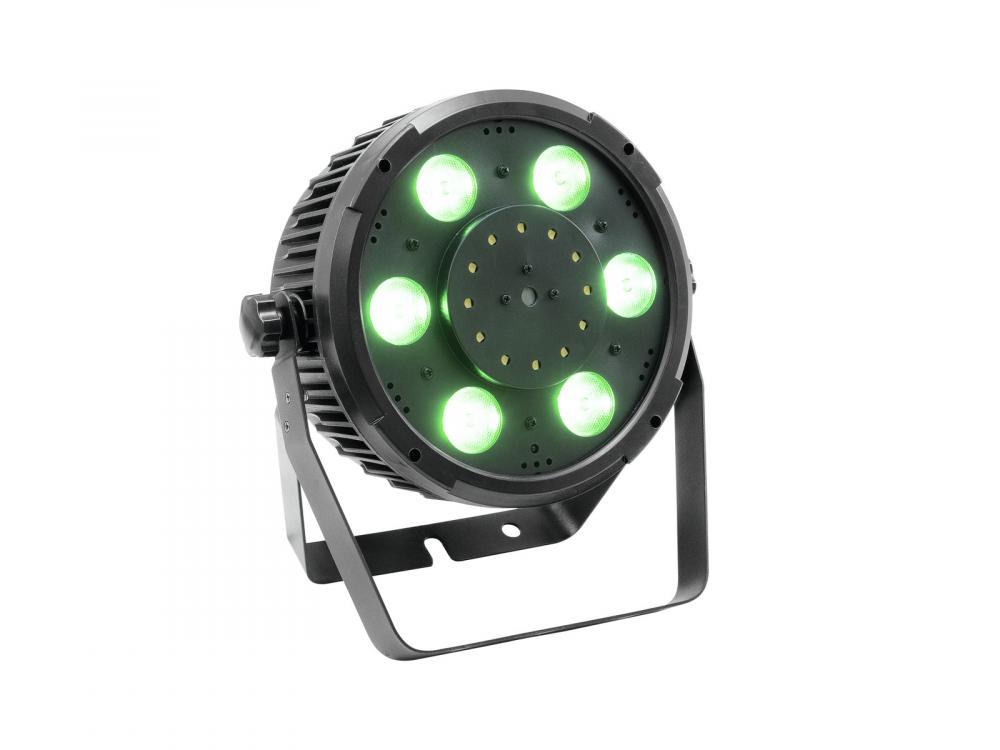

EUROLITE LED Laser Slim FX Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Laser Slim FX Spot

Info
order code
51741074
product link
EAN
4026397620801
Product Name
EUROLITE LED Laser Slim FX Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Laser classification: 2M
Laser modules: Red 100 mW, green 50 mW
Wavelength: Red 650 nm, green 532 nm
LEDs
Wash effect: 6 x RGBW (4in1), 4 W each
Strobe effect: 12 x white, 0.5 W each
DMX channels: 2/3/4/6/10/14
DMX connection: 3-pin XLR
Sound control: via built-in microphone
Beam angle: 25°
Flash rate: 0-20 Hz
Dimensions (L x W x H): 100 x 265 x 210 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Laser class: Class 2M
Lamp type: LED lamp
Cooling fan: Yes
IP classification: IP20
Weight: 1,5 kg
Power consumption: 60 W
Beam angle: 25°
Height: 21 cm
Depth: 10 cm
Width: 26,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 2; 3; 4; 6; 10; 14
LED: 12 x SMD 0,5 W CW (homogenous color mix); 6 x high-power 4 W 4in1 QCL RGBW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Flat PAR spot with additional RG laser (2M) and stroboscope
-6 high-power 4 W 4in1 LEDs for RGBW wash effects
-12 cold white 0.5 W SMD LEDs for fast, dynamic strobe effects
-2 laser diodes project thousands of red and green laser beams
-Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
-Spotlight, laser and strobe can be controlled individually
-Auto, music, master/slave and DMX mode
-Silent operation
-7 built-in auto and music show programs
-Direct color selection for 20 preset colors
-Stepless color mixture, color change, color fade, dimmer and strobe effect
-Addressing and setting via control panel with 4-digit LED display
-Convenient wireless control via included IR remote control EUROLITE IR-7
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-2, 3, 4, 6, 10, or 14 DMX channels selectable for various applications
-Swivel mounting bracket
-Additional bracket for floor use
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Laser color: 2in1 BCL RG
-Effect: Strobe effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 12 x SMD 0,5 W CW (homogenous color mix); 6 x high-power 4 W 4in1 QCL RGBW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
14 ch
Electrical
power consumption watt, max
60.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
1.50 kg
width
265.00 mm
height
210.00 mm
length
100.00 mm
Optical
Laser class
2M
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
Number of light sources
12 pcs
wattage per light source
5.00 W
RED light source wavelength
650 nm
GREEN light source wavelength
532 nm
RED light source power
0.10 W
GREEN light source power
0.05 W
beam angle/zoom, min
25.00 °
beam angle/zoom, max
25.00 °
light source
LED
shutter/strobe frequency, max
20 Hz
