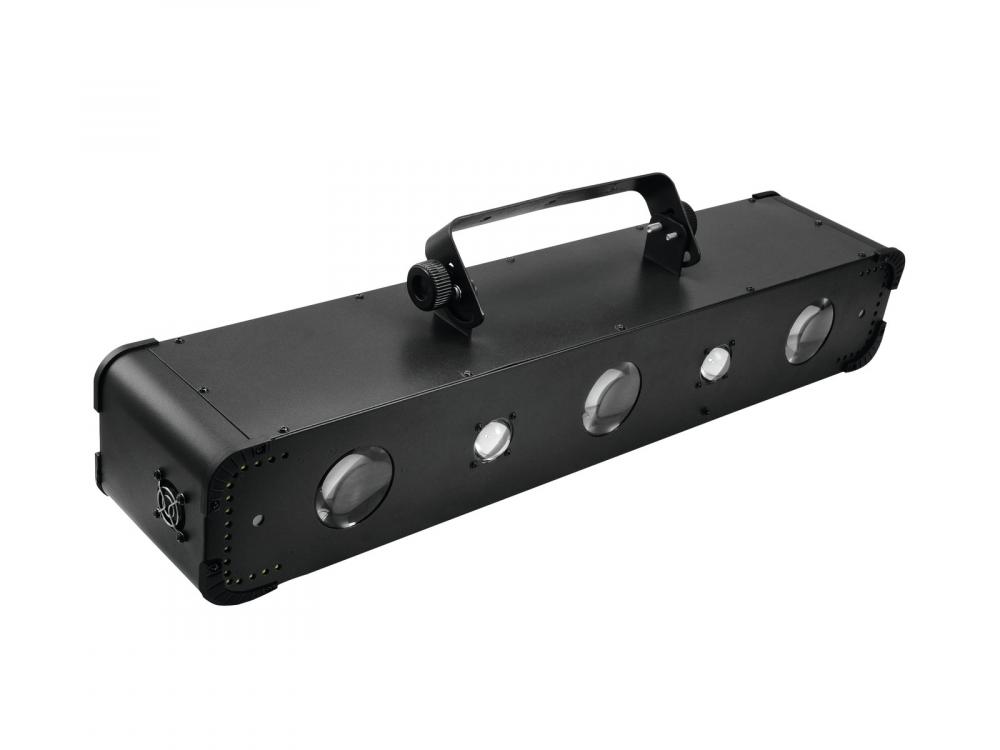

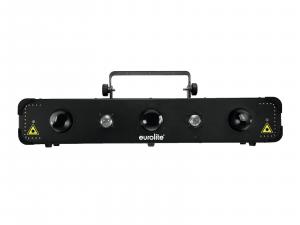

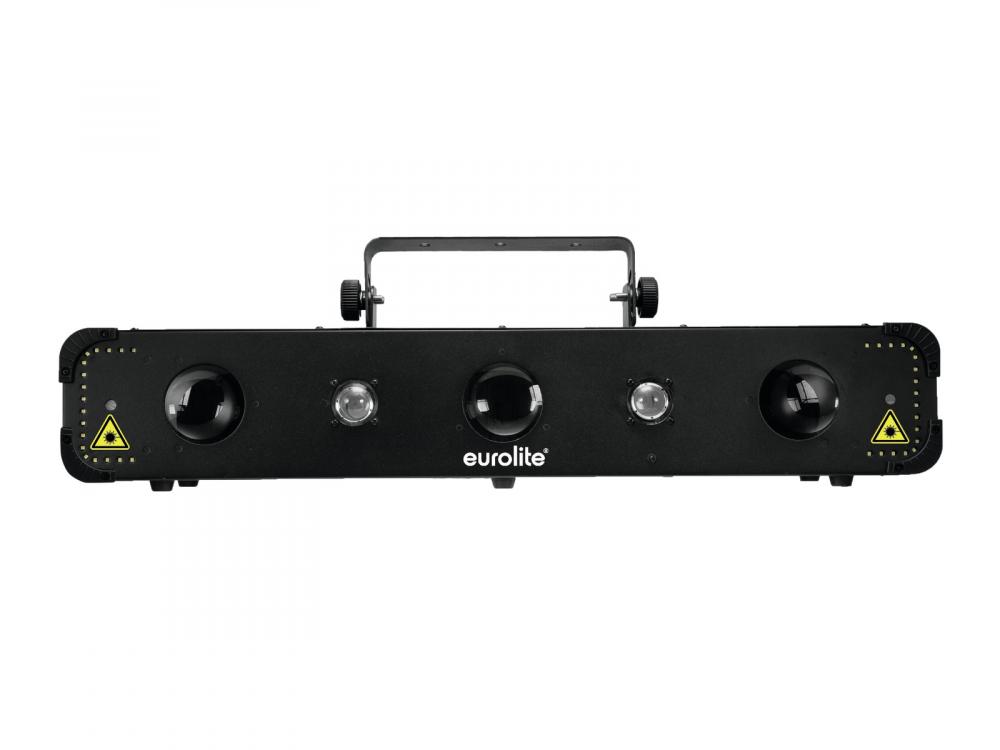

EUROLITE LED Multi FX Laser Bar

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Multi FX Laser Bar

Info
order code
51741075
product link
EAN
4026397622508
Product Name
EUROLITE LED Multi FX Laser Bar
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Laser classification: 2M
Laser modules: Red 100 mW, green 30 mW
Wavelength: Red 650 nm, green 532 nm
LEDs:
Matrix effect: 48 x R, 48 x G, 48 x B, 24 x A, 24 x W
Blacklight effect: 2 x UV, 3 W each
Strobe effect: 36 x white, 0.5 W each
DMX channels: 2/5/10
DMX connection: 3-pin XLR
Sound control: via built-in microphone
Dimensions (L x W x H): 760 x 180 x 245 mm
Laser class: Class 2M
Lamp type: LED lamp
Cooling fan: Yes
IP classification: IP20
Weight: 5,60 kg
Power consumption: 35 W
Height: 24,5 cm
Depth: 18 cm
Length: 76 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 2; 5; 10
LED: 36 x SMD 0,5 W CW (homogenous color mix); 2 x high-power 3 W UV (homogenous color mix); 192 x 5 mm RGBWA
Power supply: 110-240 V AC, 50/60 Hz
main features
Lighting effect with RGBAW LED matrix, UV, RG laser (2M) and stroboscope
-Matrix effect with a total of 192 LEDs creates alternating RGBAW patterns
-2 x UV LED (3 W) for blacklight effects
-36 cold white 0.5 W SMD LEDs for fast, dynamic strobe effects
-4 laser diodes project thousands of red and green laser beams
-Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
-Matrix, blacklight, laser and strobe can be controlled individually
-Auto, music, master/slave and DMX mode
-10 built-in auto and music show programs
-Addressing and setting via control panel with 4-digit LED display

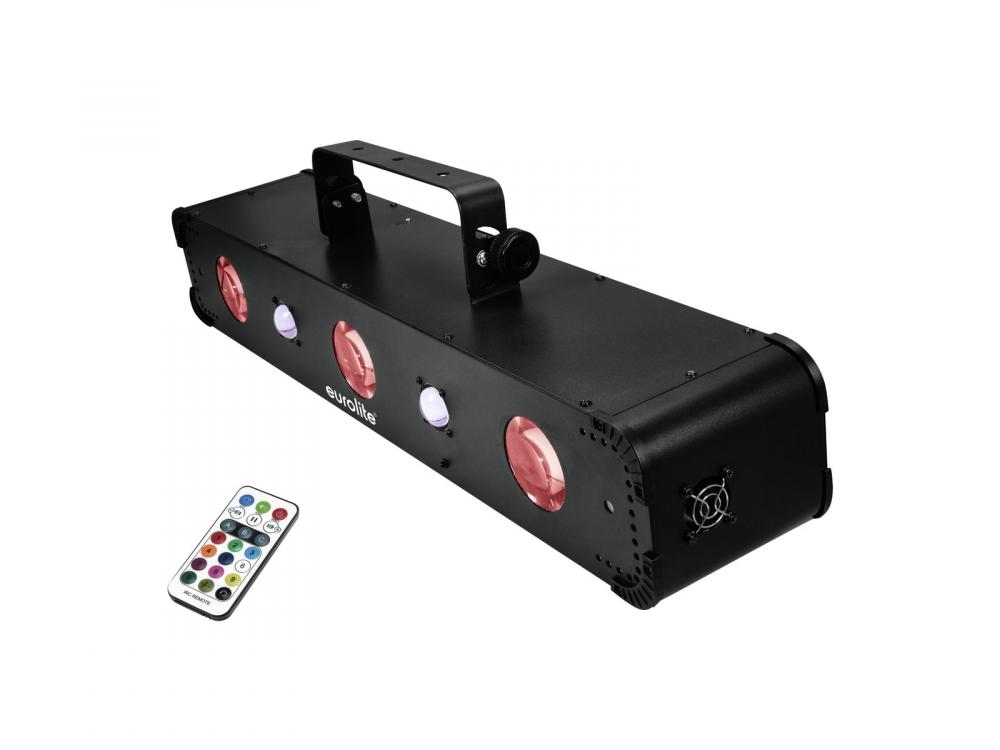

-Convenient wireless control via included IR remote control EUROLITE IR-16
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-2, 5 or 10 DMX channels selectable for various applications
-Swivel mounting bracket
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Laser color: 2in1 BCL RG
-Effect: Multi beam effect; Flower effect; Strobe effect; UV

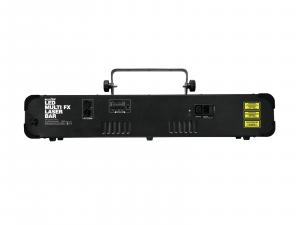

-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 36 x SMD 0,5 W CW (homogenous color mix); 2 x high-power 3 W UV (homogenous color mix); 192 x 5 mm RGBWA
Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
10 ch
Electrical
power consumption watt, max
5.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
5.60 kg
width
180.00 mm
height
245.00 mm
length
760.00 mm
Optical
light source
LED
Number of light sources
36 pcs
wattage per light source
5.00 W
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
AMBER light source
yes
RED light source wavelength
650 nm
GREEN light source wavelength
532 nm
RED light source power
0.10 W
GREEN light source power
0.03 W
Laser class
2M
