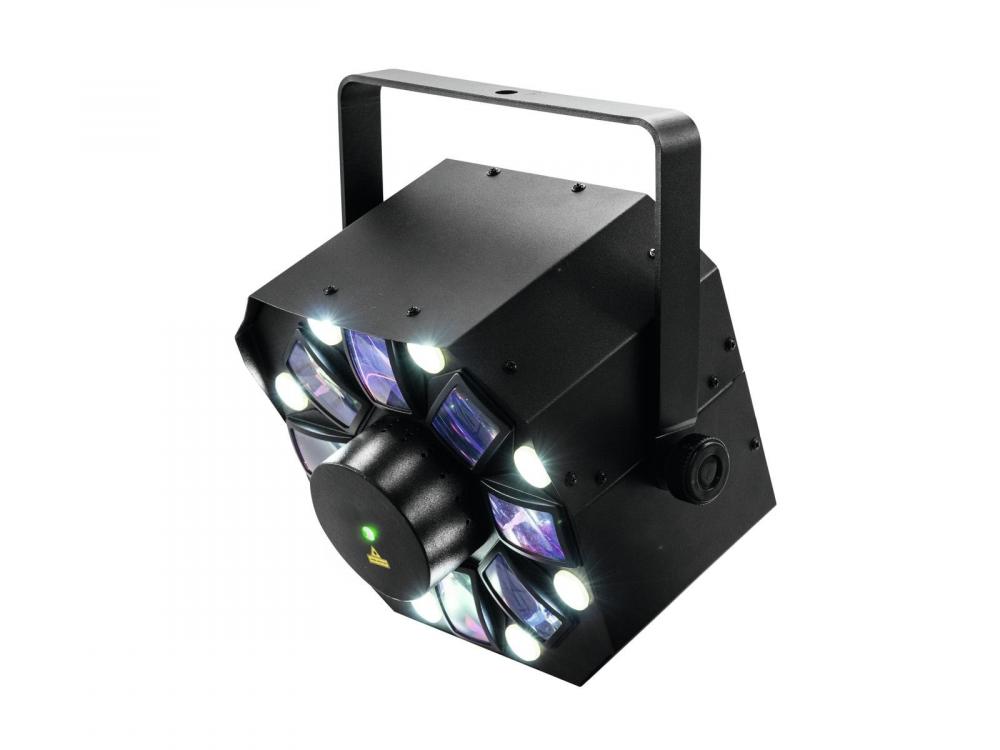

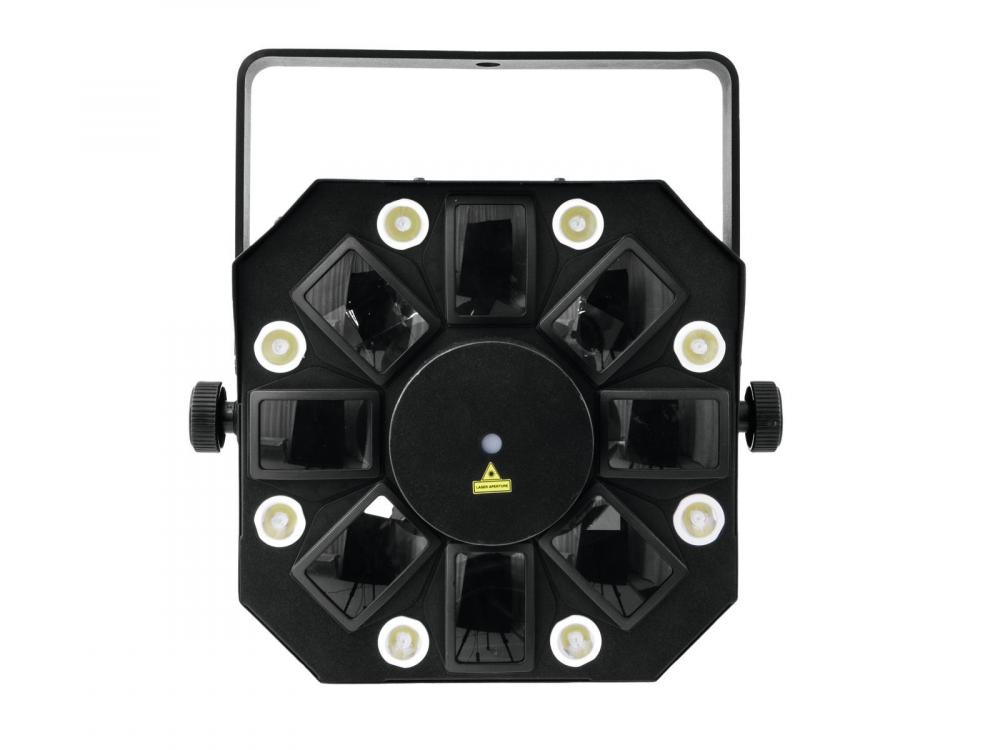

EUROLITE LED FE-1500 Hybrid Laser Flower
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED FE-1500 Hybrid Laser Flower
| Info | |
|---|---|
| order code |
51741080
|
| product link | |
| EAN |
4026397532302
|
| Product Name |
EUROLITE LED FE-1500 Hybrid Laser Flower
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz Laser classification: 2M Laser modules: Red 100 mW, green 50 mW Wavelength: Red 650 nm, green 532 nm Color LEDs: 5 x RGBWA, 3 W each Strobe LEDs: 8 x white, 1 W each Flash rate: 0-30 Hz Beam angle: 17° DMX channels: 9 DMX connection: 3-pin XLR Sound control: via built-in microphone Dimensions (L x W x H): 313 x 246 x 315 mm Laser class: Class 2M Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Weight: 4,2 kg Power consumption: 40 W Beam angle: 17° Height: 31,3 cm Depth: 31,5 cm Width: 24,6 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 9 LED: 8 x high-power 1 W CW (homogenous color mix); 5 x high-power 3 W RGBWA Power supply: 110-240 V AC, 50/60 Hz |
| main features |
Bright effect with derby, laser (2M) and stroboscope -3-in-1 DMX light effect with red and green laser diodes, rotating LED derby and white strobe LEDs -Laser class 2M: does not require additional protective measures or appointment of a laser safety officer -2 laser diodes project thousands of red and green laser beams -Rotating derby for mirror ball effects with five 3 W LEDs (red, green, blue, white and amber) -Eight white 1 W strobe LEDs -Auto, music, master/slave and DMX mode -7 built-in auto and music show programs -Addressing and setting via control panel with 4-digit LED display -Sound-control via built-in microphone with sensitivity control -Mounting bracket for flexible wall mounting and ceiling suspension -When fog is used, this effect becomes especially attractive -Switch-mode power supply for operation between 100 and 240 Volts -Feed-through output allows to power up to 8 devices -Case color: Black -Laser color: 2in1 BCL RG -Effect: Multi beam effect; Flower effect; Strobe effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: Stand-alone; DMX -LED: 8 x high-power 1 W CW (homogenous color mix); 5 x high-power 3 W RGBWA |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
9 ch
|
| control channels, max |
9 ch
|
| Electrical | |
| power consumption watt, max |
1.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
IEC-60320 C13/C14
|
| cooling |
active
|
| Mechanical | |
| weight |
4.20 kg
|
| width |
246.00 mm
|
| height |
313.00 mm
|
| length |
315.00 mm
|
| Optical | |
| Laser class |
2M
|
| COLD WHITE LED source |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
| AMBER light source |
yes
|
| Number of light sources |
8 pcs
|
| wattage per light source |
1.00 W
|
| RED light source wavelength |
650 nm
|
| GREEN light source wavelength |
532 nm
|
| RED light source power |
0.10 W
|
| GREEN light source power |
0.05 W
|
| beam angle/zoom, min |
17.00 °
|
| beam angle/zoom, max |
17.00 °
|
| light source |
LED
|
| shutter/strobe frequency, max |
30 Hz
|
