Info | |
---|---|
order code |
51741082
|
product link | |
EAN |
4026397595154
|
Product Name |

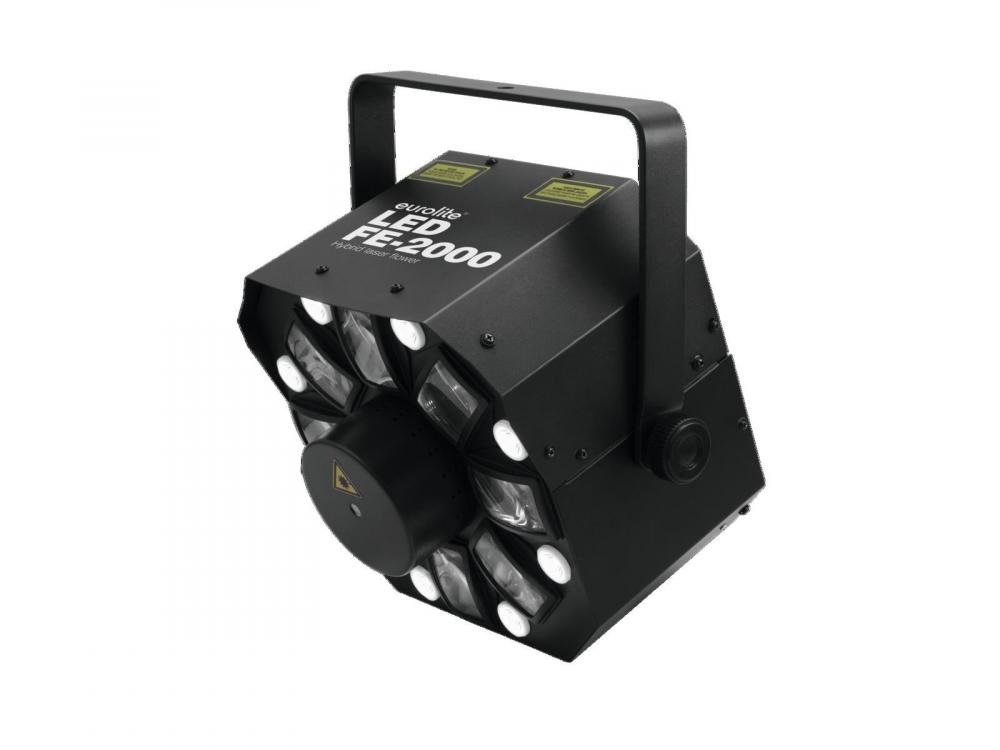

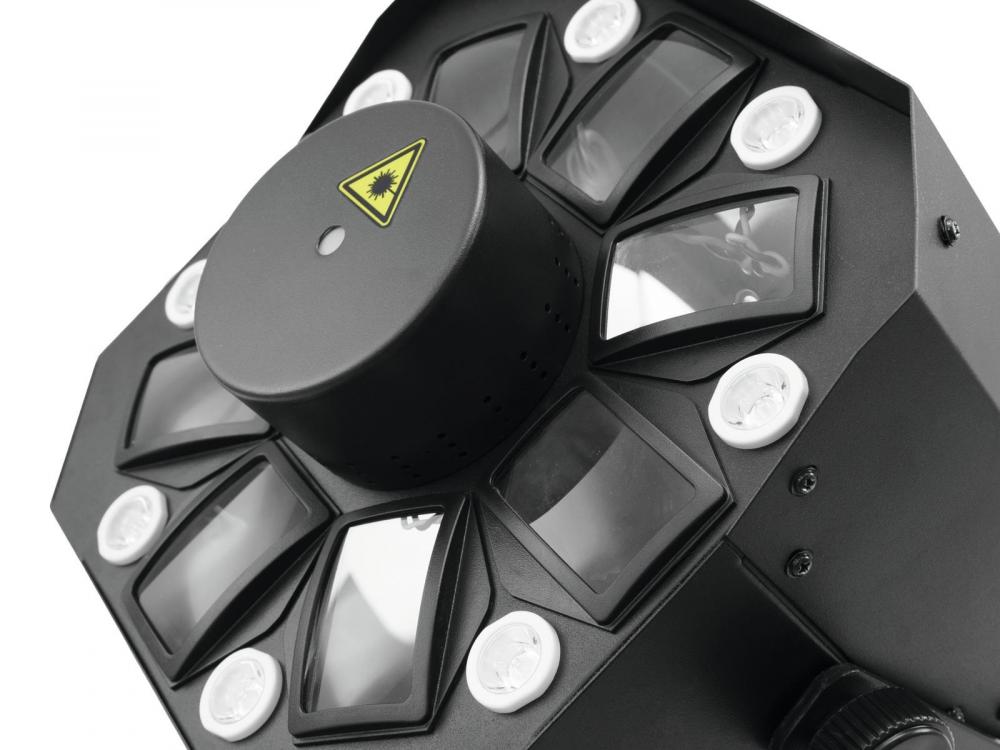

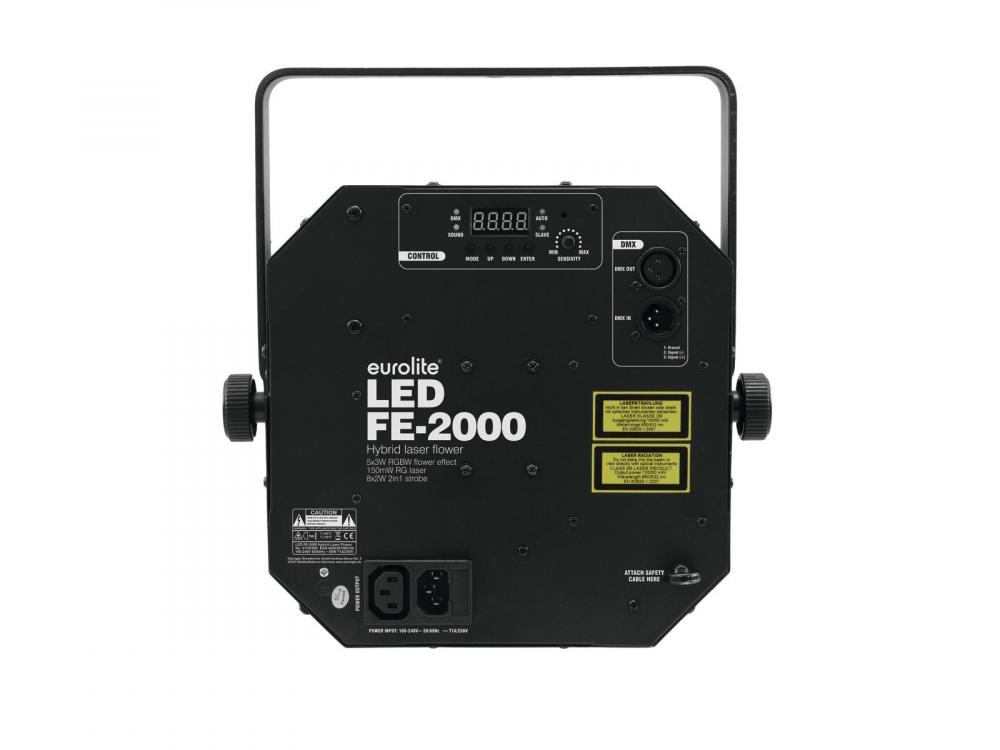

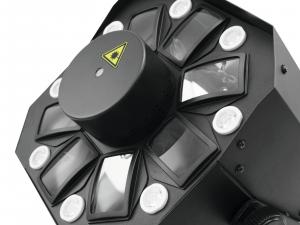

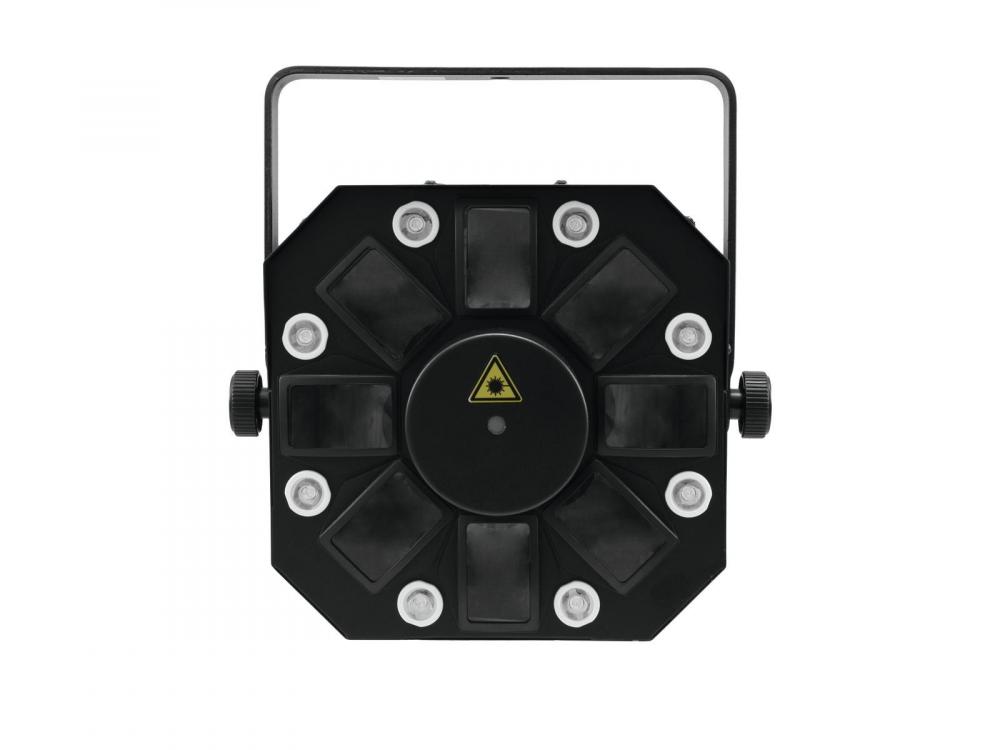

EUROLITE LED FE-2000 Hybrid Laser Flower
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Laser classification: 2M Laser modules: Red 100 mW, green 50 mW Wavelength: Red 650 nm, green 532 nm Color LEDs: R, G, B, A, W, 3 W each Strobe LEDs: 2 x R/UV, 2 x G/UV, 2 x B/UV, 2 x W/UV, 2 W each DMX channels: 7 DMX connection: 3-pin XLR Sound control: via built-in microphone Dimensions (L x W x H): 313 x 246 x 315 mm Laser class: Class 2M Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Weight: 4,6 kg Power consumption: 60 W Height: 31,5 cm Depth: 31,3 cm Width: 24,6 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 7 LED: 8 x high-power 2 W RGBW+UV; 5 x high-power 3 W RGBWA Power supply: 110-240 V AC, 50/60 Hz |
main features |
Bright effect with derby, laser (2M) and colored strobe -3-in-1 DMX light effect with red and green laser diodes, rotating LED derby and bicolor strobe LEDs -Laser class 2M: does not require additional protective measures or appointment of a laser safety officer -2 laser diodes project thousands of red and green laser beams -Rotating derby for mirror ball effects with five 3 W LEDs (R, G, B, A, W) -Strobe effect with eight ultra-bright 2 W BCL LEDs (2 x R/UV, G/UV, B/UV, W/UV each) -Auto, music, master/slave and DMX mode -7 built-in auto and music show programs -Addressing and setting via control panel with 4-digit LED display -Sound-control via built-in microphone with sensitivity control -Mounting bracket for flexible wall mounting and ceiling suspension -When fog is used, this effect becomes especially attractive -Switch-mode power supply for operation between 100 and 240 Volts -Feed-through output allows to power up to 8 devices -Case color: Black -Laser color: 2in1 BCL RG -Effect: Multi beam effect; Flower effect; Strobe effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: Stand-alone; DMX -LED: 8 x high-power 2 W RGBW+UV; 5 x high-power 3 W RGBWA |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
7 ch
|
control channels, max |
7 ch
|
Electrical | |
power consumption watt, max |
2.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
4.60 kg
|
width |
246.00 mm
|
height |
315.00 mm
|
length |
313.00 mm
|
Optical | |
light source |
LED
|
Number of light sources |
8 pcs
|
wattage per light source |
2.00 W
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
AMBER light source |
yes
|
RED light source wavelength |
650 nm
|
GREEN light source wavelength |
532 nm
|
RED light source power |
0.10 W
|
GREEN light source power |
0.05 W
|
Laser class |
2M
|
Collect interesting products in a list and download tender specifications at once
Videos |
---|
Downloads |
---|
Bedienungsanleitung |
---|
00103449.pdf |
