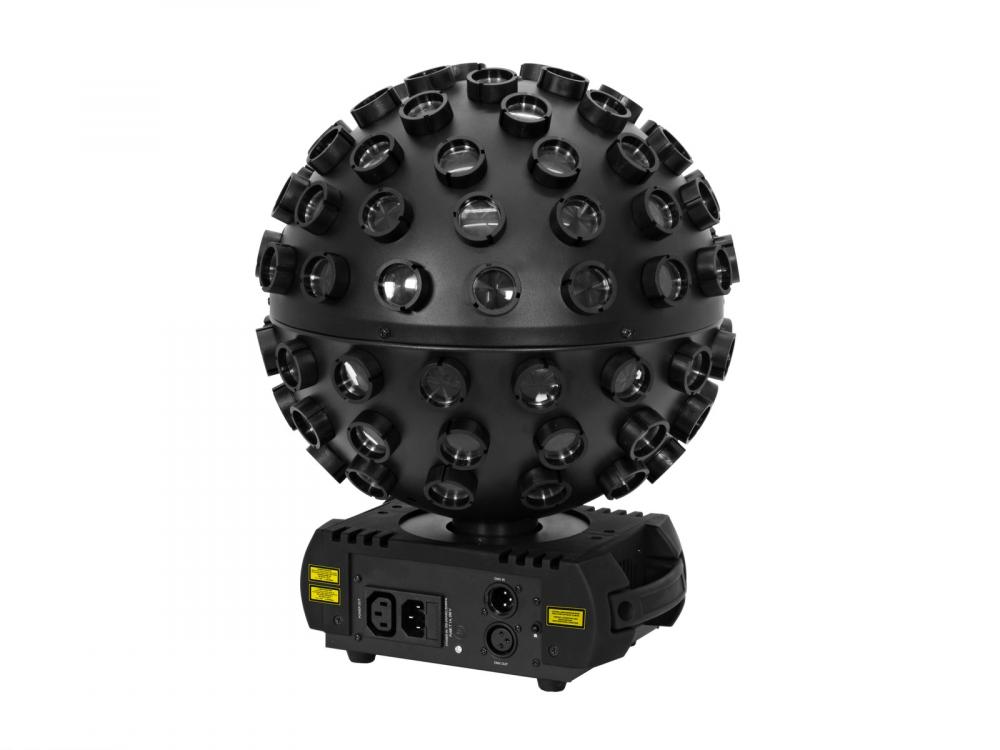

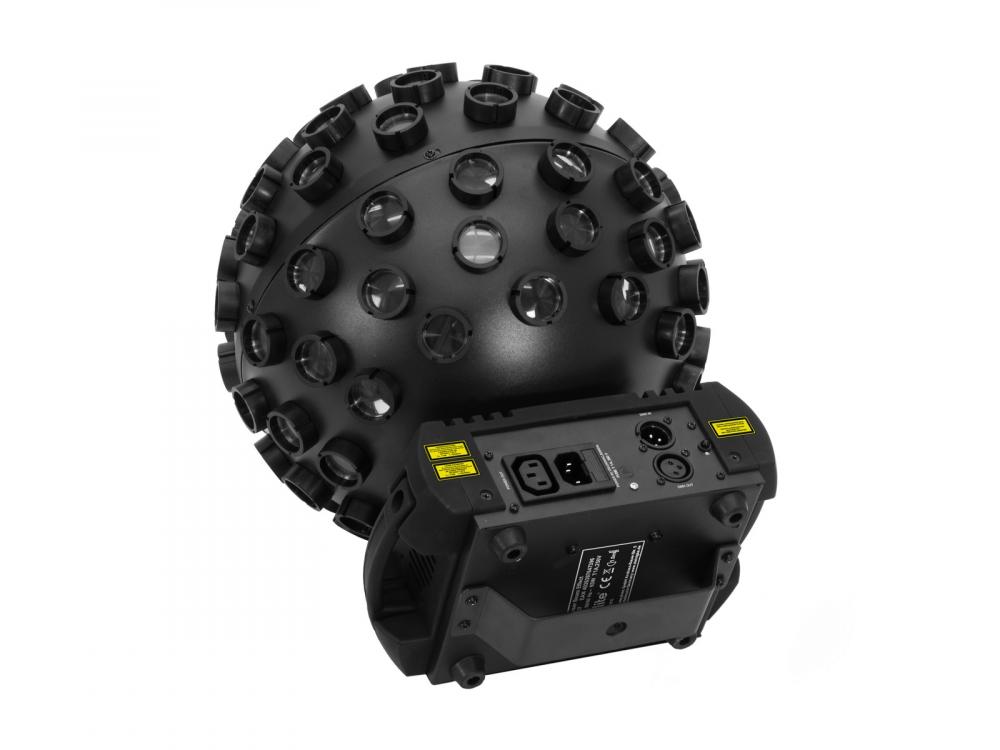

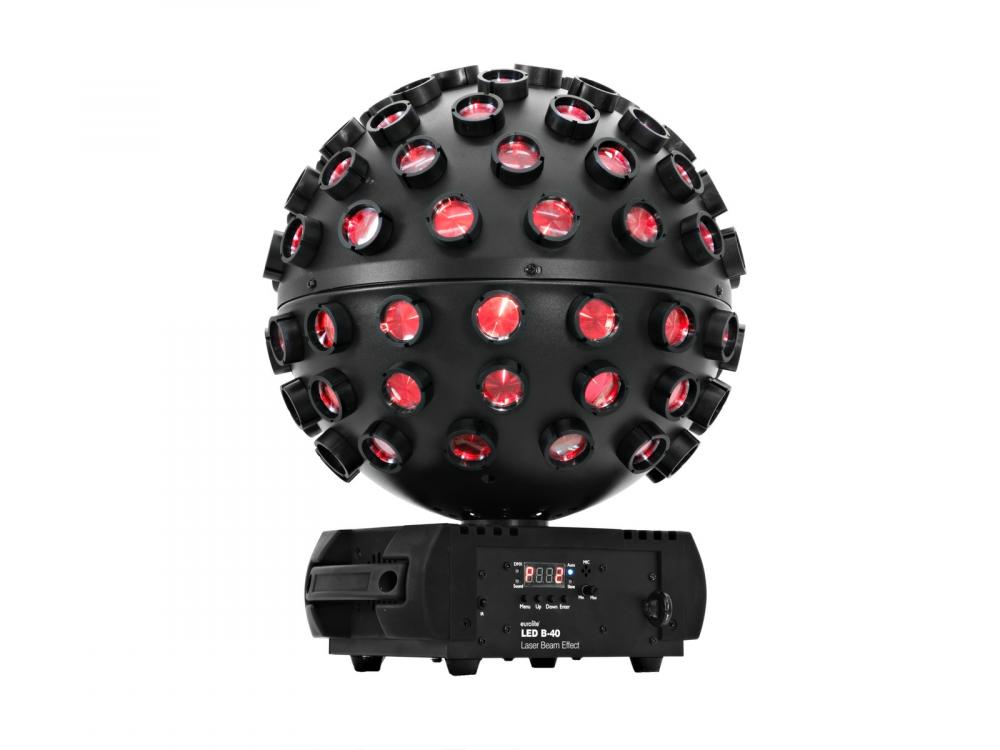

EUROLITE LED B-40 Laser Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED B-40 Laser Beam Effect

Info
order code
51741087
product link
EAN
4026397647396
Product Name
EUROLITE LED B-40 Laser Beam Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 65 W
DMX channels: 3/10/22
DMX connection: 3-pin XLR
Sound control: via built-in microphone
Laser classification: 2M
Laser modules: Red 100 mW, green 40 mW
Wavelength: Red 650 nm, green 532 nm
LED type: 8 W RGBW (4in1)
LED number: 5
Flash rate: 0-20 Hz
Dimensions (L x W x H): 390 x 310 x 310 mm
Lamp type: LED lamp
Laser class: Class 2M
Cooling fan: Yes
IP classification: IP20
Weight: 4,20 kg
Width: 31 cm
Depth: 31 cm
Height: 39 cm
Fuse: 5 x 20 mm, F fast-blow, 1 A
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 3; 10; 22
LED: 5 x high-power 8 W 4in1 QCL RGBW
main features
LED beam effect with RGBW color mixing and RG laser
-5 high-power 8 W RGBW LEDs (4in1) for dynamic mirror ball effects
-2 laser diodes project thousands of red and green laser beams
-Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
-Auto, music, master/slave and DMX mode
-7 built-in auto and music show programs
-Stepless RGBW color blend, dimmer and strobe effects
-Rotation speed variably adjustable
-LEDs are distributed in 3 groups which can be controlled individually via DMX
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-3, 10 or 22 DMX channels selectable for various applications
-Addressing and setting via control panel with 4-digit LED display

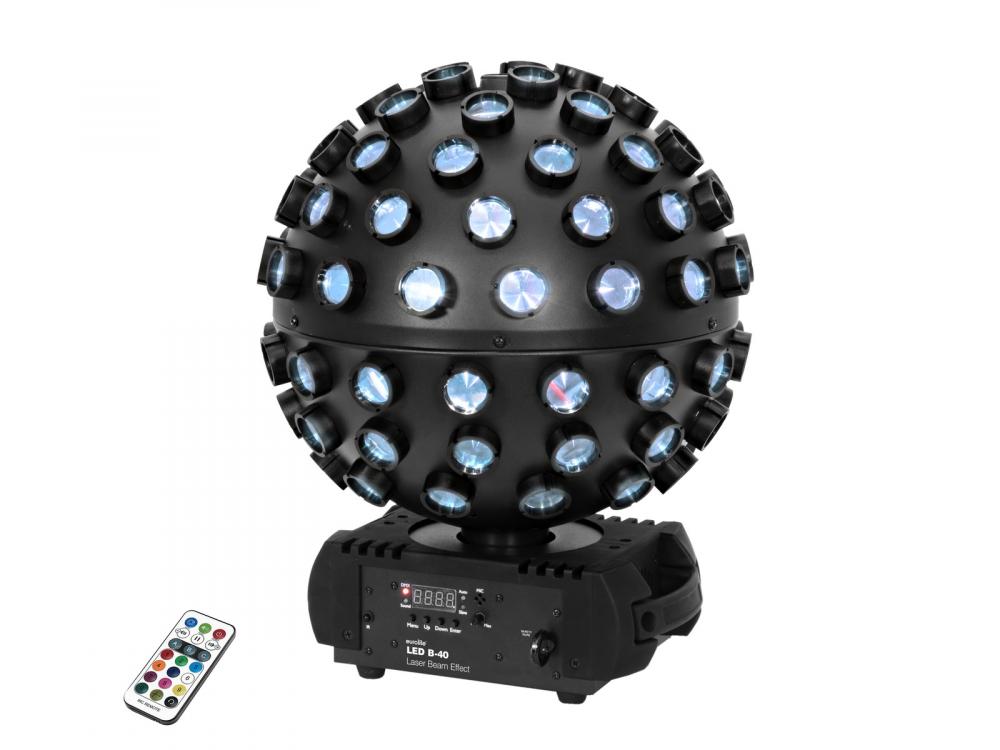

-Convenient wireless control via included IR remote control EUROLITE IR-16

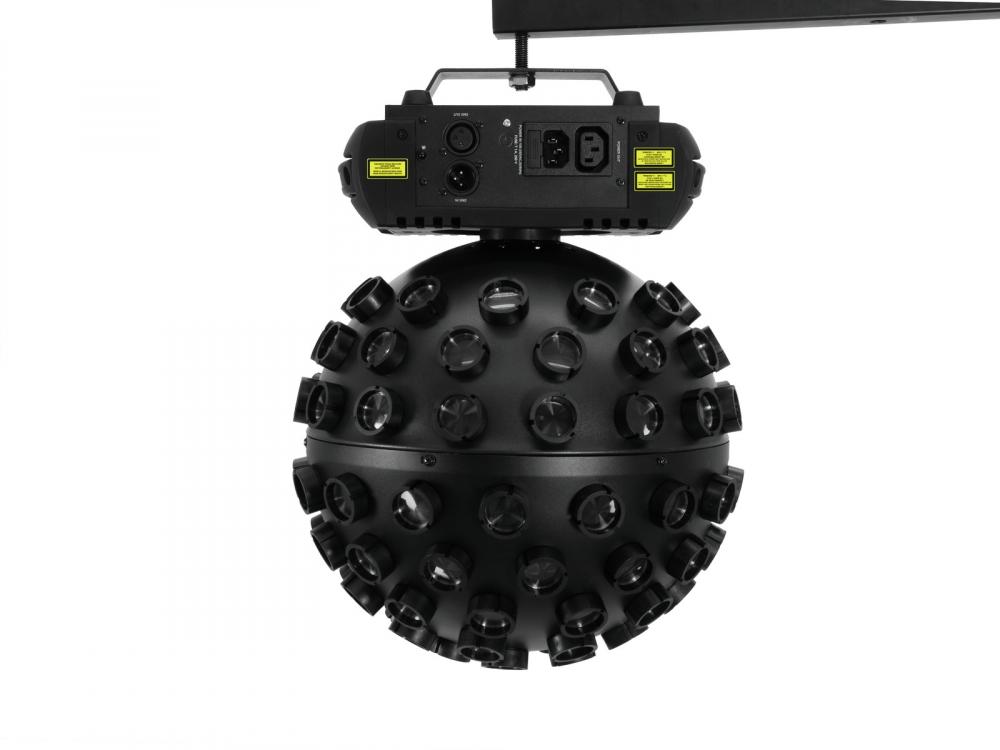

-Hanging or standing installation possible
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Laser color: 2in1 BCL RG
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 5 x high-power 8 W 4in1 QCL RGBW
Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
22 ch
Electrical
power consumption watt, max
65.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
4.20 kg
width
310.00 mm
height
310.00 mm
length
310.00 mm
Optical
light source
LED
Number of light sources
5 pcs
wattage per light source
8.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
RED light source wavelength
650 nm
GREEN light source wavelength
532 nm
shutter/strobe frequency, max
20 Hz
RED light source power
0.10 W
GREEN light source power
0.04 W
Laser class
2M
