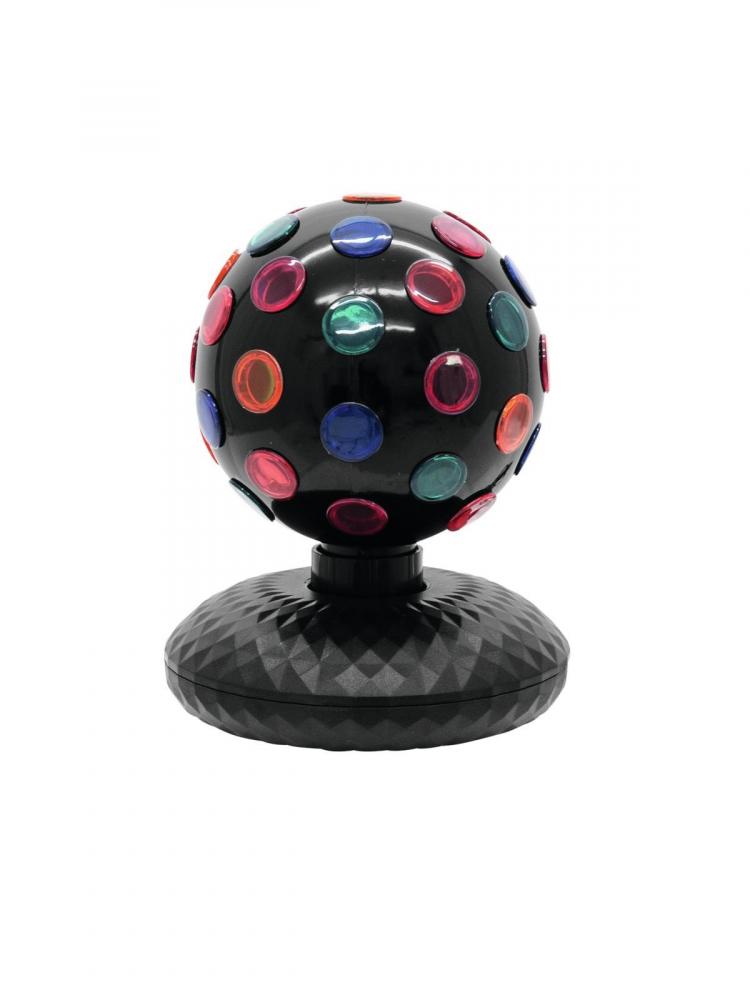

EUROLITE LED MSB-15 Mini Single Ball

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED MSB-15 Mini Single Ball

Info
order code
51812260
product link
EAN
4026397532289
Product Name
EUROLITE LED MSB-15 Mini Single Ball
technical overview
Power supply: 230 V AC, 50 Hz
Rotation-speed: 18 RPM
Dimensions (L x W x H): 190 x 170 x 230 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
IP classification: IP20
Weight: 0,6 kg
Power consumption: 4,2 W
Laser class: Without laser
Height: 23 cm
Depth: 17 cm
Width: 19 cm
Power connection: Fix Power supply cord with Euro plug (M)
Power supply: 230 V AC, 50 Hz
main features
Simple light effect with rotating ball incl. E-14 LED lamp
-The housing rotates around its own axis
-18 rotations per minute
-Bright, intensive colors
-For standing installation
-Low power consumption
-For 1 x E-14 lamp with 6 LEDs (included in the delivery)
-Ready for use via power cord with Euro plug, with integrated on/off switch
-Ideal for party-rooms, small discotheques or mobile DJs
-Case color: Black
-Effect: Multi beam effect
-Power connection: Fix Power supply cord with Euro plug (M)
-Control: Stand-alone
Electrical
power consumption watt, max
4.20 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
Europlug
Mechanical
weight
0.60 kg
width
170.00 mm
height
230.00 mm
length
170.00 mm
Optical
light source
LED

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00092249.pdf
