| Info | |
|---|---|
| order code |
51918201
|
| product link | |
| EAN |
4026397523348
|
| Product Name |

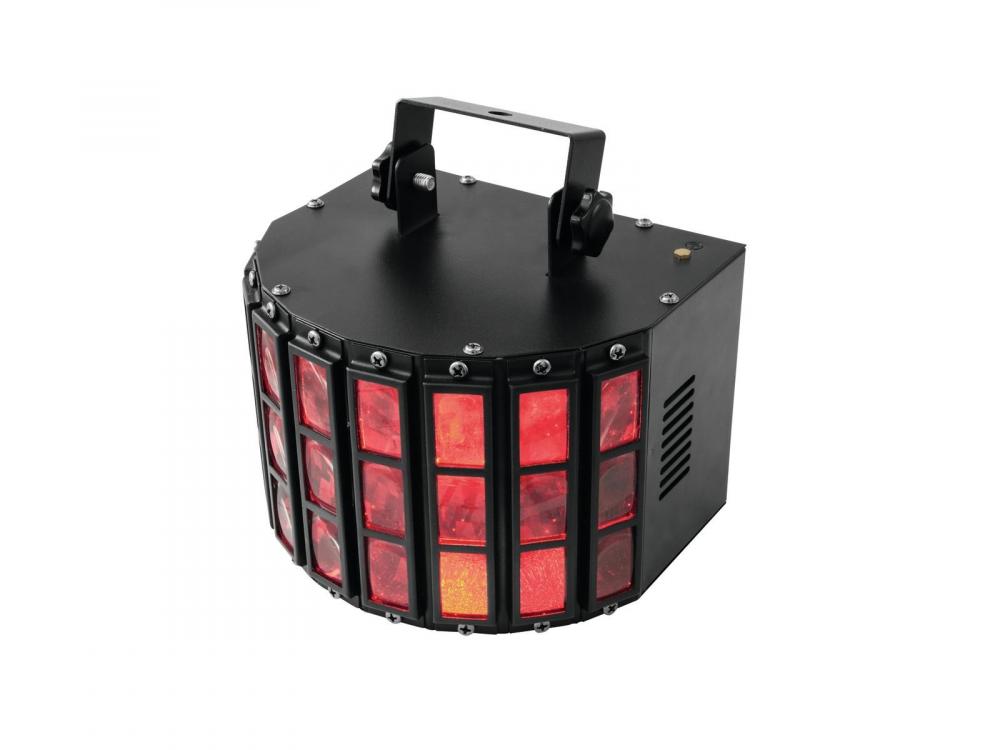

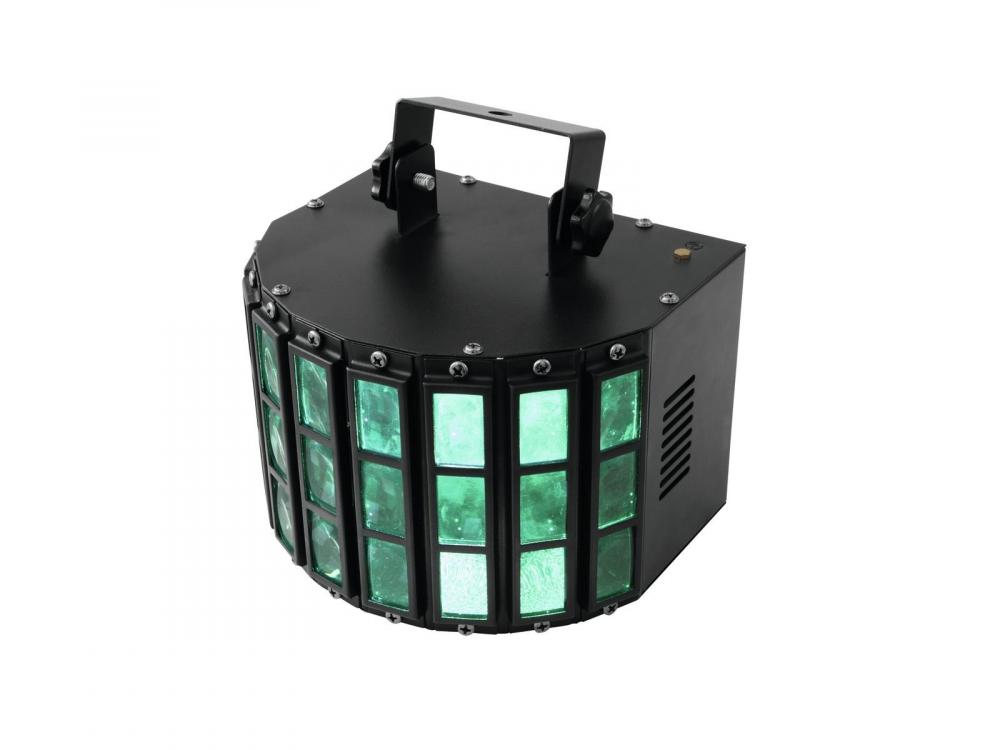

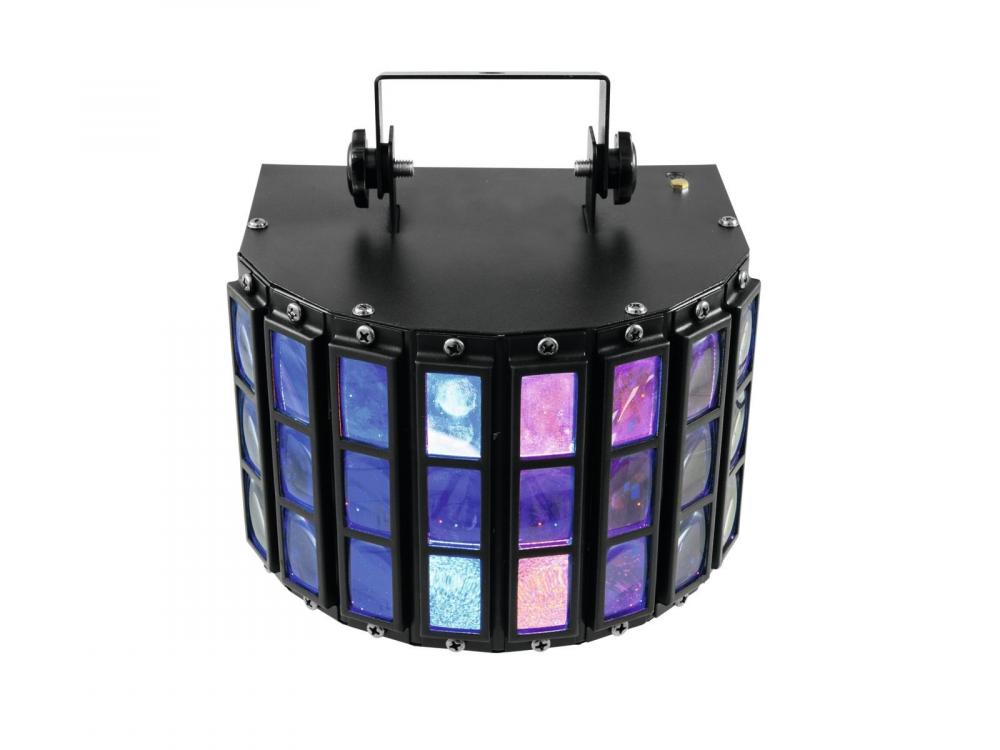

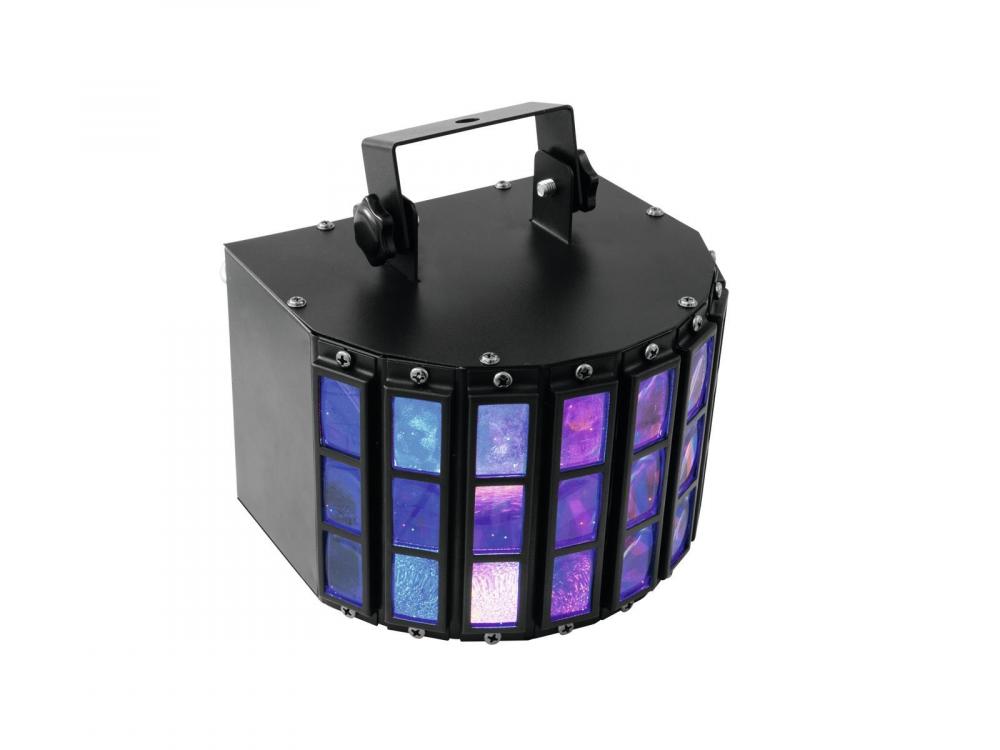

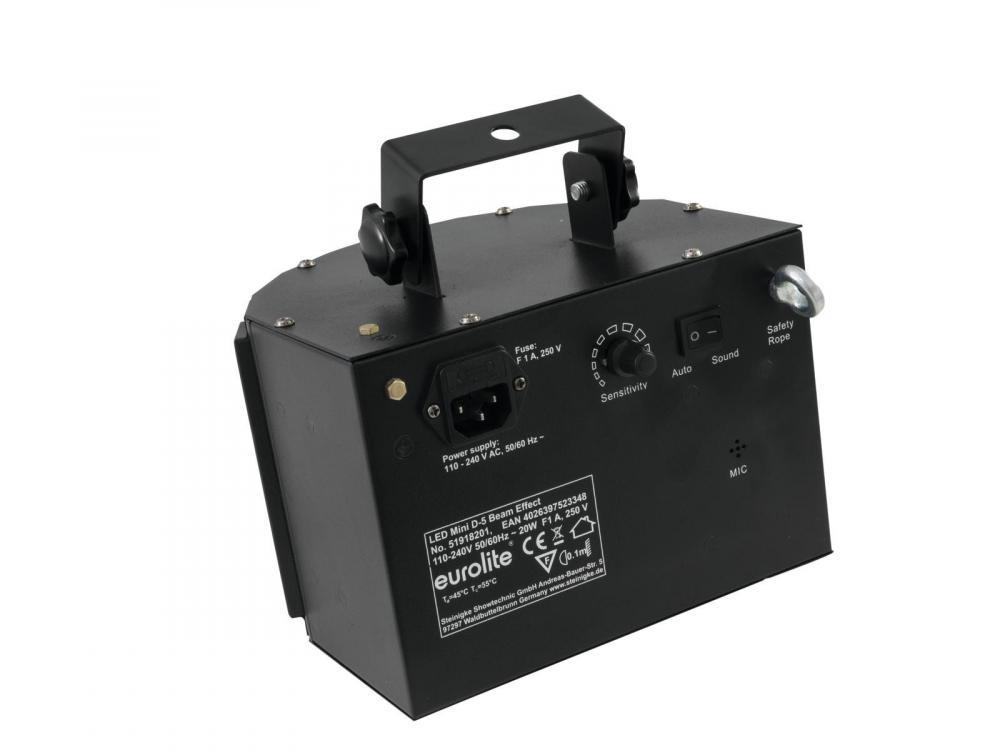

EUROLITE LED Mini D-5 Beam Effect
|
| technical overview |
Power supply: 110-240 V AC, 50/60 Hz Sound-control: via built-in microphone LED type: 3 W LED number: 6 (2 x R, 1 x G, 1 x B, 1 x A, 1 x W) Dimensions (L x W x H): 195 x 210 x 205 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Cooling fan: No, cooling by convection IP classification: IP20 Power consumption: 20,00 W Lamp type: LED lamp Weight: 2 kg Laser class: Without laser Height: 20,5 cm Depth: 19,5 cm Width: 21 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) LED: 6 x Filament 3 W RGBWA |
| main features |
Mini beam effect with LEDs in R, G, B, and W -Beams exit from every lens, perform a circular movement and change the direction of movement at every bass-beat -4 lens rows with a total of 24 glass lenses provide a room-filling effect -Sound-controlled via built-in microphone -The color combinations change constantly, thanks to the internal program with a continuous loop -Microphone-sensitivity adjustable via rotary-control -Easy installation via mounting-bracket -For party rooms, small discos or mobile DJs -Practicle size, easily transportable -Equipped with 6 x 3 W LED: 2 x red, 1 x green, 1 x blue, 1 x amber, 1 x white -Ready for connection via power cord with safety-plug -Case color: Black -Effect: Multi beam effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Stand-alone -LED: 6 x Filament 3 W RGBWA |
| Electrical | |
| power consumption watt, max |
3.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
IEC-60320 C13/C14
|
| cooling |
passive
|
| Mechanical | |
| weight |
2.00 kg
|
| width |
210.00 mm
|
| height |
205.00 mm
|
| length |
195.00 mm
|
| Optical | |
| light source |
LED
|
| Number of light sources |
6 pcs
|
| wattage per light source |
3.00 W
|
| COLD WHITE LED source |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
| AMBER light source |
yes
|
Collect interesting products in a list and download tender specifications at once
| Videos |
|---|
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00084057.pdf |
