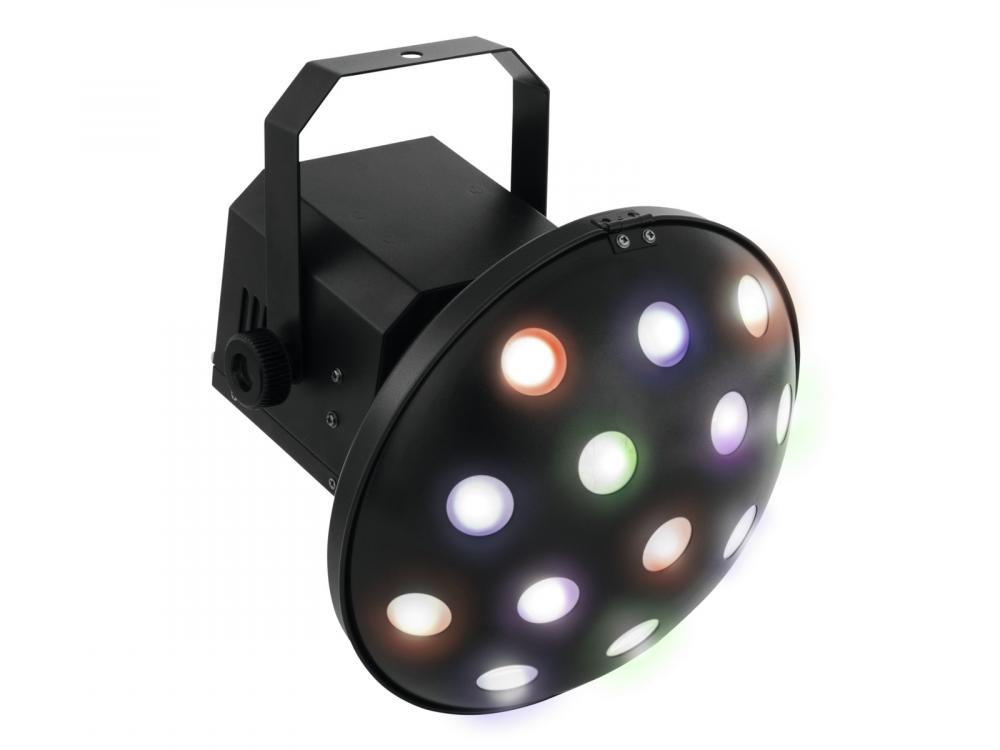

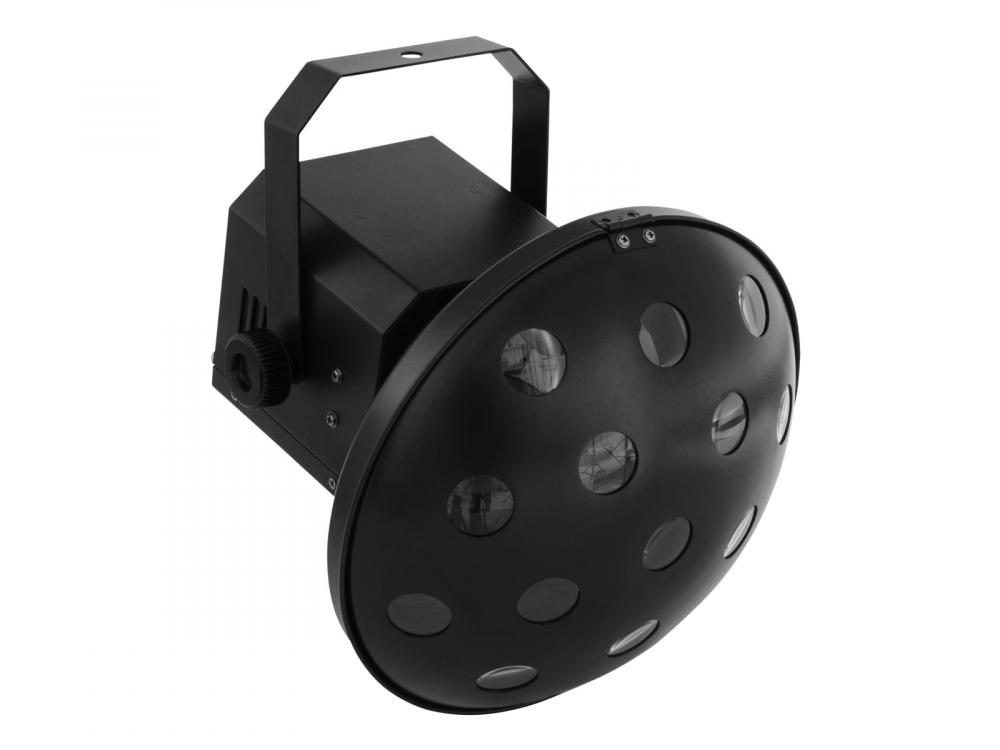

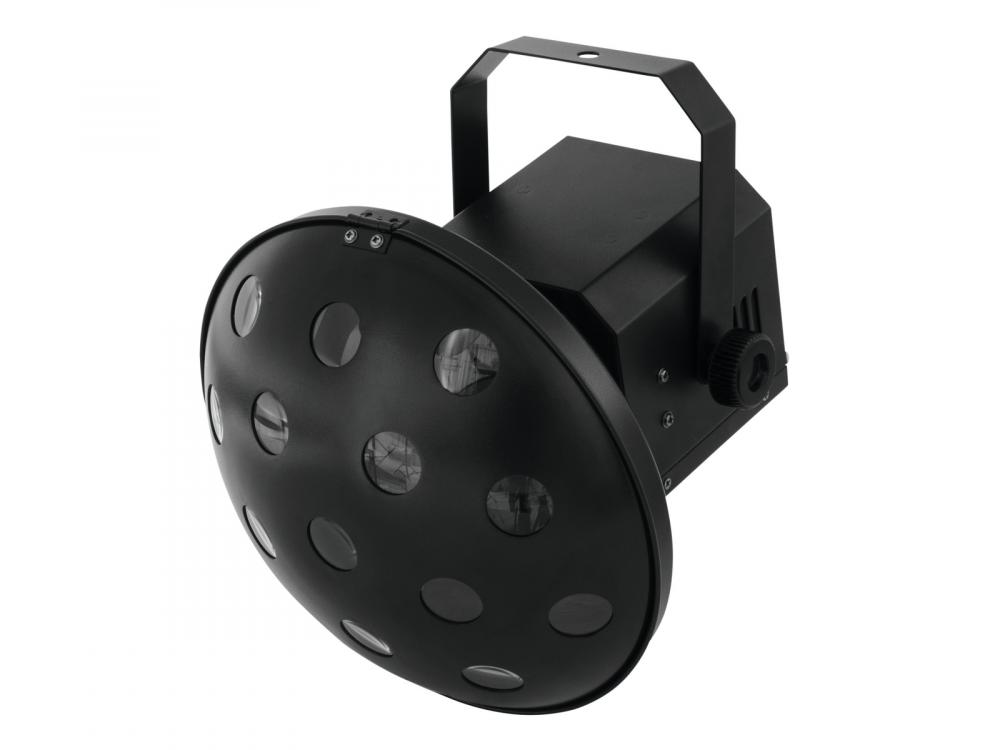

EUROLITE LED Z-1000 Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Z-1000 Beam Effect

Info
order code
51918221
product link
EAN
4026397534184
Product Name
EUROLITE LED Z-1000 Beam Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 10
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 3 W
LED number: 6 (1 x R, 1 x G, 1 x B, 1 x A, 1 x W, 1 x P)
Beam angle: 115°
Dimensions: 310 x 275 x 280 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
IP classification: IP20
Weight: 2 kg
Power consumption: 23 W
Laser class: Without laser
Beam angle: 115°
Height: 28 cm
Depth: 31 cm
Width: 27,5 cm
Power connection: Fix Power supply cord with safety plug (M)
LED: 6 x high-power 3 W RGBWAP
DMX channels: 10
Power supply: 110-240 V AC, 50/60 Hz
main features
Mushroom with DMX and beams in the colors R, G, B, A, W and P
-Mushroom with rotating beams in different color combinations
-Equipped with six bright 3 W LEDs in red, green, blue, amber, white and pink
-Operable in stand-alone mode or via DMX interface
-DMX512 control possible via any commercial DMX controller (occupies 10 channels)

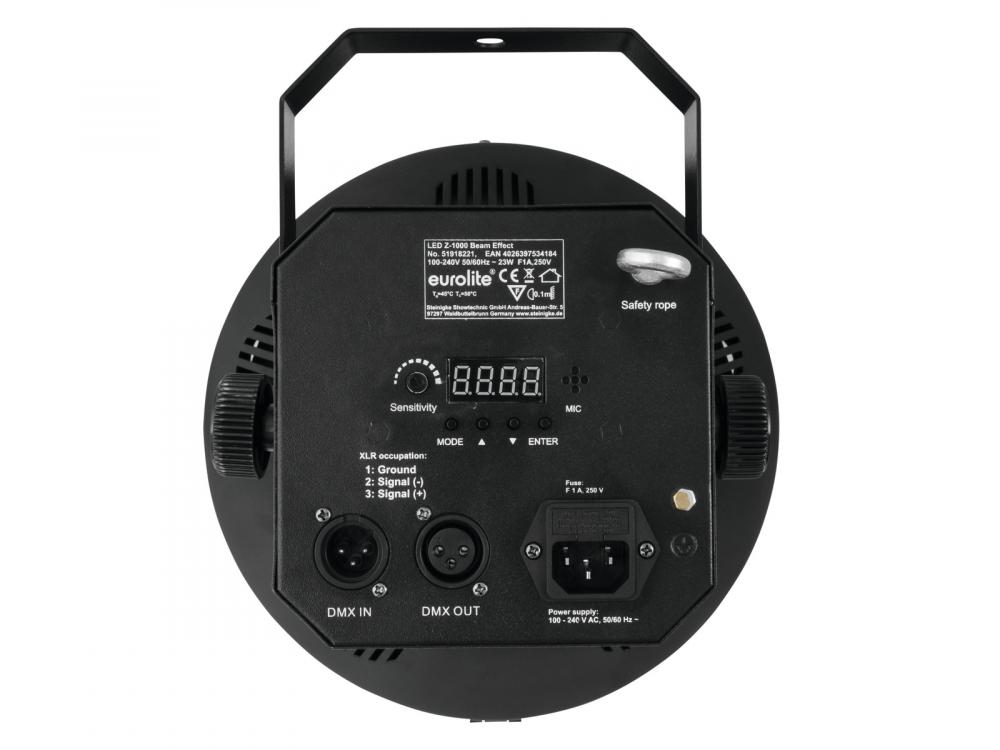

-Comfortable addressing and setting via control panel with LED display and four operating buttons
-Functions: Auto mode, internal programs, sound control mode, strobe settings and rotation via DMX, Master/Slave
-Sound-control via built-in microphone
-Microphone sensitivity adjustable via rotary control
-Easy installation
-Locking possibility at the mounting bracket
-Ready for connection via power cord with safety plug
-Switch-mode power supply for operation between 100 and 240 Volts
-Case color: Black
-Effect: Multi beam effect
-Power connection: Fix Power supply cord with safety plug (M)
-Control: Stand-alone; DMX
-LED: 6 x high-power 3 W RGBWAP
Connectors
DMX connector types
3pin
Control
control channels, min
10 ch
control channels, max
10 ch
Electrical
power consumption watt, max
23.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
2.00 kg
width
275.00 mm
height
280.00 mm
length
310.00 mm
Optical
beam angle/zoom, min
115.00 °
beam angle/zoom, max
115.00 °
light source
LED
Number of light sources
6 pcs
wattage per light source
3.00 W
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
AMBER light source
yes
