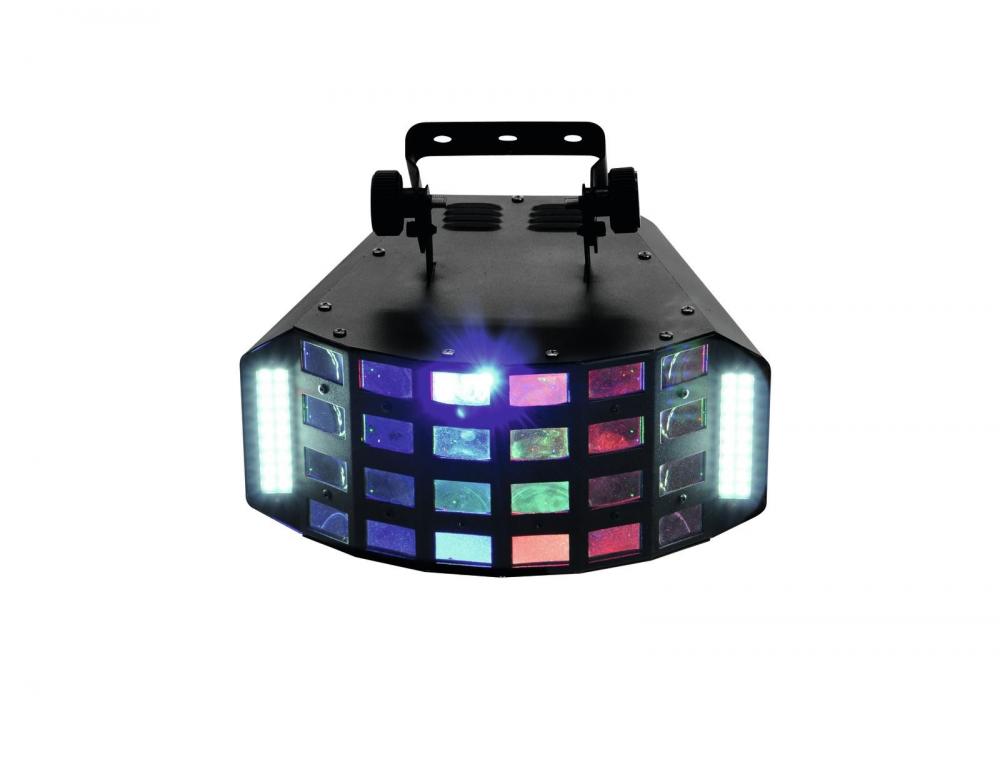

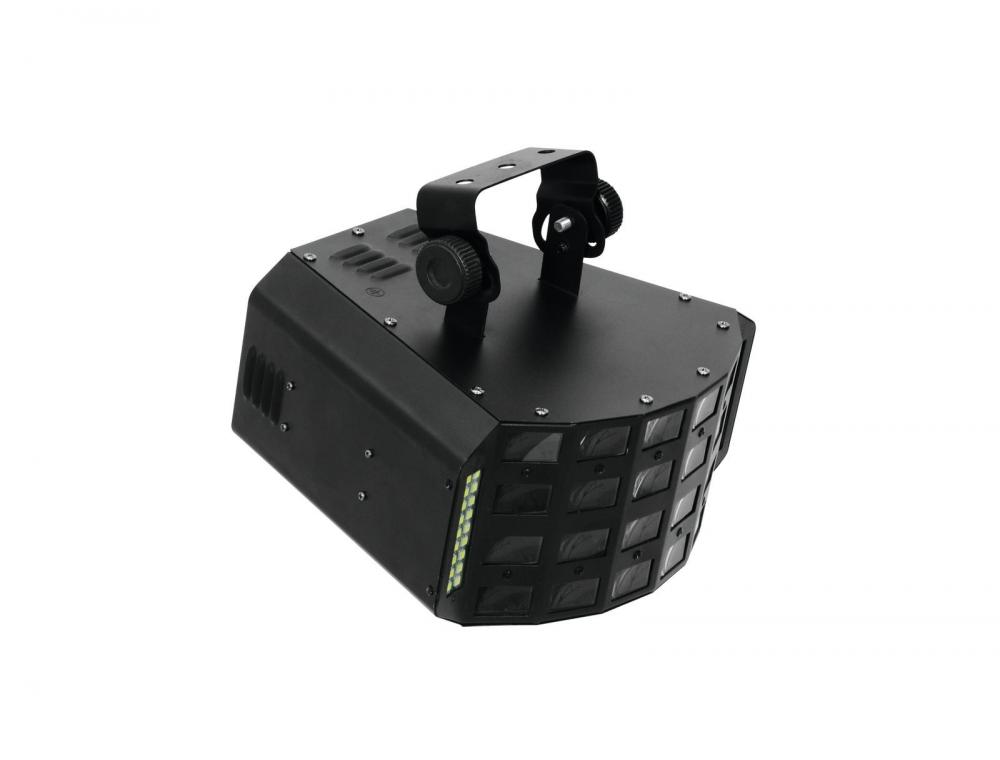

EUROLITE LED D-30 Hybrid Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED D-30 Hybrid Beam Effect

Info
order code
51918310
product link
EAN
4026397551419
Product Name
EUROLITE LED D-30 Hybrid Beam Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 4/13
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 3 W RGBAWP (6in1) / white SMD 5050
LED number: 6/36
Beam angle: 120°
Dimensions (L x W x H): 280 x 290 x 201 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
IP classification: IP20
Weight: 2 kg
Power consumption: 36 W
Laser class: Without laser
Beam angle: 120°
Height: 19,0 cm
Depth: 29,0 cm
Width: 28,0 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 4; 13
LED: 36 x SMD 5050 CW (homogenous color mix); 6 x high-power 3 W 6in1 HCL RGBWAP
Power supply: 110-240 V AC, 50/60 Hz
main features
DMX lighting effect with RGBAWP derby, white strobe LEDs, and IR remote control
-Derby effect with rotating beams in different color combinations
-Absolute eyecatcher

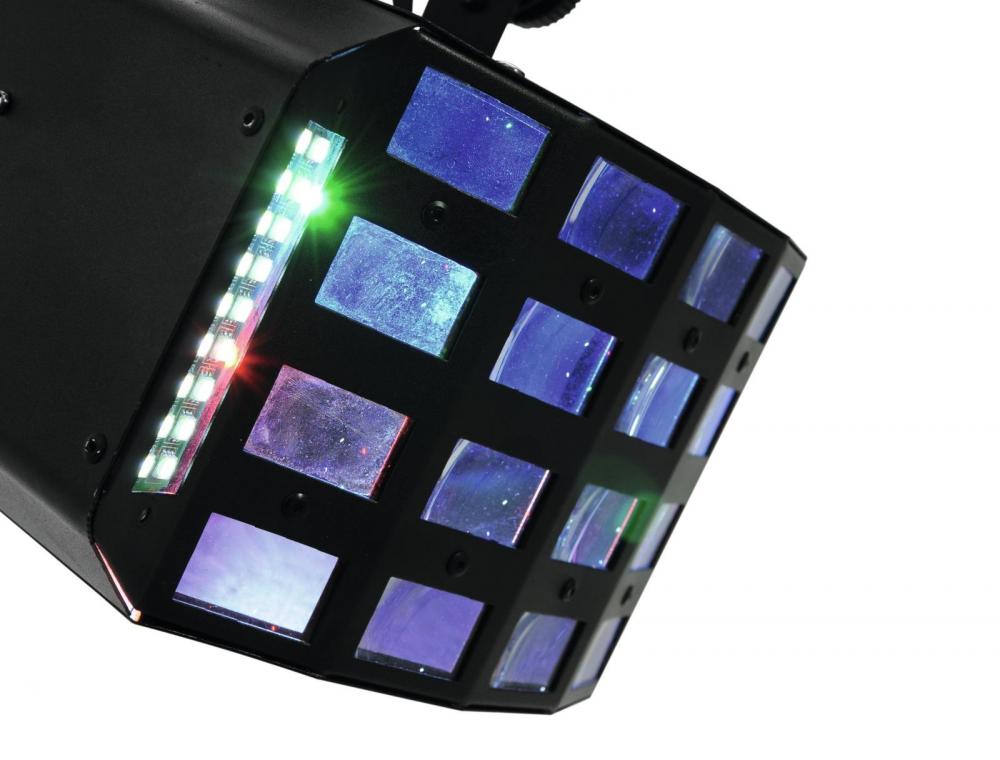

-6 high-power 3 W RGBAWP LEDs (6in1) are arranged behind the lenses
-2 side strips with 36 cold white LEDs provide fast, dynamic strobe ffects
-Operable in stand-alone mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies max. 13 channels)
-4 or 13 DMX channels selectable for numerous applications
-Sound-control via built-in microphone
-Adjustable microphone sensitivity via control board
-The colorful beams change their direction of movement at every bass-beat in sound controlled mode
-Comfortable addressing and setting via control panel with LED display and four operating buttons

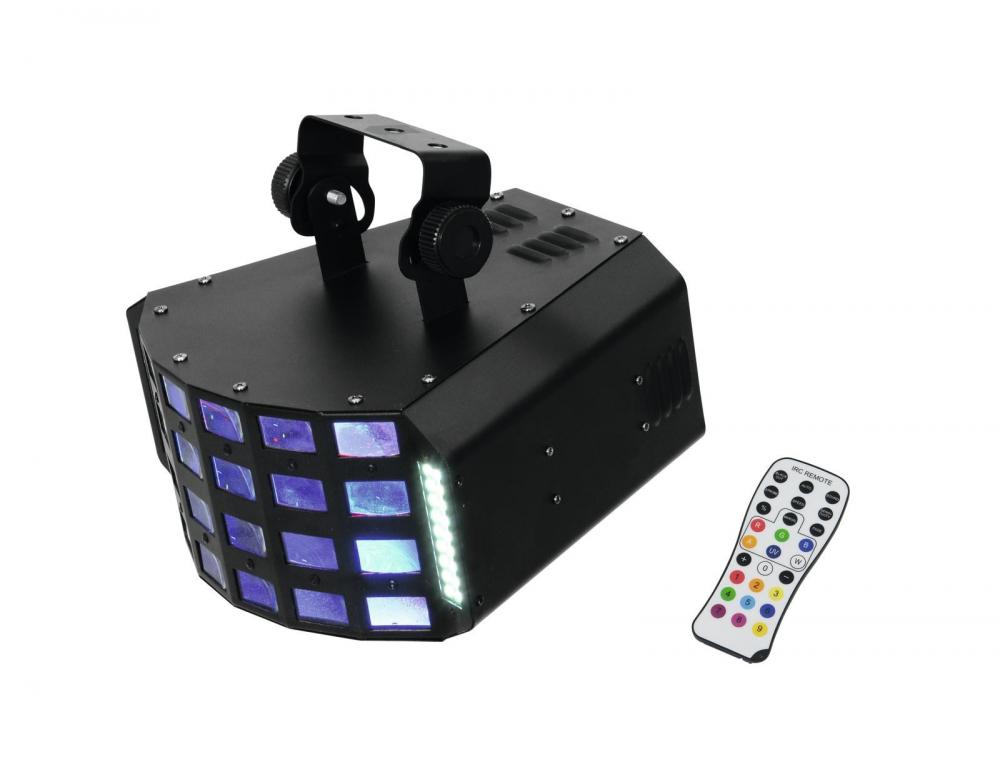

-Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
-Functions: Static colors, RGBAWP color blend, auto mode, sound control, internal programs, dimmer and strobe settings via DMX, Master/Slave
-Equipped with 6 x 3 W RGBAWP LEDs as well as 36 x SMD LEDs in white
-Locking possibility at the mounting bracket
-Switch-mode power supply for operation between 100 and 240 volts
-IEC Power cord with safety-plug included in delivery
-Case color: Black
-Effect: Multi beam effect; Strobe effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 36 x SMD 5050 CW (homogenous color mix); 6 x high-power 3 W 6in1 HCL RGBWAP
Connectors
DMX connector types
3pin
Control
control channels, min
4 ch
control channels, max
13 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
2.00 kg
width
280.00 mm
height
190.00 mm
length
280.00 mm
Optical
beam angle/zoom, min
120.00 °
beam angle/zoom, max
120.00 °
light source
LED
Number of light sources
36 pcs
wattage per light source
3.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
AMBER light source
yes
